Product Overview

Description



Product Overview


HPS is the manufacturer and supplier of planetary gearbox in China, wide-range series planetary gearbox have been exported to 30+ countries all over the world, 20+ years
experience from design, manufacturing and sales, and served 100+ large projects in different industries worldwide, which makes HPS the most trustable and reliable planetary gearbox manufacturer.

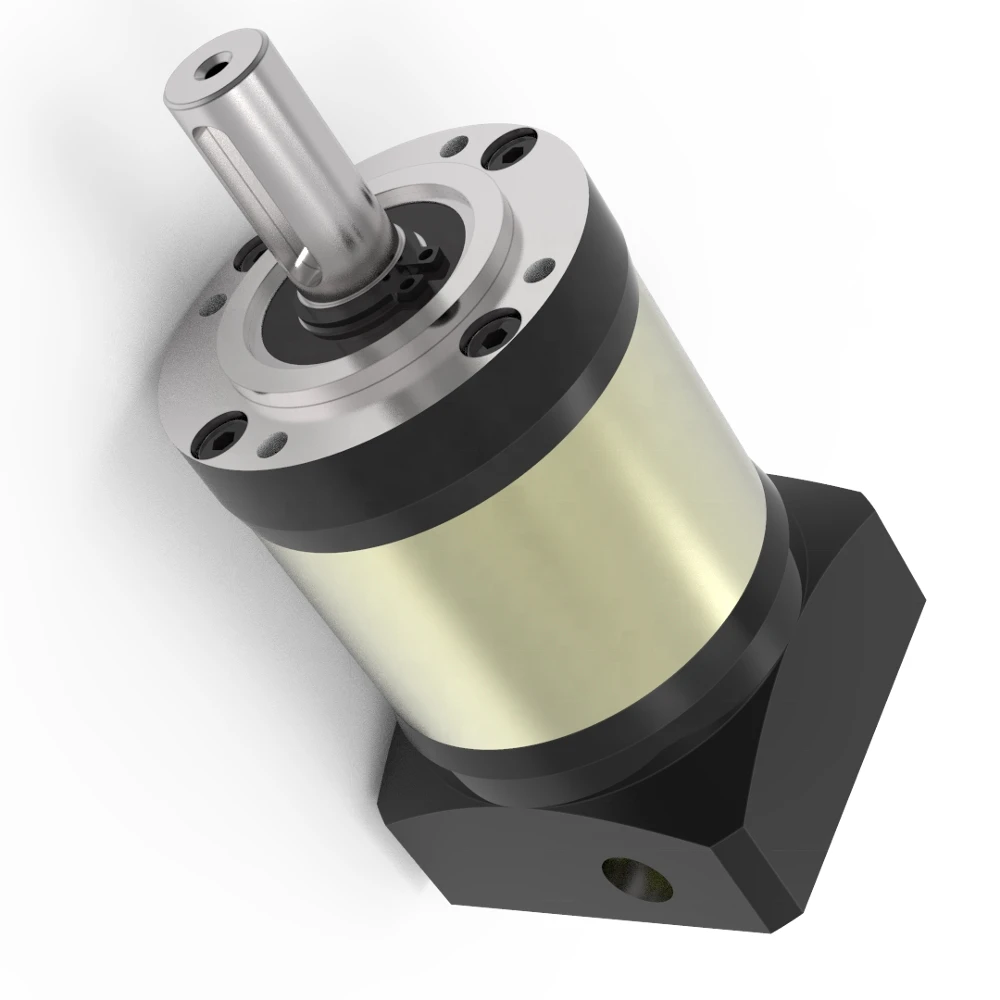

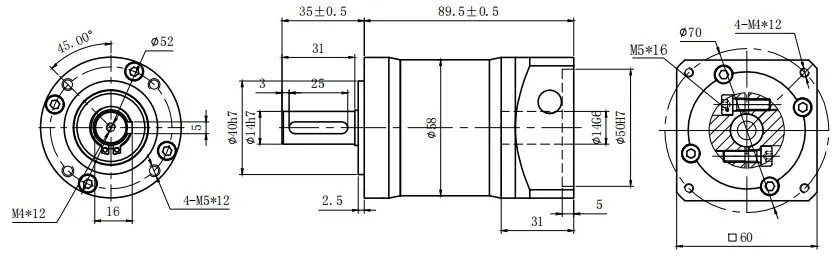

Products Description


Model
SPLE60-L2MB
Drive series
2
Ratio
16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1
Backlash (arcmin)
≤10
Rated output torque(N.m)
30
Max torque(N.m)
45
IP Grade
IP54
Noise (db)
≤60
Working temperature(℃)
-40~80




Why Choose Us






Application Field




Exhibition



HPS attends 5-6 exhibitions every year, both solar PV exhibitions and automation industry exhibitions, professional sales team and quality products build HPS a good reputation in the market.


Successful Project







Certifications




Product packaging




Package Type: Standard export packing & Wood pallets packing


FAQ


Q1：Are you manufacturer ?
A1：Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you. .
