Product Overview

Description

Smart 2 Line Sip What Is Wifi Ip Based Wireless Monitor 4 Wired Hands Video Intercom Door Phone

Smart 2 Line Sip What Is Wifi Ip Based Wireless Monitor 4 Wired Hands Video Intercom Door Phone

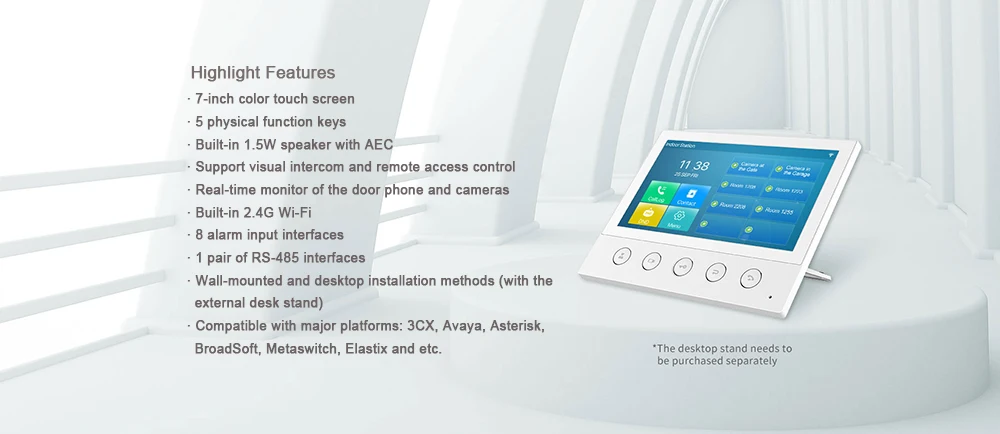

SIP Indoor Station Monitor

Q53W is a 7-inch color touch screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance

Q53W can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces

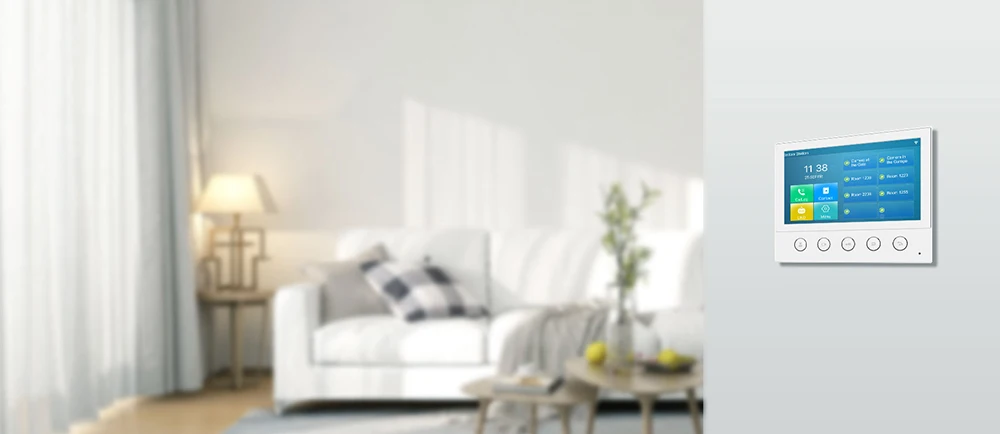

Elegant Design with 7-inch Color Touch Screen

Q53W delivers a user-friendly experience with an elegant design and a clear 7-inch color touch screen

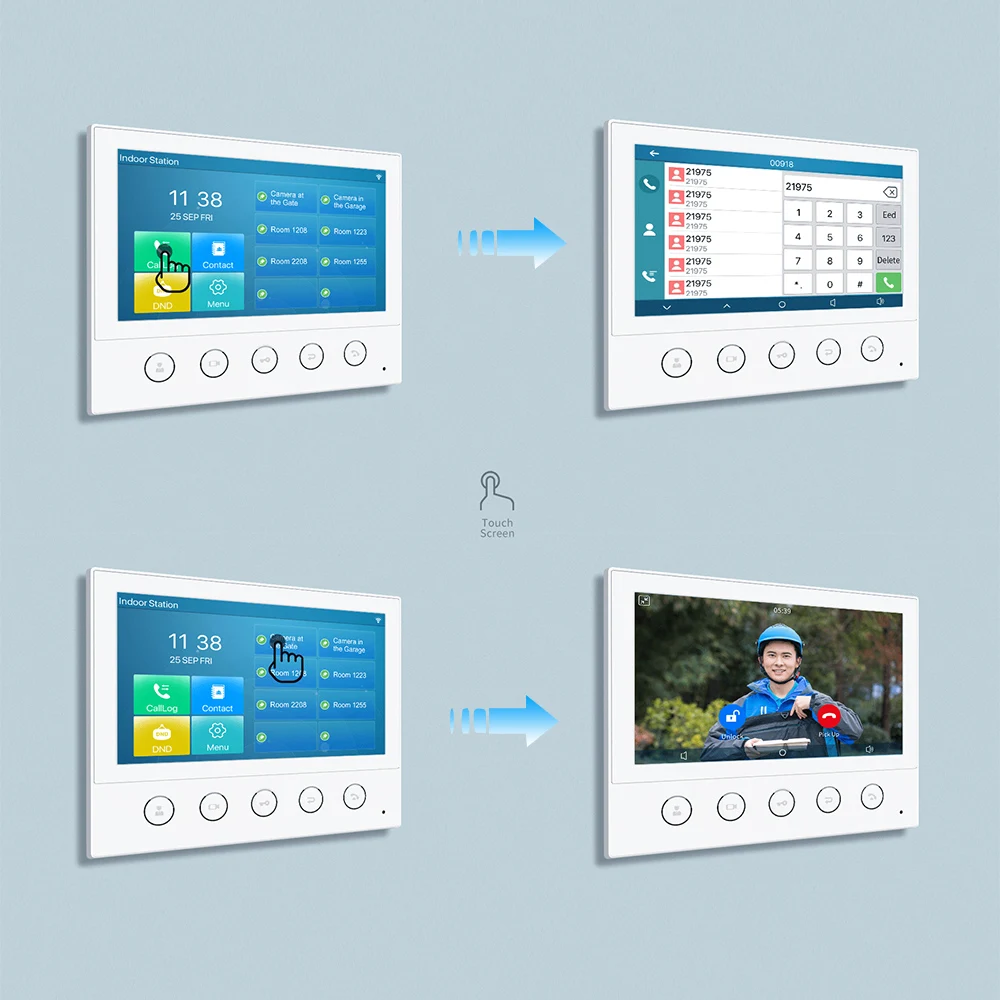

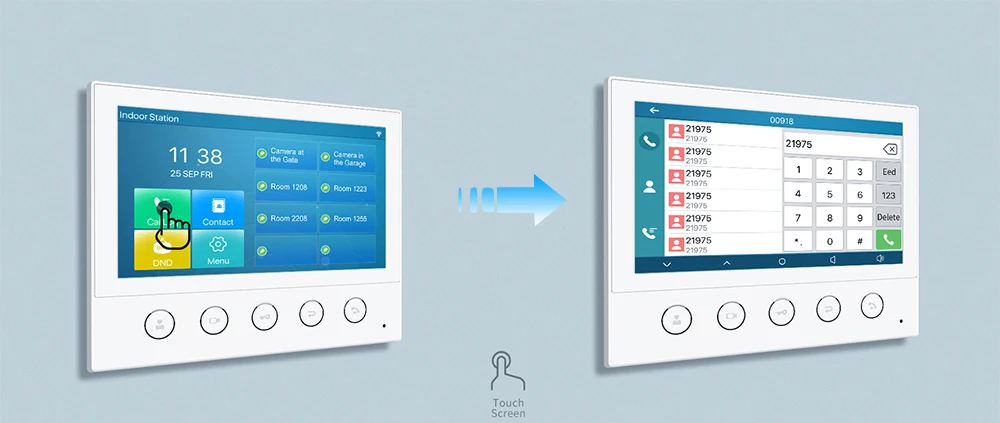

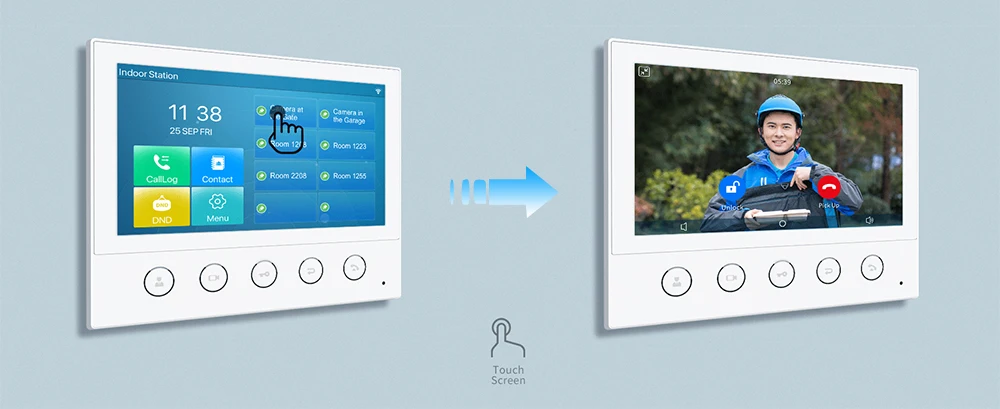

Easier Operation

With a clear touch screen, Q53W offers a direct access to all key functions at your fingertips,providing a smoother operation experience for the users

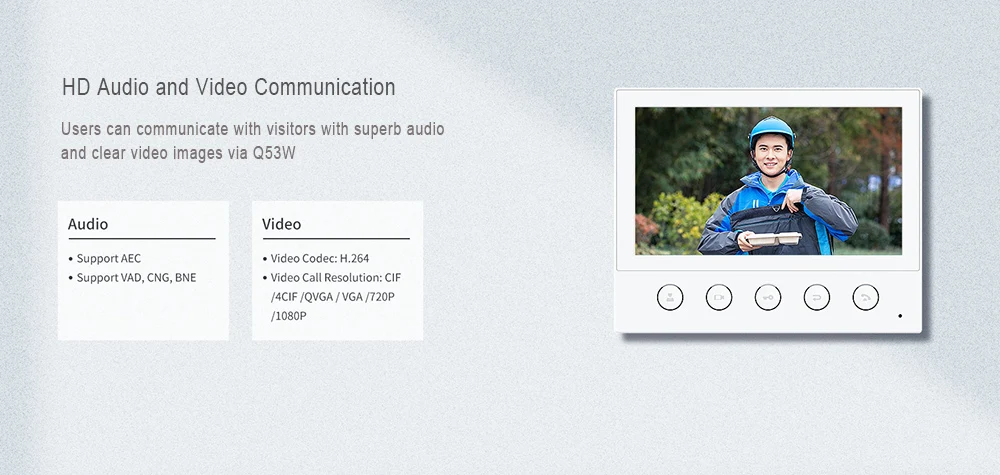

HD Audio and Video Communication

Users can communicate with visitors with superb audio and clear video images via Q53W

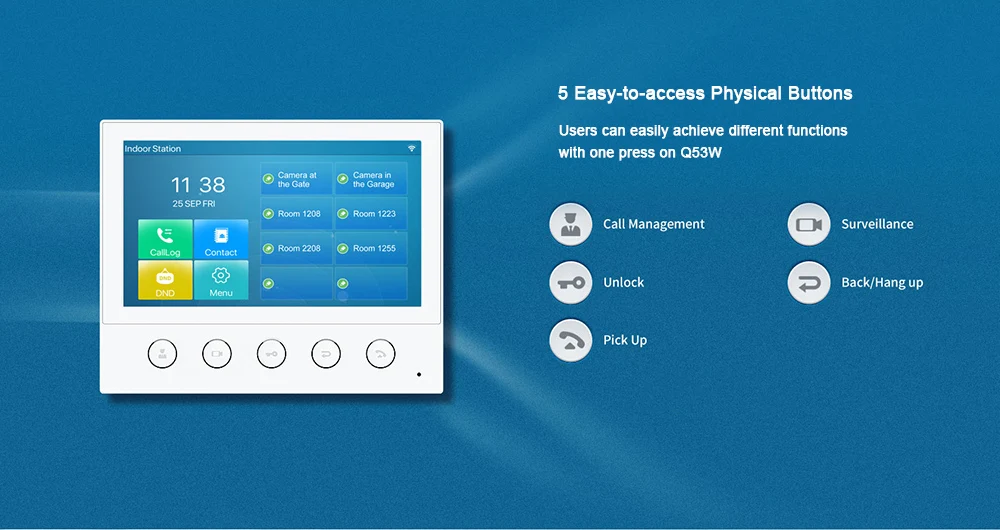

Easy-to-access Physical Buttons

Users can easily achieve different functions with one press on Q53W

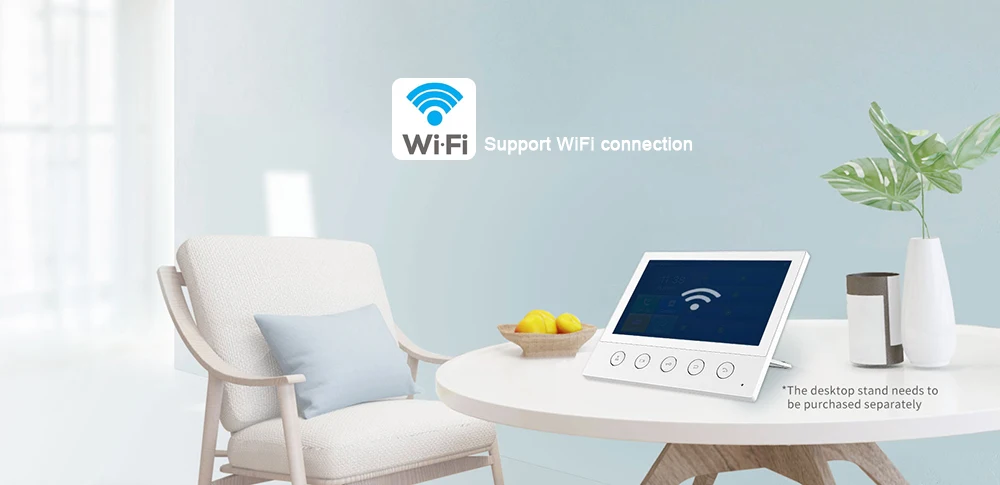

Built-in 2.4G Wi-Fi

Q53W supports built-in 2.4G Wi-Fi, and it allows users to choose wireless connection mode for different requirements

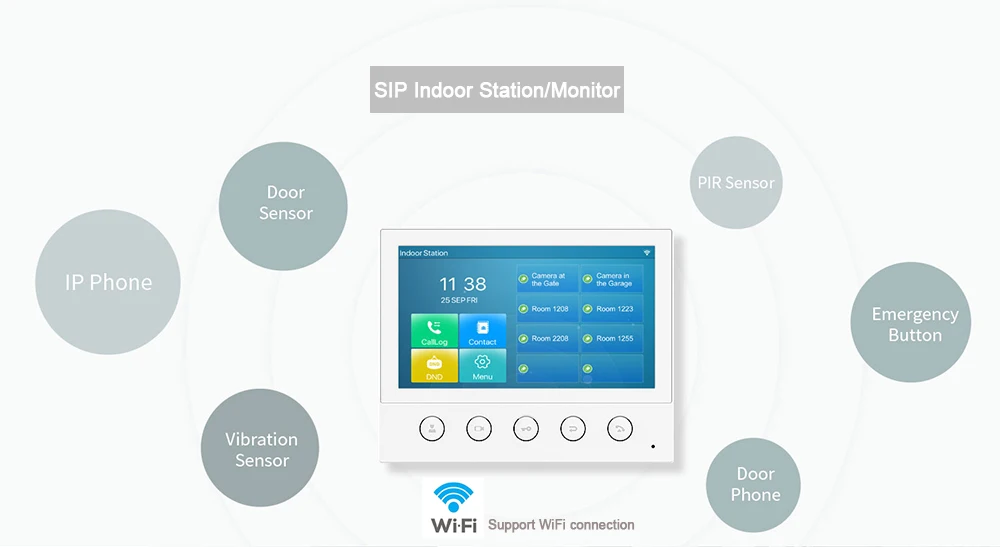

Rich Interfaces

Q53W is flexible and powerful with rich interfaces to connect more security devices



Specification

Generic		Network
6 SIP Lines		10/100 Mbps Ethernet
PoE or 12V1A DC		IP Mode:IPv4/IPv6/IPv4&IPv6
		IP Configuration: Static / DHCP / PPPoE
Display		VPN: L2TP / OpenVPN
7-inch 800x480 tft LCD		QoS
		RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
Audio		Support Wi-Fi connection
Full duplex hands free with AEC
DTMF:In-band,DTMF-Relay (RFC2833)		Physical Specifications
Narrowband codec: G.711A/U, G.729AB, iLBC		5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
Wideband codec: G.722, Opus		Wall-mount Bracket x1
		RS485 Interface x1
Video		Alarm Input Interface x8
Hardware video decoding: H.264		Power: PoE or DC 12V/1A
Video: QVGA / CIF / VGA / 4CIF / 720P / 1080P		Working Temperature: 0~45℃, Working Humidity: 10~90%
		Color: White
Protocols		Installation:
SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS		1) Wall-mounted

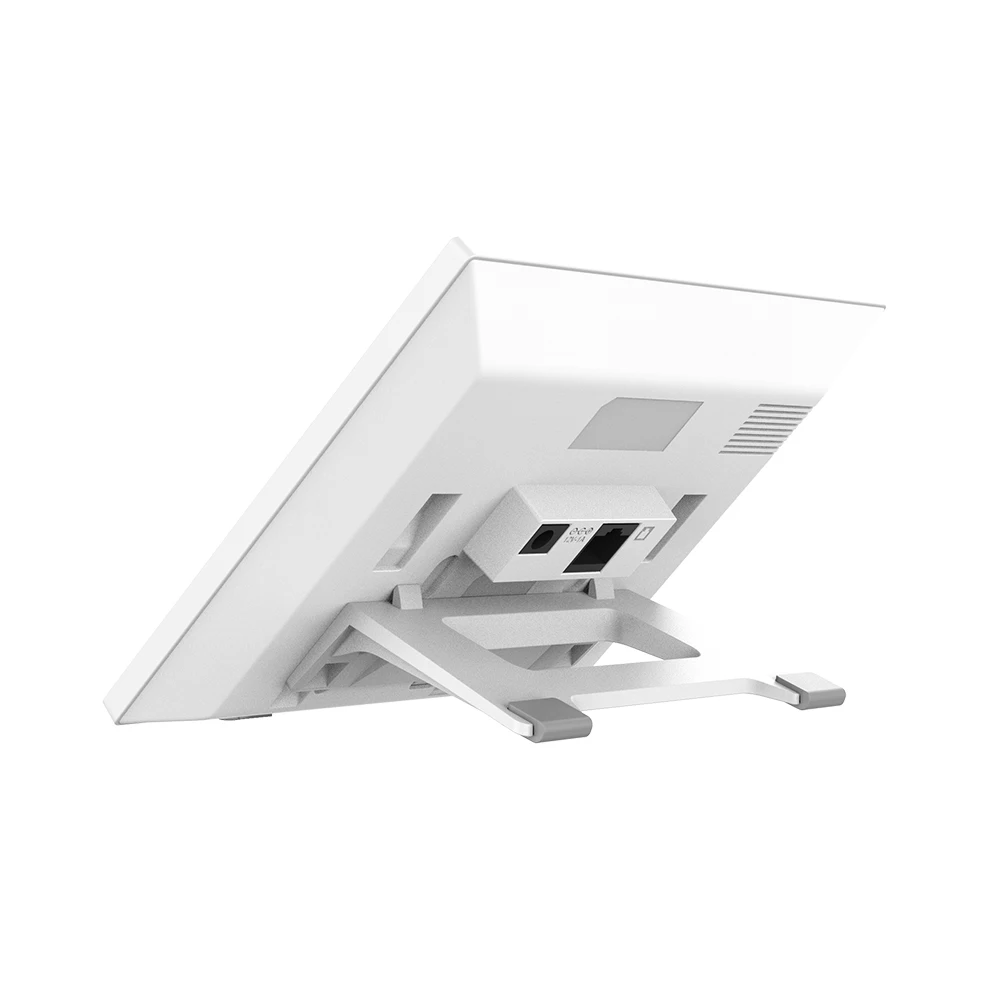

RTP/RTCP/SRTP		2) Desktop (Need to purchase stand separately)
STUN, OpenVPN, TR-069		Device Dimensions: 176x104x26.5 mm
DHCP, IPv6, PPPoE, L2TP		Gift Box Dimensions: 193x152x39 mm

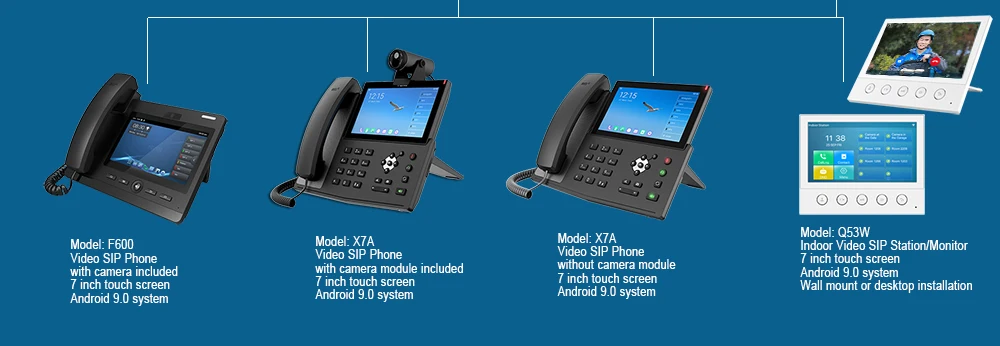

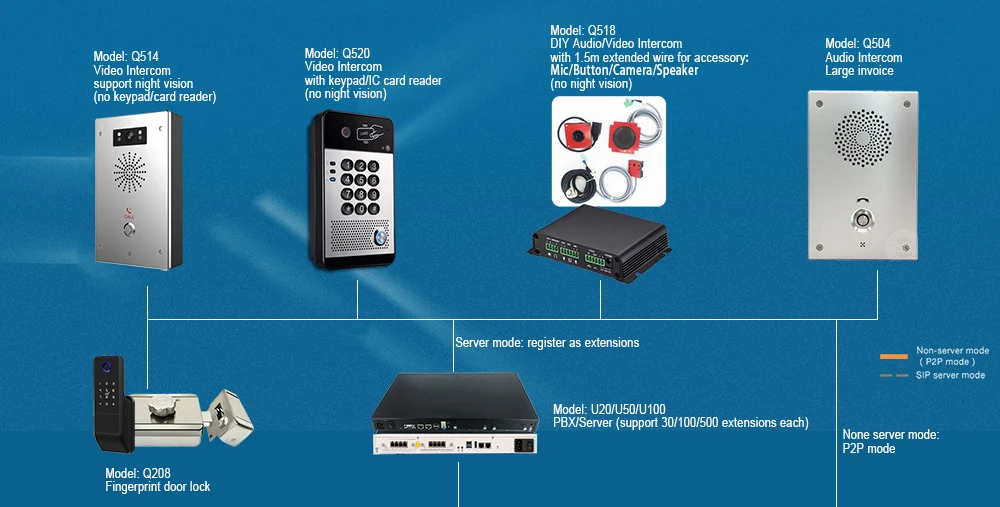

Intercom system solution

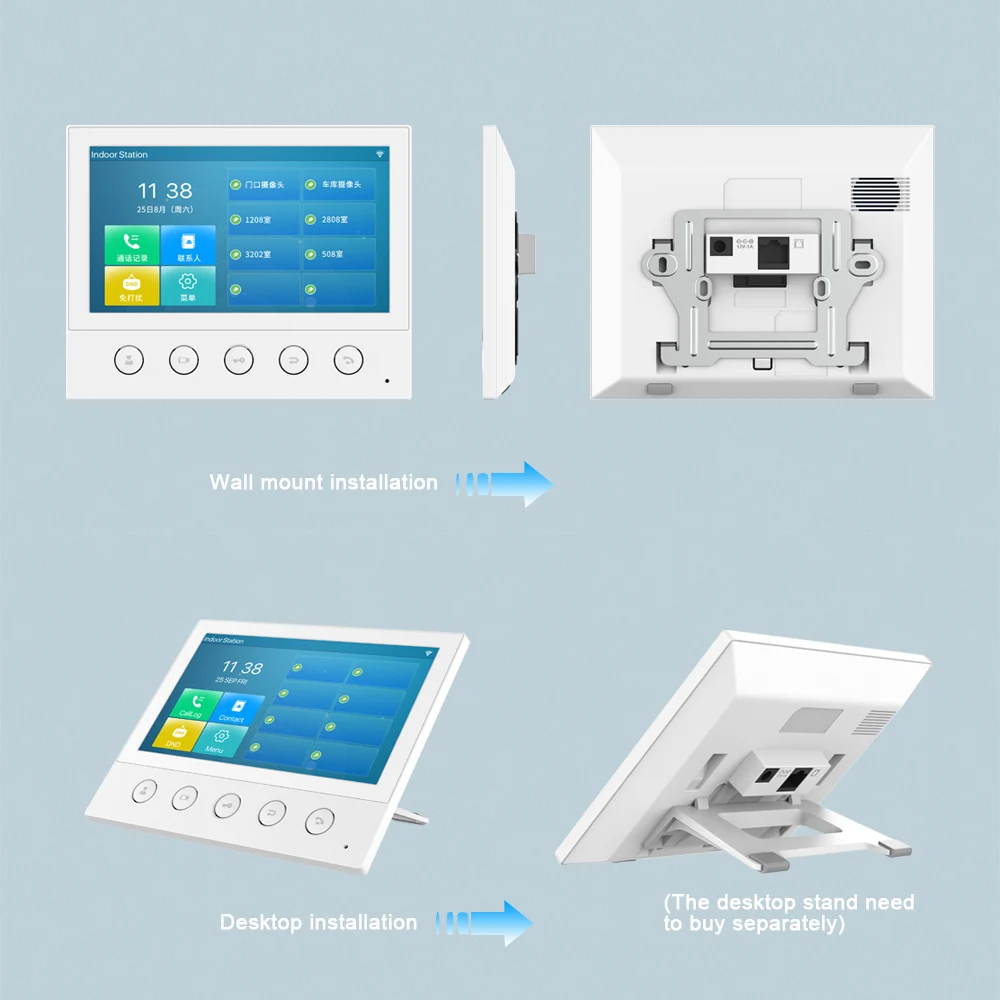

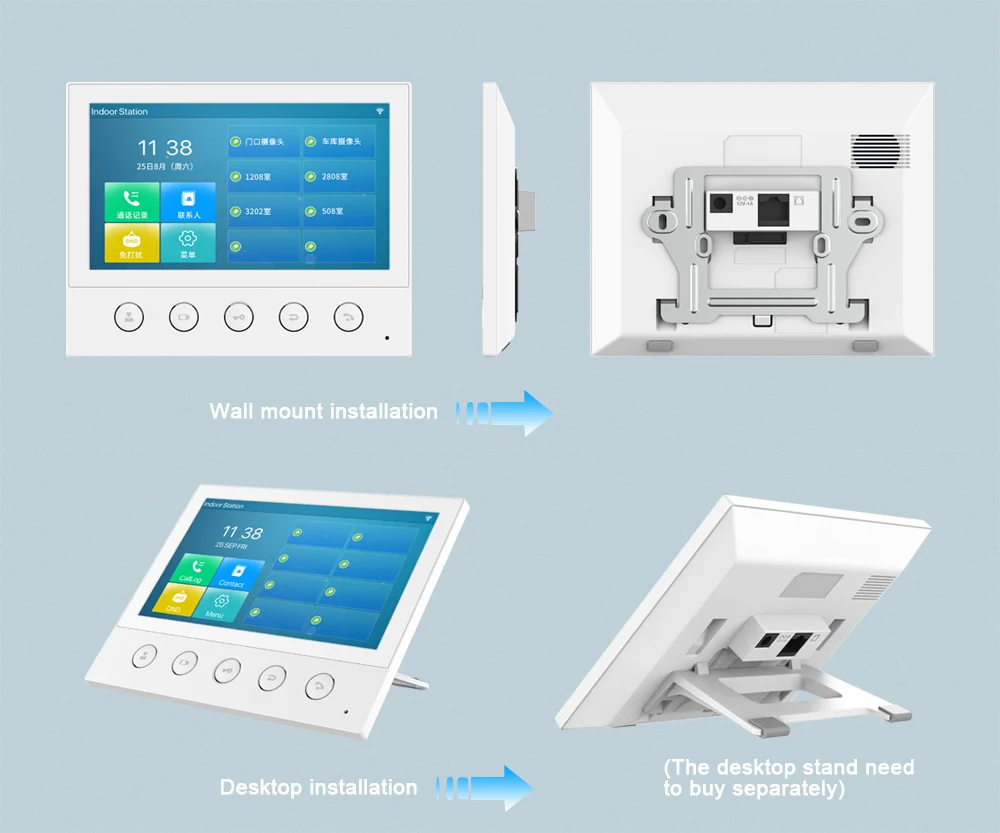

Wall-mount and Desktop installation supported
