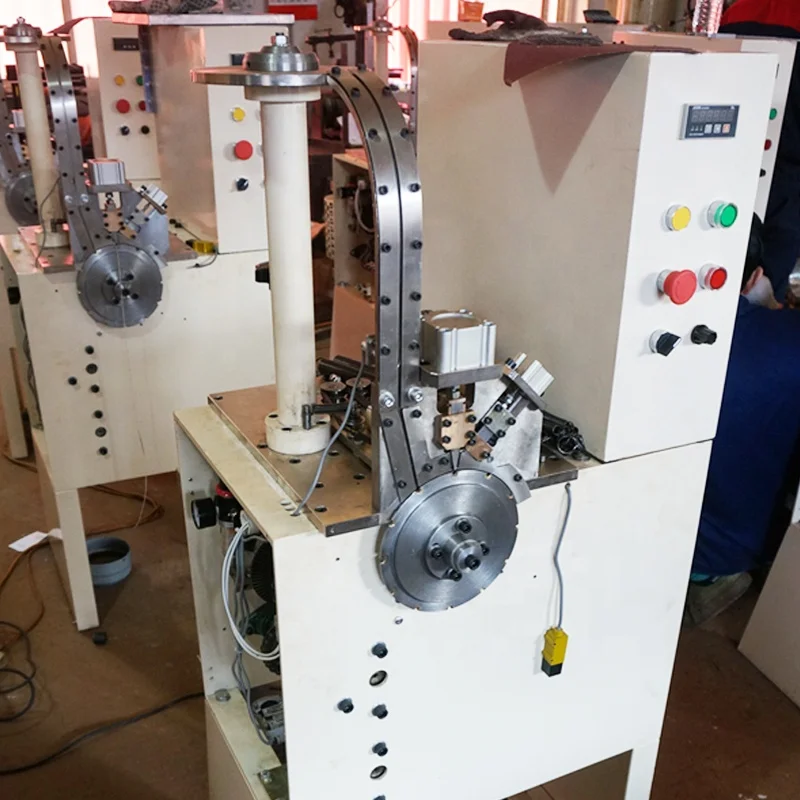

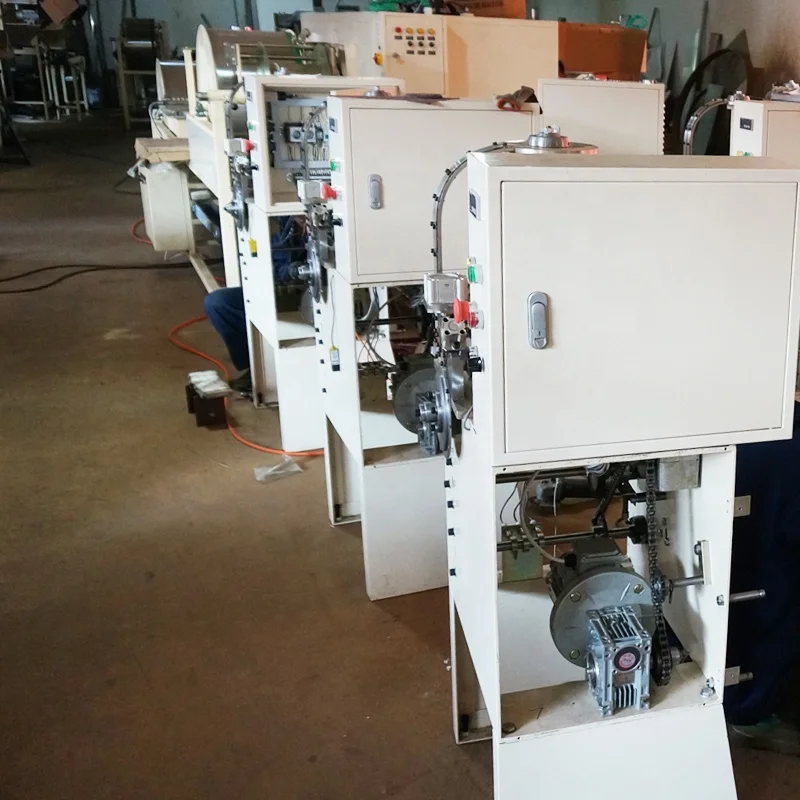

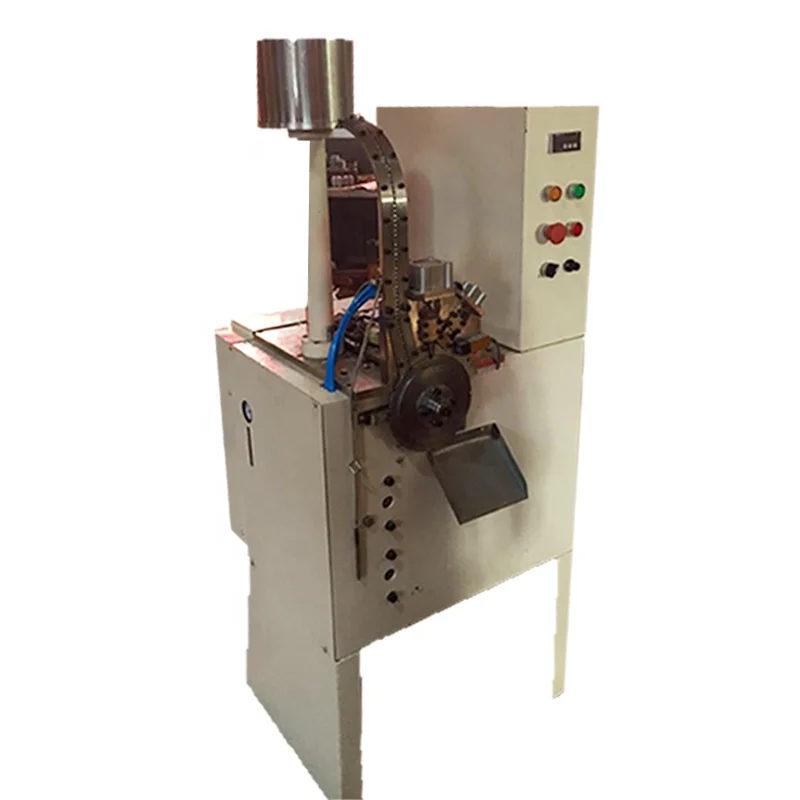

Adjustable Length and Speed Candle Cotton Wick Cutter Machine
- Category: >>>
- Supplier: Liaoning Gaoge New Material Co. Ltd.
Share on (1600319671802):
Product Overview
Description
Product Overview
Item | Main technical parameters |
Device name： | Wick cutting machine |
Model： | GW-090 |
Neck height of wax holder： | 3mm-4mm |
Diameter range of wax holder： | 12.5-14mm,other size replacement mold |
Candle wick wire diameter： | 1.5-2.5mm,other diameters to be customized |
Voltage： | 380v (conventional); 220v can be customized |
Candle wick length range： | 10mm-500mm |
Hourly output： | 7,200, adjust the speed according to the line length |
Main motor power： | 0.37KW |
Stirrer power： | 0.025KW |
weight： | 200KG |
Dimensions： | 600*600*1250mm |
Power configuration： | 0.37kw voltage 380v; 220v customized |
Application： | The candle wick and wax tray are clamped together by the machine. |
Automatic cord-cutting machine in the original automatic cord-cutting machine on the basis of more perfect improvement.
After the improvement, the functions required by the machine have been greatly improved through the combination of various related components: wax feeding, wax wire, wire cutting, the whole process is carried out automatically under the electronic control;Especially the cord-cutting length from 10mm-350mm to infinite length, the operator can do any setting on the controller, length error is small.
It is suitable for the wax core production of various specifications of cup wax, column wax, tea wax and artistic candle.It is a common equipment for candle manufacturing enterprises.
After the improvement, the functions required by the machine have been greatly improved through the combination of various related components: wax feeding, wax wire, wire cutting, the whole process is carried out automatically under the electronic control;Especially the cord-cutting length from 10mm-350mm to infinite length, the operator can do any setting on the controller, length error is small.
It is suitable for the wax core production of various specifications of cup wax, column wax, tea wax and artistic candle.It is a common equipment for candle manufacturing enterprises.

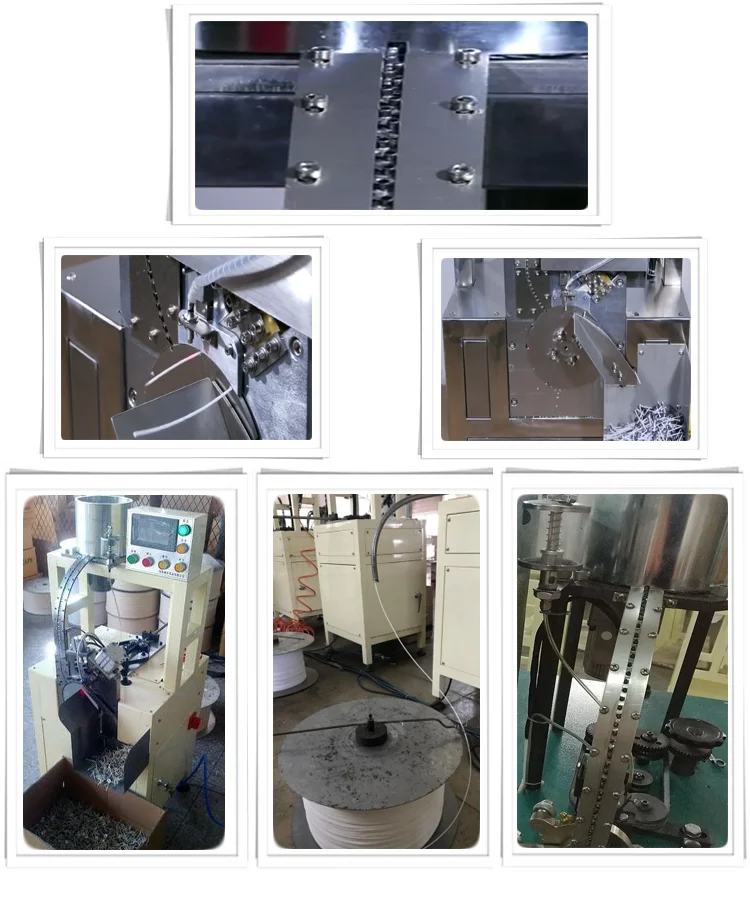

Details Images
Main Features
1. Automatic wick feeding by step motor.
2. Adopting advanced PLC and invertor.
3. Wick length set by touch panel.
4. Auto stop when there is no wick or wick tab.
5. Auto stop when the preset quantity is reached.
2. Adopting advanced PLC and invertor.
3. Wick length set by touch panel.
4. Auto stop when there is no wick or wick tab.
5. Auto stop when the preset quantity is reached.
Machine Designing
If the wick tabs used by customers are special in dimension or wick length is longer than normal, our general engineer has to adjust the machine design or the parameters of PLC to suit the special wick tabs or wick length.
Production Management
The machine has hundreds parts. Our production engineer assigns the part-manufacturing tasks to suitable machine tools according to the accuracy requirement of general engineer. He measures the parts to guarantee that they conform with the drawings.
Customer Feedback
We are the supplier of the Trade Assurance amount guaranteed by Alibaba, your payment will be 100% protected, the following is our Trade Assurance Transaction History:
Packing & Delivery
Recommend Products
Company Profile
FAQ
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: What is your strength compared to other suppliers?
A: Good quality, competitive price and timely delivery time.
Q: What is your first order payment terms?
A: Payment terms: 30% deposit in advance and 70% balance against the copy of B/L.
Q: Can you proceed by our specification and package?
A: Definitely is available, we do OEM service and any of your request about package can be customized.
