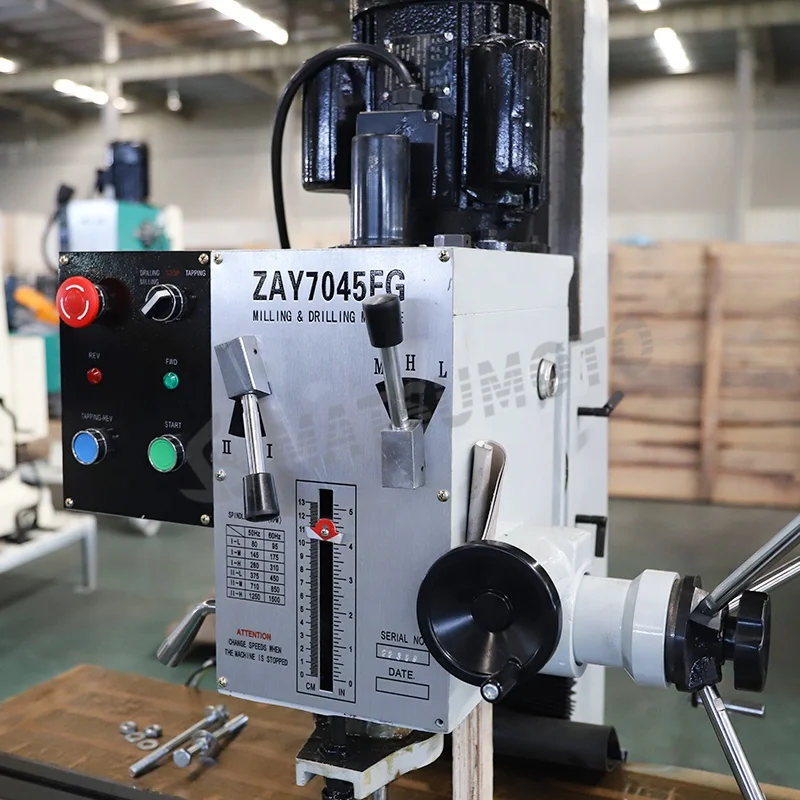

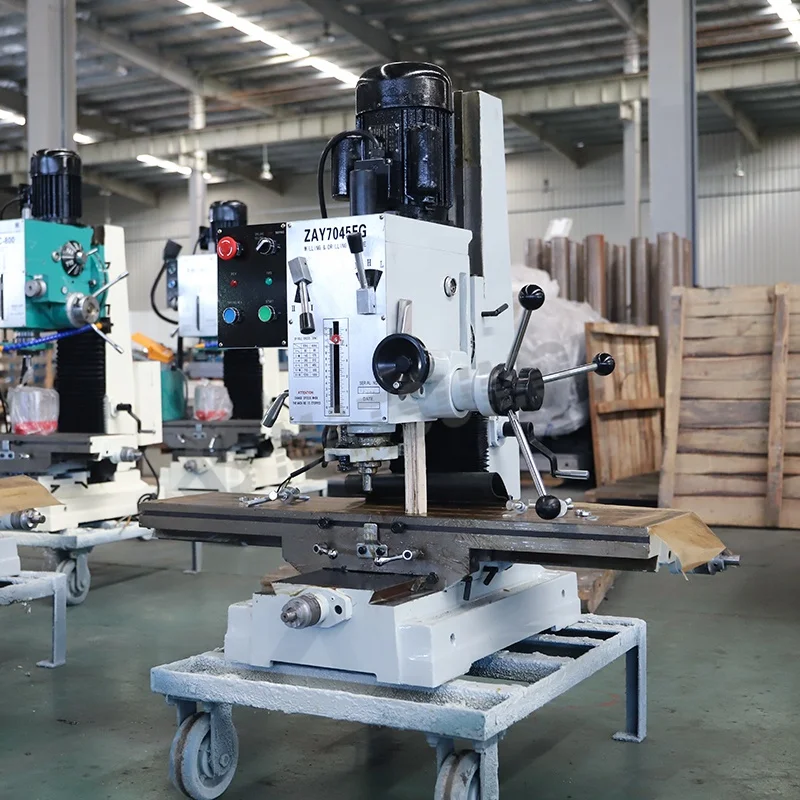

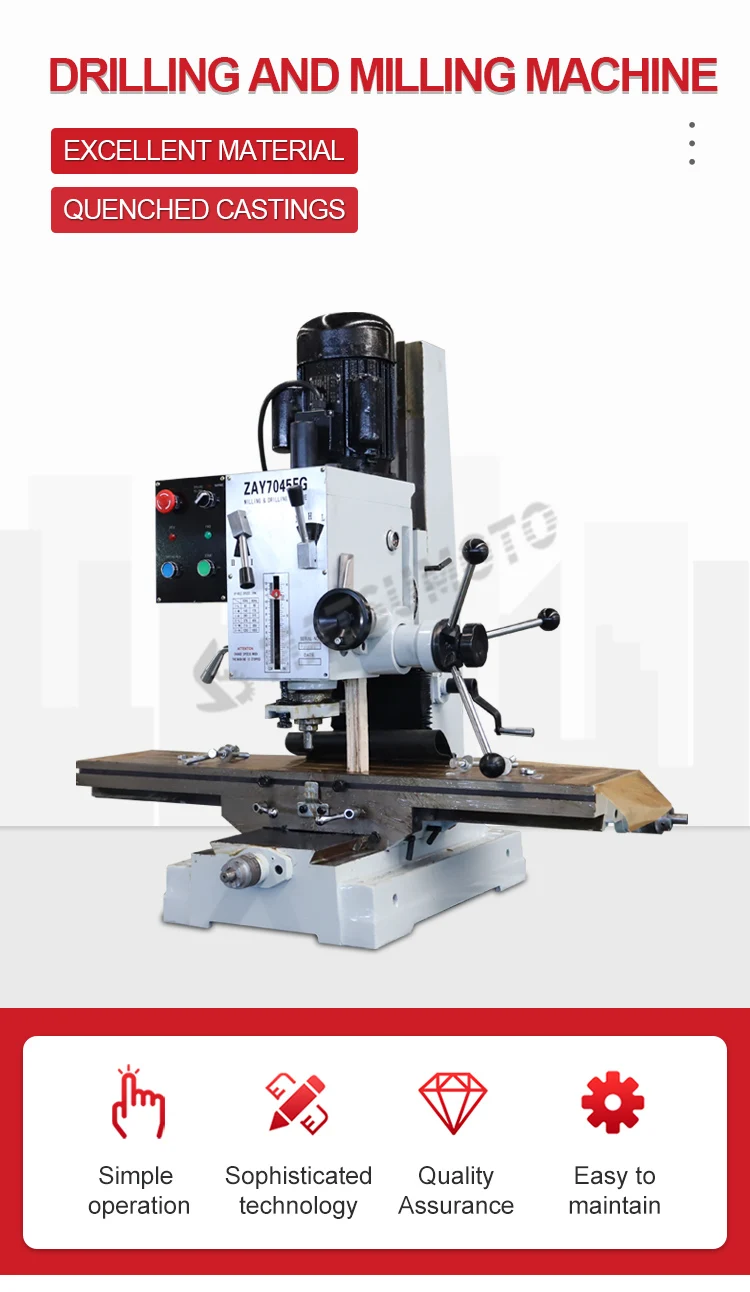

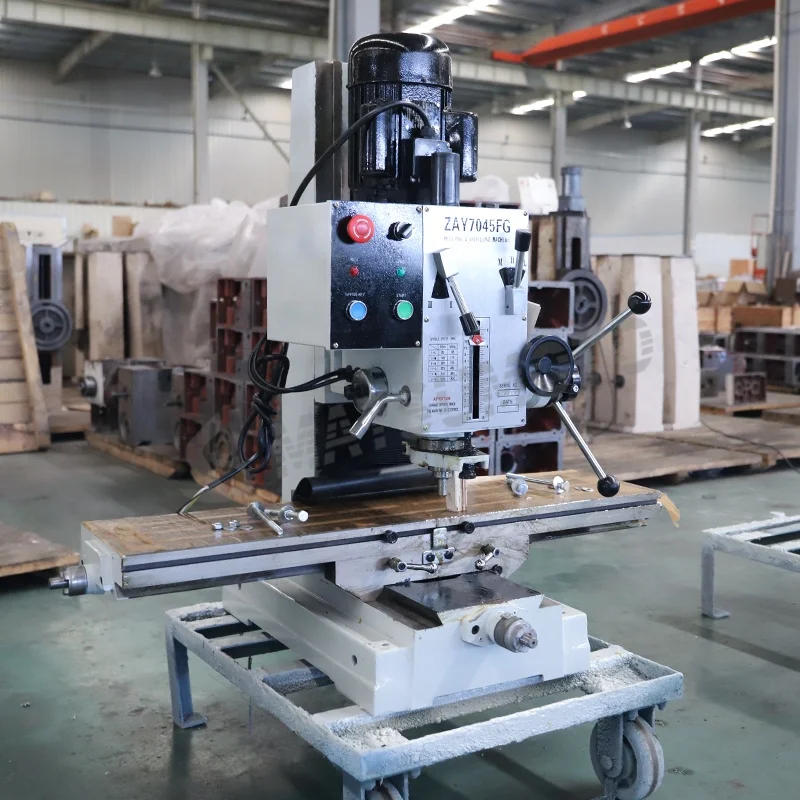

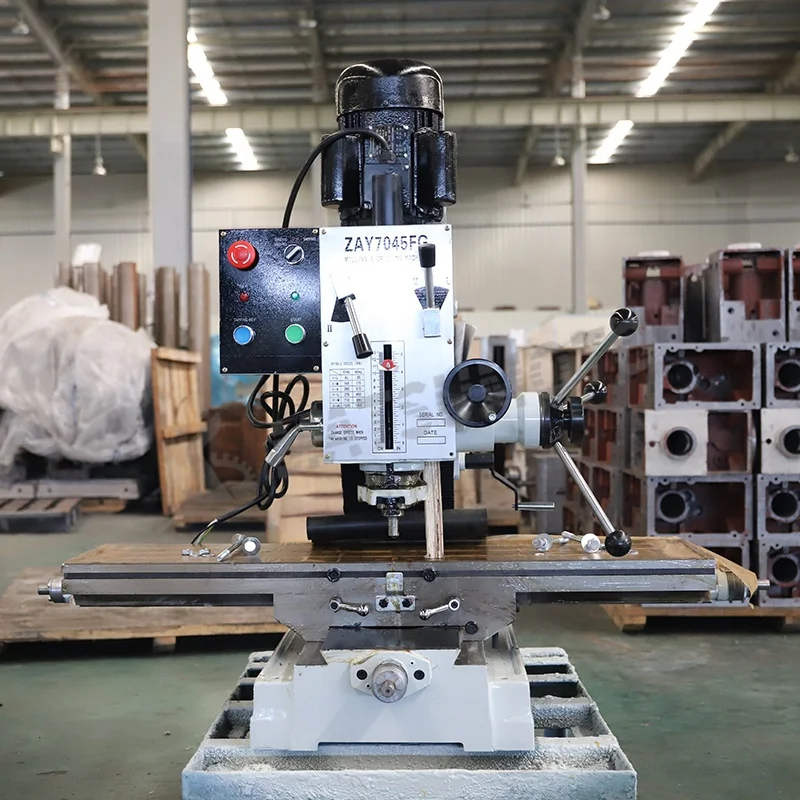

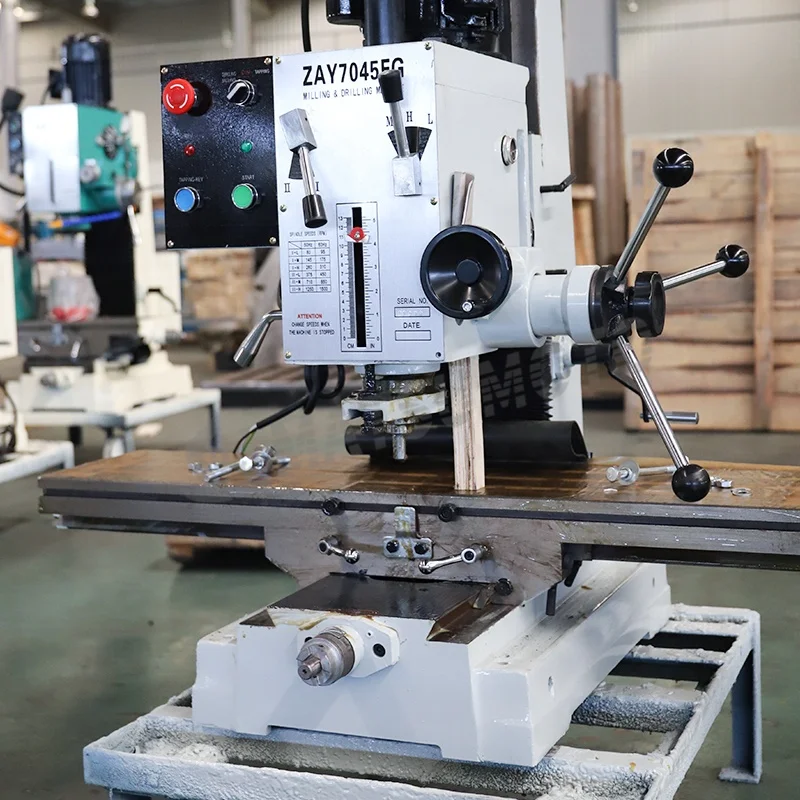

Universal Milling Machine Price Hobby Milling Machine Manual Mills ZX7045FG ZAY7045FG Universal milling and drilling machine
- Category: >>>
- Supplier: Shandong Matsumoto Machine Tool Co. Ltd.
Share on (1600319869900):
Product Overview
Description
Products Description
Product Paramenters
The main performance characteristics：
Gear-driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 vertically
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Gear-driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 vertically
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
MODEL | ZAY7032FG | ZAY7040FG | ZAY7045FG | ||
Max Face mill capacity | 32mm | 40mm | 45mm | ||
Max End mill capacity | 63mm | 80mm | |||
End milling capacity | 20mm | 32mm | |||
Max.distance from spindle nose to table | 450mm | ||||
Min.distance from spindle axis to column | 260mm | ||||
Spindle travel | 130mm | ||||
Spindle taper | M.T.3 or R8 | M.T.4 or R8 | |||
Step of spindle speed | 6 | ||||
Range of spindle speed 50Hz | 80-1250 r.p.m | ||||
60Hz | 95-1500 r.p.m | ||||
Swivel angle of headstock(vertically) | 90° | ||||
Table size | 800×240mm | ||||
Forward and backward travel of table | 175mm | ||||
Left and right travel of table | 500mm | ||||
Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) | ||
Voltage/frequency | As customer's requirement | ||||
Net weight/gross weight | 320kg/370kg, 325kg/375kg | ||||
Packing size | 770×880×1160mm | ||||
Loading amount | 36pcs/20container | ||||
Standard accessories: | Optional accessories: |
Allen wrench Wedge Tie rod | Stand Oil basin Milling cutter holder Drill chuck Milling chuck Power feed attachment Tapping electrical system Machine vice Working lamp Coolant system clamping kits（58pcs） rotary table 2-axis DRO,3-axis DRO |
