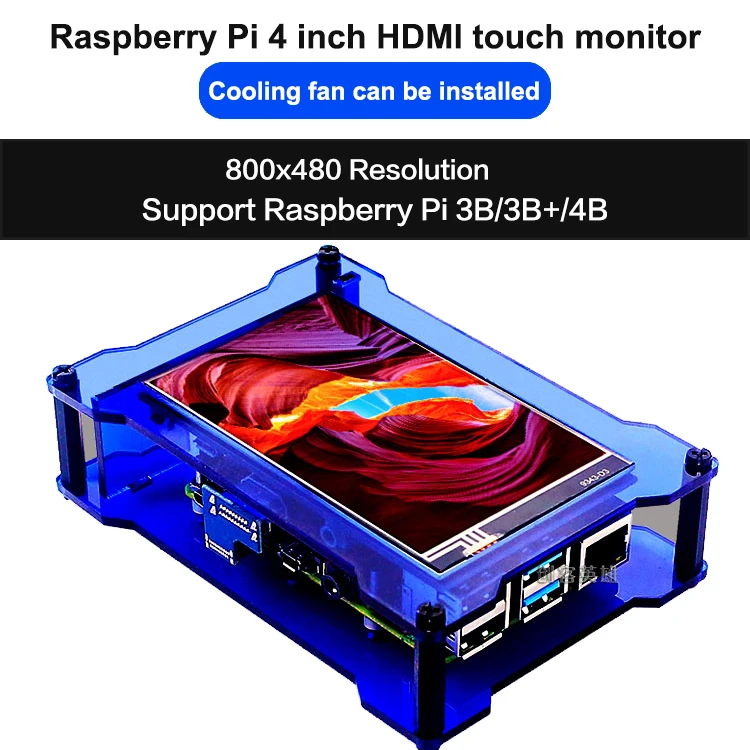

4.0 inch High Speed Touch Screen Display 800x480 TFT LCD SPI Monitor for Raspberry Pi 4 3 2 A, A , B, B , HDM Factory
- Category: LCD Touch Screen >>>
- Supplier: Hengrui (Shenzhen) Technology Co. Ltd.
Share on (1600319870432):
Product Overview
Description
Customizable
Supportable customized solutions:
☑ Logo(Packing , Logo)
☑ Product Color
☑ Specification/Function Customization
☑ Interfaces Customization
☑ The case mould Customization
☑ Product Color
☑ Specification/Function Customization
☑ Interfaces Customization
☑ The case mould Customization
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Recommend Products
Products Description
3.5inch HDMI Display
* ⚡️ * 3.5inch standard display, support HDMI input, refresh rate above 60FPS.
* ⚡️ * Physical resolution 480x320, configurable software resolution up to 1920x1080.
* ⚡️ * It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi.* ⚡️ * It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on.

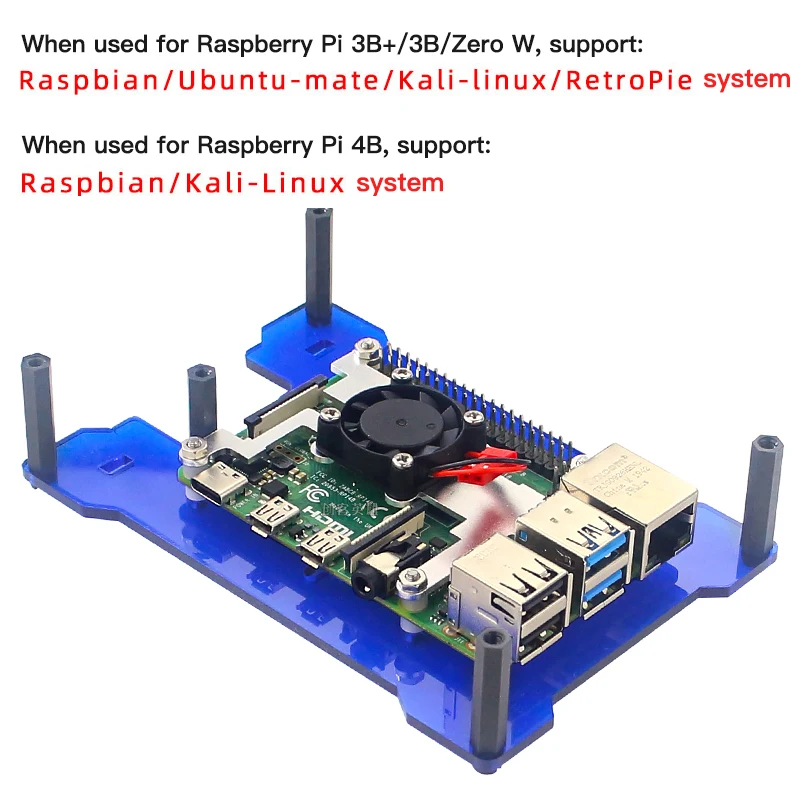

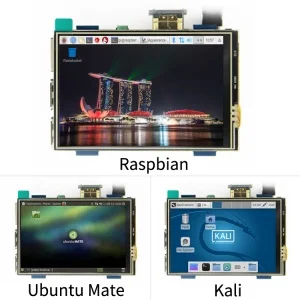

* ⚡️ * Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive.
* ⚡️ * * Work as a PC monitor, support Win7, Win8, Win10 system (No touch Function).
* ⚡️ * * Support HDMI audio output,Backlight brightness can be adjusted.
* ⚡️ * Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive.
For any issues. 24-hour Professional tech support, Email: support@tenizo-display.com.
Product Paramenters
Model | R4H/R4H-S1/R4H-S2 |
Size | 4.0inch TFT-LCD |
Type | IPS, Normally Black |
Resolution | 800×480 |

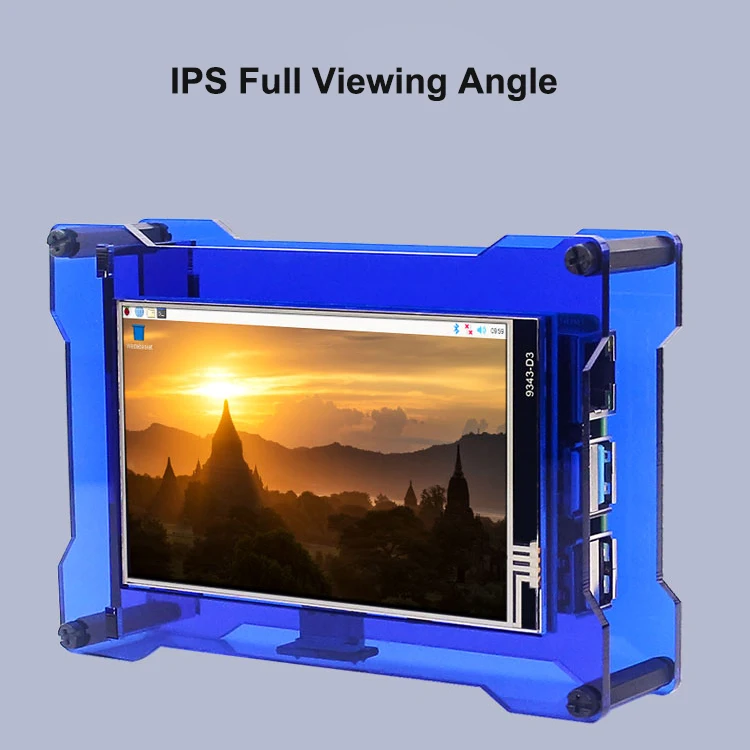

Visual Angle | 170°Full View Angle |

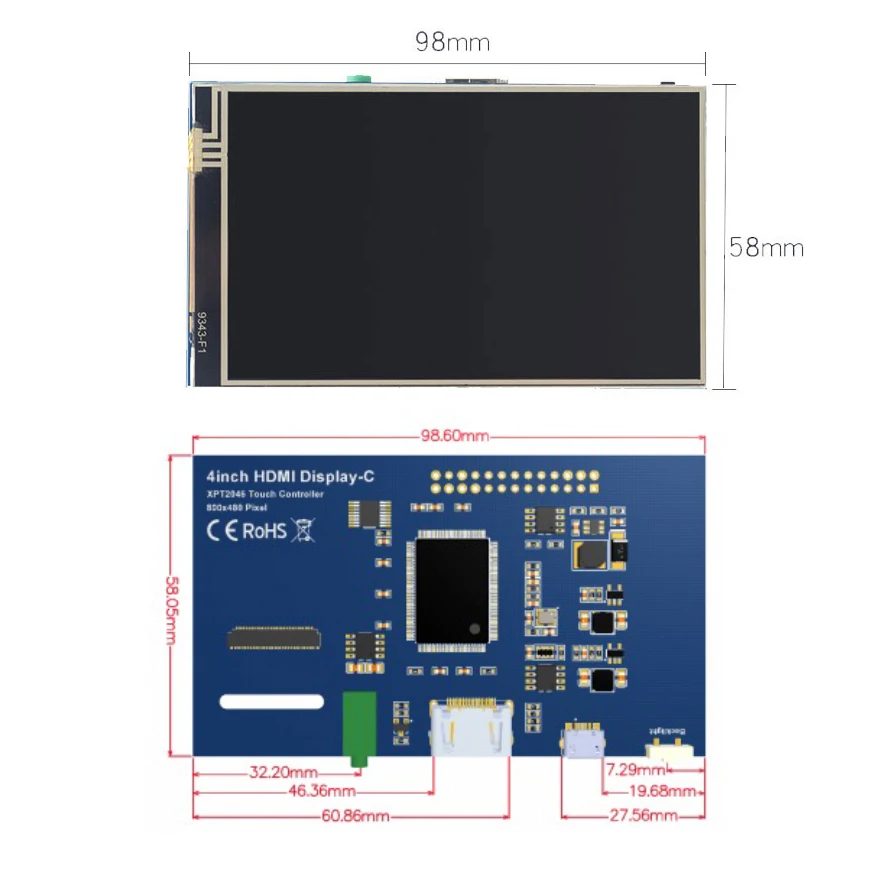

Outline Dimension | 98.60x58.05(mm) |
Thickness | |
Display Area | 51.84(W)x86.40(H)mm |
Color Gamut | 50% NTSC |
Display Colors | 16.7M(8-bit) |

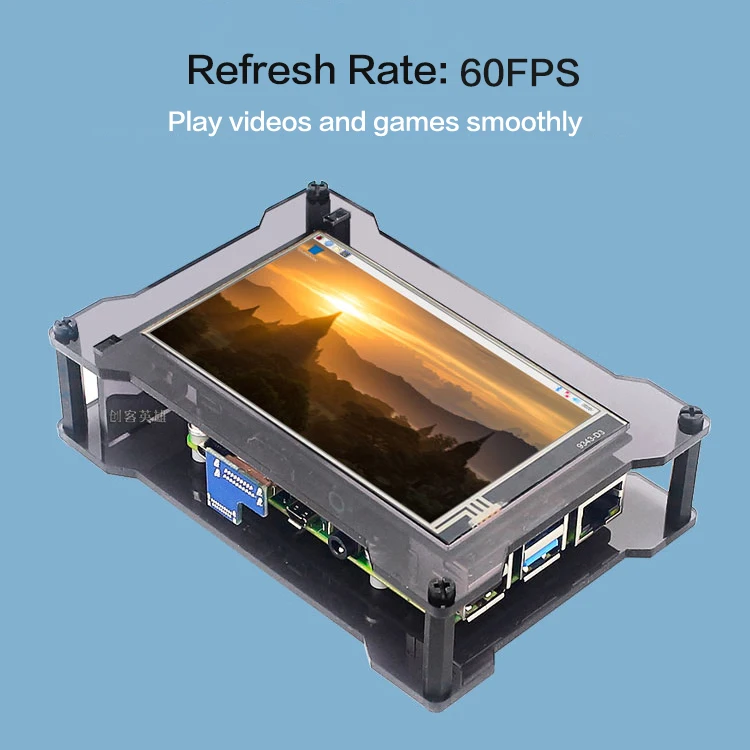

Refresh Rate | 60Hz |
Response Time | 30ms(Typ.)(Tr+Tf) |
Size Ratio | 16:9 |
Contrast Ratio | 800:1 |
Surface Luminance | 300cd/m2 |
Touch Function | Yes |
Touchscreen Type | Resistive |
Touch Chip | XPT2046 |
Touch Points | 1 Point Touch |

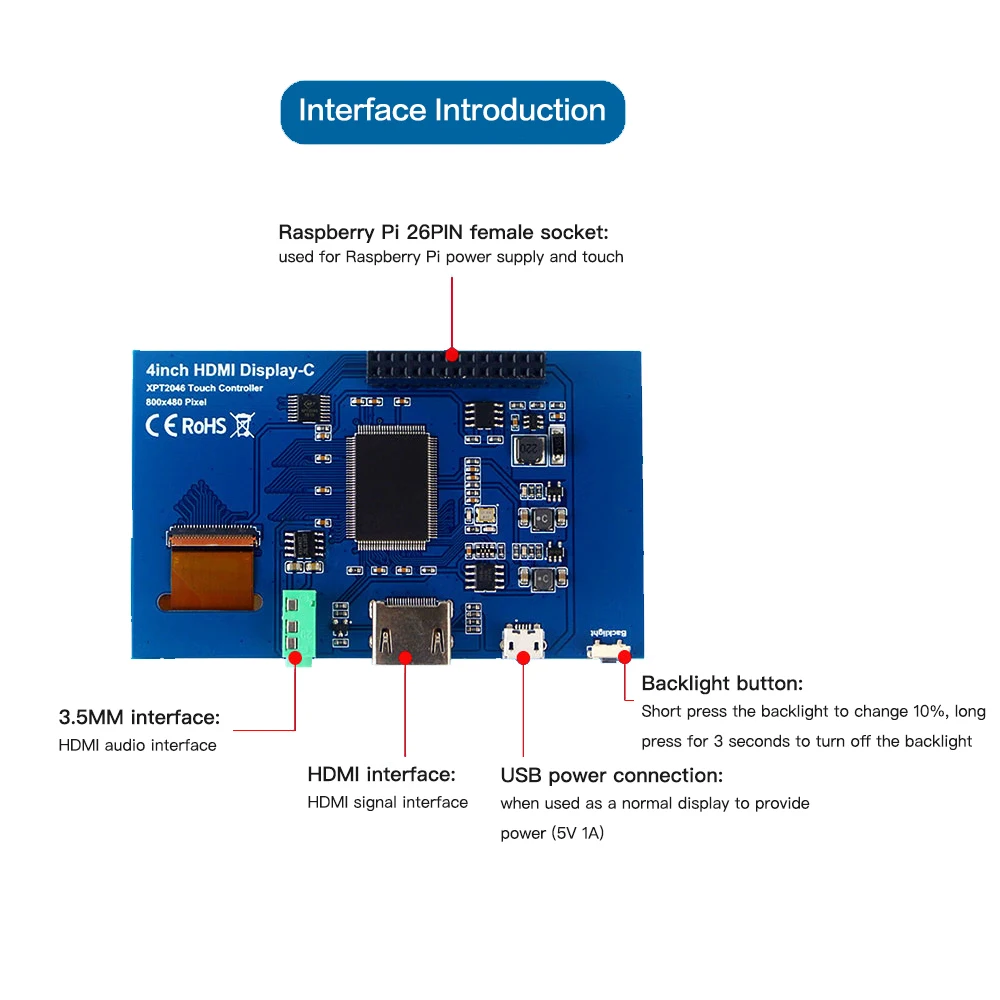

Interface | 1xSPI, 1xHDMI, 1xmicroUSB(power supply), 1xHeadphone Jack |
Backlight Switch | Yes |

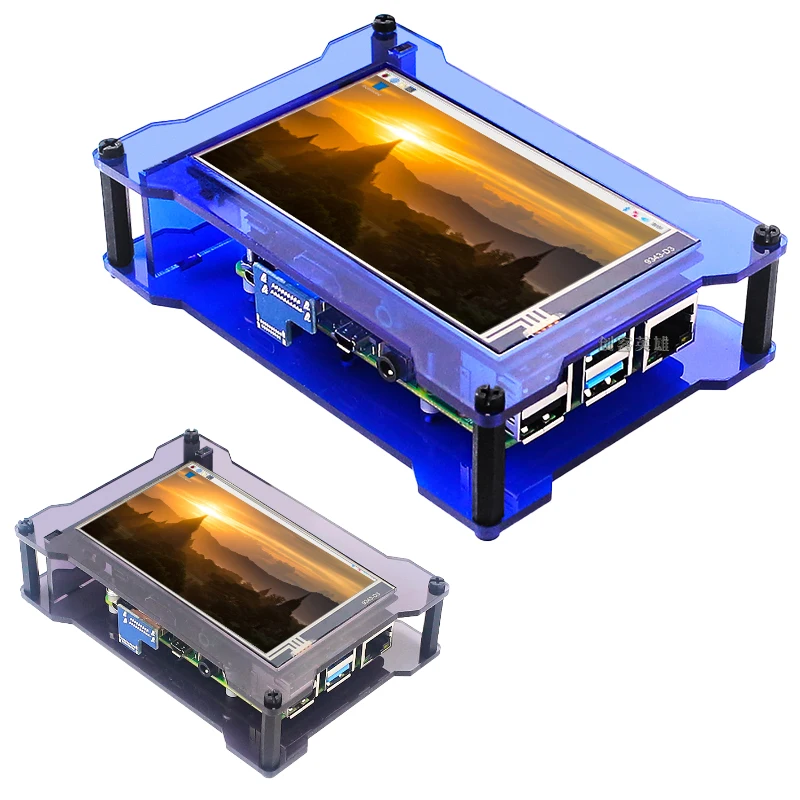

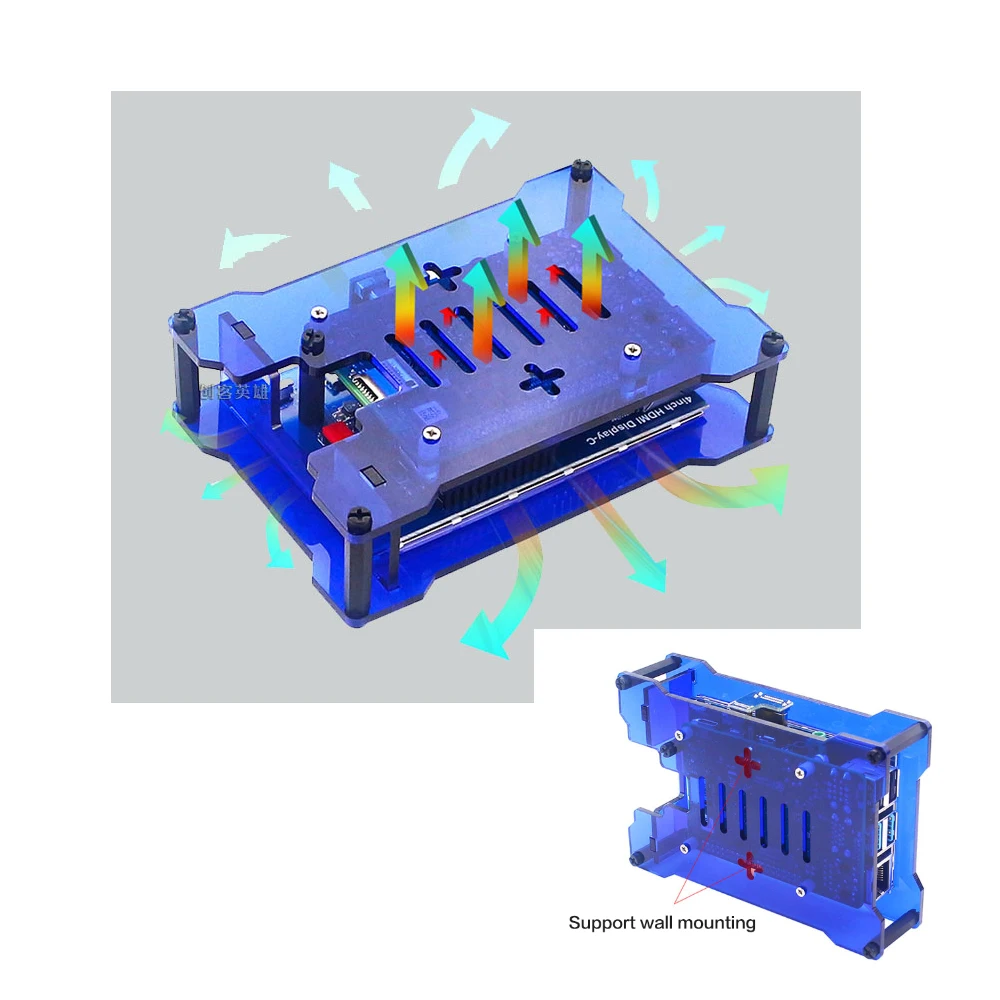

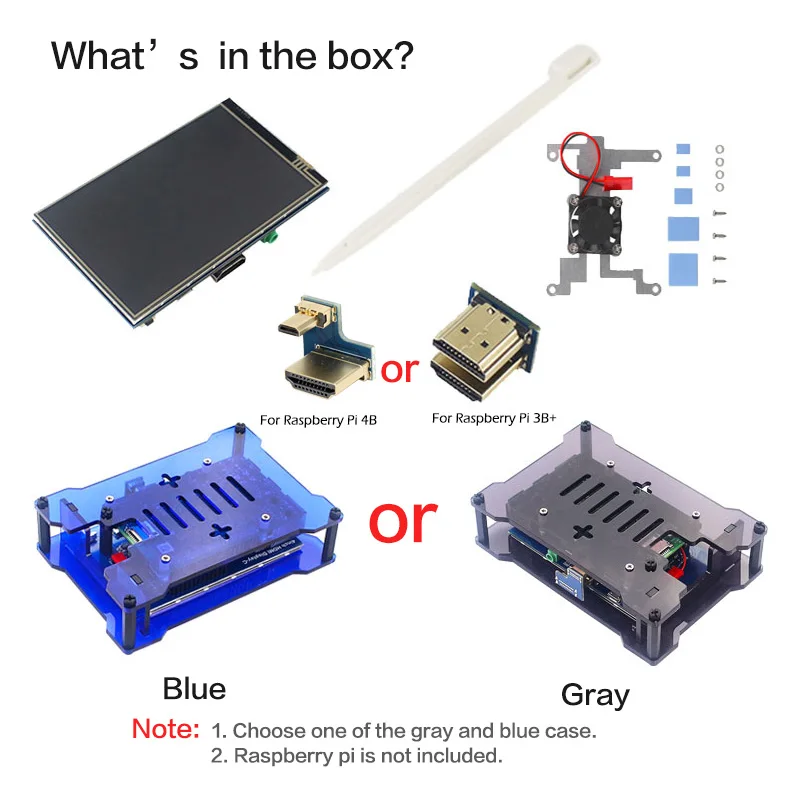

With Case | R4H-S1/R4H-S2: Include |
Product Weight | 126g |

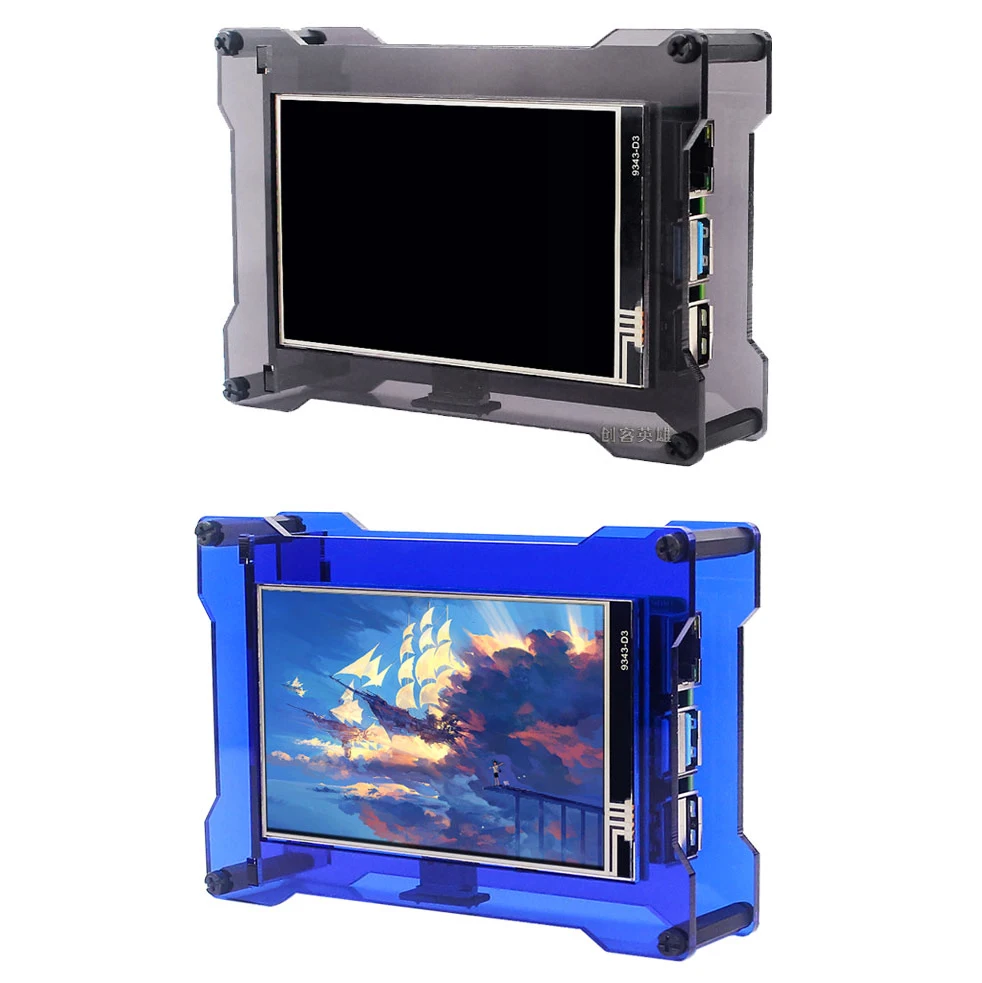

Note | R4H-S1: Transparent blue case R4H-S2: Transparent gray case |
Packing&Shipping
Certifications
Company Introduction
Hengrui Technology has been committed to the display touch screen industry for many years, provide premium and sleek-design display touch screen products for the global market, including displays, touch screens, portable monitor, Raspberry pi monitor, industrial displays and multi-function displays, etc.. At the same time, We provide customers and business partners with OEM/ODM integrated solution, we have been adhering to with reasonable prices to bring the best products and services to each of our customers. Through strict control of product manufacturing and product quality, at present, our products have been exported to all
parts of the world and have been widely used in many industries. We pride ourselves on first-rate customer support, design
services and development assistance. Welcome to join us for mutual benefit!
parts of the world and have been widely used in many industries. We pride ourselves on first-rate customer support, design
services and development assistance. Welcome to join us for mutual benefit!
FAQ
1. About Us
Our main products are portable displays, display modules, displays and touch screens.
2. MOQ Policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price. For customized
production, you can discuss the MOQ with our sales representative directly.
3. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal.
4. Warranty
TeNizo is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication; We have the top level trade assurance which 100% protect your money and lead time. Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty; Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier. For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
5. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com.
6. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
Our main products are portable displays, display modules, displays and touch screens.
2. MOQ Policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price. For customized
production, you can discuss the MOQ with our sales representative directly.
3. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal.
4. Warranty
TeNizo is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication; We have the top level trade assurance which 100% protect your money and lead time. Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty; Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier. For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
5. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com.
6. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
