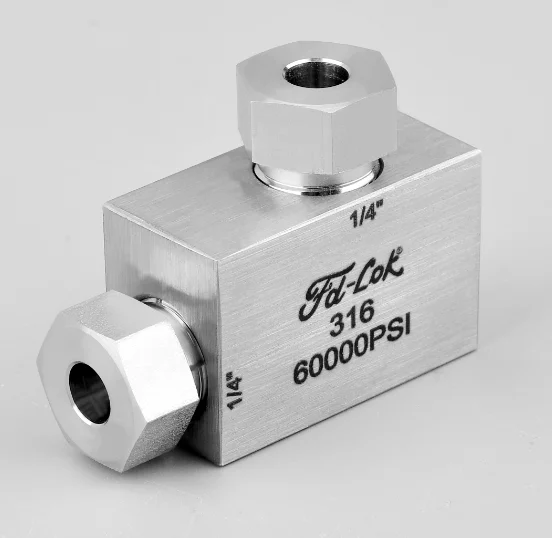

316SS 60000PSI High Pressure Autoclave tube fitting Elbow, HP fitting

Product Overview

Description

316SS 60000PSI High Pressure Autoclave tube fitting Elbow, HP fitting



Feature:



1.Prime,High Quality
2.Standards:Autoclave
3.Material:various material upon request
4.Certificates:ISO9001:2008, CE

5.Brand Name: FD-LOK

6.Place of Origin: Zhejiang, China (Mainland)



Details:



1.Sizes range: 1/4". 3/8", 9/16". Pressure: 60000PSI
2.Diverse materials and configurations are available.
3.Precision machined components ensure perfect deformation of the ferrules and tubing.
4.Female nut threads are silver-plated to minimize the friction with the body threads.
5.Radius junction design with elbows provides smooth flow path.
6.Every fitting is stamped with size, material, and heat code.
7.Fittings are easy to disconnect and retighten.

8.Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.



Material	Minimum Temperature	Maximum Temperature
Stainless Steel	-325°F(-198°C)	800°F(426°C)
Brass	-325°F(-198°C)	400°F(204°C)
Alloy 400/R-405	-325°F(-198°C)	800°F(426°C)
