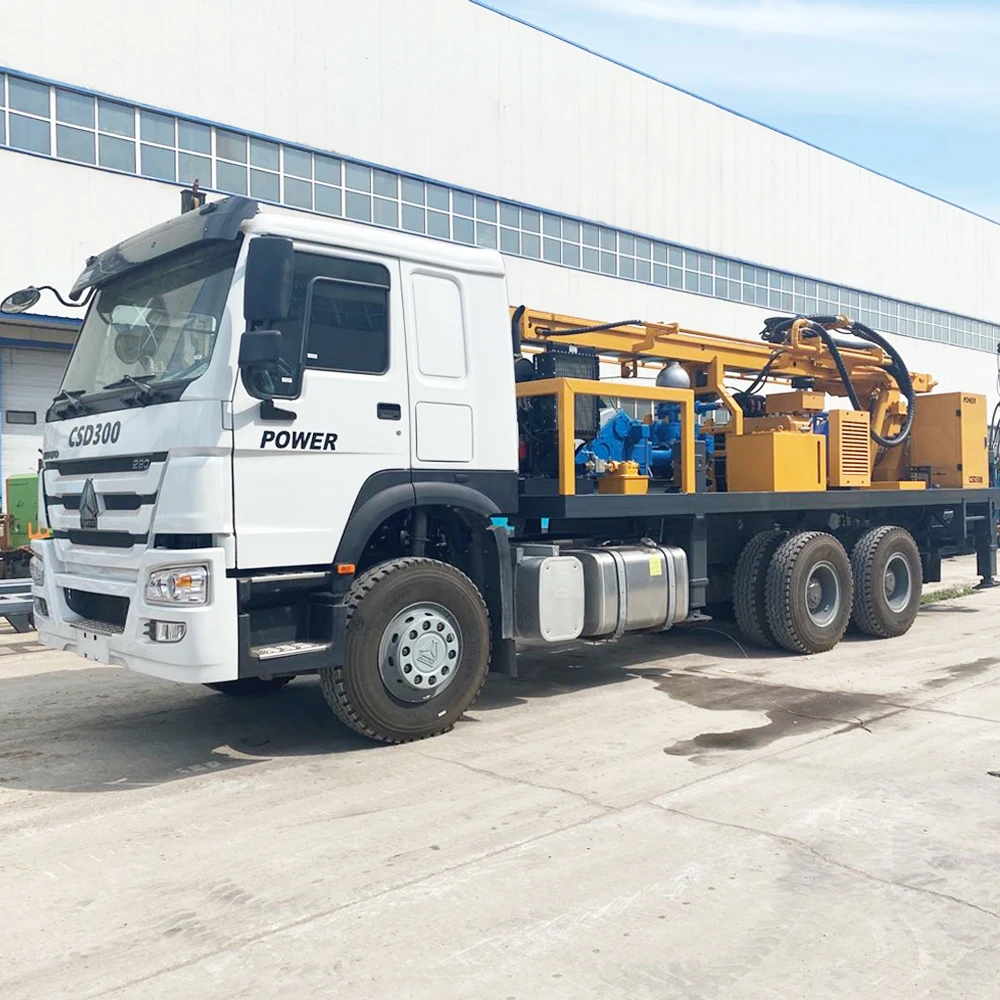

700m Deep Hydraulic Drive Truck mounted Water well Drilling Rig
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (1600319906930):
Product Overview
Description
Product Overview
Truck mounted water well drill rig
Our truck mounted water well drill rig is a top drive high efficiency and multi-purpose hydraulic rig,featured with advanced technology,convenient using,high efficiency ,reliable and durable,been using widely in water well drilling,inspecting,relief wells,and other bore hole drilling,also good with ground source thermal pump conditioning hole drilling of city construction,coalbed methane,gas and oil exploration.this rig is drilling used compressed air power,drilling with casing,mud drilling and has high drilling speed in the rocks of general hardness f=6-20
Our Characteristics
1. Reasonable design,Easy to operation.
2. Travel motor / system: LKC Brand,Caterpillar, Daewoo, Doosan, Hitachi, Hyundai of supplier
3. Oil pipe: Original impoted
4. Oil atomizer: Japan Furukawa Brand,Ensure the hammer has a good lubrication effect
5. Cooling System of Rig: Independent radiator,Ensure hydraulic oil no overheat.Ensure hydraulic
2. Travel motor / system: LKC Brand,Caterpillar, Daewoo, Doosan, Hitachi, Hyundai of supplier
3. Oil pipe: Original impoted
4. Oil atomizer: Japan Furukawa Brand,Ensure the hammer has a good lubrication effect
5. Cooling System of Rig: Independent radiator,Ensure hydraulic oil no overheat.Ensure hydraulic
system provide strong power.And adapt to high temperature areas
6. Mast of Rig: Use wear-resistant materials and imported steel, ensure reliable and life
7. Built in option:mud pump / generator /foam pump/welding or compressor.also loading more drilling tools
8. We accept Customer special customization
7. Built in option:mud pump / generator /foam pump/welding or compressor.also loading more drilling tools
8. We accept Customer special customization
PRODUCT SPECIFICATIONS
Model | T-700 | T-1000 | T-1200 | ||
Max drilling depth | 700m | 1000m | 1200m | ||
Drilling diameter | 105-450mm | 105-800mm | 105-900mm | ||
Air pressure | 1.6-6Mpa | 1.6-8Mpa | 1.65-8Mpa | ||
Air consumption | 16-75m3/min | 16-96m3/min | 16-120m3/min | ||
Drill pipe length | 6m | 6m | 6m | ||
Drilling pipe diameter | 102mm | 114mm | 127mm | ||
Axial pressure | 6T | 11T | 10T | ||
Lifting force | 40T | 51T | 60T | ||
Fast lifting speed | 31m/min | 29m/min | 29m/min | ||
Fast feeding speed | 65m/min | 42m/min | 51m/min | ||
Max rotary torque | 12600/6300 Or 14000/7000 Nm | 20000/10000 Nm | 24000/12000 Nm | ||
Max rotary speed | 95/190 R/min | 70/140 R/min | 85/170 R/min | ||
Big winch lifting force | 4T | 4T | |||
Little winch lifting force | 2.5T | 1.5T | 1.5T | ||
Drilling efficiency | 10-35m/h | 10-35m/h | 10-35m/h | ||
Weight | 14T | 26T | 23T | ||
Dimension Of Rig | 6.3x2.25x2.65m | 7x2.25x2.65m | 7x2.25x3m | ||
Drilling method | To drive hydraulic rotary and pushing hammer or mud drilling | ||||
PRODUCT CONFIGURATION
Yuchai or Weichai high power engine
Imported EATON control valve
Imported EATON Rotation motor
