Product Overview
Description
Product Description

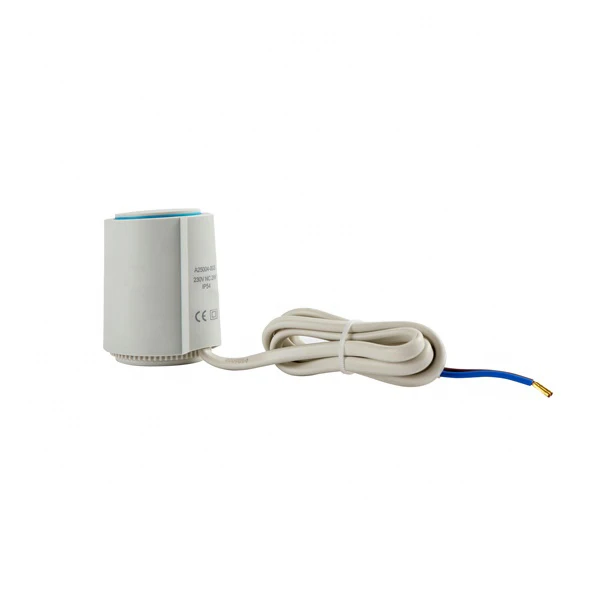

920039PL Thermal actuator
The thermal actuator is operating the thermostatic valves installed on distributors in the heating and / or cooling circuits. The main field of application is energetic efficiency by temperature control.
Feature:
-Compact size, small dimensions
- 360° installation position
-High functional safety and long expected service life
- Low power consumption
-High over-voltage protection
-Supply 12v-230v
-Maintenance-free, noiseless
- Snap-on installation
- Valve adapter concept
-Patented 100% protection against leaky valves
- 360° installation position
-High functional safety and long expected service life
- Low power consumption
-High over-voltage protection
-Supply 12v-230v
-Maintenance-free, noiseless
- Snap-on installation
- Valve adapter concept
-Patented 100% protection against leaky valves
Feature:
The wax thermostatic element produced by the SMLG with its own patented formula is widely recognized, praised and applied in the
industry for its sensitivity and accuracy. It has also passed the European experimental institutions product certification (ACS,
WRAS)
industry for its sensitivity and accuracy. It has also passed the European experimental institutions product certification (ACS,
WRAS)
Product name | 920039PL thermal actuator | ||
No | Item | Data | |
1 | Type | Normally closed/Normally open | |
2 | Voltage | 12v 24v 110v 230v | |
3 | Power Consumption | 2VA | |
4 | Working Temperature | -5 - 60℃ | |
5 | Force | 110N | |
6 | Maximum Stroke | 4.5±0.5mm | |
7 | Running Time | 3-5min | |
8 | Connection Size | M30×1.5mm /M28×1.5mm | |
9 | Cable Length | 800mm | |
10 | Protection Grade | IP54 | |
11 | Housing Material | PA66+30%GF | |
Product name | Wax thermostatic element | ||
Maximum Load | 140N | Temperature(℃) Stroke(mm) | |
Minimum Load | 45N | 15℃ ~ 38℃ 2 ± 0.2 | |
Testing Load | 55N | 38℃ ~ 45℃ 1.4 ± 0.15 | |
Spring Rate | 5N/mm | 35℃ ~ 45℃ 2 ± 0.2 | |
Maximum Temperature | 90℃ | 45℃ ~ 60℃ 0.86 ± 0.15 | |
Material | Copper | 15℃ ~ 90℃ 5.4 (Max) | |
Stroke | L=20±0.3mm at 38℃ 55N | ||
Lifespan | 100000 times | ||

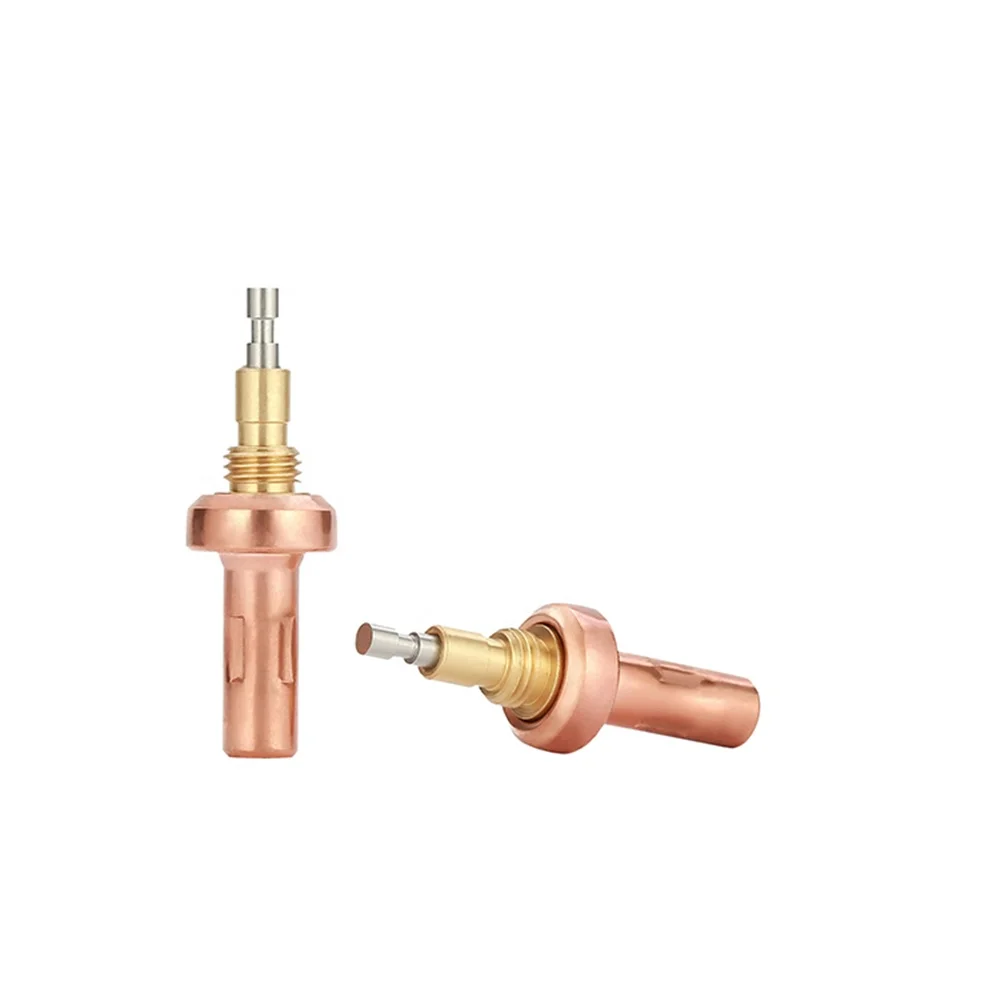

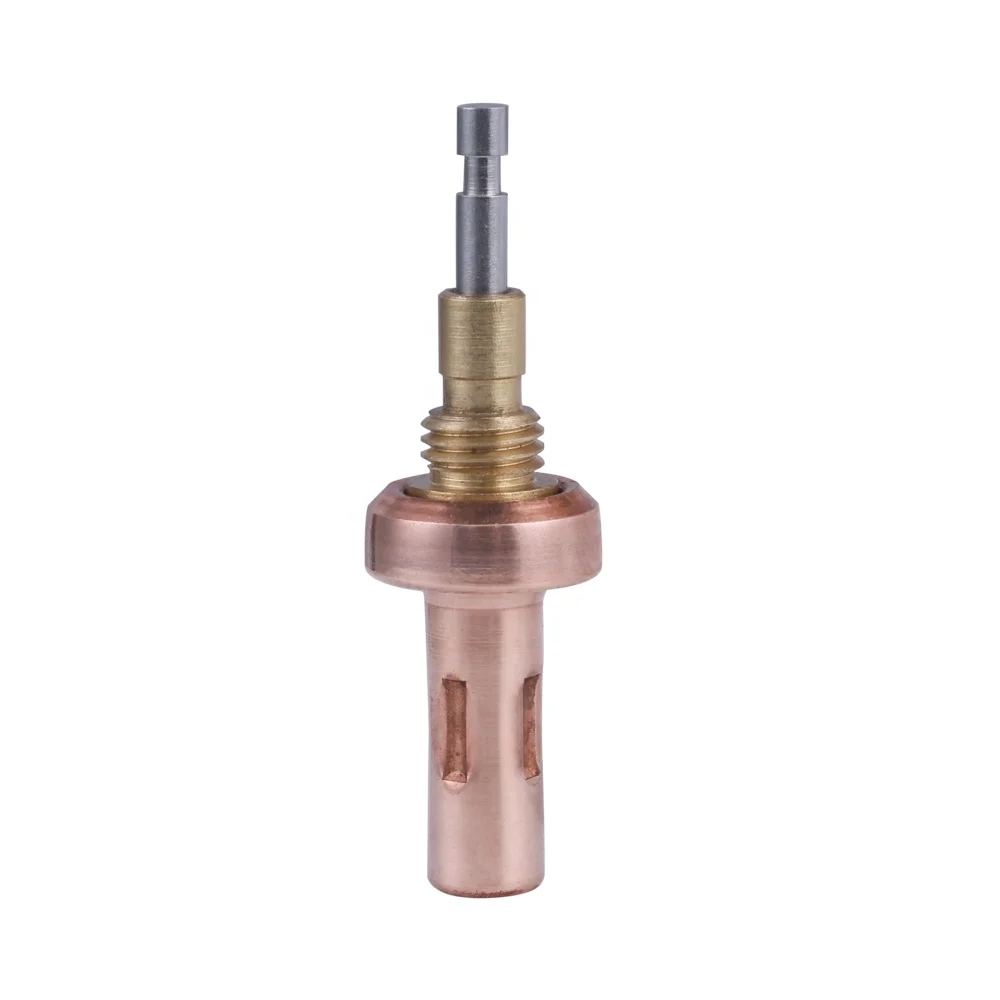

Wax thermostatic element
Internal details
Dimensions

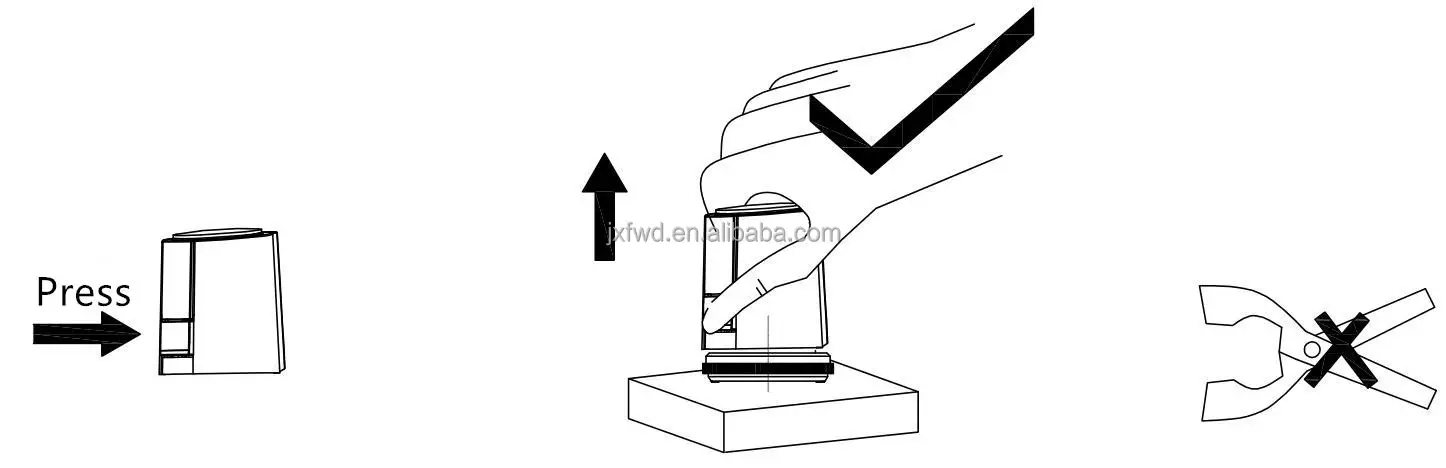

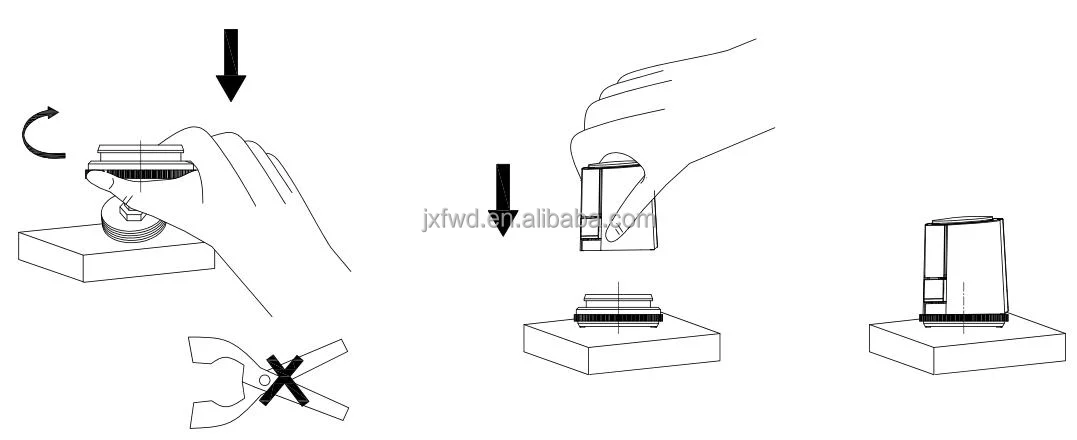

Installation and Disassembly

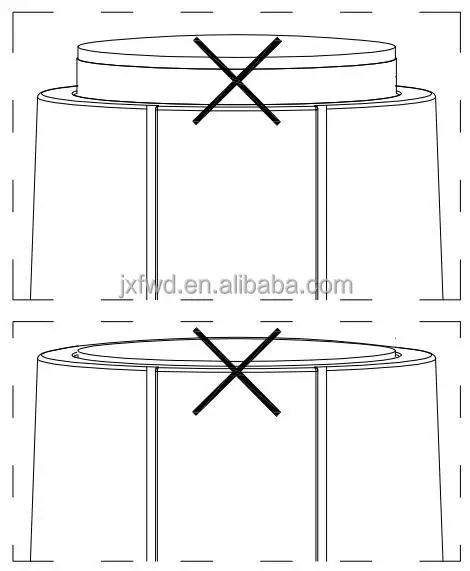

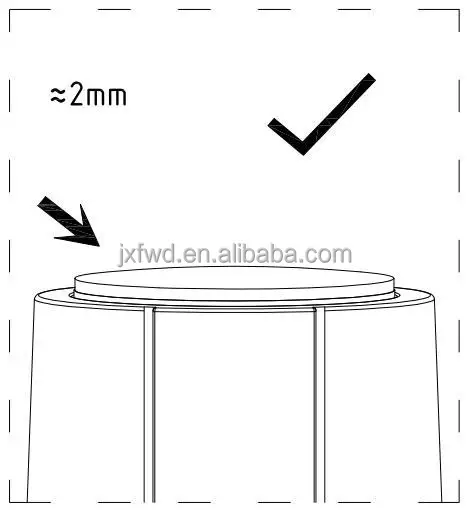

Normal Situation of TOP

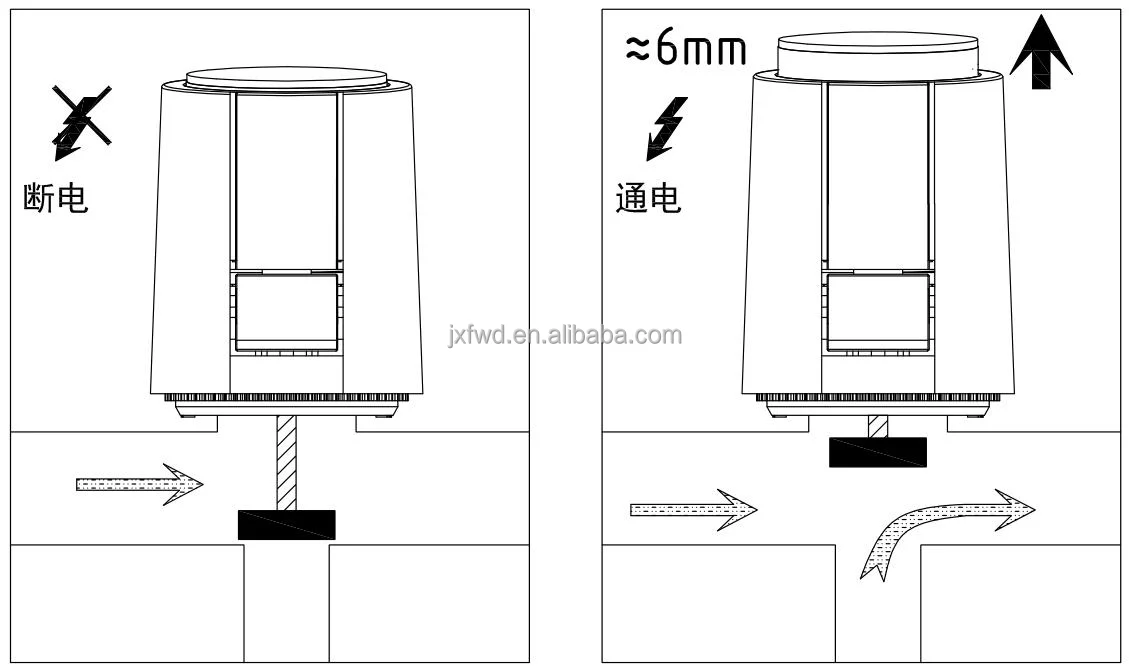

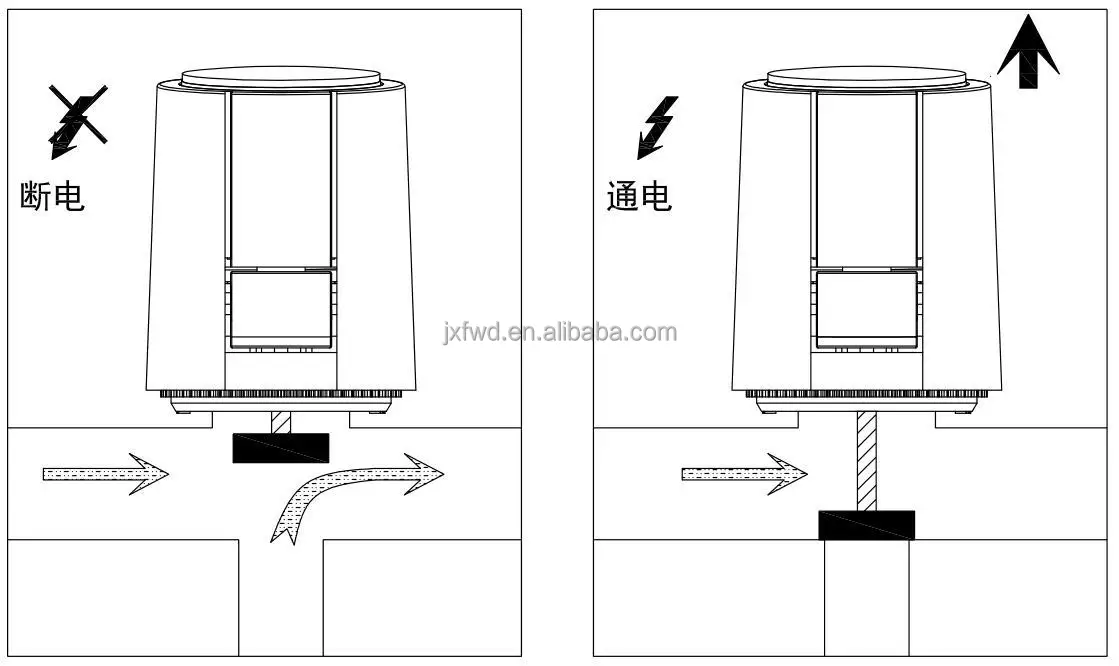

Working Situation
Normally Closed
Normally Open

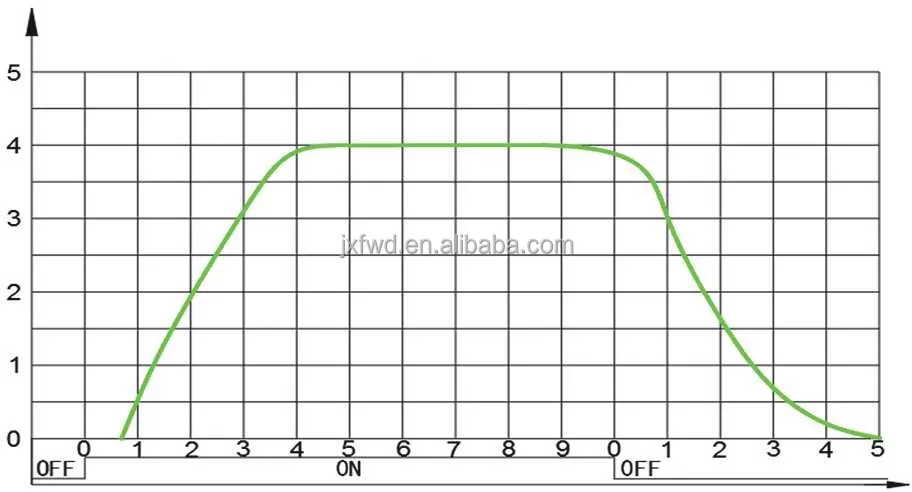

Time vs Stroke
Certifications
Company Profile

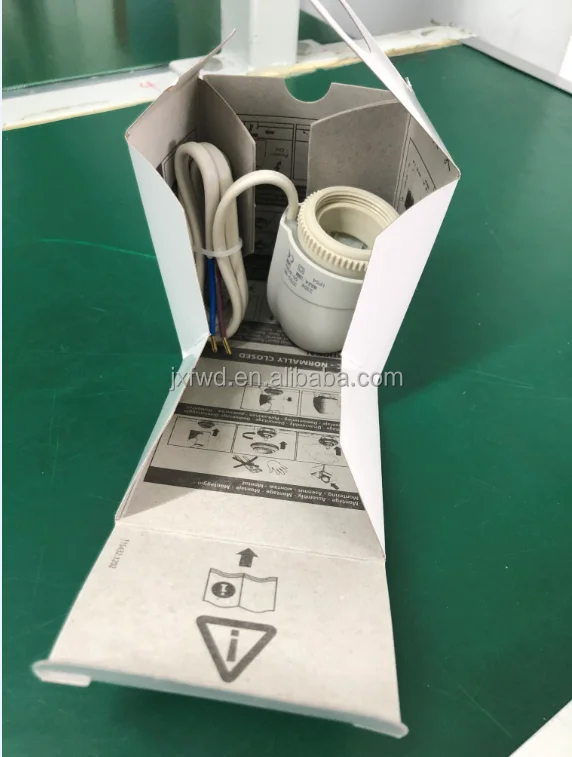

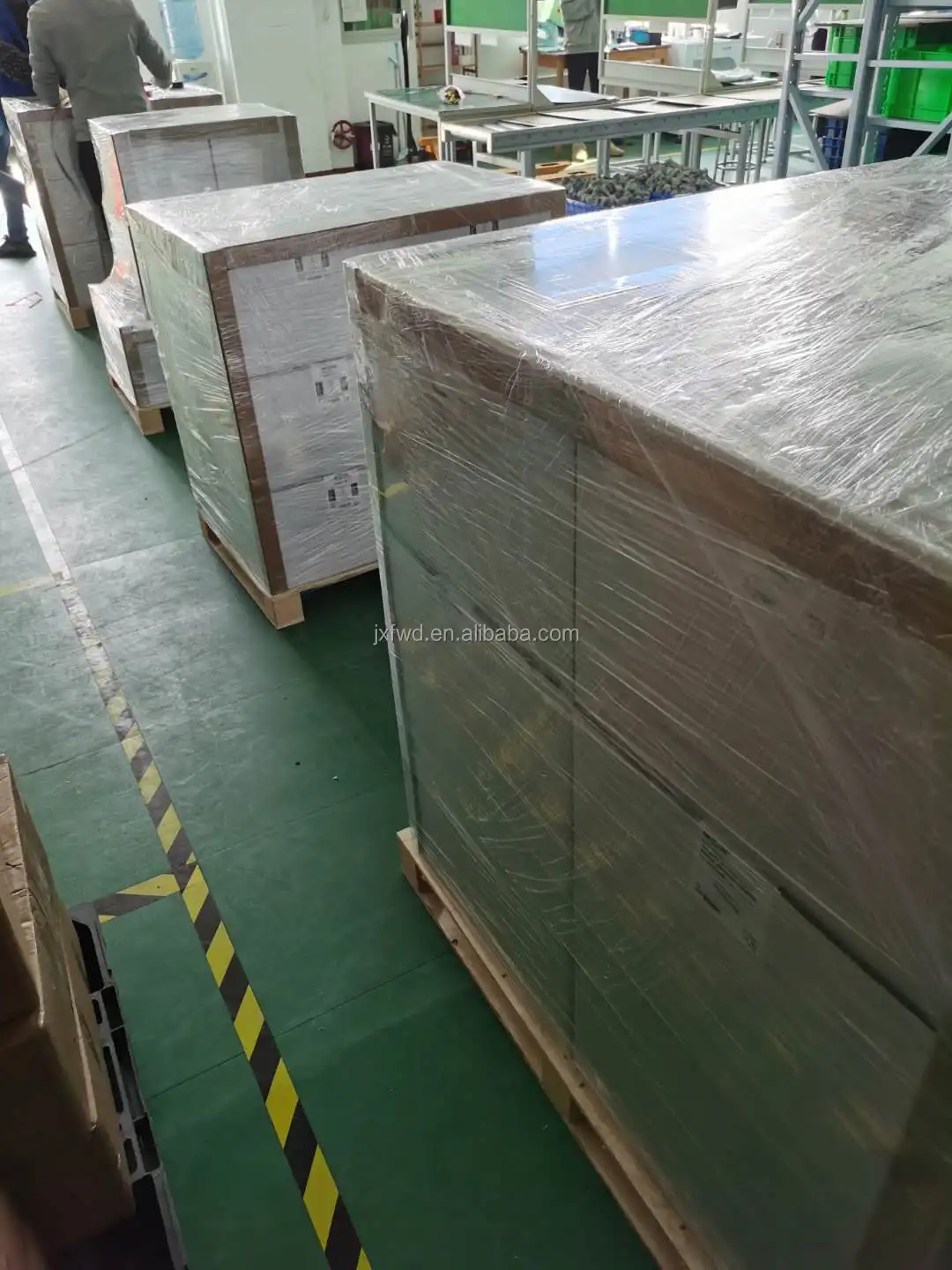

Products Packing
Main Products
FAQ
Q: Are you trading company or manufacturer ?
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
