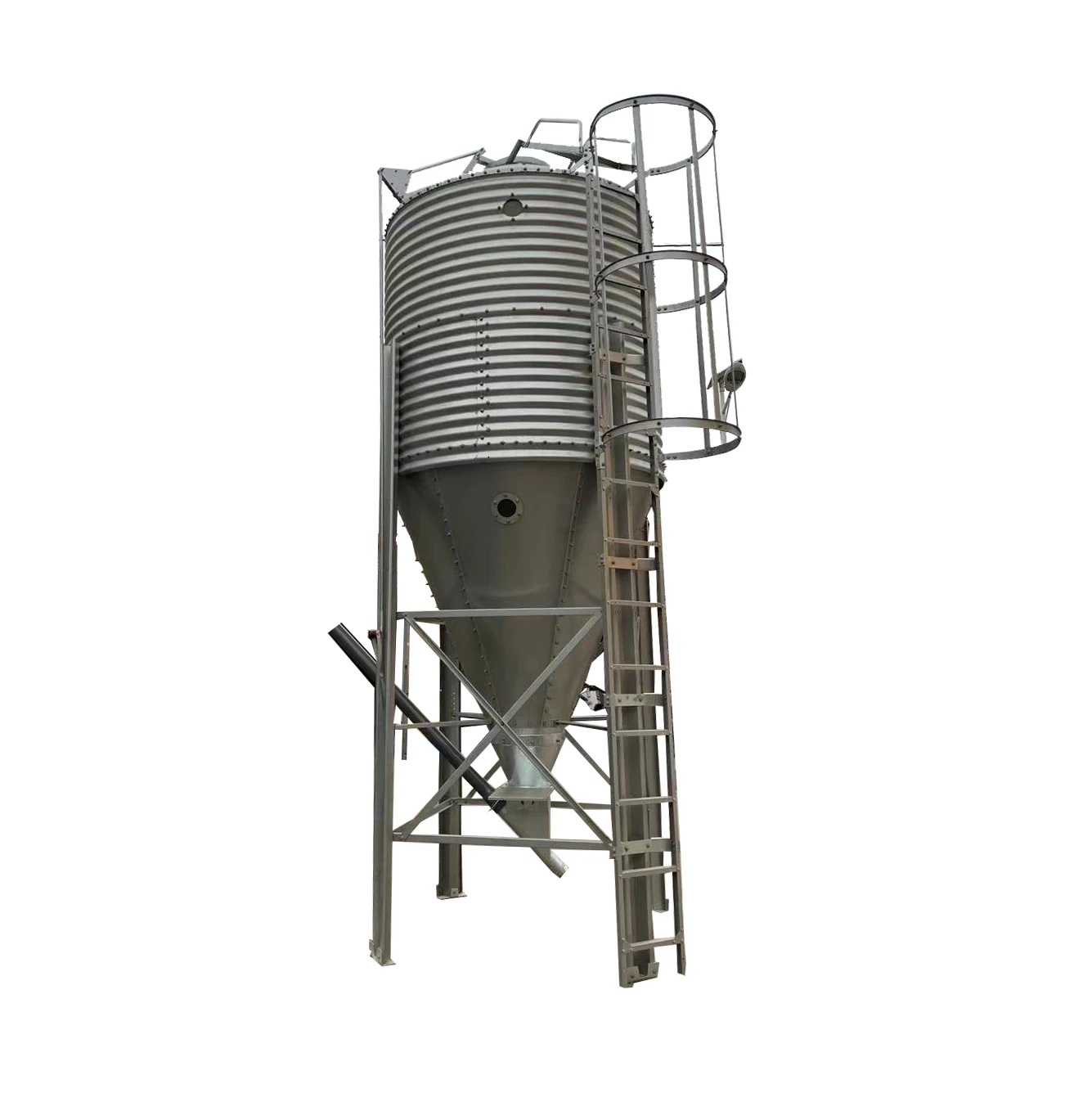

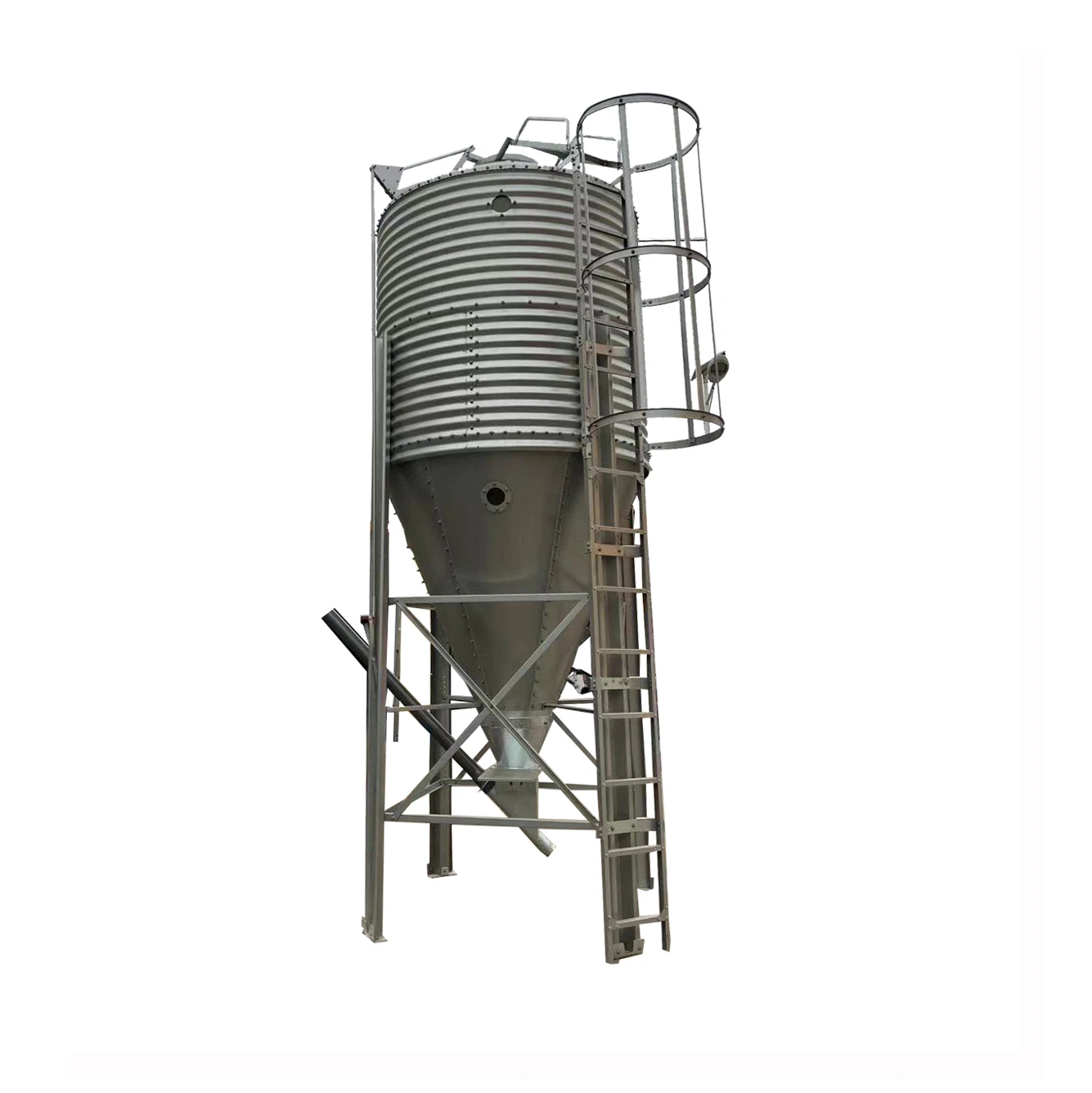

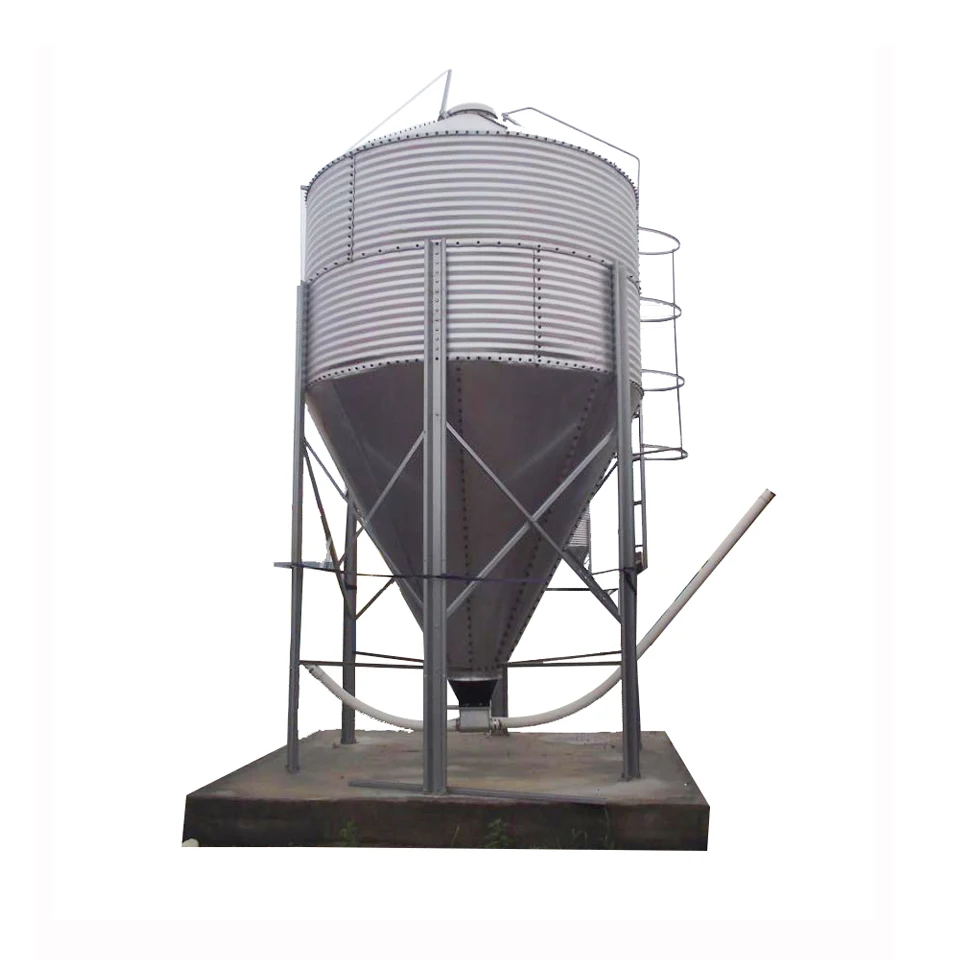

Factory Supply High-Performance Double-Sided Galvanized Sheet Silo Grain Silo System silo de granos
Product Description
SILO PARAMETER LIST
Model
Capacity (Ton)
Volume (m³)
Weight (KG)
Height (M)
Top cone plate Thick(mm) Qty
Coaming Thick(mm) Qty
Bottom cone plate Thick(mm) Qty
Leg Thick(mm) Qty
Top and Bottom Cone Angle
1834-1 Tier
3.00
4.6
330
4.1
1.00
6.00
1.00
2.00
1.20
6.00
2.50
4.00
30°/67°
1834-2 Tier
4.50
6.9
400
5.00
1.00
6.00
1.20
1.00
2.00
1.20
6.00
2.50
4.00
30°/67°
1834-3 Tier
6.00
9.2
460
5.90
1.00
6.00
1.20
1.00
1.00
2.00
1.20
6.00
2.50
4.00
30°/67°
Model
Capacity (Ton)
Volume (m³)
Weight (KG)
Height (M)
Top cone plate Thick(mm) Qty
Coaming Thick(mm) Qty
Bottom cone plate Thick(mm) Qty
Leg Thick(mm) Qty
Top and Bottom Cone Angle
2750-1 Tier
7.50
11.6
595
4.70
1.00
9.00
1.00
3.00
1.20
9.00
2.50
6.00
30°/60°
2750-2 Tier
11.00
16.8
690
5.60
1.00
9.00
1.20
1.00
3.00
1.20
9.00
2.50
6.00
30°/60°
2750-3 Tier
14.30
22.00
770
6.50
1.00
9.00
1.20
1.00
3.00
1.20
9.00
2.50
6.00
30°/60°
2750-4 Tier
17.70
27.20
880
7.40
1.00
9.00
1.20
1.00
1.00
1.00
3.00
1.20
9.00
3.00
6.00
30°/60°
Model
Capacity (Ton)
Volume (m³)
Weight (KG)
Height (M)
Top cone plate Thick(mm) Qty
Coaming Thick(mm) Qty
Bottom cone plate Thick(mm) Qty
Leg Thick(mm) Qty
Top and Bottom Cone Angle
3668-1 Tier
15.80
24.30
940
5.70
1.00
12.00
1.00
4.00
1.50
12.00
3.00
8.00
30°/60°
3668-2 Tier
21.80
33.60
1070
6.60
1.00
12.00
1.20
1.00
4.00
1.50
12.00
3.00
8.00
30°/60°
3668-3 Tier
27.90
42.90
1180
7.50
1.00
12.00
1.20
1.00
1.00
4.00
1.50
12.00
3.00
8.00
30°/60°
3668-4 Tier
33.90
52.20
1295
8.40
1.00
12.00
1.20
1.00
1.00
1.00
4.00
1.50
12.00
3.00
8.00
30°/60°
SILO 1.Material: 275g/m2 galvanized steel sheet, thickness from 1mm to 1.5,the material meet the international standard. 2. Different diameters wallrings and volumes for choose 3.View window make it easy to check storage status 4.Ladders and safety cage included in all models 5.External bolts is beautiful and do not rust.

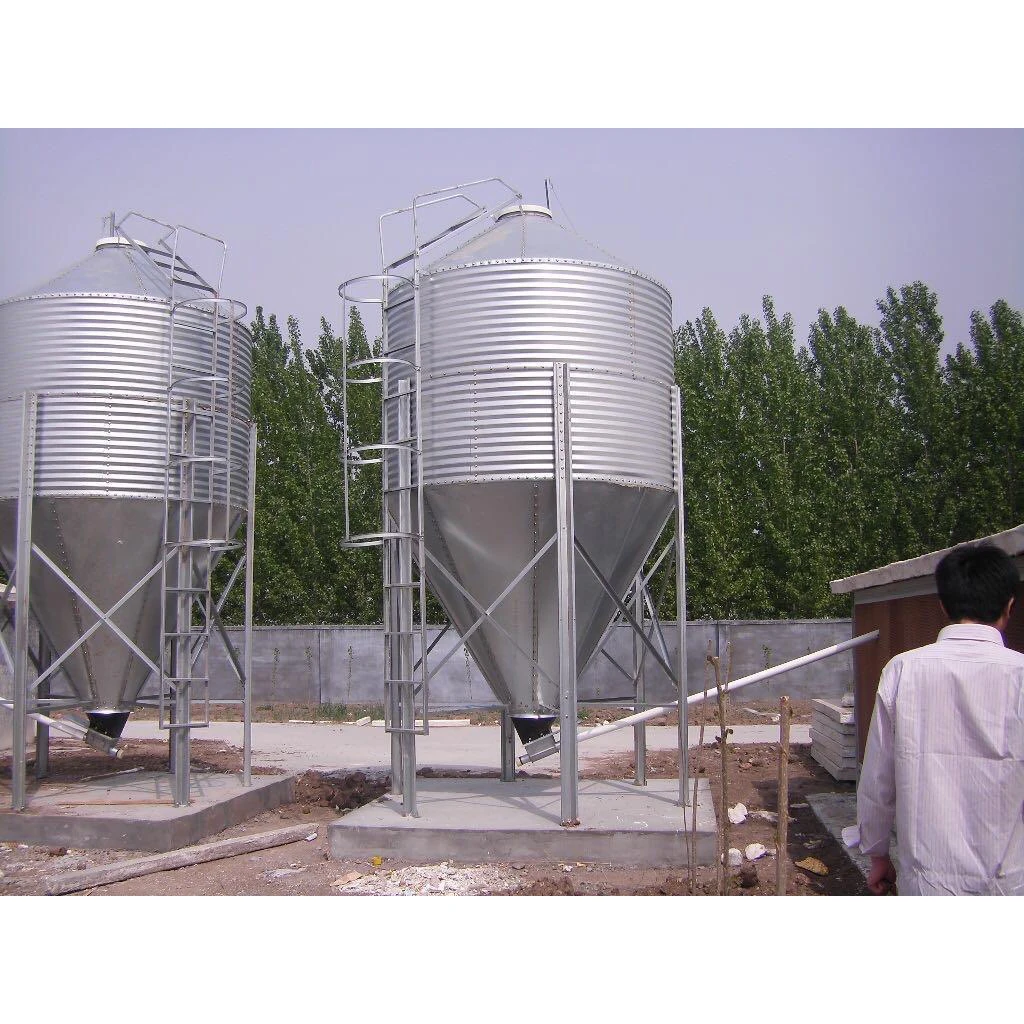

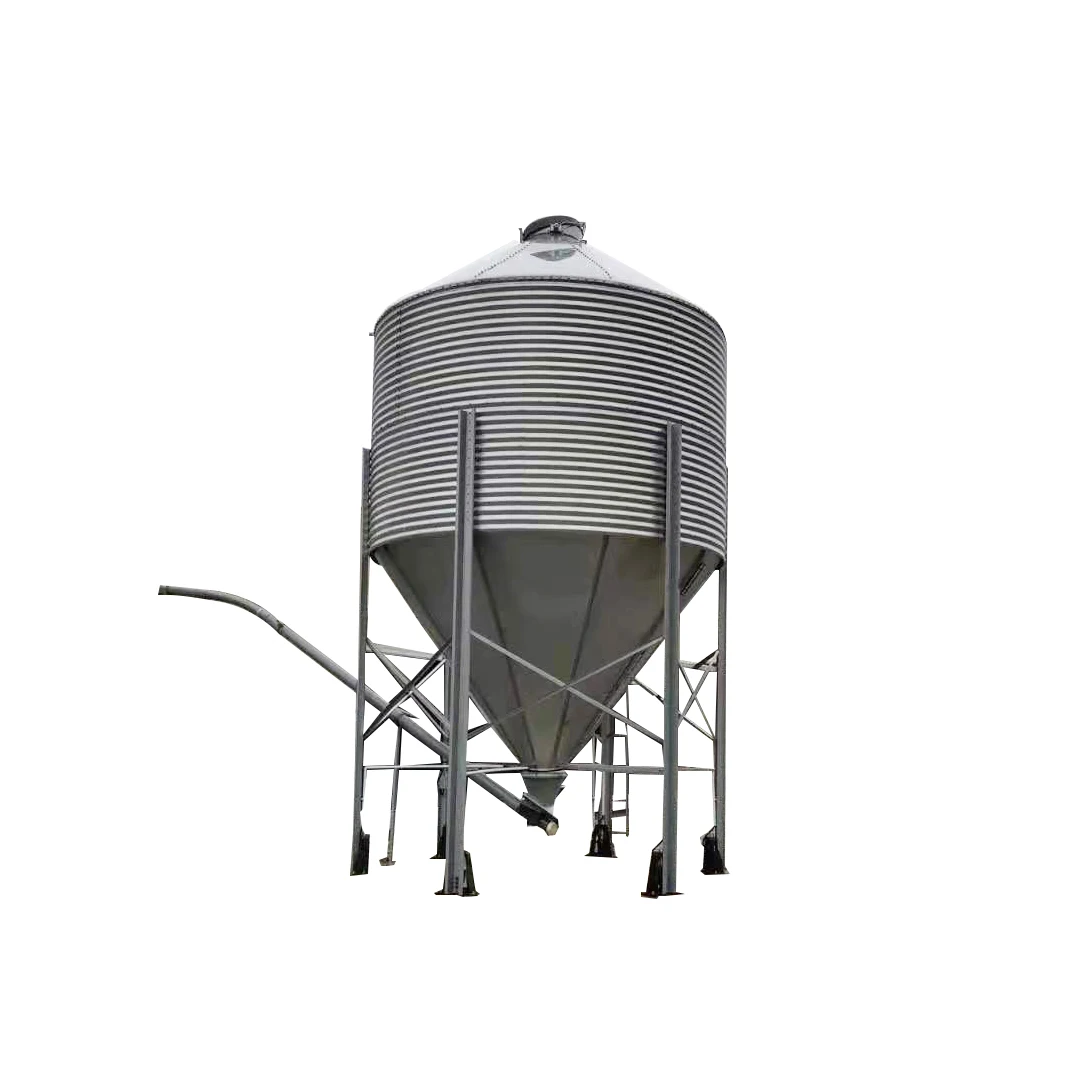

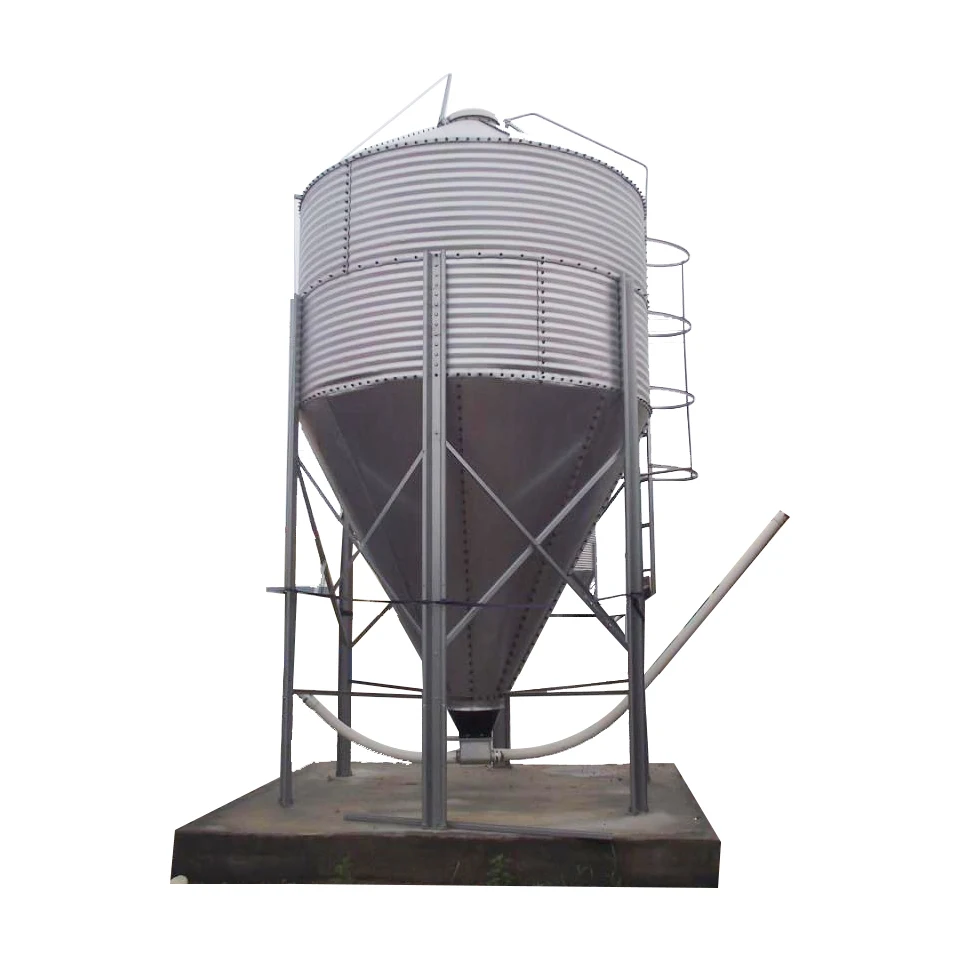

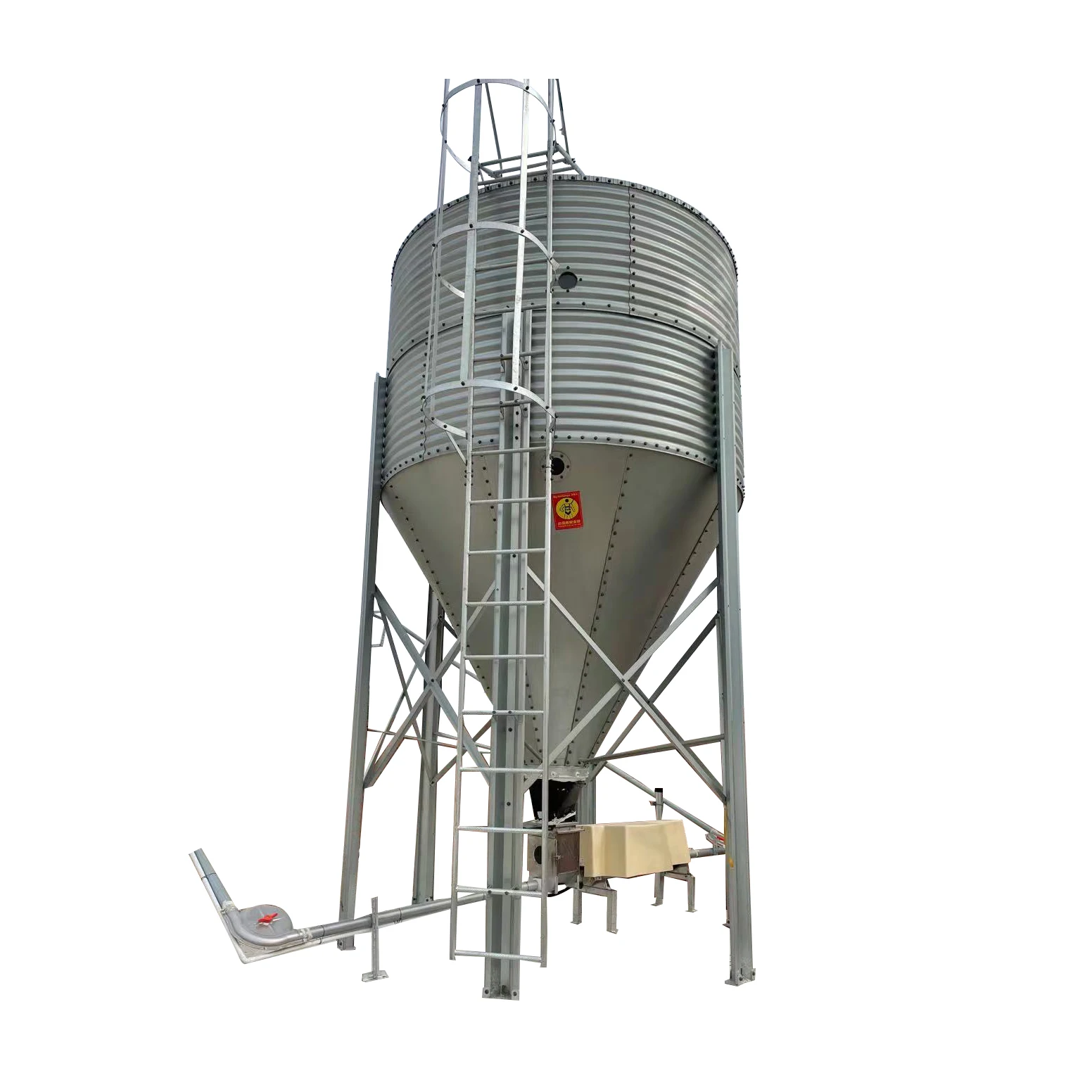

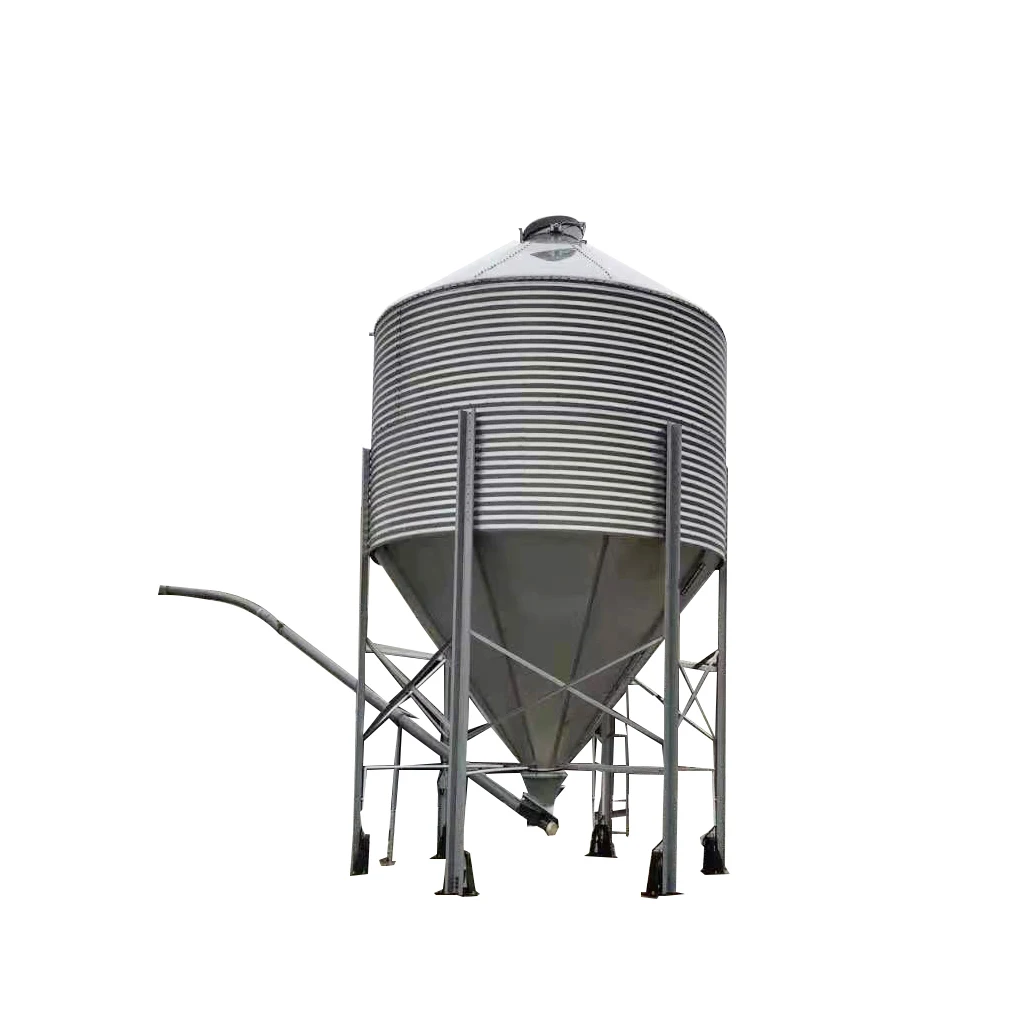

Product Display
Product Detail

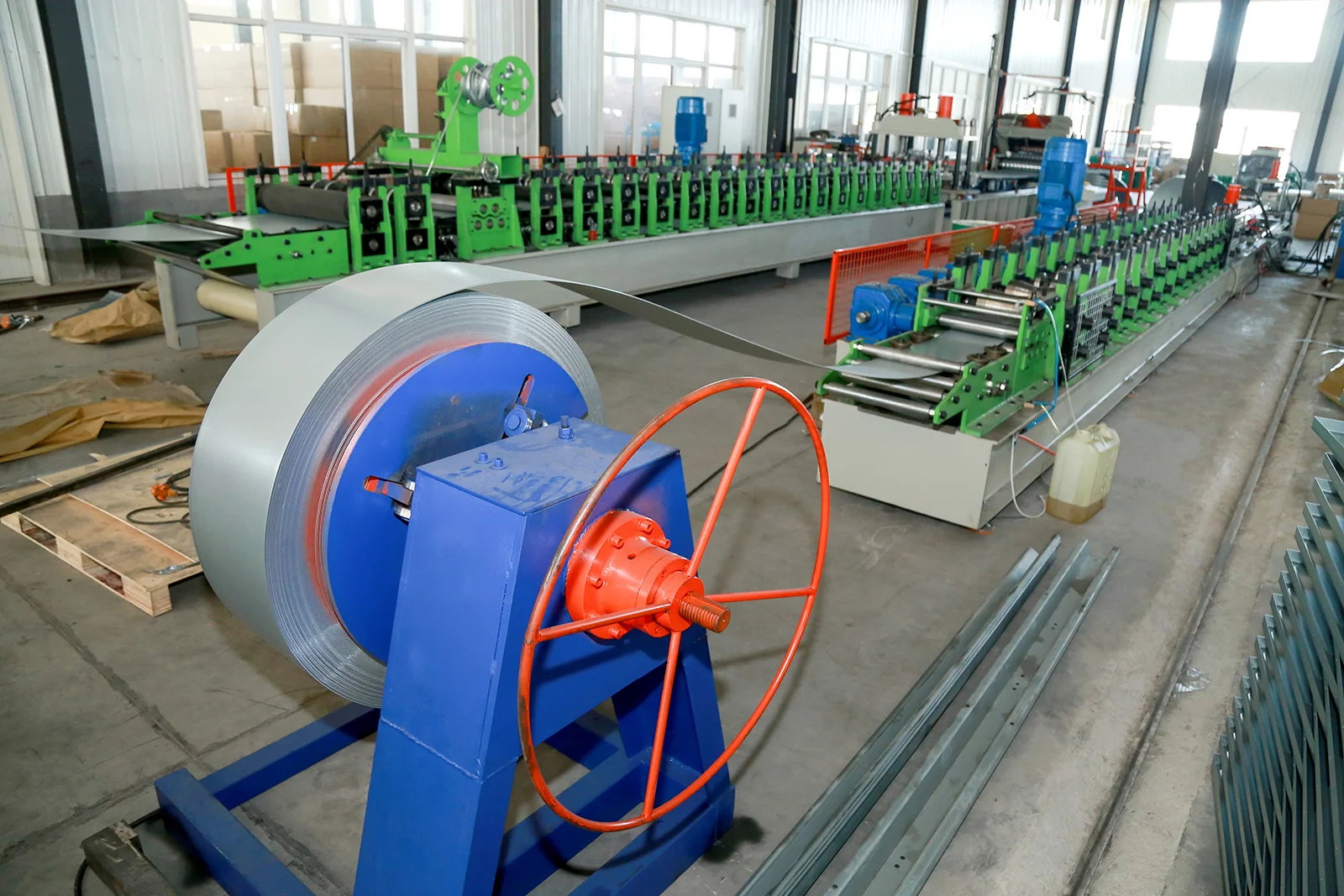

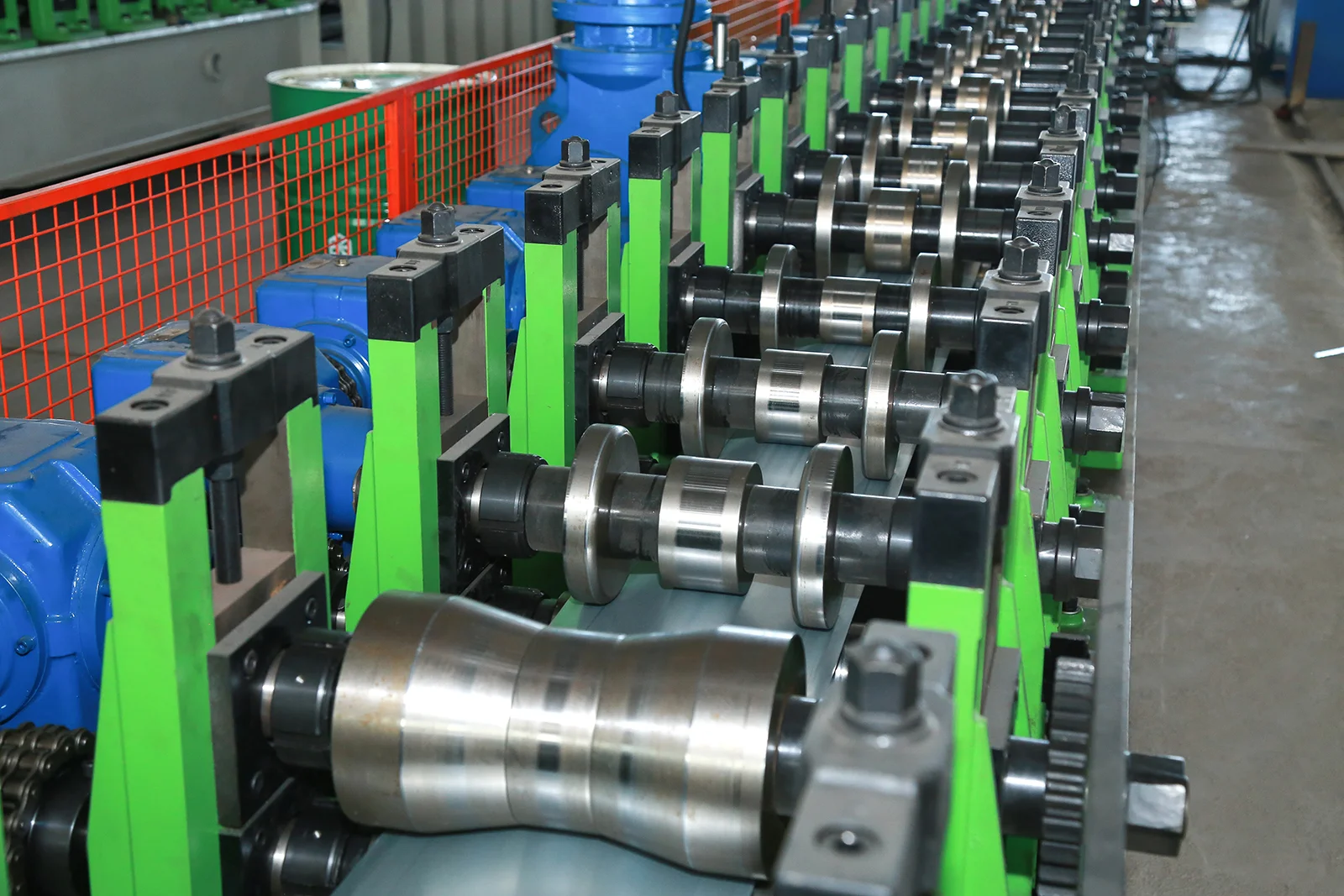

The ring sheet production of the Silo is directly formed by an assembly line, forming first and then punching, without changing the machine halfway, and without transporting, avoiding the assembly difficulties caused by the deformation, and the bolts can be directly tightened by hand. In addition, all ring part are treated with surface coating to avoid surface scratches during handling and installation.
The processing process of the legs of the Silo is extremely harmful to the raw materail. In order to avoid damage, an oil protection link is added during the processing. On the one hand, it plays a role of lubrication, and on the other hand, it can protect the zinc layer well Rust problem during later use.

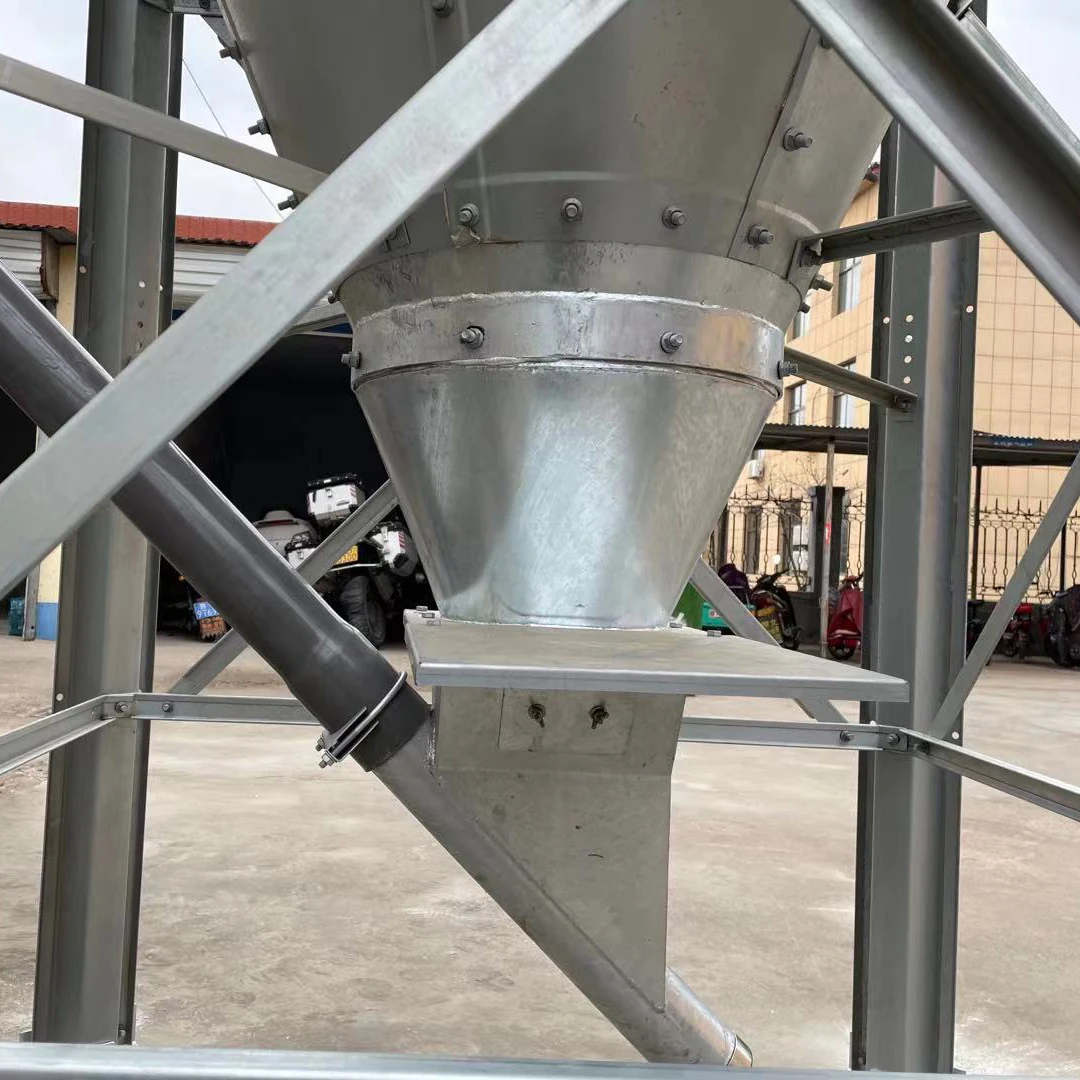

Special two-way bending support leg design to avoid leakage of sharp sides and cause unnecessary injury to personnel during installation or observation.

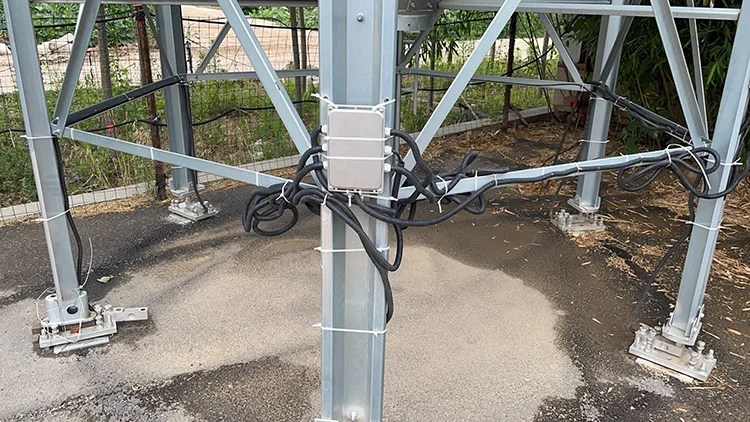

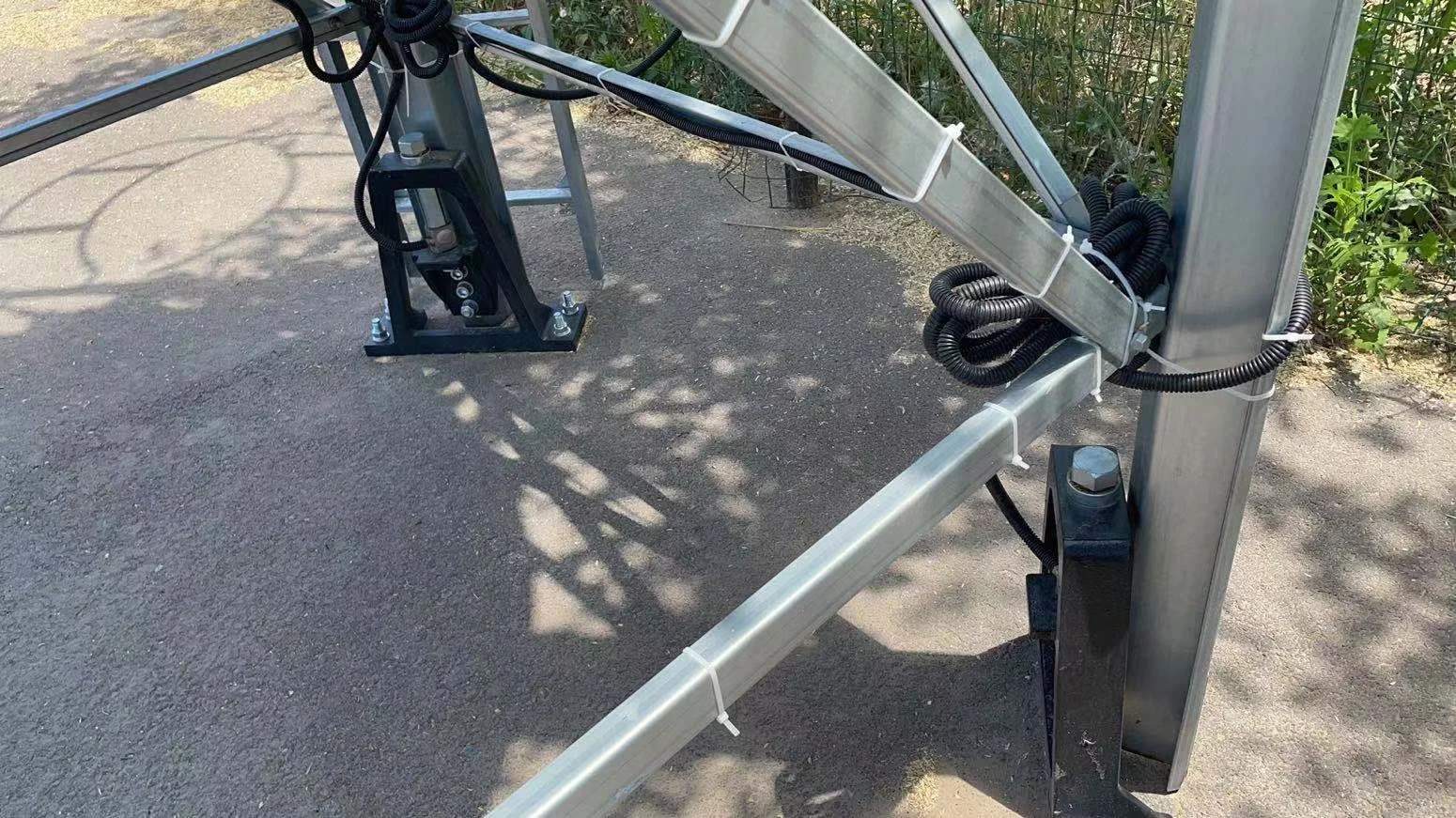

Load Cell
Sensor Brand: Famous brand
Junction Box: stainless steel shell, in addition to anti-rust have shielding function.

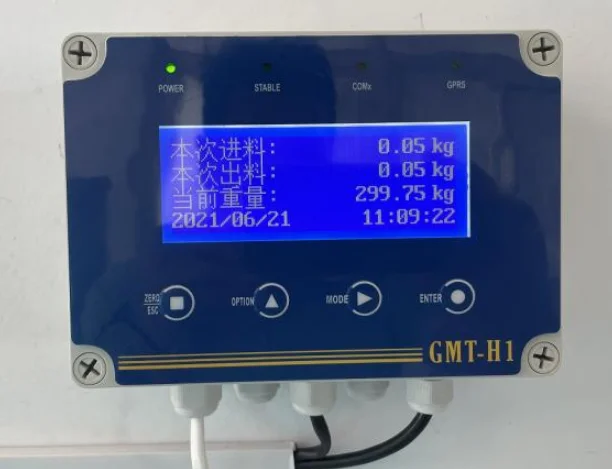

Controller
Company Profile
FAQ
Q:What payment ways available?
A:--T/T and L/C
Q:Is your company a manufacturer or a trading company?
A:We are manufacturers, we have our own factory and design, sales team.
Q:Can you make our own brand?
A:Yes,we can provide OEM &ODM service. And we can make your brand on the products.
Q:Can I have a sample to test before ordering in large quantities?
A:Yes,of course. We can offer 1 set sample for evaluation and testing.
Q:Could you offer wholesale price?
A:Yes, of course. If you order large QTY, we can give you the bulk price.
