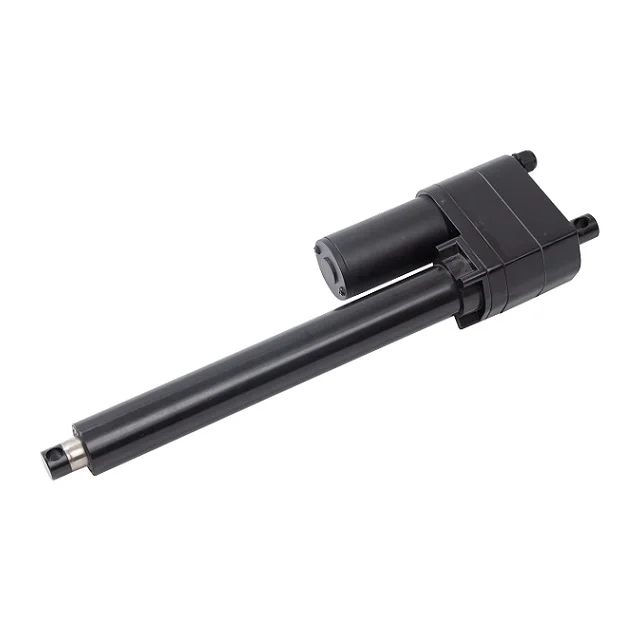

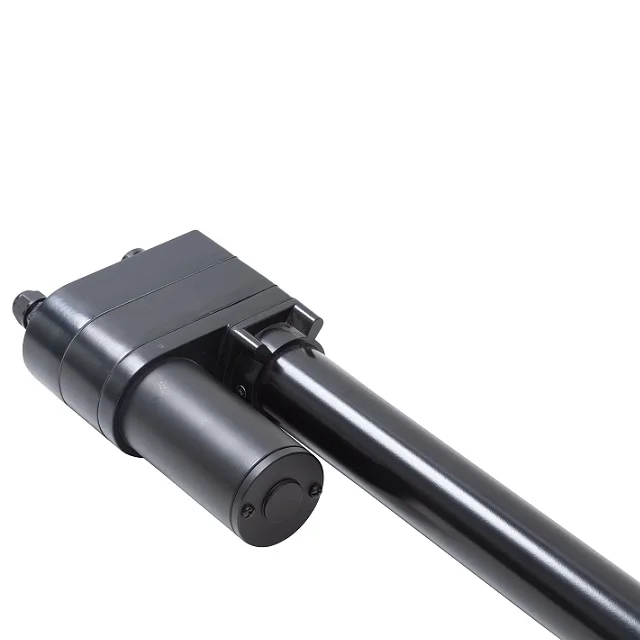

LA C IP66 Heavy Duty 1000N~7000N 12V DC Motor Linear Actuator
- Category: >>>
- Supplier: Ningbo Summite Im & Ex Co. Ltd.
Share on (1600320043430):
Product Overview
Description
Products Description
Linear actuator LA-C
Features
Housing color | Black |
Screw type | Acme screw\\Ball screw |
Control type | Electric control |
Application area | Industry |
Temperature | -40 to 65℃ |
Noise | ≤65dB |
Stroke | 50-1000mm |
Load Capacity | ≤7,000N |
Duty Cycle | 25% |
Motor Type | DC motor |
Overload Protection | Null\\Mechanical clutch protection\\Thermistor |
IP Grade | IP66 |

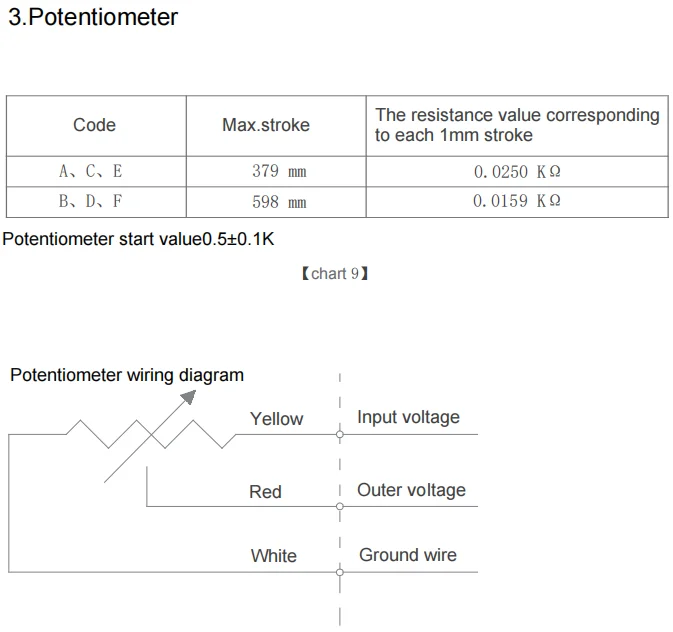

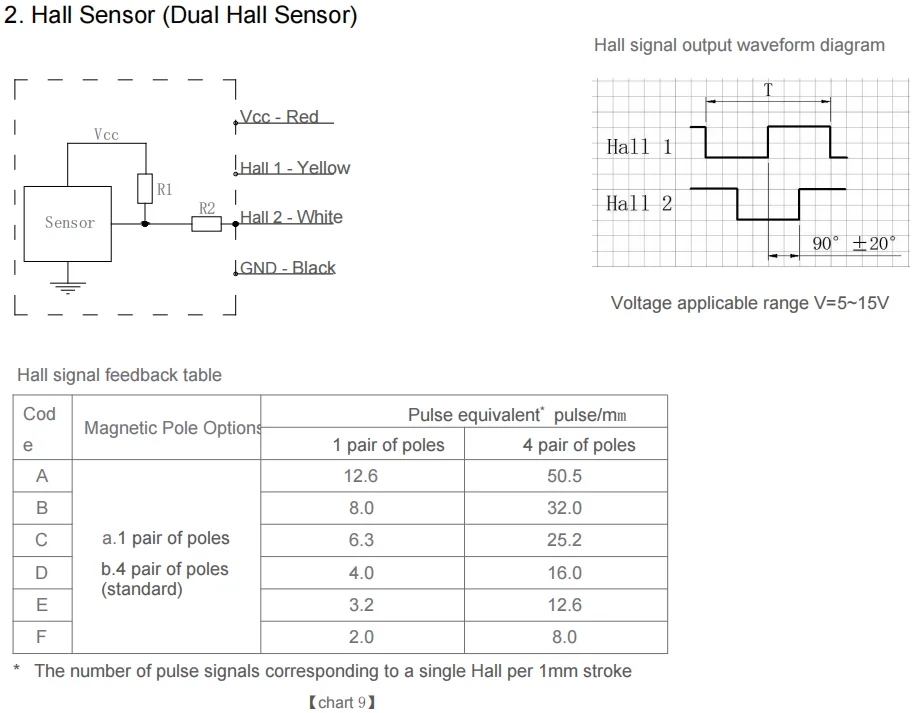

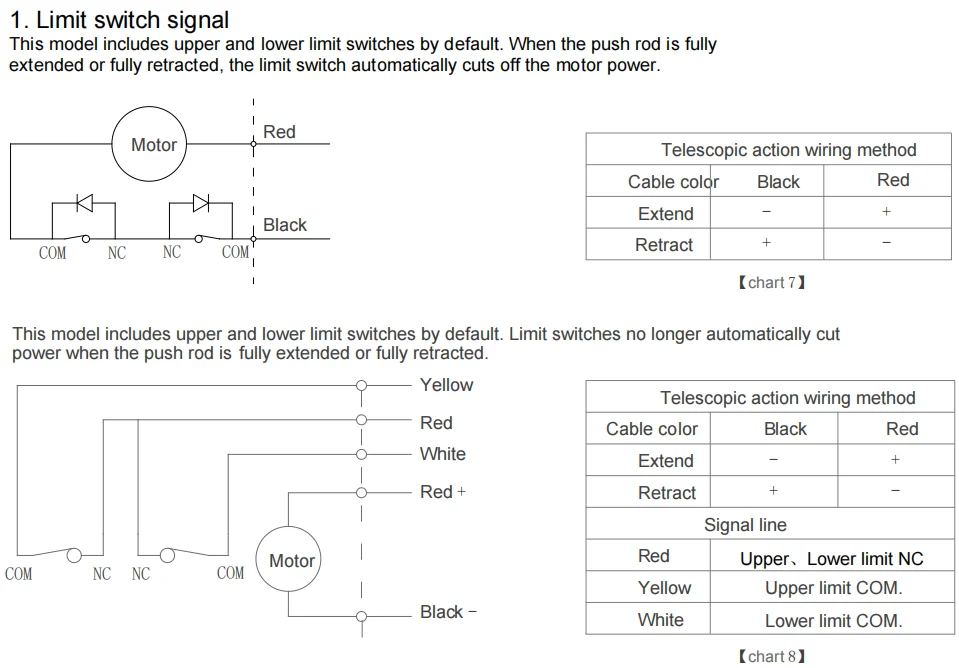

Feedback | Switch signal\\Hall sensor\\Potentiometer |
Input voltage | 12\\24\\36\\48VDC |
Specifications
Code | Max Load(N) | Self-locking(N) | Reduction ratio | Pitch | Speed±10%(mm/s) | Max Stroke(mm) | ||||||
No limit No POT | With limit No POT | With limit with POT | ||||||||||
(N) | (N) | - | (mm) | No load | Full load | (mm) | (mm) | (mm) | ||||
A | 7000 | 10000 | 40:1 | 3.17 | 5.5 | 4.0 | 1000 | 380 | 380 | |||
B | 7000 | 10000 | 40:1 | 5 | 8.5 | 7.0 | 1000 | 610 | 610 | |||
C | 5000 | 7000 | 20:1 | 3.17 | 11.0 | 9.5 | 1000 | 380 | 380 | |||
D | 4000 | 5500 | 20:1 | 5 | 17.0 | 14.0 | 1000 | 610 | 610 | |||
E | 3000 | 4000 | 10:1 | 3.17 | 22.0 | 18.0 | 1000 | 380 | 380 | |||
F | 2000 | 2800 | 10:1 | 5 | 35.0 | 28.5 | 1000 | 610 | 610 | |||
Note: The data above are general parameters. If you need other parameters, please send the request in the message box at the bottom of this page.

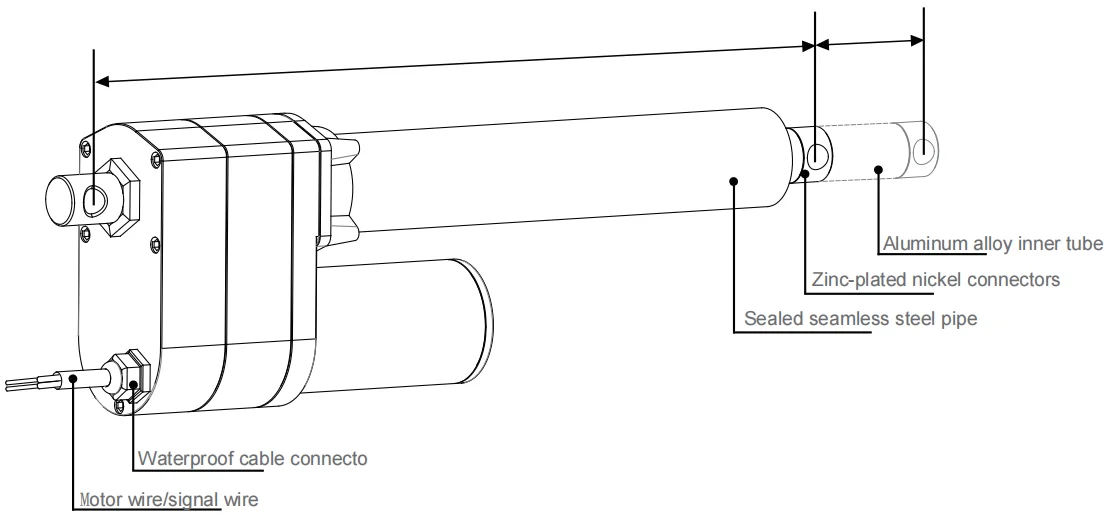

Details Images

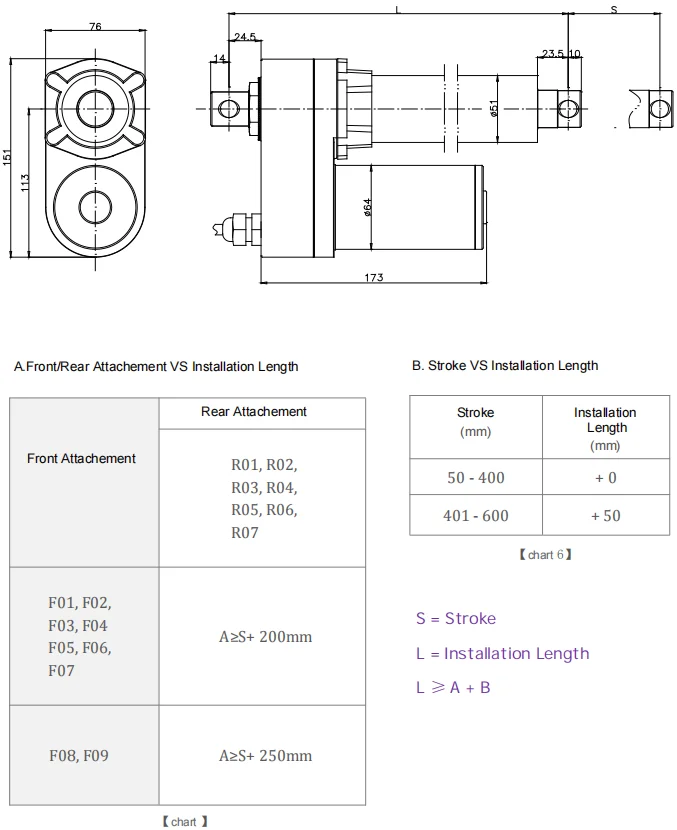

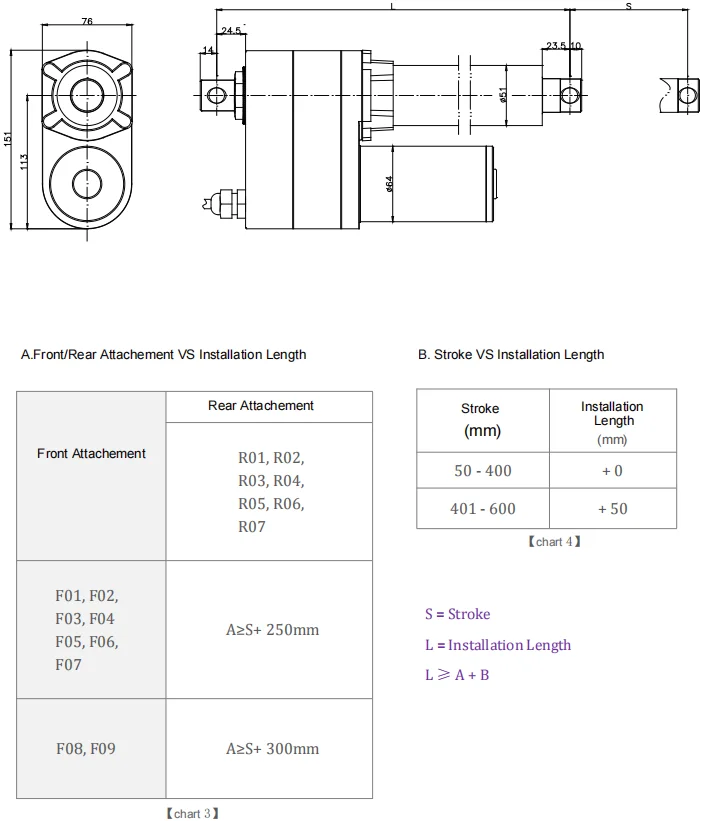

Dimension

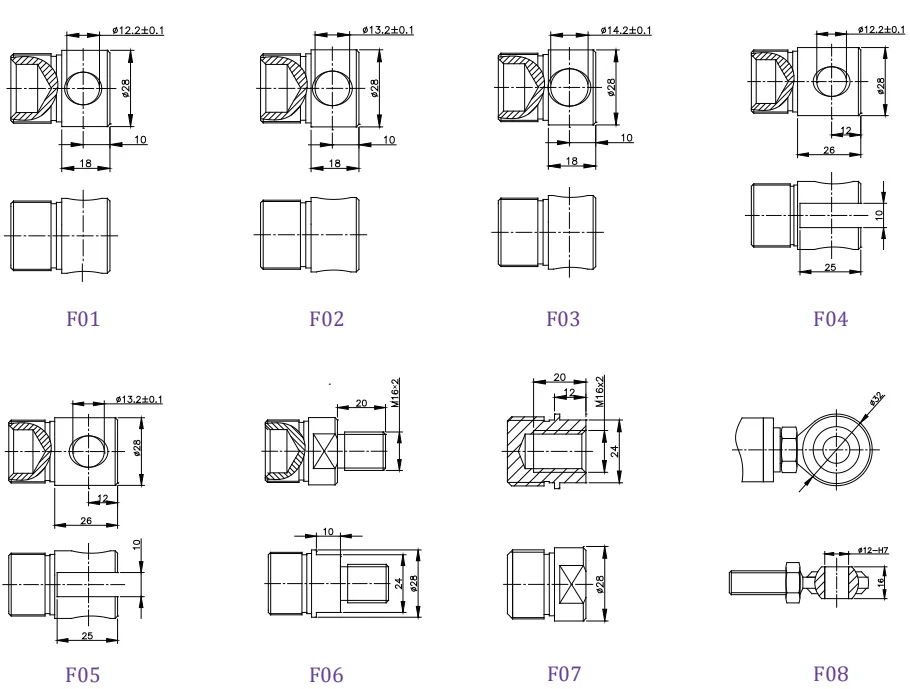

Front connector

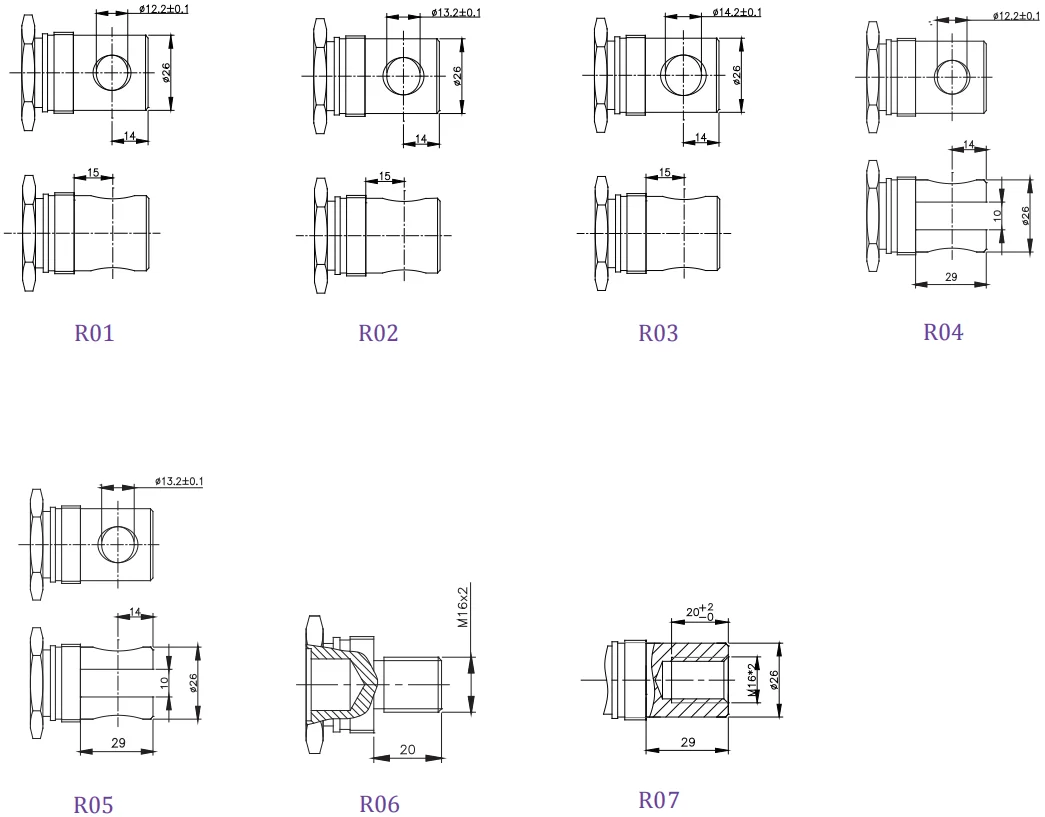

End connector

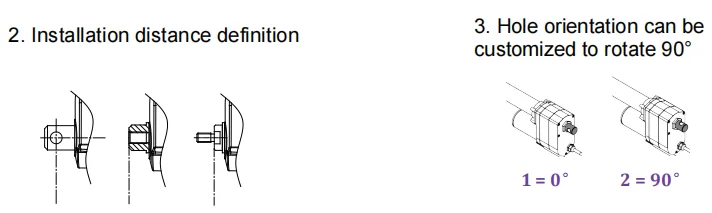

Option

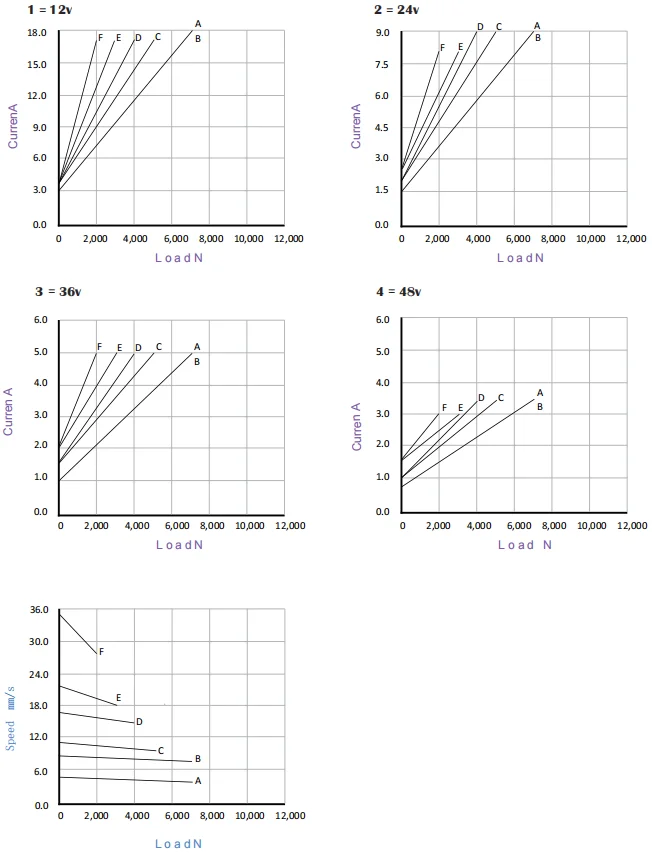

Performance
