Growat 8Kw 10kw 12kw Solar System Grid Tie Inverter With Limiter
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1600320048770):
Product Overview
Description
Product Description
Datasheet
Datasheet | ||||||
Model Name | MOD 10KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X | |||
Input DC | ||||||
Recommended max. PV power | 15kW | 19.5kW | 22.5kW | |||
Max. input voltage | 1100V | |||||
Start-up voltage | 200V | |||||
MPPT voltage range | 140V-1000V | |||||
Max. input current | 13A/32/16A | |||||
MPPT number/Max. input strings number | 2 | |||||
Output (AC) | ||||||
Rated output power | 10kW | 13kW | 15kW | |||
AC nominal voltage | 220V/380V, 230V/400V (340-440V) | |||||
Rated grid frequency | 50/60Hz | |||||
Max. output current | 16.7A | 21.7A | 25A | |||
Power Factor | 0.8leading - 0.8laging | |||||
THDi | <3% | |||||
Efficiency | ||||||
Max. efficiency | 98.6% | |||||
EU efficiency | 97.6% | |||||
Protection | ||||||
DC reverse-polarity protection | Yes | |||||
Short circuit protection | Yes | |||||
Output over current protection | Yes | |||||
Surge protection | Yes | |||||
Grid monitoring | Yes | |||||
Anti-islanding protection | Yes | |||||
Temperature protection | Yes | |||||
Integrated AFCI (DC arc-fault circuit protection) | Yes | |||||
Integrated DC switch | Optional | |||||
General Data | ||||||
Dimensions (W*H*D) | 425/387/178mm | |||||
Weight | 17kg | |||||
Topology | Transformerless | |||||
Self consumption | <1W (night) | |||||
Operating ambient temperature range | -25 ~ +60°C | |||||
Relative humidity | 0-100% | |||||
Ingress protection | IP65 | |||||
Cooling concept | Natural convection | |||||
Max. operation altitude | 4000m | |||||
Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4 | |||||
Features | ||||||
DC connection | H4/MC4(opt) | |||||
AC connection | Screw terminal | |||||
Display | LCD | |||||
Communication | RS485, Optional: Wi-Fi, GPRS | |||||

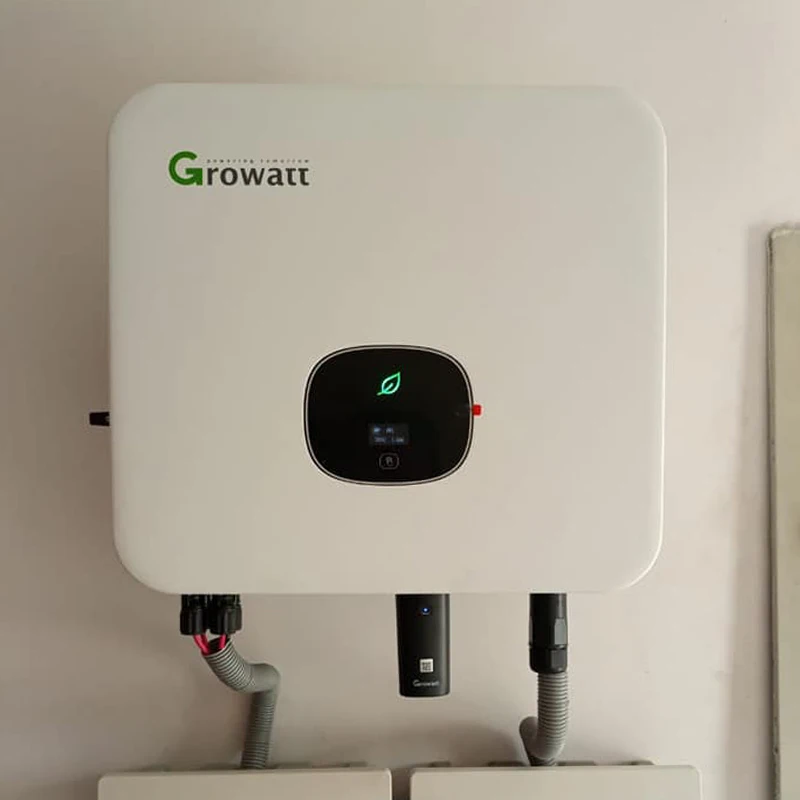

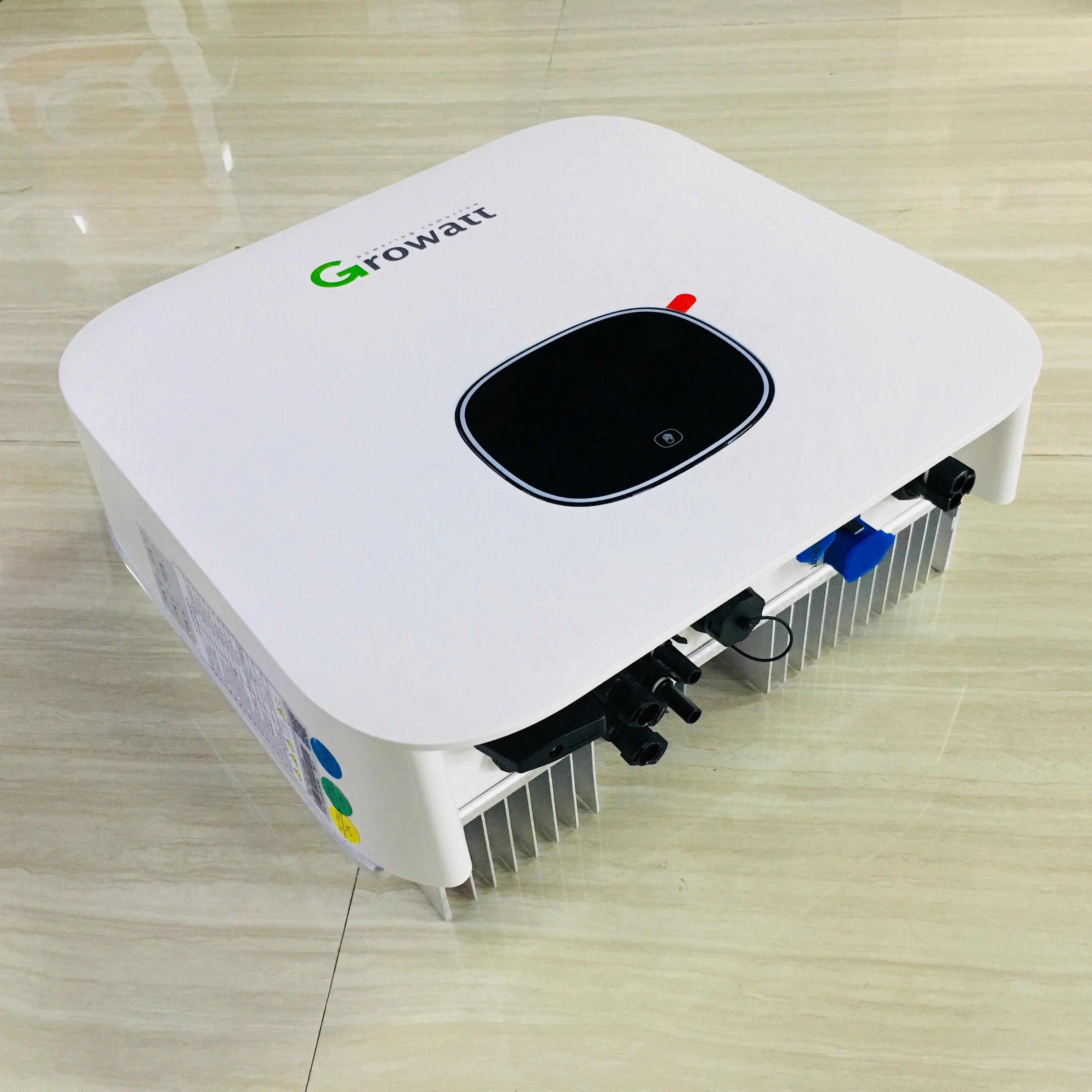

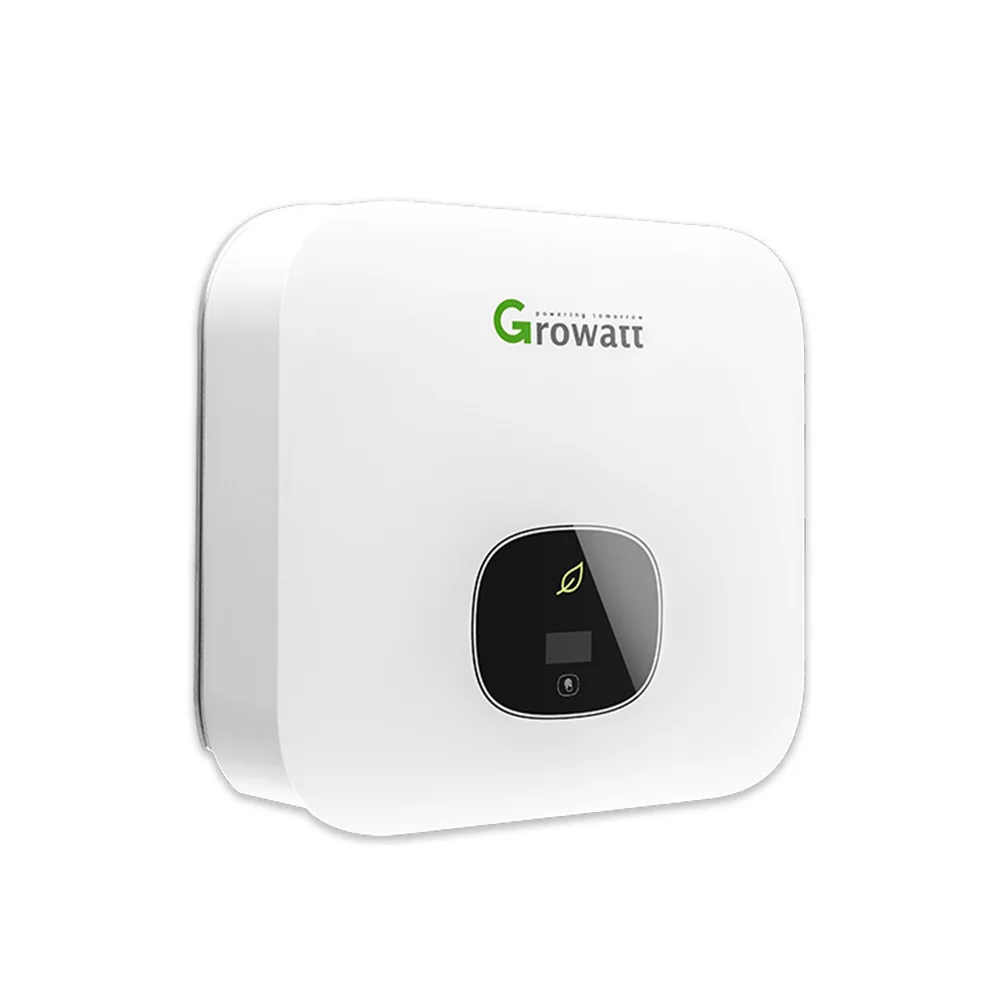

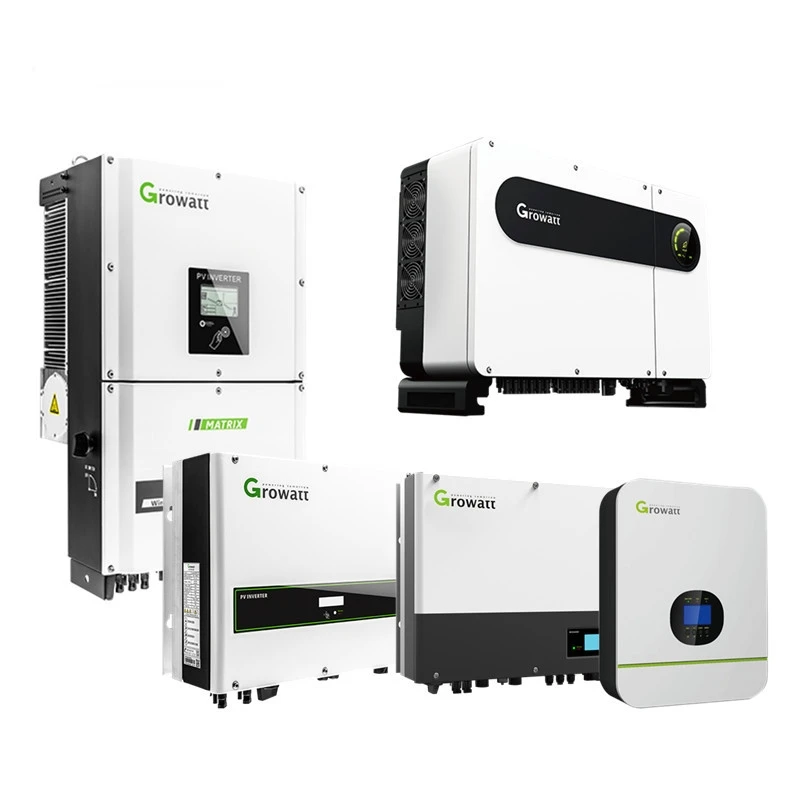

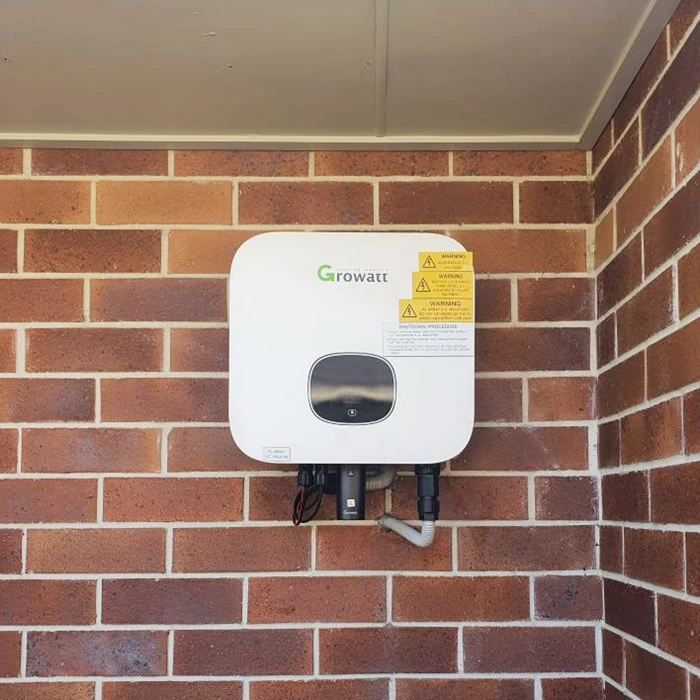

Product Image

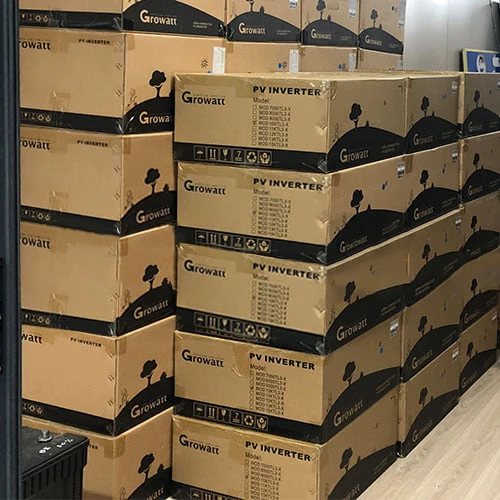

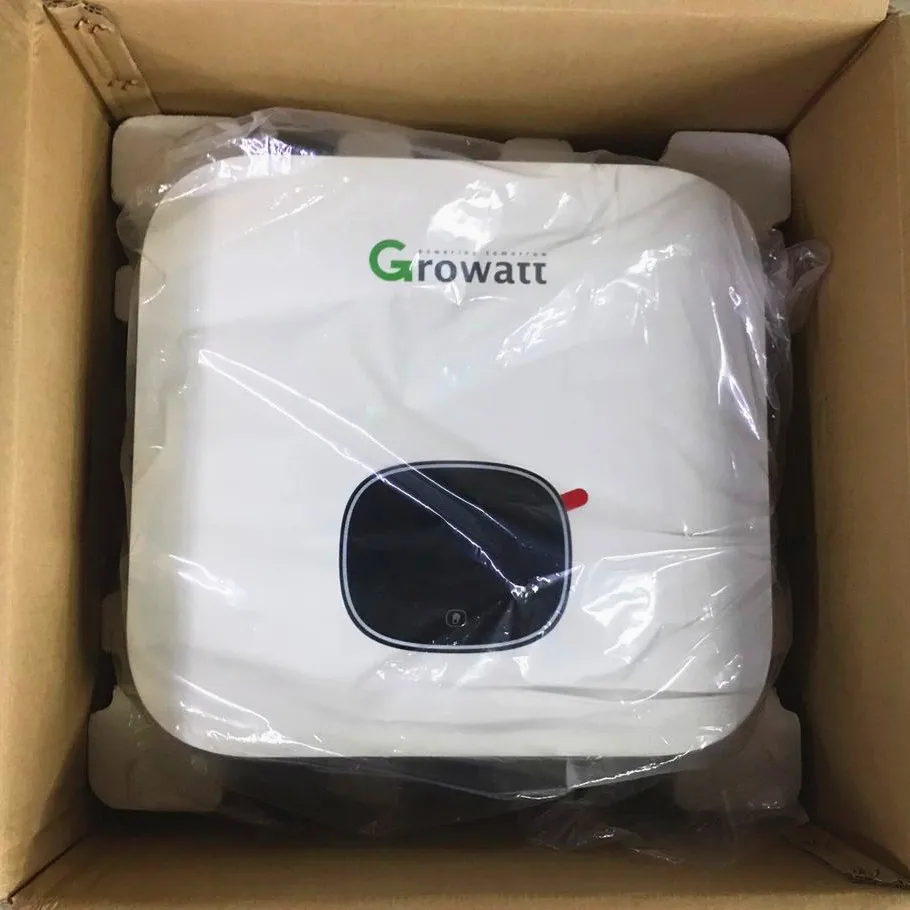

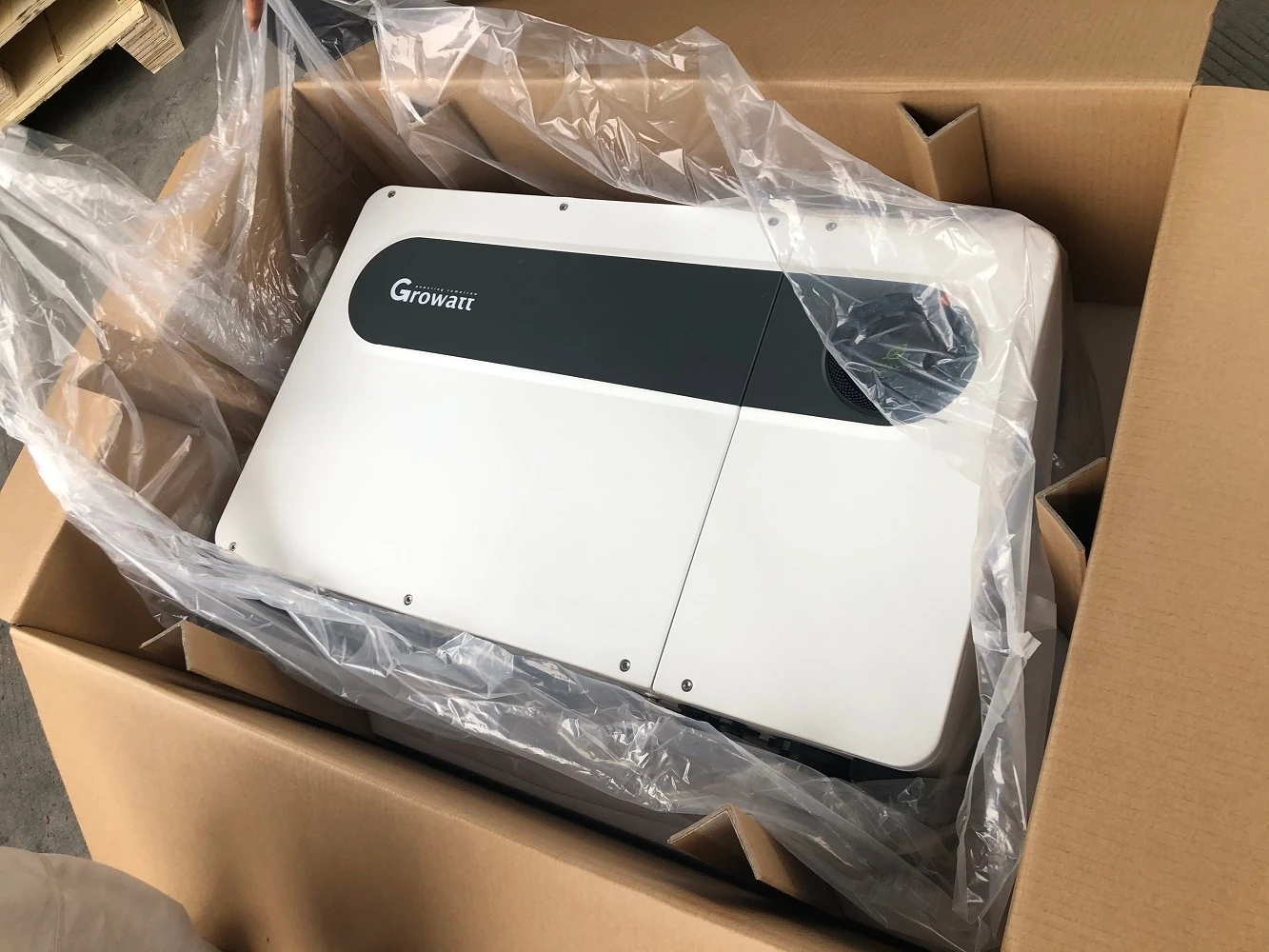

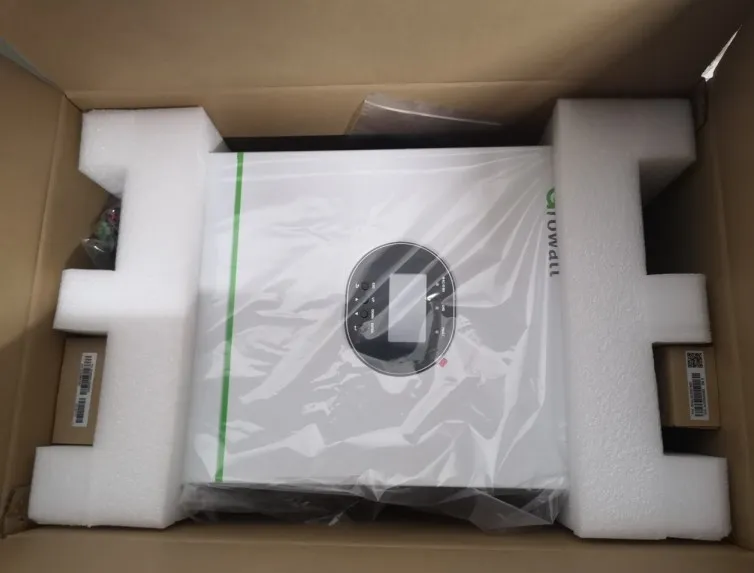

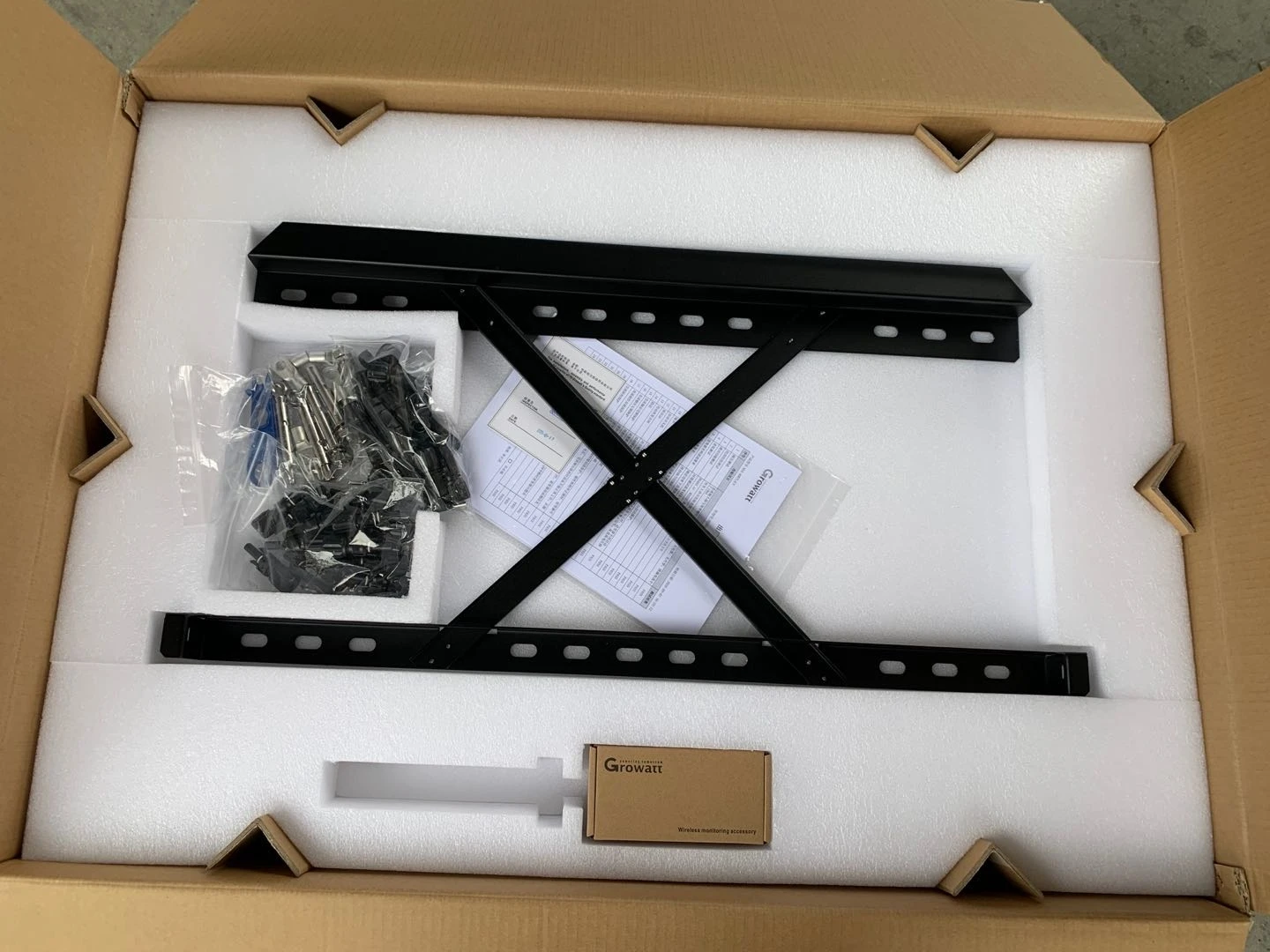

Packing & Delivery

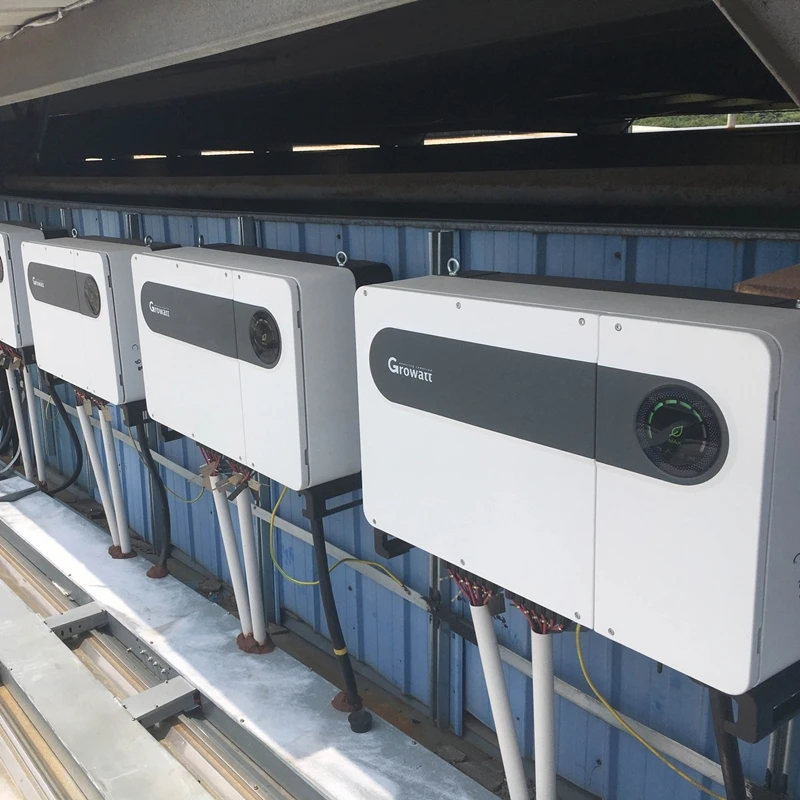

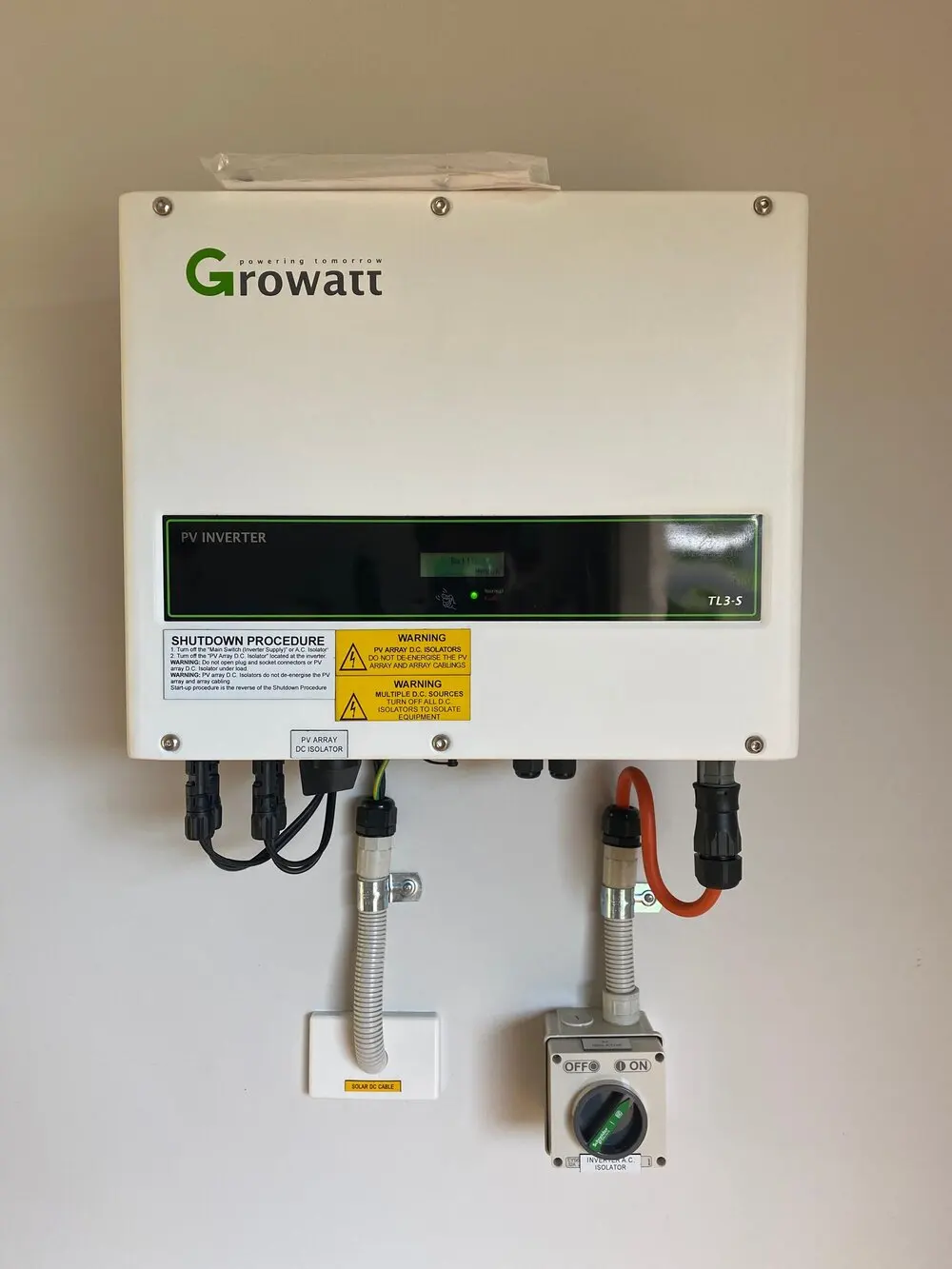

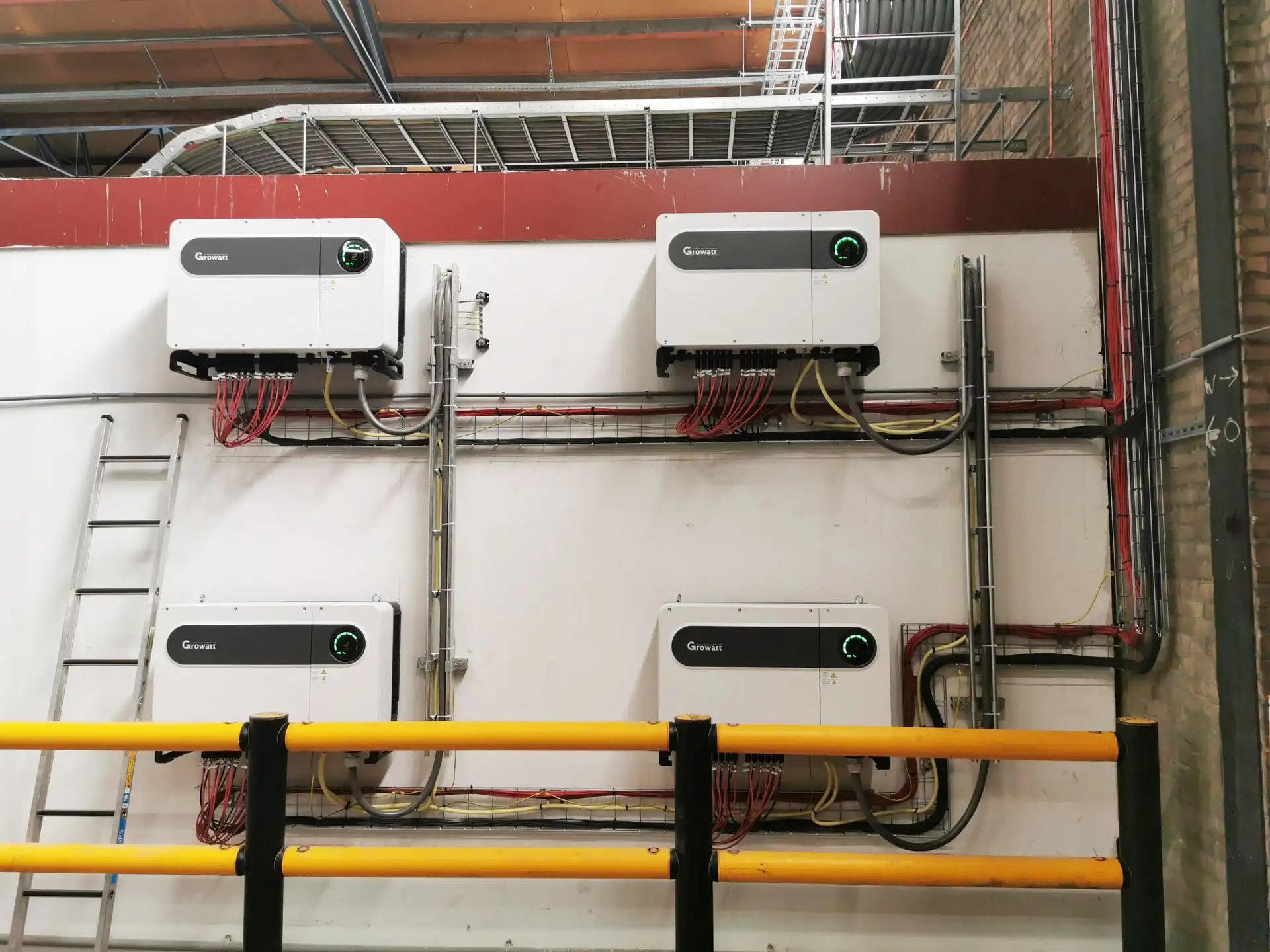

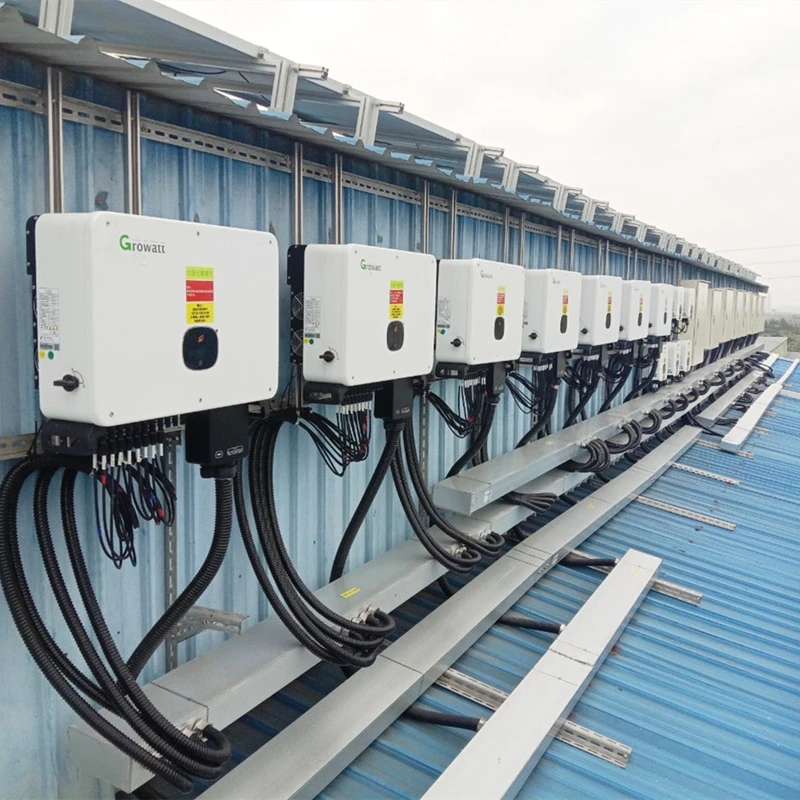

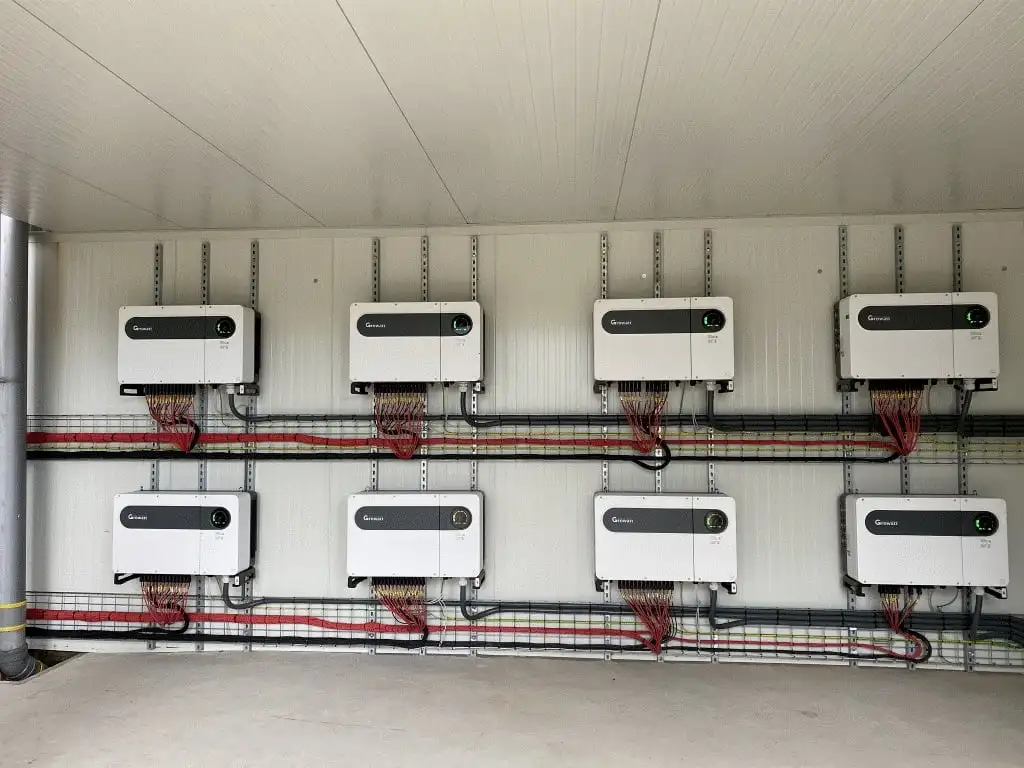

Our project
Solarman Exhibitions
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2016,sell to Western Europe(15.00%),Oceania(10.00%),Northern Europe(10.00%),Mid
East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Africa(5.00%),Central
America(5.00%),North America(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
solar panel,solar inverter,solar energy system
4. Why should you buy from us not from other suppliers?
1. 12 years product warranty and 30 years power output warranty;
We are based in Jiangsu, China, start from 2016,sell to Western Europe(15.00%),Oceania(10.00%),Northern Europe(10.00%),Mid
East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Africa(5.00%),Central
America(5.00%),North America(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
solar panel,solar inverter,solar energy system
4. Why should you buy from us not from other suppliers?
1. 12 years product warranty and 30 years power output warranty;
2. Over 30 years experience, OEM and ODM supported;
3.Competitive price & Super reliable quality;
4. Positive power tolerance: 0~+5w;
5. Waterproof, fireproof, salt & mist resistance;
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
