50m 100m 200m Depth Portable Top drive Full Hydraulic Diamond Core Drilling Rig

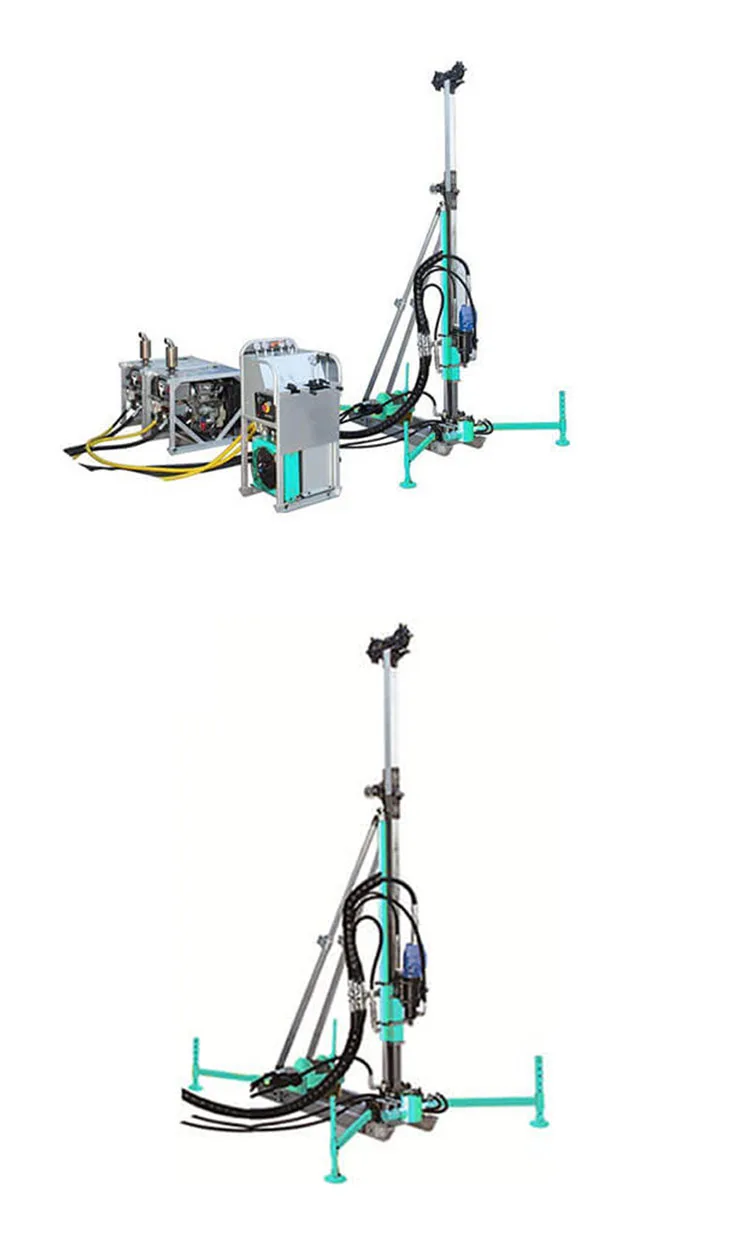

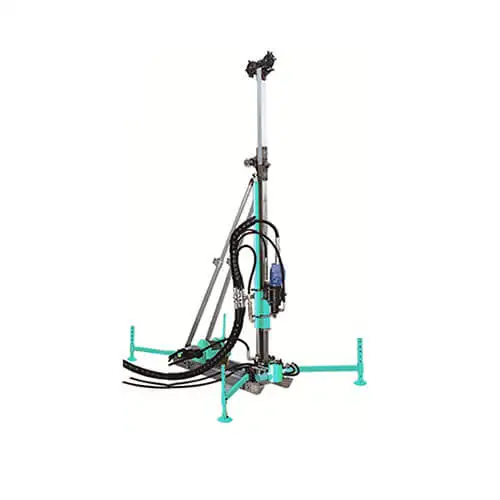

HFP200 Portable Hydraulic Core Drilling Rig

Drilling Diameter: 96/60mm

Drilling Depth: 400/1000m

Engine Power: 132kW

Rotary Torque: 1200N.m

Key words: Top-drive, Full Hydraulic, Rope Coring Tool, Wire-line Coring Drilling

Features of HFP series full hydraulic portable drilling rig:

1. Modular, mast type drill frame structure

• Modular lightweight design, the heaviest module is less than 180Kg, no road repair, and manual handling;

• Mast-type drill frame structure, no need to drill tower, fast handling and disassembly, high safety;

• Top-drive power head, long-stroke guide rail, cylinder propulsion, no need to repeatedly invert the rod, good guiding and directional;

• The machine occupies a small area, does not require basic engineering, and is green and environmentally friendly.

2. Full hydraulic transmission

• Flexible layout, light weight, strong operability, and simple maintenance;

• Stepless speed regulation, high speed, stable drilling process, low vibration;

• Real-time control of the situation in the hole through various pressures, limited pressure protection, and high safety;

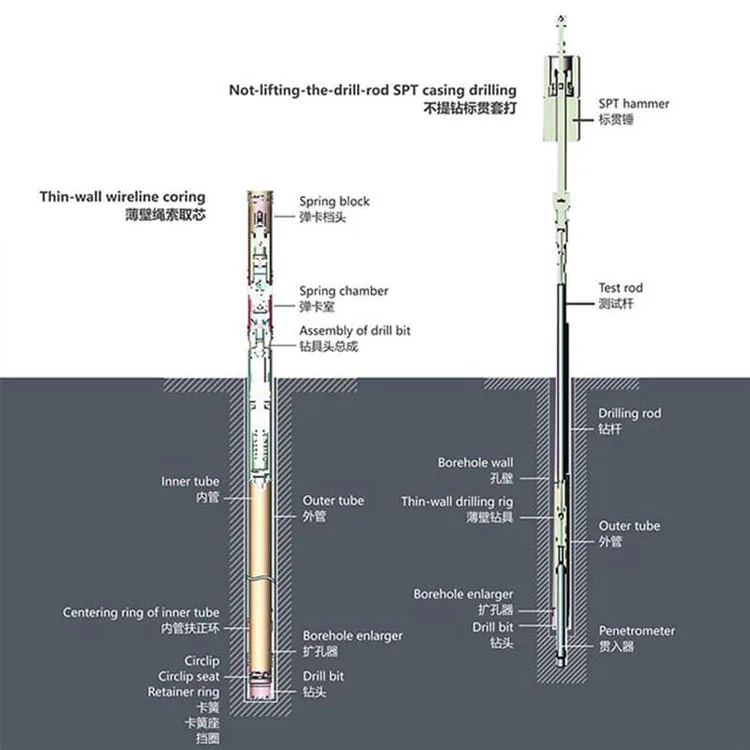

3. Core drilling technology of thin-wall diamond rope

• The drill string system has the characteristics of "full, rigid and straight", and the hole inclination is well controlled;

• Thin-walled drill, low torque resistance, fast cutting speed, high drilling speed;

• The core diameter is large, and the core rate is high;

• The annular gap is small, and it is not easy to break and jam, and there are few accidents and high safety.

Technical Parameter

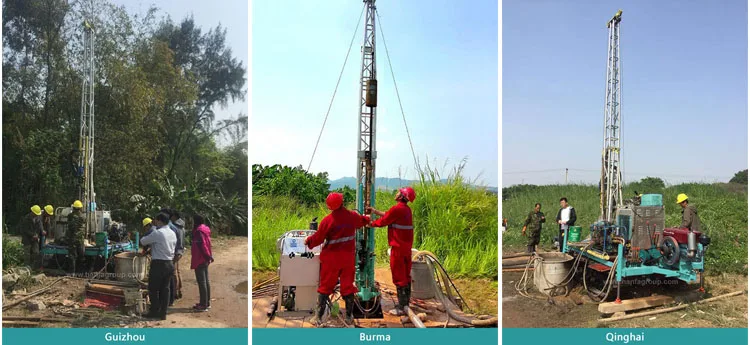

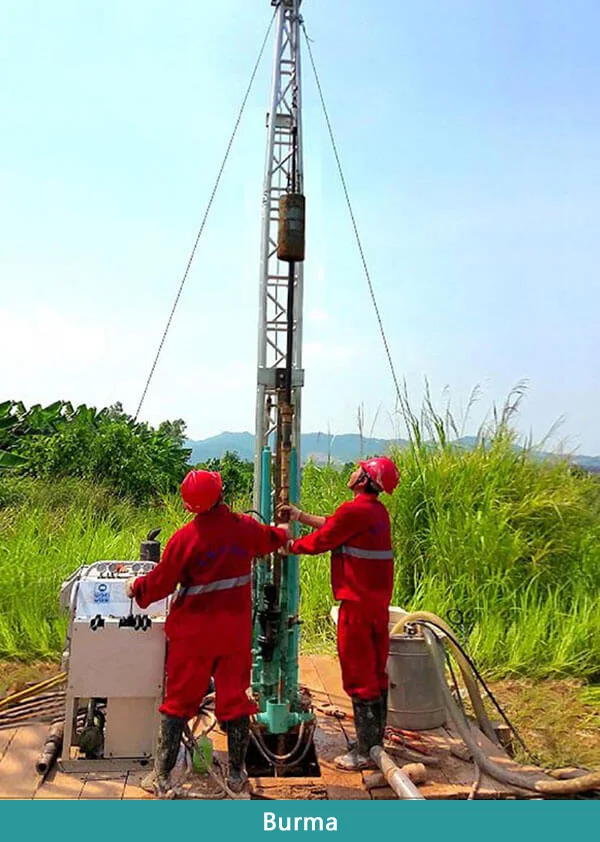

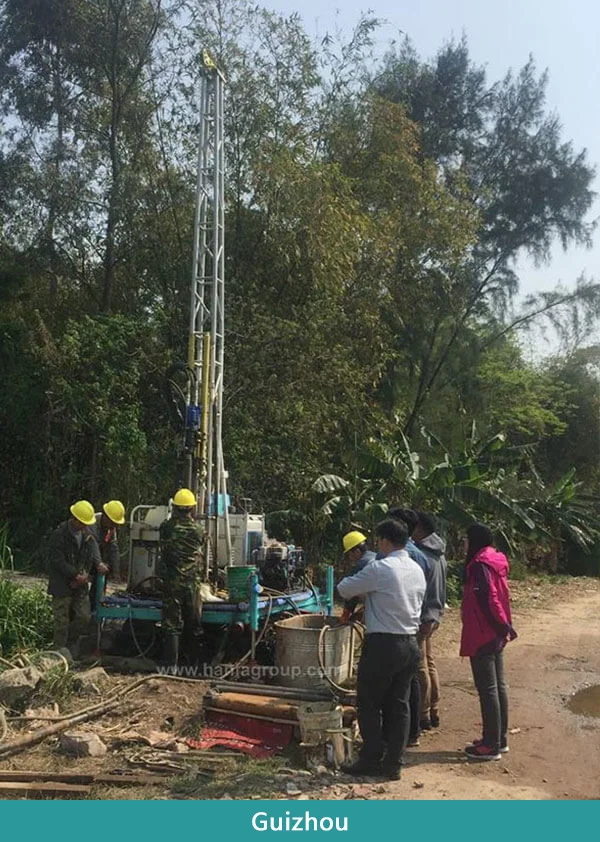

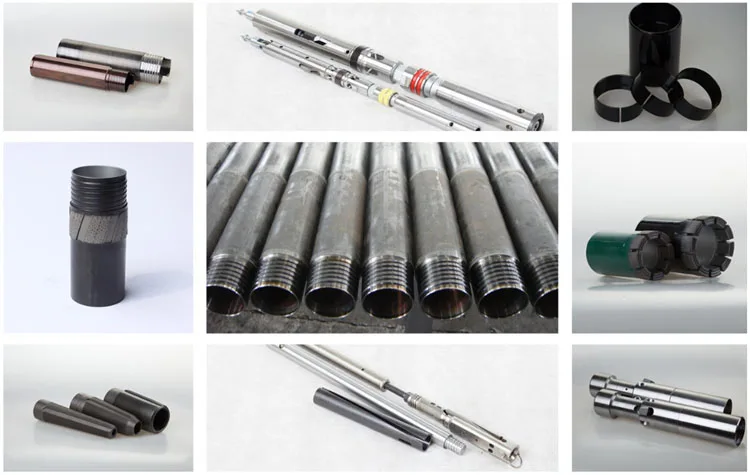

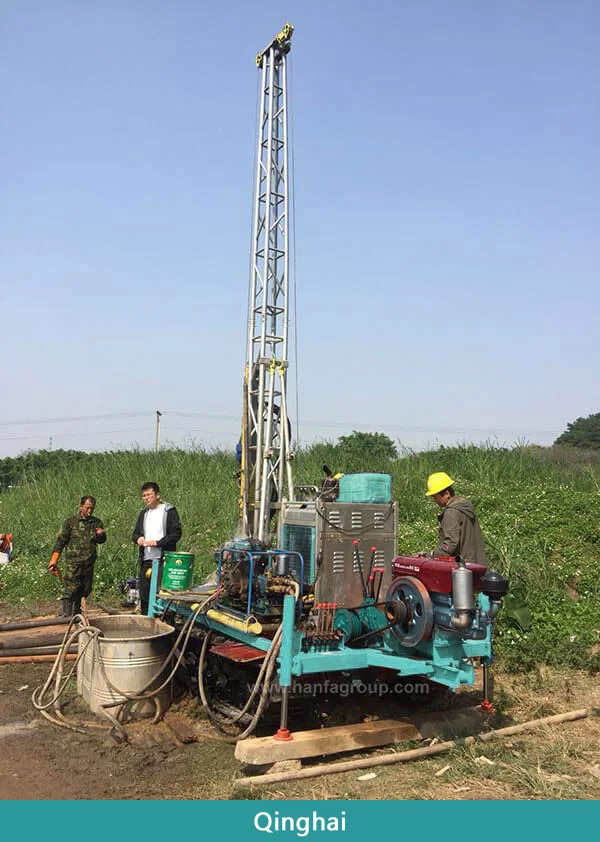

Detail Pictures

Jiaozuo Hanfa Industrial Co., Ltd. belongs to Hanfa Group. Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market. It has experienced engineers, professional R&D team, special after service team, world class sophisticated Machine and advanced technology guarantee the best quality drilling Machine and best service to its customers.

We pursue high standard manufacturing and qualified products. It has more than 20 species such as water well Down The Hole Drill Rig, core Down The Hole Drill Rig, engineering Down The Hole Drill Rig, DTH Down The Hole Drill Rig, horizontal directional Down The Hole Drill Rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc.

Pre~Sales Service                                                           After~Sales Service

  » Inquiries and consulting support                                  » Training how to instal machine

  » Customized service                                                     » Accessories service

  » View our factoty                                                           » Engineers available to service overseas

Jiaozuo Hanfa Industrial Co., Ltd

Kindly inform us the following information:

1. Application

2. Drilling object(rock/soil/sand, etc)

3. Drilling diameter

4. Drilling depth

Then we could recommend the suitable model with favorable price.
