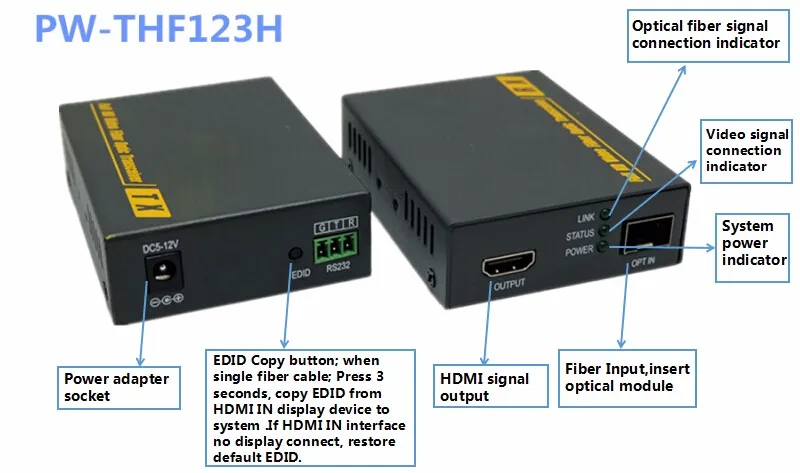

HDM1 extender 2km fiber optical extender Transceiver and Receiver

Product Overview

Description

HDMI Fiber Optic Extender



1.Description

The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K@30Hz, EDID copy and RS232 function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



2.Features

l Transmits HDMI video signals up to 1-10km over a pair fiber optic cable;

l Support video resolution max up to 4K*2K@30Hz, 1080p@60Hz; 3D;

l Support EDID copy, can match many kind display device;

l Support RS232 unidirectional transmission

l Compliance with HDMI 1.4 standard;

l High compatibility, can auto-match source and display device;

l Built-in automatic adjustment system, make the image smooth, clear and stable;

l Built-in ESD protection system;

l Simple to install, plug and play;





3. Specifications

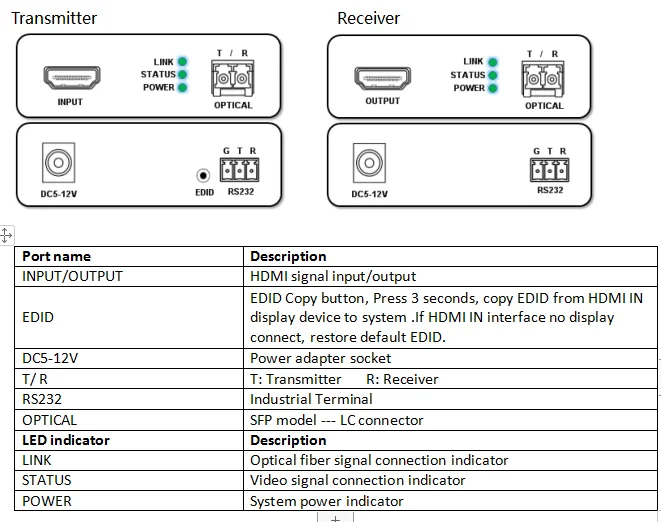

4.Panel

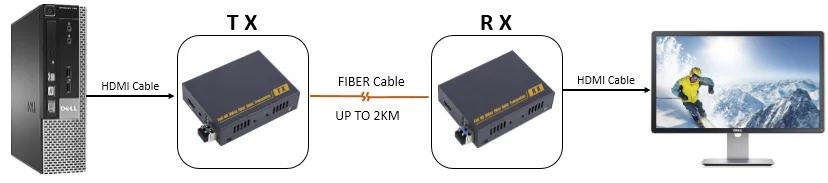

5. Diagram
