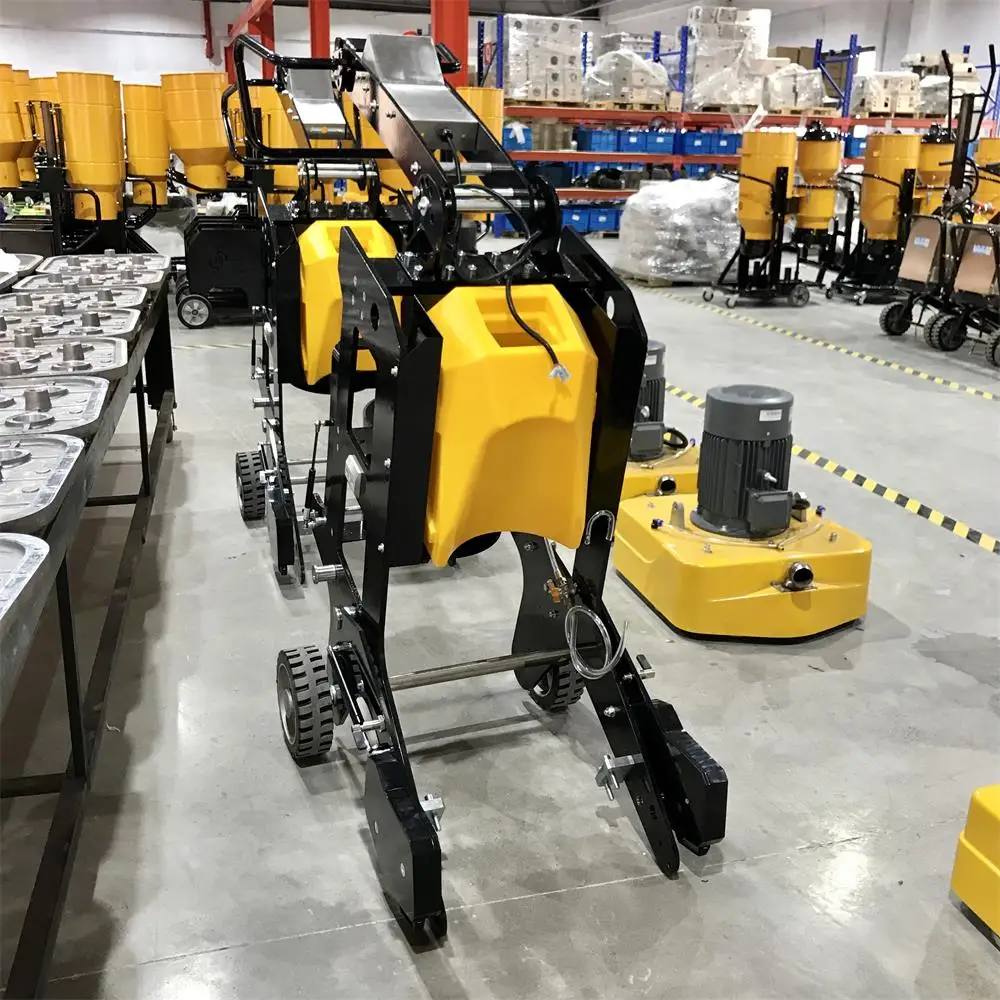

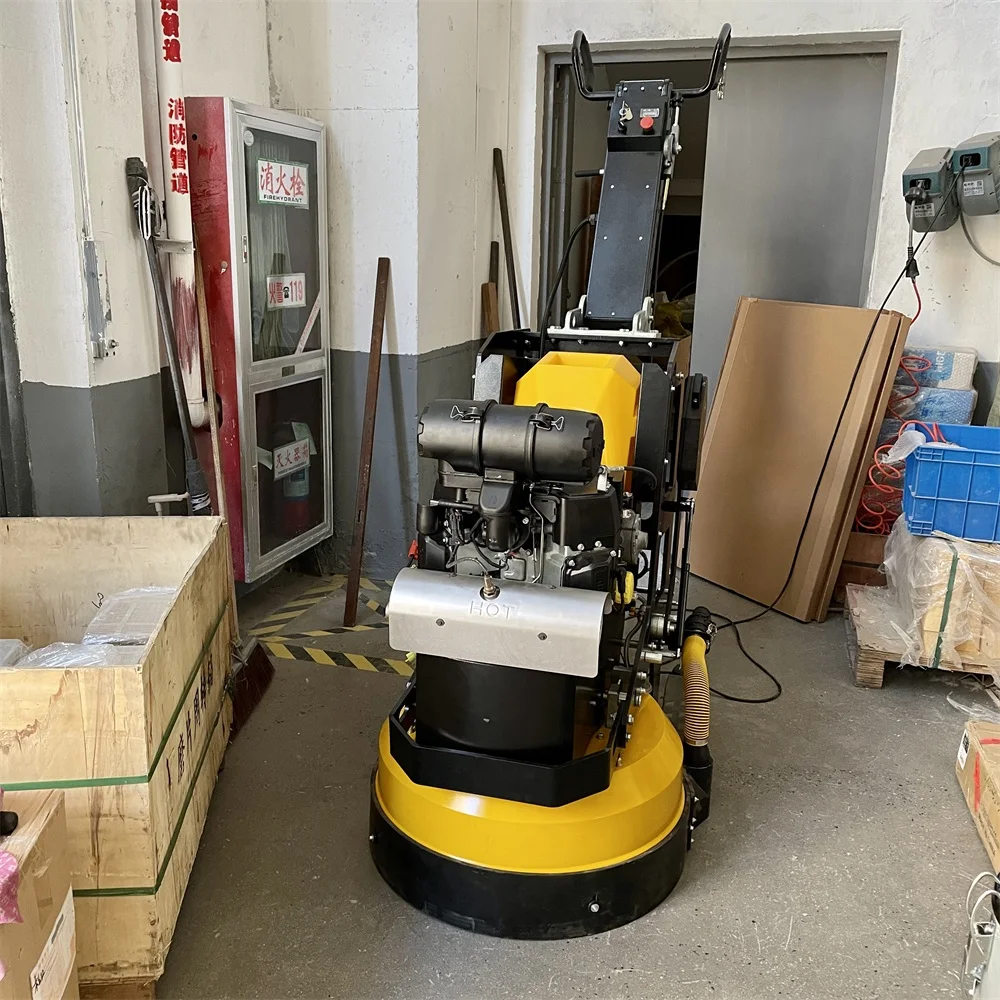

CH850 Gas Powered Concrete Floor Polishing Machine
- Category: >>>
- Supplier: Shanghai Jiansong Industry And Trade Co. Ltd.
Share on (1600320095834):
Product Overview
Description
Product Description

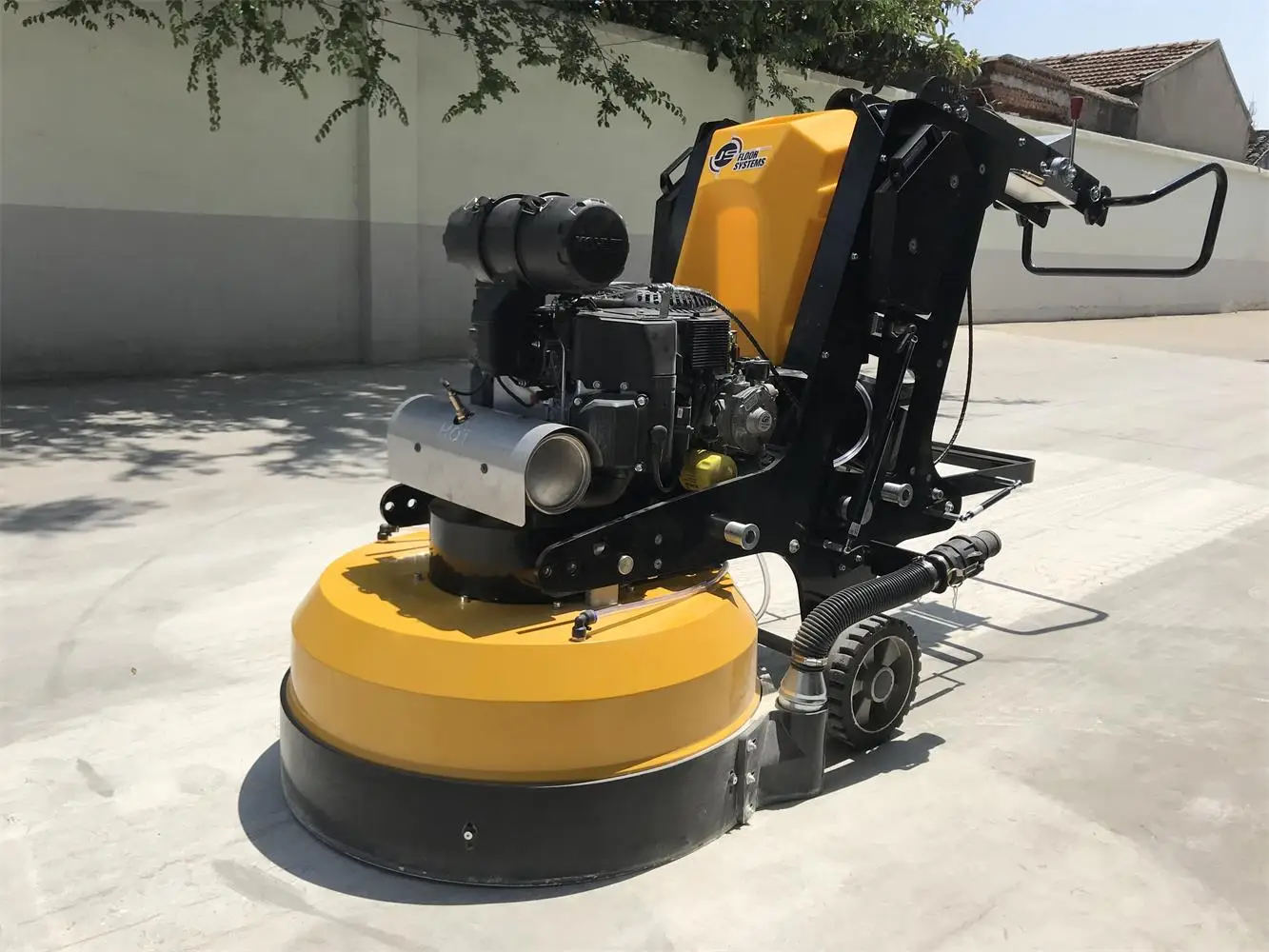

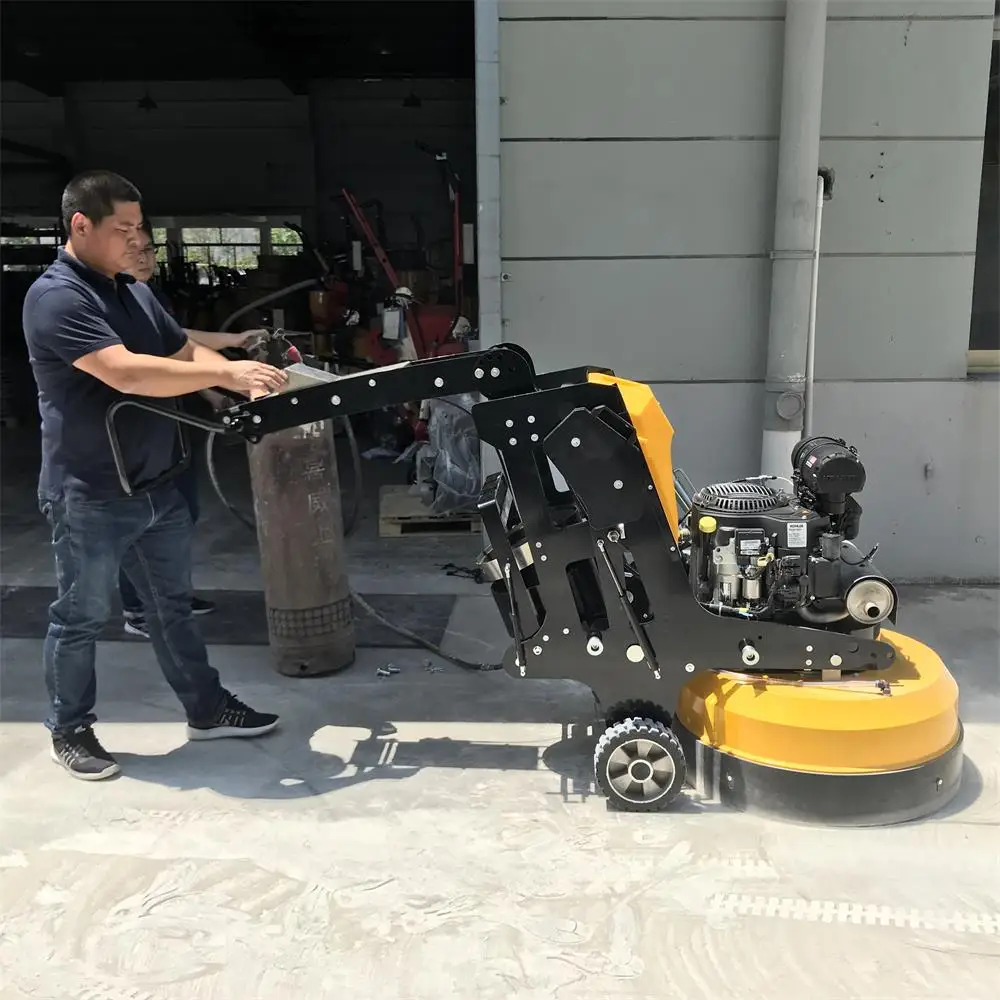

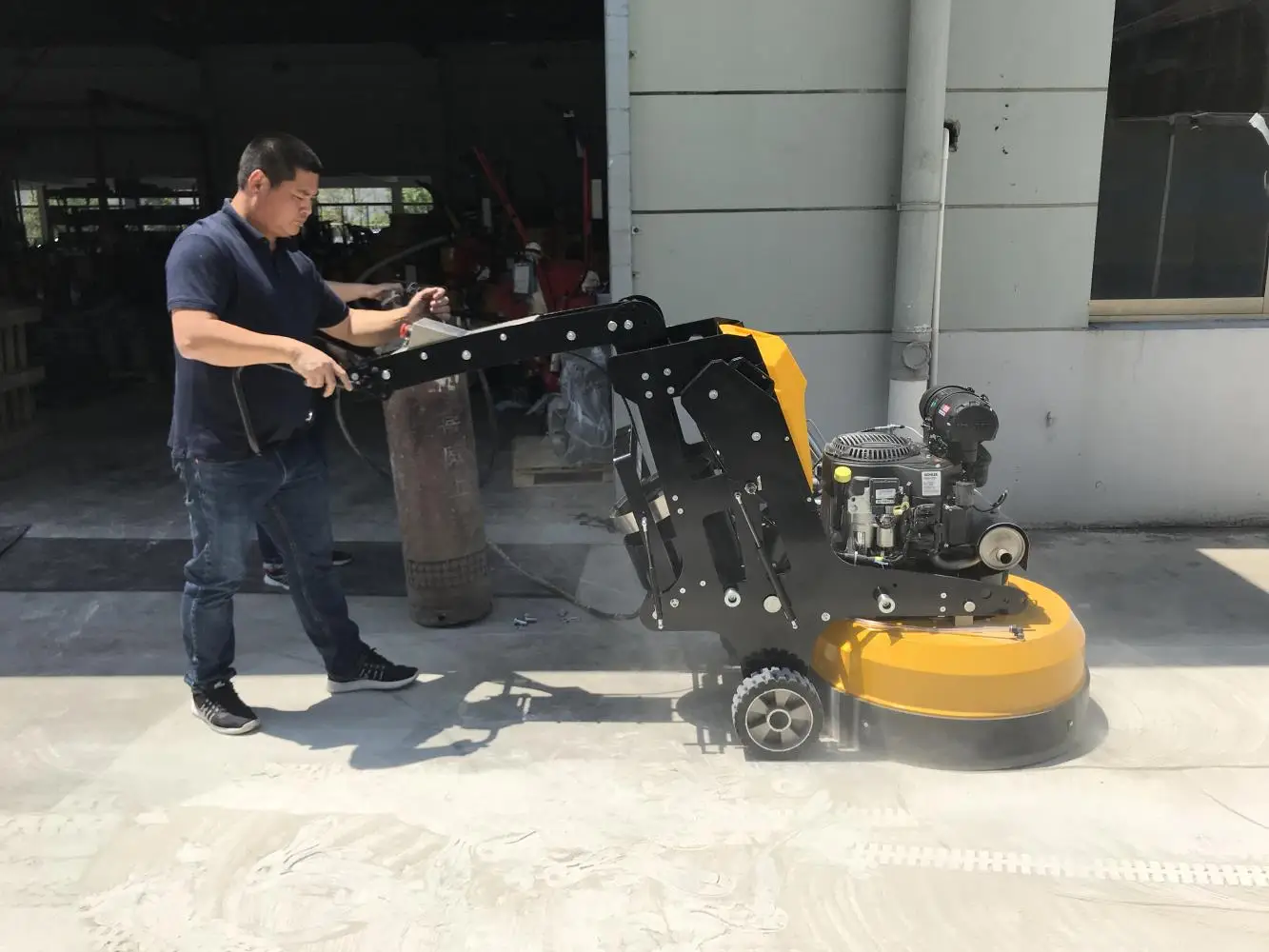

CH850 Gas Powered Concrete Floor Polishing Machine
CH850 is 820mm planetary drive concrete floor grinder polisher with variable speed and propane power. No more power cords or power converters, reduce your grinding time and labor cost. It is an excellent choice and is an effective and versatile concrete machine. The machine is powerful and robust while being very easy to operate.
CH850 is 100% powered by propane, no external electrical power is required. This concrete floor grinder is ideal for use by operators with concrete polishing jobs in large, wide open facilities or outdoor locations where power supply is limited.
CH850 is used for all grinding and polishing applications (wet or dry), adhesives and coating removal, surface repair and flattening of concrete, terrazzo, etc.
CH850 is 100% powered by propane, no external electrical power is required. This concrete floor grinder is ideal for use by operators with concrete polishing jobs in large, wide open facilities or outdoor locations where power supply is limited.
CH850 is used for all grinding and polishing applications (wet or dry), adhesives and coating removal, surface repair and flattening of concrete, terrazzo, etc.
7*24 on line service
Please contact: Ms. Echo
Mobile and whatsapp:
Mobile and whatsapp:
+86 136 3149 9577
Email: echo.guan@jiansongsh.com
12 years experience
machine design and manufacturing
Own 2 factories
in Shanghai and Suzhou
More than 70 machines
one-stop service
Field of Applications
Renovation of old floors,
Fine grinding and polishing,
Leveling of uneven spots and surfaces,
Polishing and Grinding of concrete surfaces,
Removing of adhesive residues, painting, coatings, putty, epoxy and cement slurry.
Fine grinding and polishing,
Leveling of uneven spots and surfaces,
Polishing and Grinding of concrete surfaces,
Removing of adhesive residues, painting, coatings, putty, epoxy and cement slurry.
Terrazzo
Polished Concrete
Warehouse Floor
Technical Data
Model# | CH650 | CH750 | CH850 | CH950 |
Width | 650mm | 750mm | 820mm | 945mm |
Disk size | 254mm | 280mm | 320mm | 360mm |
Weight | 460KG | 520KG | 590KG | 650KG |
Speed | 600-1020 rpm | 600-1020 rpm | 600-1020 rpm | 600-1020 rpm |
Engine | 22HP | 22HP | 24HP | 29HP |
Capacity | Kohler PA-PCV680 747cc 45 cu in | Kohler PA-PCV680 747cc 45 cu in | Kohler PA-PCV740 747cc 45 cu in | Kohler PA-PCV860 824cc 50.3 cu in |
Features / Construction
Machine Construction

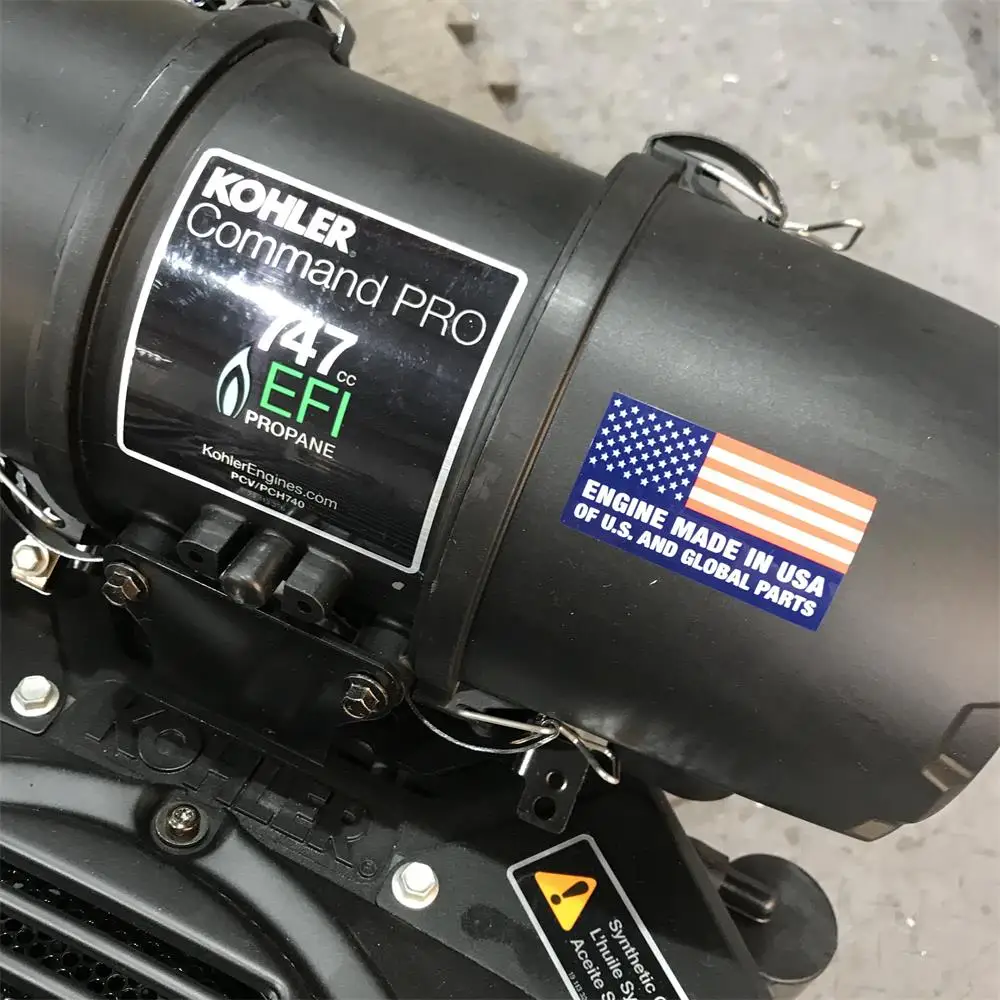

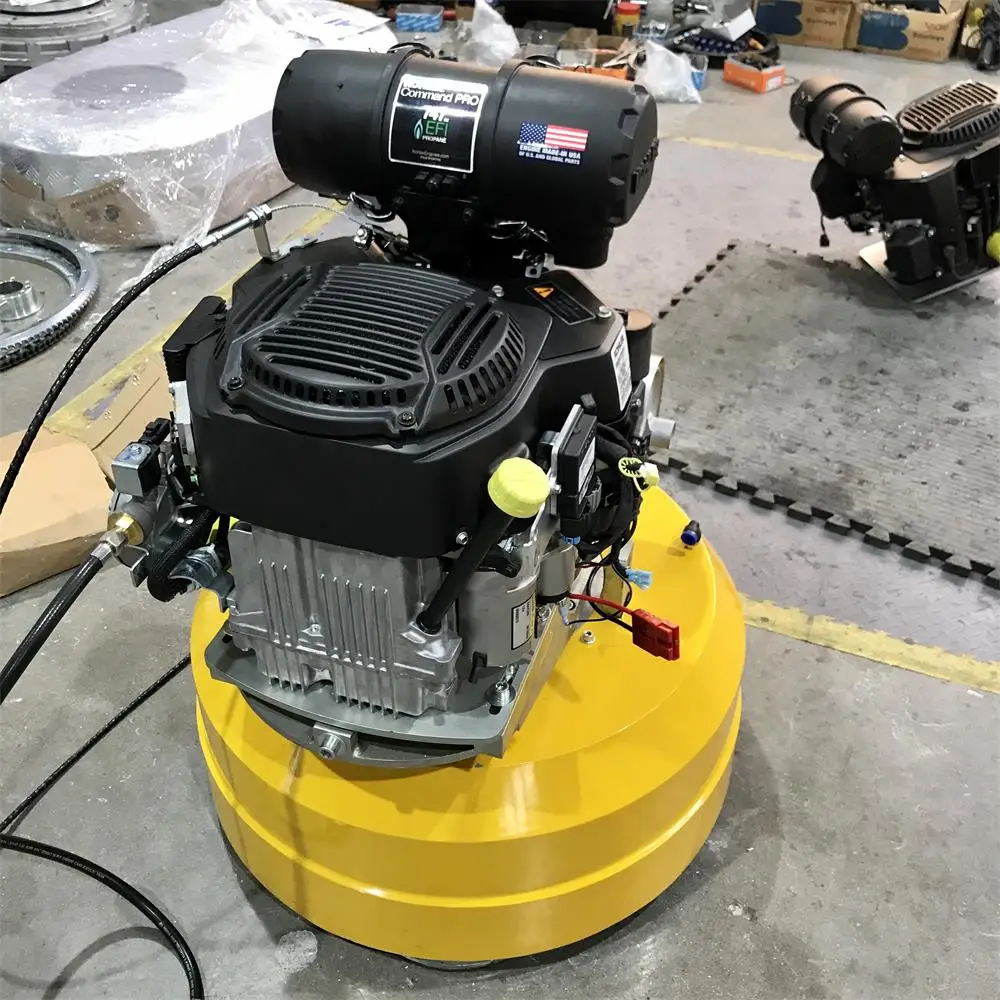

1, Kohler engine

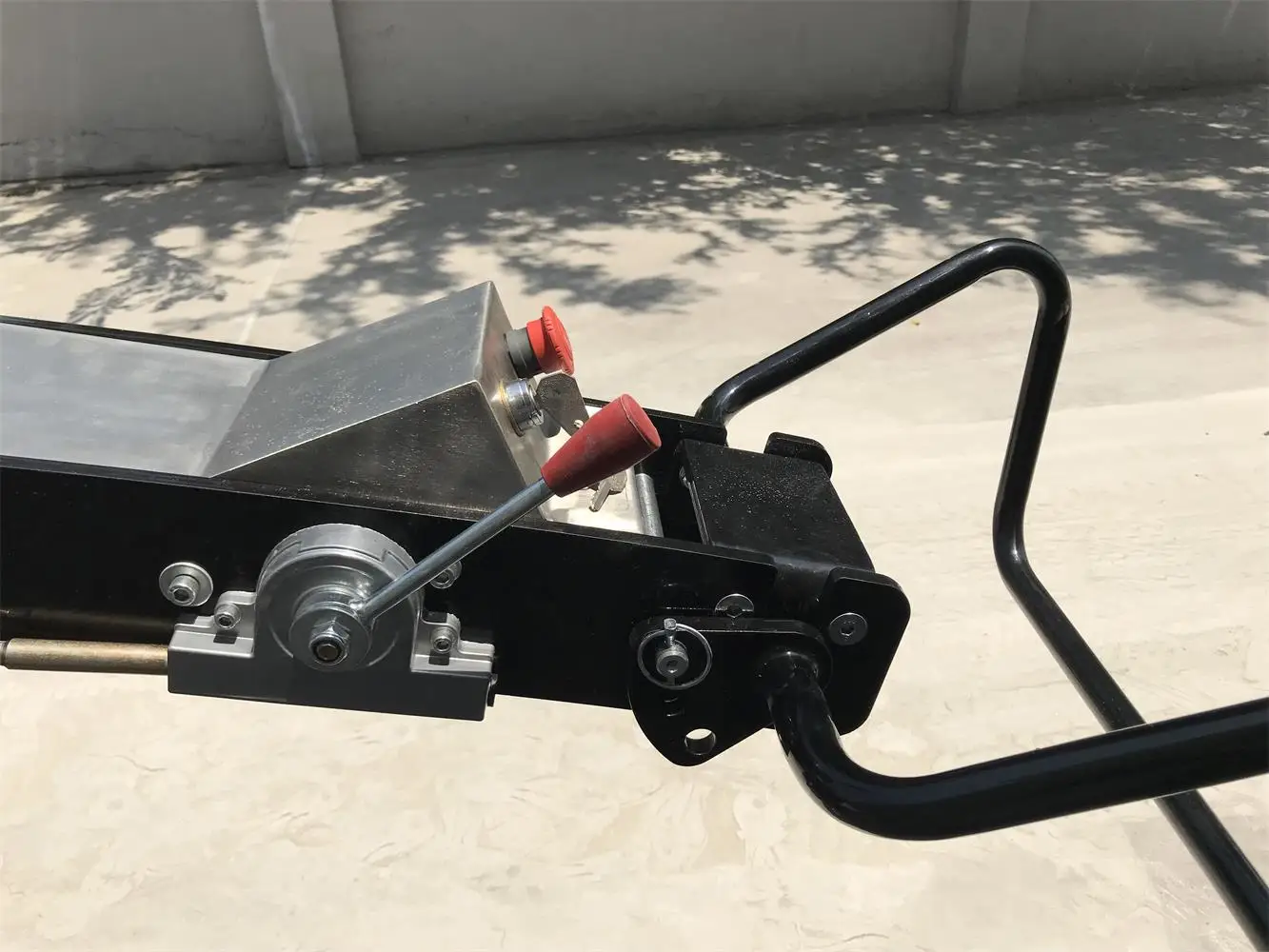

2, Handle with adjustable height
3, Start button
4, Extra weight to increase grinding pressure
5, Rubber dust skirt and dust port. Almost dust free when connected to the collector
6, Battery
2, Handle with adjustable height
3, Start button
4, Extra weight to increase grinding pressure
5, Rubber dust skirt and dust port. Almost dust free when connected to the collector
6, Battery
Features

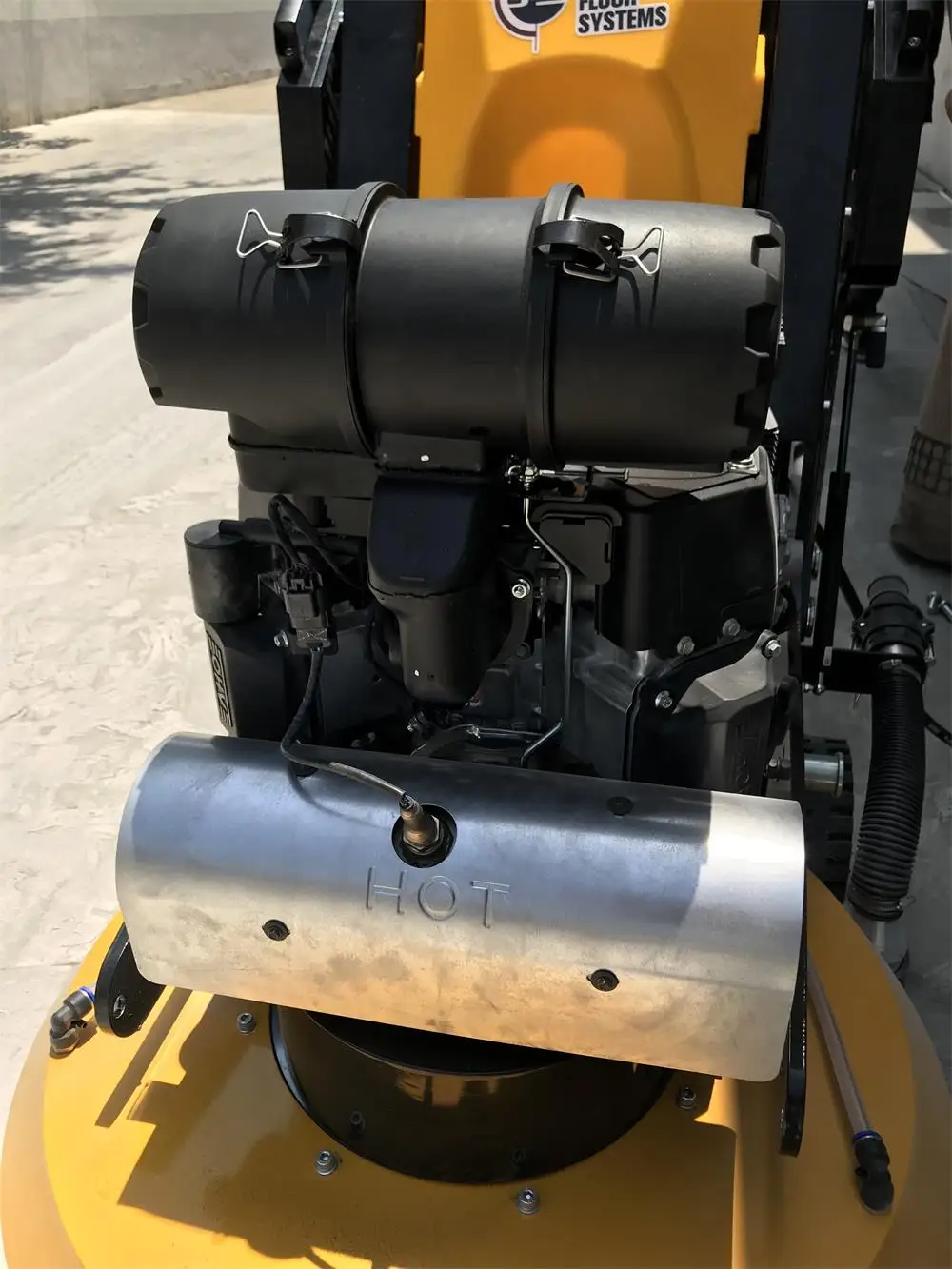

Kohler engine
Aluminum integral casting gear box
Quick-change magnetic tooling systems
Variable-speed soft start
Both grinding and polishing
Big water tank for wet polishing
50mm dust port and thick rubber dust skirt for dry polishing dust control
Be good at high gloss and smooth surface polishing
Aluminum integral casting gear box
Quick-change magnetic tooling systems
Variable-speed soft start
Both grinding and polishing
Big water tank for wet polishing
50mm dust port and thick rubber dust skirt for dry polishing dust control
Be good at high gloss and smooth surface polishing

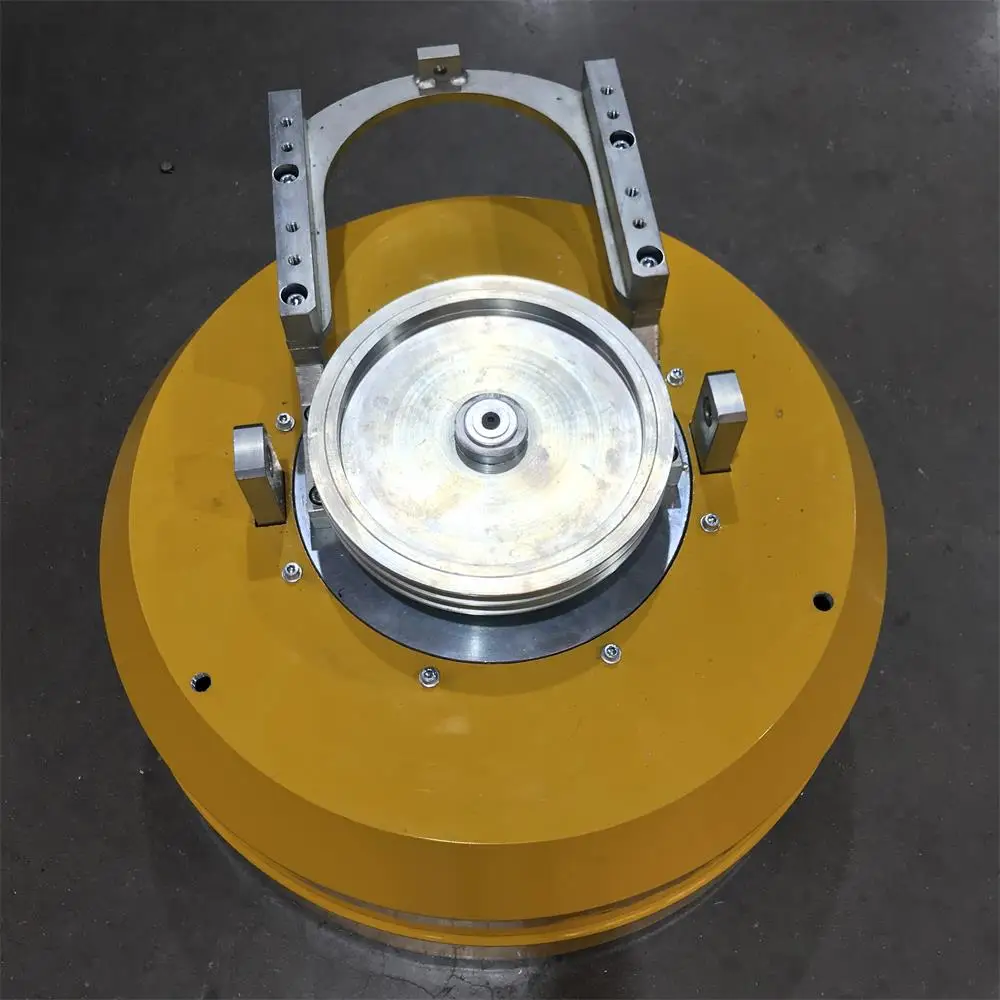

Gear Box Mechanical Construction
This machine can use metal grinding diamond pad, resin polishing pad and 10 inches burnishing pad, one machine with multi function.
Grinding plate can be customized base on your diamond types, then you can use just one type diamond tooling for all your machines.
Grinding plate can be customized base on your diamond types, then you can use just one type diamond tooling for all your machines.
Gear Box
Japan Bearing
Customized Plate
Tools / Accessories
Related Products
About JS Floor Systems
Company Profile
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service and products are appreciated by customers all over the world.
Our advantage
1, More than 11 years of experience of machine design and produce.
2, Own two factories and one software office, in Shanghai and Suzhou.
3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.
2, Own two factories and one software office, in Shanghai and Suzhou.
3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.
Certificates
Trade Shows
CNC High Precision Process
Laser Cutting Machine
Welding Robot
Suzhou Factory
Shanghai Factory
Welcome to visit us!
FAQ
Q1: Do you make the metal and resin pads yourself?
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
