5KW 10kw LifePO4 lithium ion Battery 48V 60V 72V 100Ah 150Ah 200Ah Lithium ion Battery Rechargeable li ion battery pack

Item No.

Items

Specifications

NOTES

1

 Model

48v100-200Ah

        100-200Ah

2

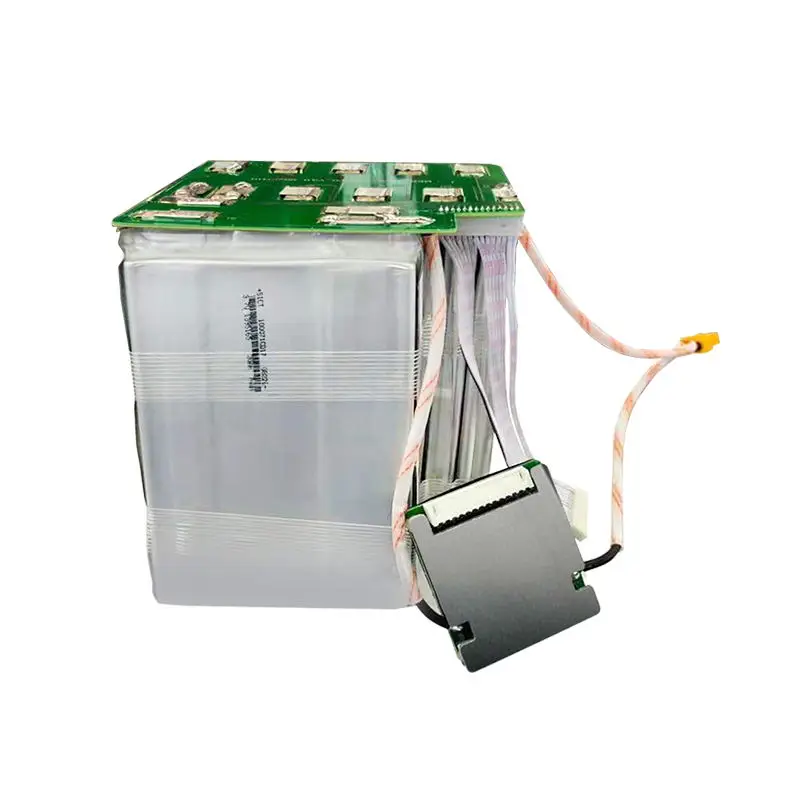

BMS Model

13 series 30A/50A

 The Same Port of Charge and Discharge at 30A/50A

3

Min capacity

80Ah/160Ah

 Discharge from 54.6V/0.5 C to 48V

4

Rated voltage

48V

5

Charge voltage

54.6V

Charger output voltage

6

     Max.Charging current

30A/50A

Max Continuous charging Current

7

Discharge end voltage

36v

8

Max.Discharge Current

30A/50A

Max Continuous Discharge Current

9

Operating Temperature

0~ +45℃

Charge

-20°C ~ +60°C

Discharge

10

Storage Temperature

1 month

3 months

1 year

-20°C ~ +60°C

-20°C ~ +45°C

-20°C ~ +25°C

11

             Cycle Life

≥1500Cycles

Charge @0.2C Discharge @0.2C

Capacity≥80%

12

Impedance

≤200mΩ

13

Battery Weight

Approx:50-100 Kg

14

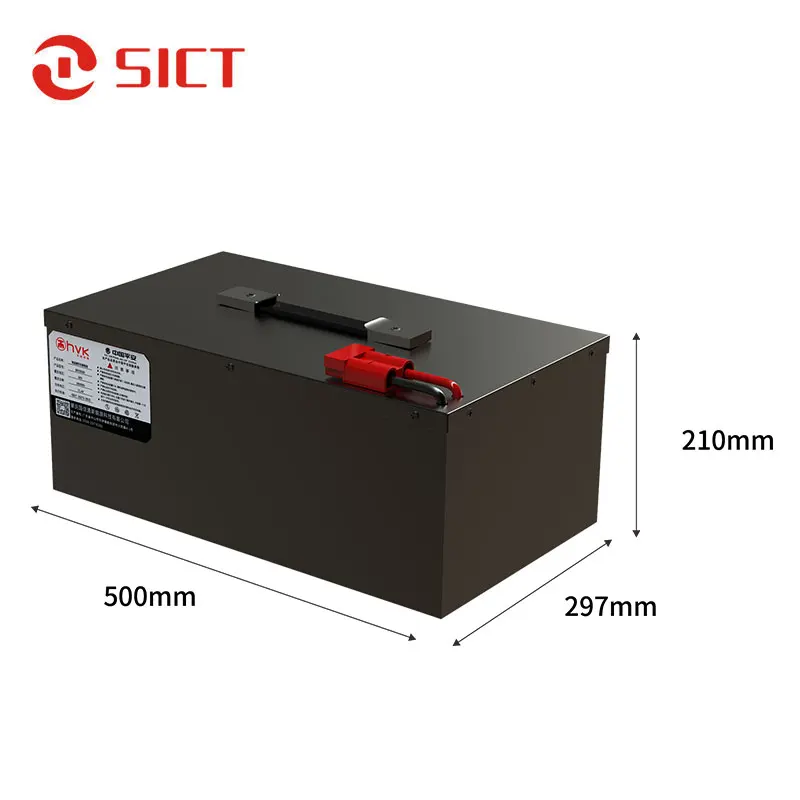

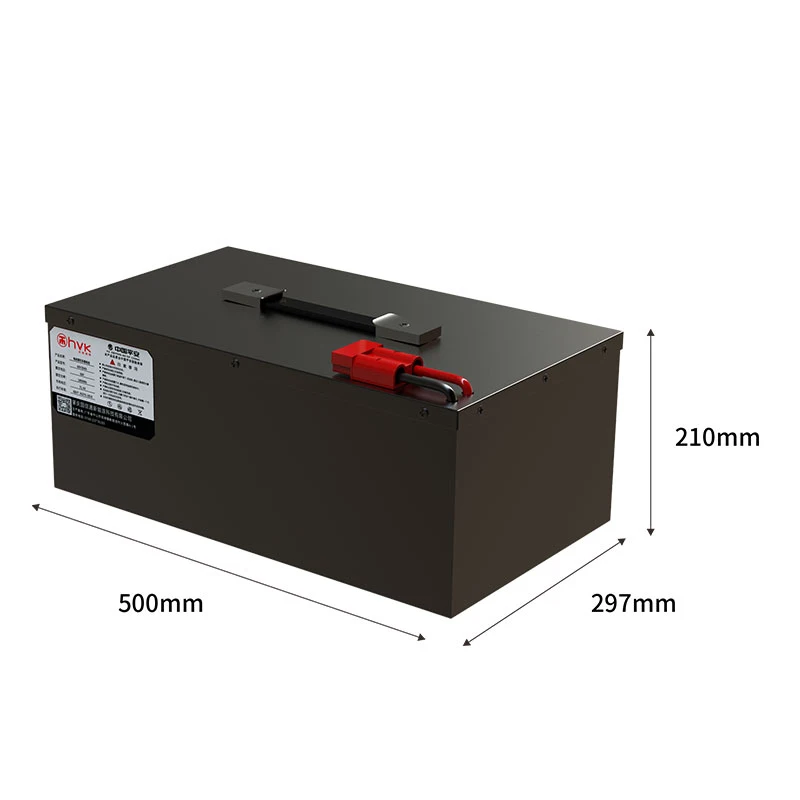

Battery Dimension (mm)

Length

Customized

Width

Customized

Height

Customized

15

As of Shipment Voltage

≥36V/48V
