PP danline re twisted rope production line Tow rope hauling cable production line
- Category: >>>
- Supplier: Laizhou Yibang Machinery Co. Ltd.
Share on (1600320111294):
Product Overview
Description
Product Overview

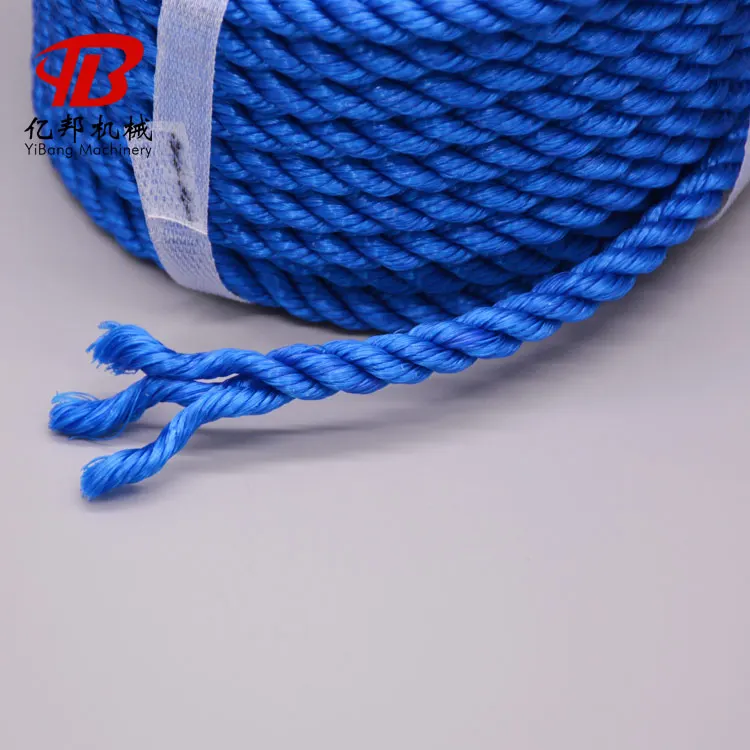

PP danline re-twisted rope production line Tow rope hauling cable production line
The whole production line includes PP danline yarn extruder machine , yarn twisting machine and plastic rope making machine .

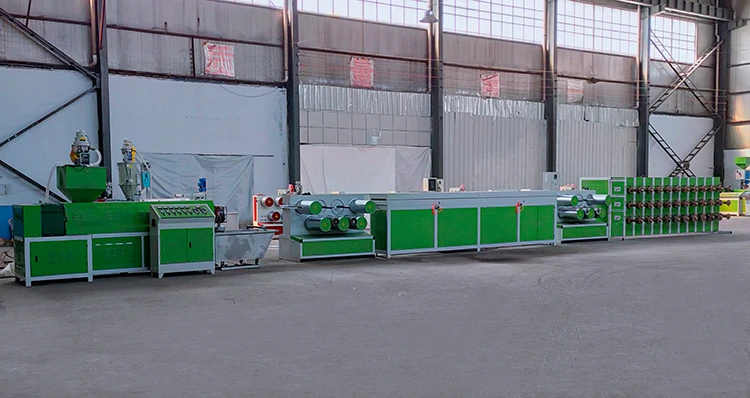

The PP danline yarn extruder machine is used to produce tape yarn which can be made into high quality flax rope with 100% or recycled PP granules. The production line can be made to order according to different request of the customers. The machine has the advantages of easy operation, energy conservation,and high efficiency.
Our company has many kinds of this machine, include 250 type ， 200 type ，165 type, 140 type,100 type wisting machine. It is used for all kinds of long fiber thread such as plastic silk, cotton and chemical fiber etc to make single rope, fishing lines and type cord etc.

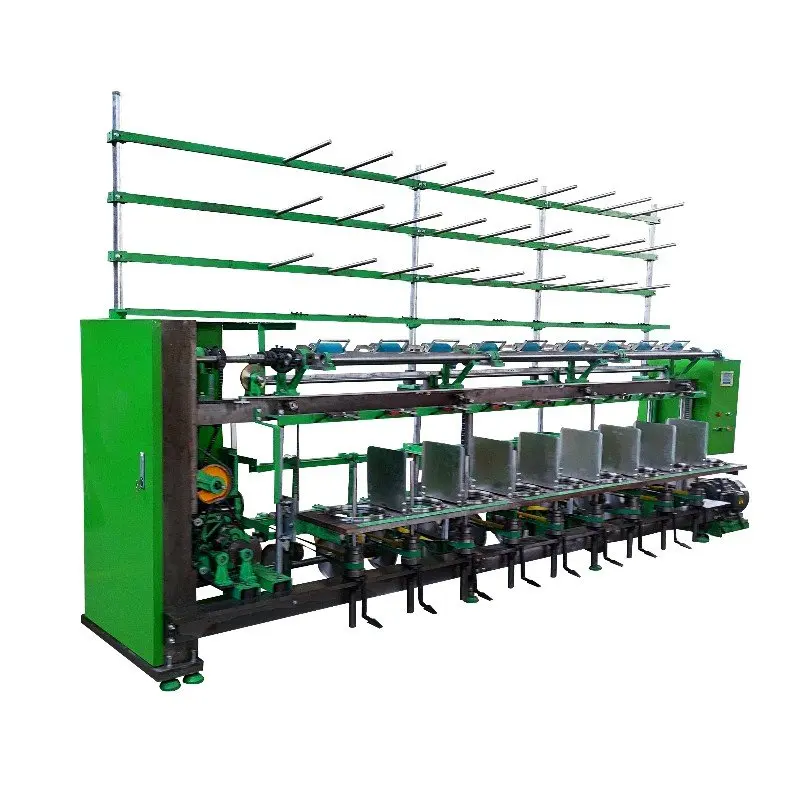

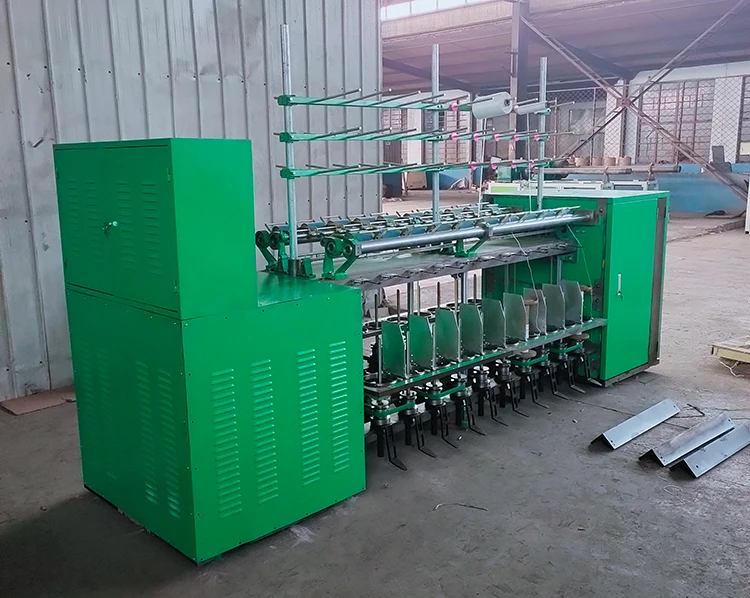

Twisting machine has such features like compact structure, smooth running, low vibration noise and adjustable steel plate lift
Twisting machine has such features like compact structure, smooth running, low vibration noise and adjustable steel plate lift

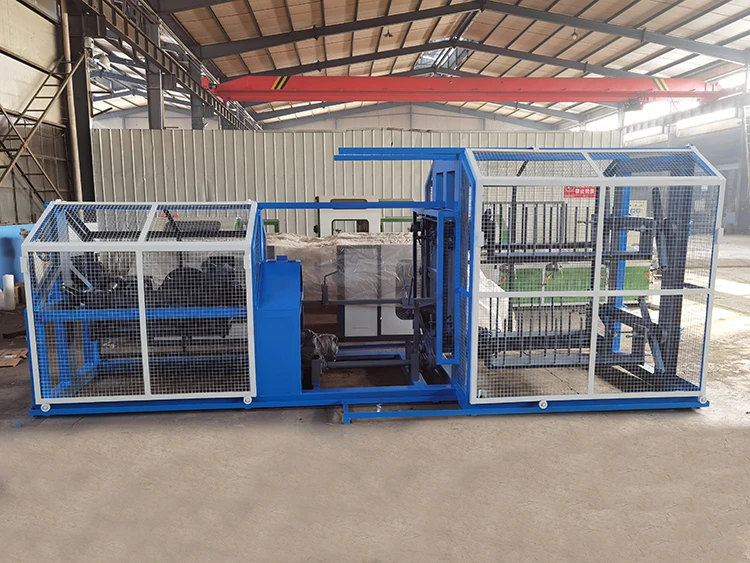

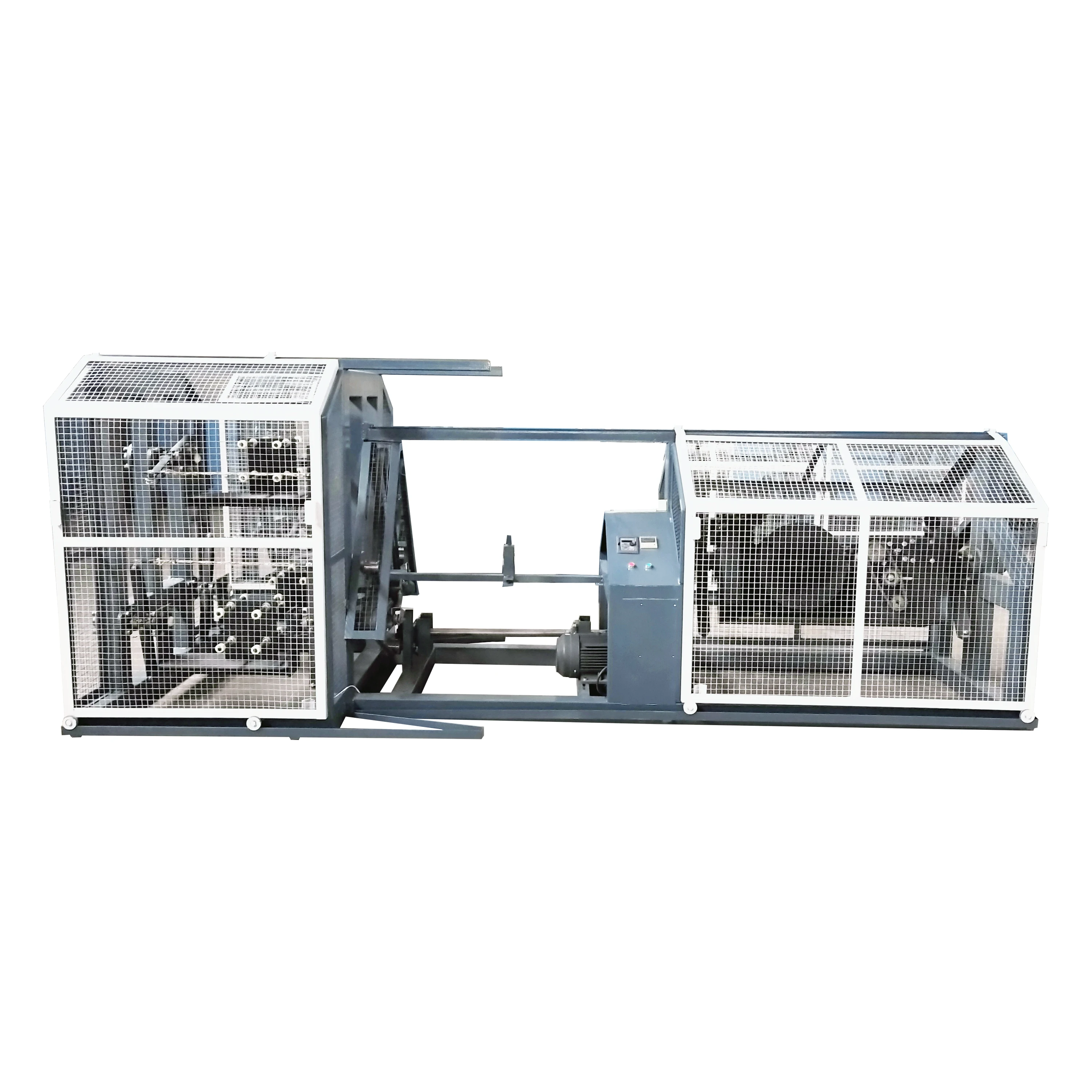

The plastic rope making machine is making strands and ropes together made a new machines.
Plastic rope making machine is suitable to make 3-30mm rope with plastic round yarn, flat yarn, monofilament, cotton, jute, etc. Suitable for plastic round yarn, flat yarn, monofilament, nylon, polyester, danline, cotton, hemp, monofilament as raw material to produce rope.
Plastic rope making machine is suitable to make 3-30mm rope with plastic round yarn, flat yarn, monofilament, cotton, jute, etc. Suitable for plastic round yarn, flat yarn, monofilament, nylon, polyester, danline, cotton, hemp, monofilament as raw material to produce rope.
PRODUCT SPECIFICATIONS
PP danline yarn monofilament extruder machine
Type | SY-65 | SY-80 | SY-90 |
Screw Diameter mm | 65 | 80 | 90 |
Screw Rotate Speed r/min | 30-70 | 30-70 | 30-70 |
Stretching Rate | 1:8 | 1:8 | 1:8 |
Total Power kw | 40 | 60 | 78 |
Productivity kg/h | 20-40 | 40-60 | 60-80 |
Dimension m | 16×2.1×2 | 20×2.1×2 | 25×2.2×2 |
Gross Weight T | 4 | 4.5 | 5 |
200 model yarn twisting machine
No. of bobbins | Twist Scope Twist/m | Operation method | Power kw | Direction of twist | Dimensions mm |
16 | 35-404 | Single face | 7.5 | S-Z | 5920*1000*2130 |
24 | 35-404 | Single face | 7.5 | S-Z | 7940*1000*2080 |
32 | 35-404 | Double-faced | 11 | S-Z | 5920*1300*2130 |
40 | 35-404 | Double-faced | 11 | S-Z | 6930*1300*2130 |
48 | 35-404 | Double-faced | 18.5 | S or Z | 8000×1300×1300 |
56 | 35-404 | Double-faced | 15 | S-Z | 8950*1300*2130 |
64 | 35-404 | Double-faced | 22 | S-Z | 9960*1300*2130 |
72 | 35-404 | Double-faced | 22 | S or Z | 10970×1300×1300 |
Plastic rope making machine
Model | Rope diameter | Twisted degree | Twisted orientation | Motor power | Dimension | Capacity |
M33 | 3-8mm | 26-82 | S or Z | 3KW-4 | 4*1.9*1.8m | 0.2-1.2 T |
M44 | 3-12mm | 16-62 | S or Z | 5.5KW-4 | 5*1.9*1.8m | 0.1-1.4 T |
M55 | 6-18mm | 16-62 | S or Z | 7.5KW-4 | 6.86*2*2.1m | 0.6-2.3 T |
M66 | 8-23mm | 16-62 | S or Z | 15KW-4 | 13*2.3*2.1m | 0.4-3.5 T |
M77 | 12-30mm | 16-62 | S or Z | 18KW-4 | 14.8*2.5*2.1m | 0.6-4.6 T |
THE WHOLE PRODUCTION LINE
SALES AND SERVICE NETWORK
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
