Солнечные фотоэлектрические сети гибридный солнечный инвертор со слежением за максимальной точкой мощности 48v 3.5kw с 80a mppt Контроллер заряда для фотоэлектрических систем работы для 110 120 В переменного тока
- Category: Solar Charger Controllers >>>
- Supplier: SRNE Solar Co. Ltd
Share on (1600320115801):
Product Overview
Description
Product Overview

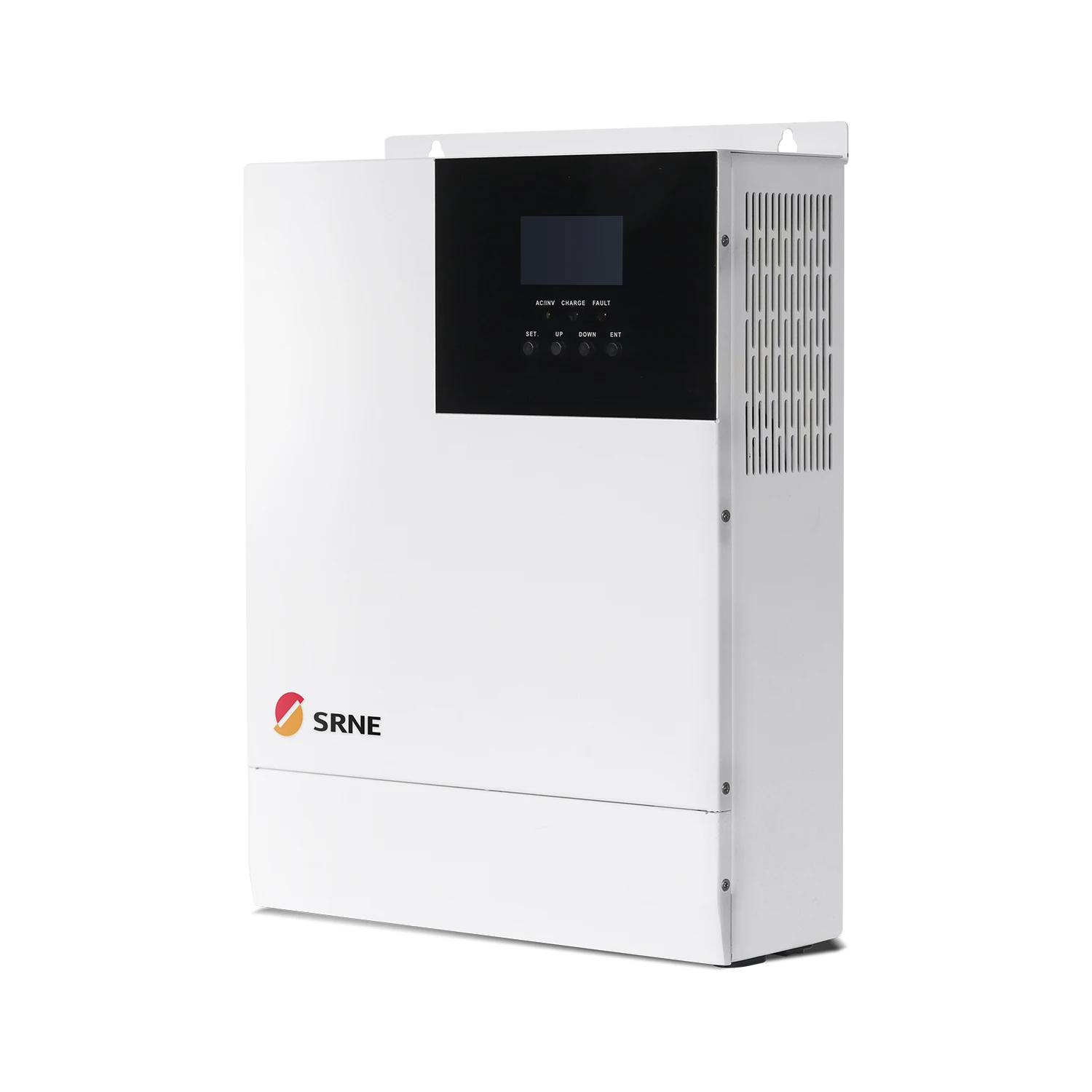

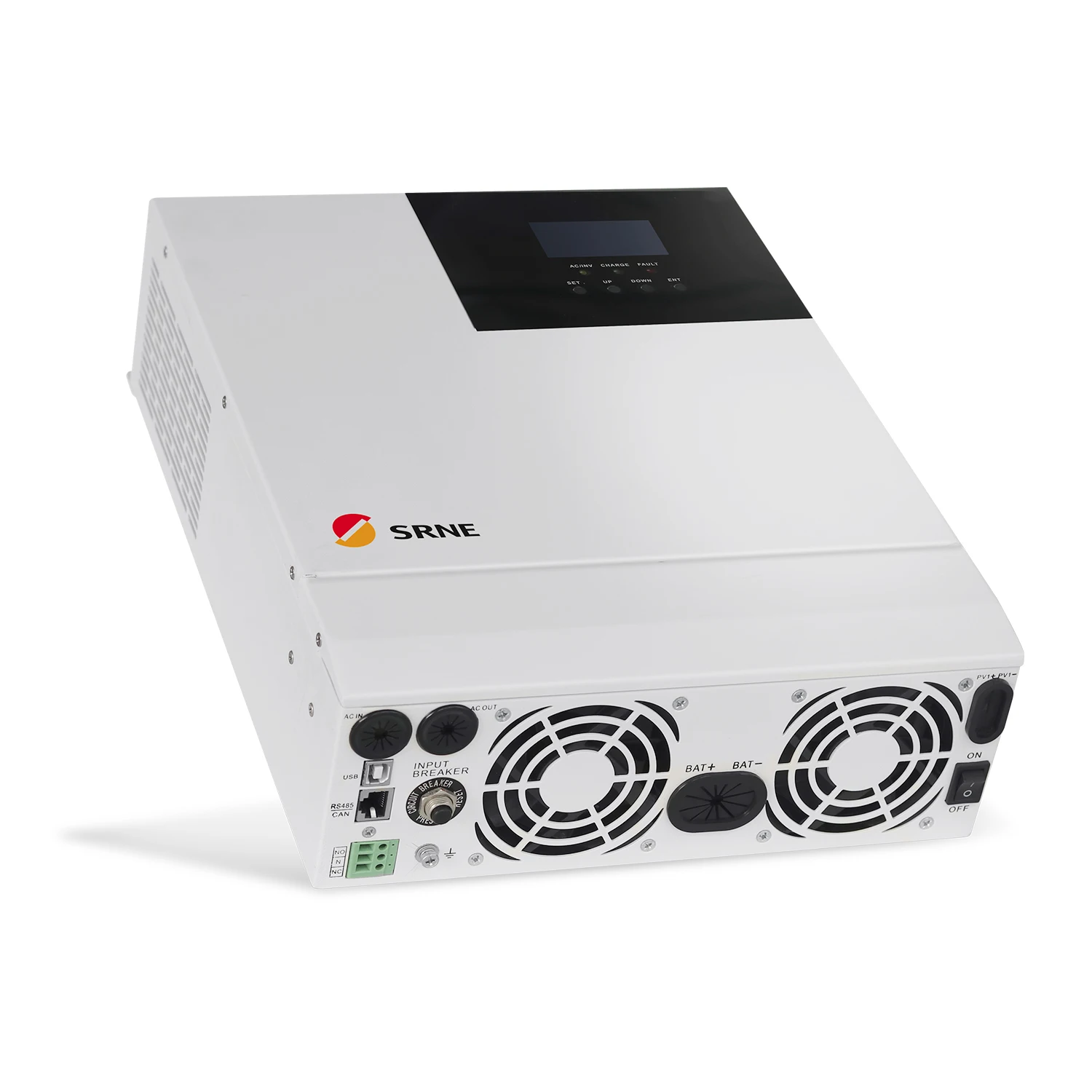

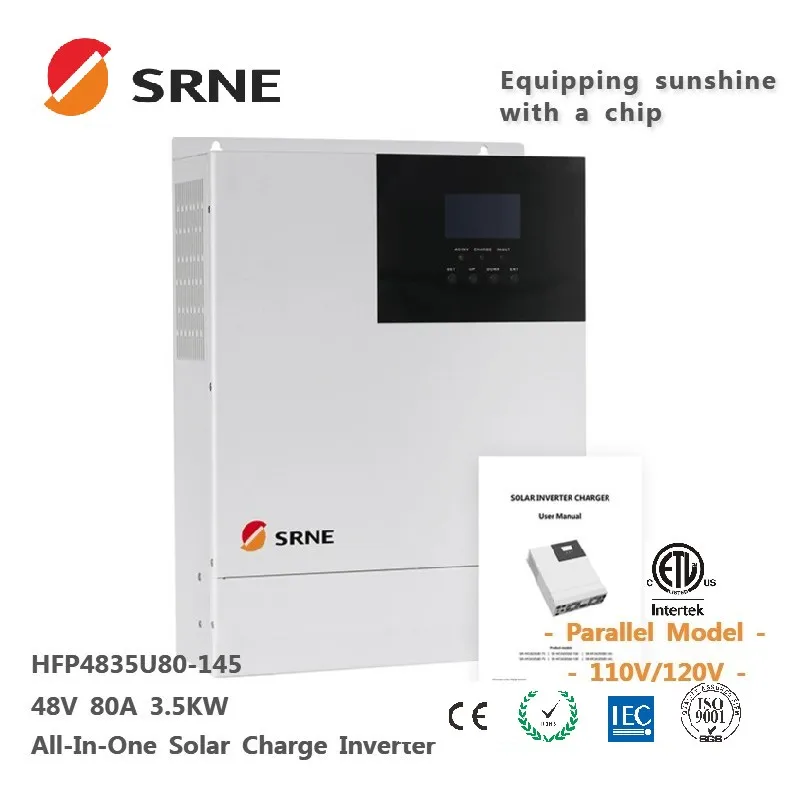

Off Grid Hybrid Solar inverter mppt 48v 3.5kw with 80a MPPT solar charge controller work for 110-120v AC
This is inverter for 48v DC 100-120v AC
Now we have cETL,ETL,CE and ROHS certification,this one is very popular in American market
Now we have cETL,ETL,CE and ROHS certification,this one is very popular in American market
If you need more message,welcome to contact me
FEATURES AT A GLANCE
Feature
1:Two output modes: mains bypass and inverter output; uninterrupted power supply.
2:Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
3:Lithium battey can be activated by both mains and PV.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Off Grid Hybrid Solar inverter mppt 48v 3.5kw with 80a MPPT solar charge controller work for 110-120v AC | Data | |
A | AC mode | ||
1 | Output voltage | 110/120v AC | |
2 | Frequency | 50Hz/60Hz(Auto detection) | |
3 | conversion time(bypass and inverter) | 10ms | |
4 | Inverter Efficiency | >95% | |
B | Inverter mode | ||
1 | Output voltage waveform | Pure sine wave | |
2 | Rated power | 3.5KW | |
3 | output voltage error | +5%/-5% | |
4 | Efficiency | >91% | |
5 | Power factor | 1 | |
6 | Peak power | 5000VA | |
7 | Loaded motor capability | 2HP | |
8 | Rated battery input voltage | 48v(Mini start voltage 44v) | |
C | AC charging | ||
1 | MAX AC charging current | 40A | |
2 | charge voltage range | 40-60v dc | |
3 | Battery type | Lead acid or Lithium battery | |
D | PV charging | ||
1 | Maximum PV VOC | 145V dc | |
2 | PV operating voltage range | 60-145v dc | |
3 | Max output power | 4200w | |
4 | PV charging current | 0-80A | |
E | Others | ||
1 | Weight | 10.8KG | |
2 | operating voltage | -15-55 °C | |
3 | Noise | <=60db | |

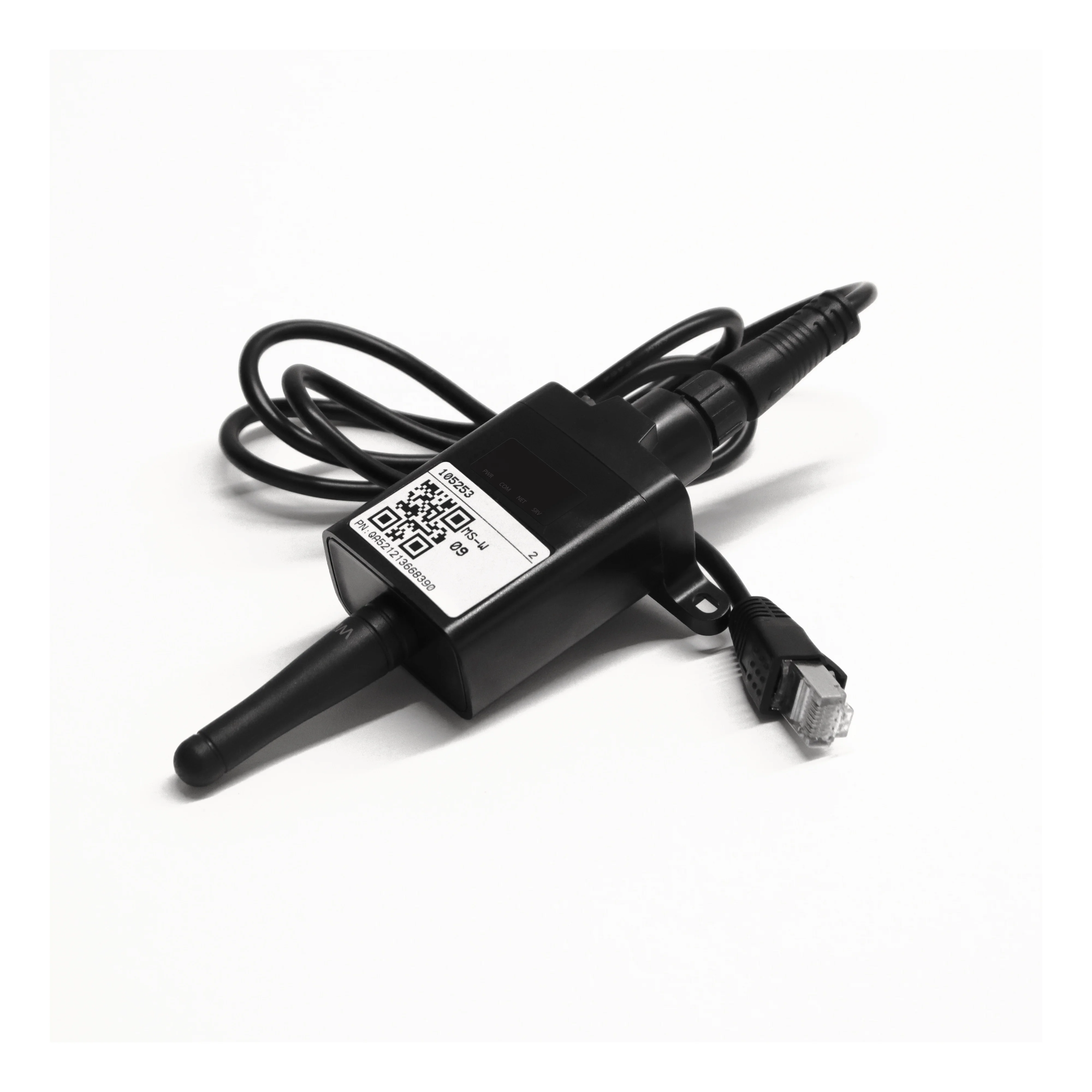

4 | Wifi connection | SUPPORT | |
5 | Size | 426*322*124 | |
6 | Warranty | 12 months | |
PRODUCT CONFIGURATION
Successful Project
Project in China
Project in USA
Project in Nigeria
SALES AND SERVICE NETWORK

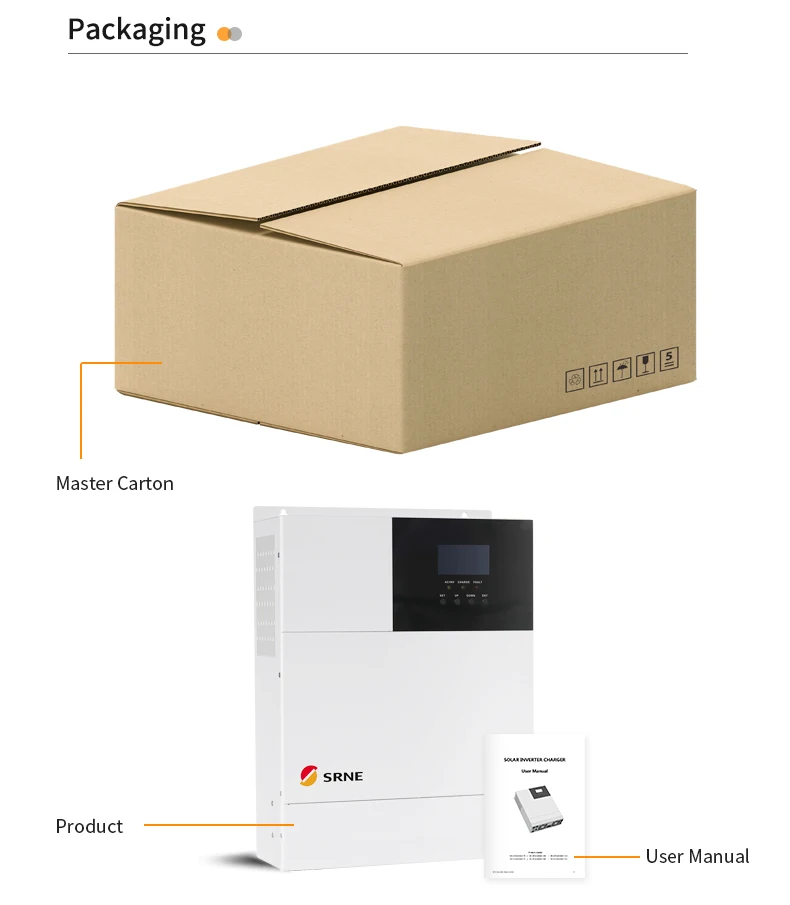

Package information
