12V 24V MPPT Solar Charge Controller for Off Grid 10A 20A 30A 40A 50A 60A Max
- Category: >>>
- Supplier: Zigong Xingchuan Photoelectric Co. Ltd.
Share on (1600320119922):
Product Overview
Description
Product Overview
Solar Controller
The full name of the solar controller is the solar charge and discharge controller. It is an automatic control device used in the solar power generation system to control the multi-channel solar cell array to charge the battery and the battery to supply power to the solar inverter load. It regulates and controls the charging and discharging conditions of the battery, and controls the power output of the solar cell components and the battery to the load according to the power demand of the load. It is the core control part of the entire photovoltaic power supply system.
Features
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 98%
Support lead-acid and lithium-ion batteries
Multiple load work modes
Charging power and current limitation function
High-temperature charging power derating function

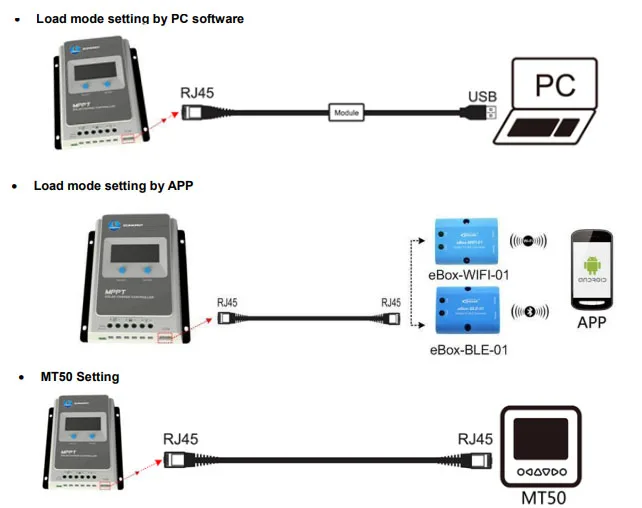

Standard Modbus communication protocol with RS485 interface
Real-time energy statistics function
Maximum charge conversion efficiency as high as 98%
Support lead-acid and lithium-ion batteries
Multiple load work modes
Charging power and current limitation function
High-temperature charging power derating function
Standard Modbus communication protocol with RS485 interface
Real-time energy statistics function
Tracer-AN(10A~40A) series charge controller | ||||||||||||
Model | Tracer1206AN | Tracer2206AN | Tracer1210AN | Tracer2210AN | Tracer3210AN | Tracer4210AN | ||||||
Nominal system voltage | 12/24VDC/Auto | |||||||||||
Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |||||||||||
Battery input voltage range | 8～32V | |||||||||||
Rated charge current | 10A | 20A | 10A | 20A | 30A | 40A | ||||||
Rated charge power | 130W/12V 260W/24V | 260W/12V 520W/24V | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V | ||||||
Max. conversion efficiency | ≤98.0% | |||||||||||
Tracking efficiency | ≥99.5% | |||||||||||
Successful Project
Nepal project
Pakistan project
India project
Tajikistan project
Uzbekistan project
China project
FEATURES AT A GLANCE
Layout 1: PV+Energy Storage System
Zonergy offers solutions for the distributed Photovoltaic Energy Storage System, Including Zonergy-made Solar panels,Energy Storage Inverters, Lithium Battery Modules, and WiFi stick, to store the surplus energy from solar power genera-tion.Our solution not only keeps the darkness away from your family when power outage, but also save extra on yourelectricity bill.

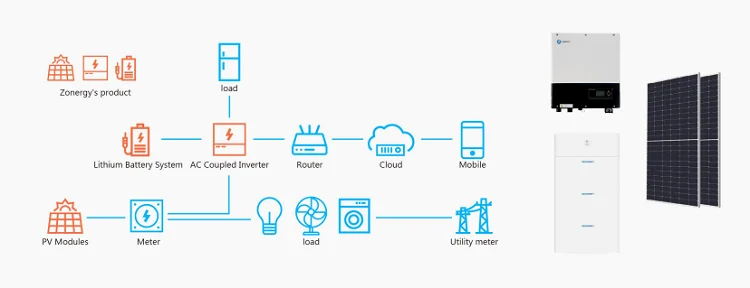

Layout 2: Add Battery and AC Coupled Inverter in existing PV system
Zonergy offers the AC coupled storage solution, which adds the AC coupled inverter and battery system from Zonergyinto your existing on grid PV system.You can store extra solar power from your home system into batteries during theday and use it later when necessary.

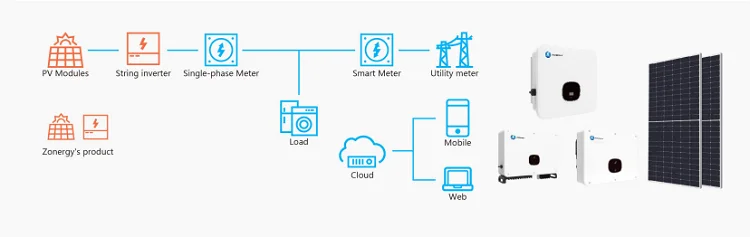

Layout 3: Distributed photovoltaic grid-connected system
Zonergy provides the Distributed photovoltaic grid-connected solution, consists of solar panels and one or several invert-ers from Zonergy, grid connection equipment and so on. They range from smallresidential and commercial rooftopsystems to large utility-scale solar power stations.
Recommend Products

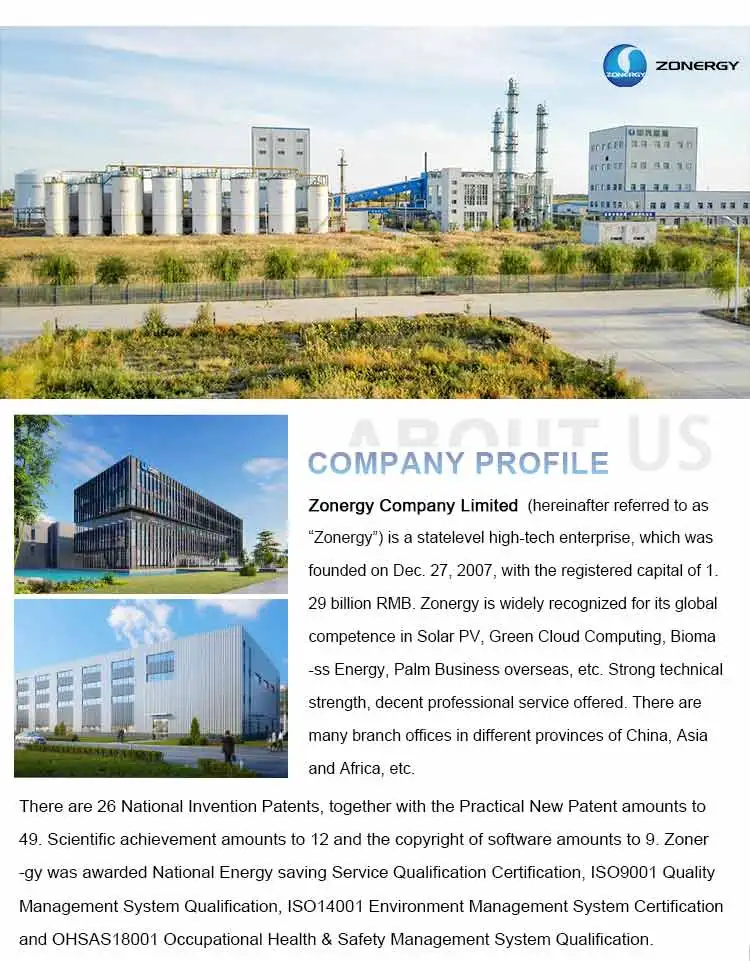

Company Profile

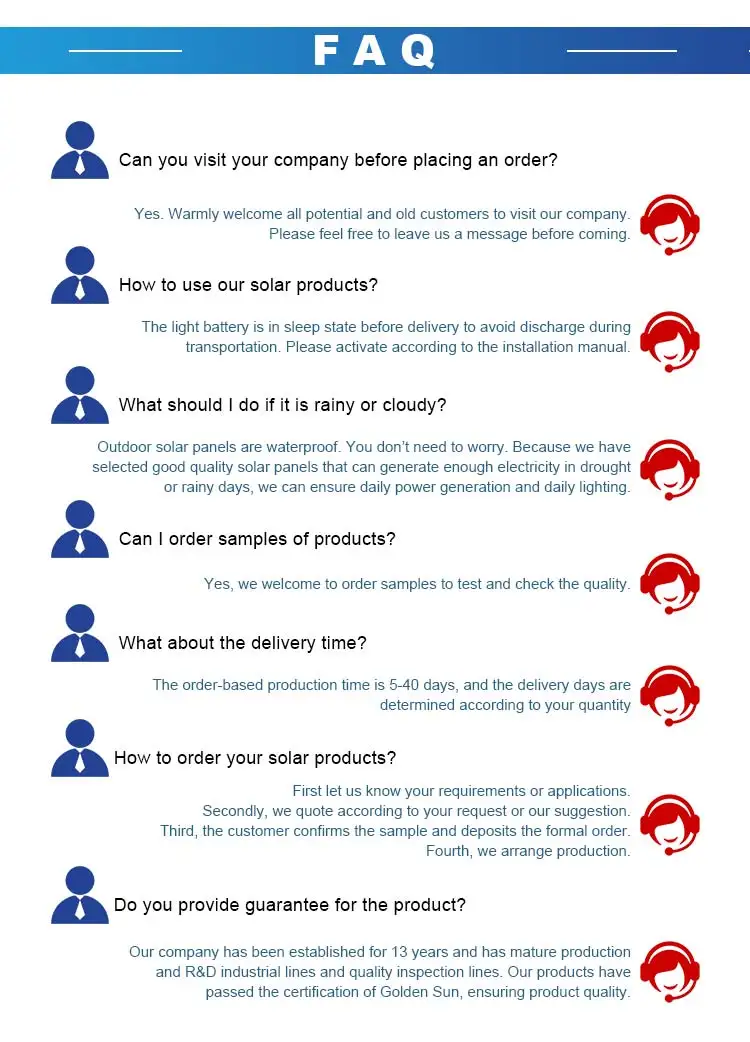

FAQ
