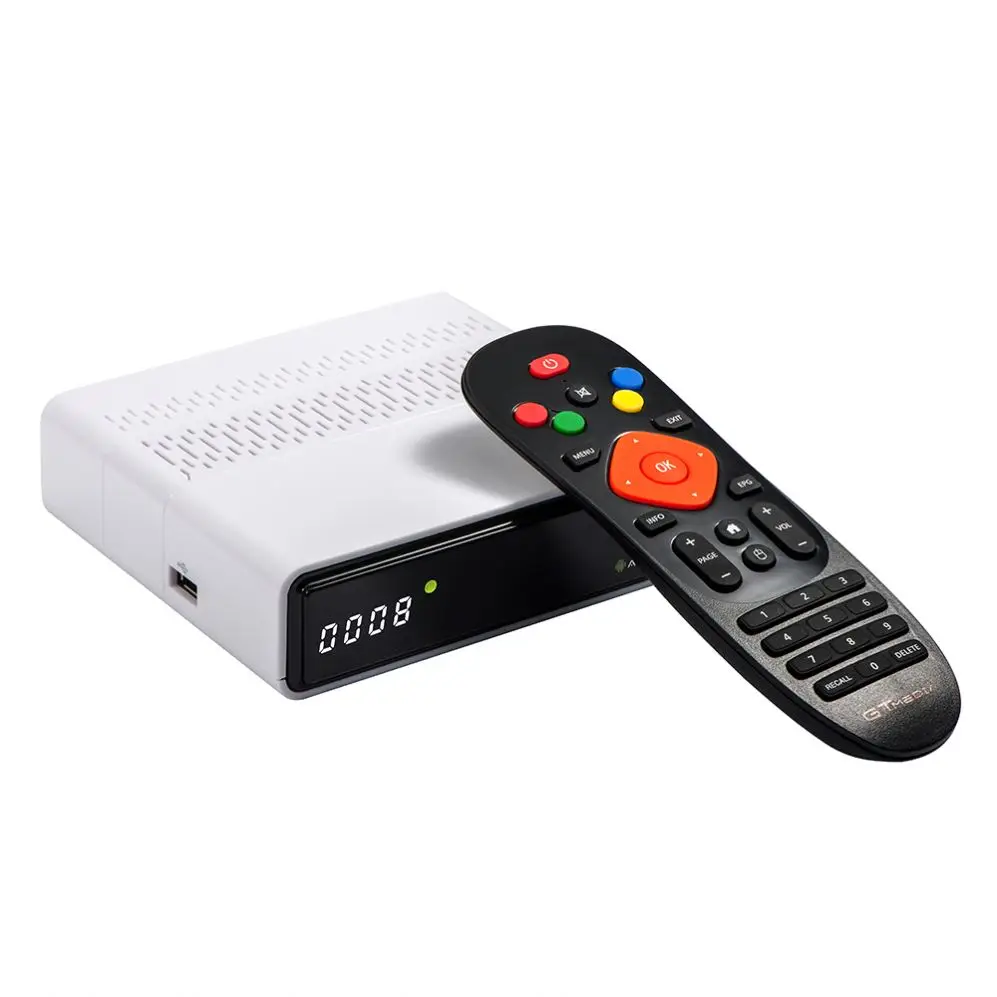

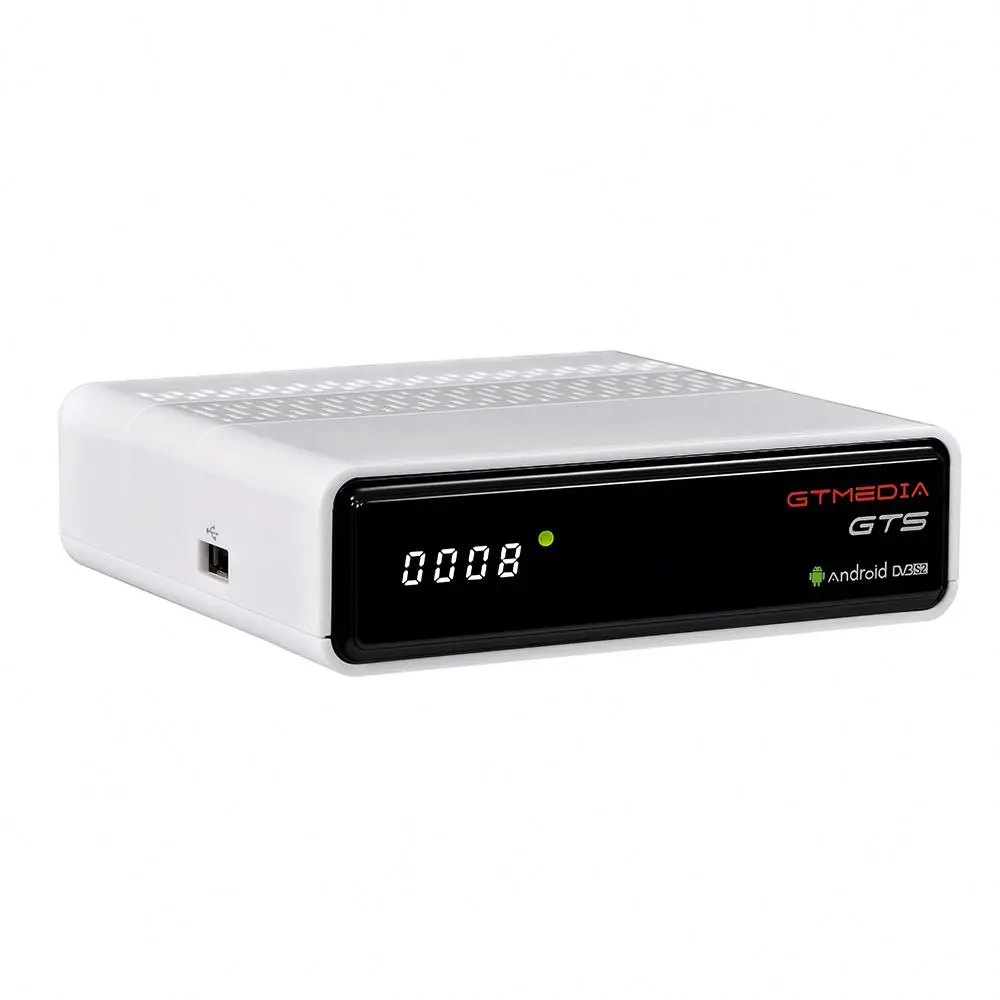

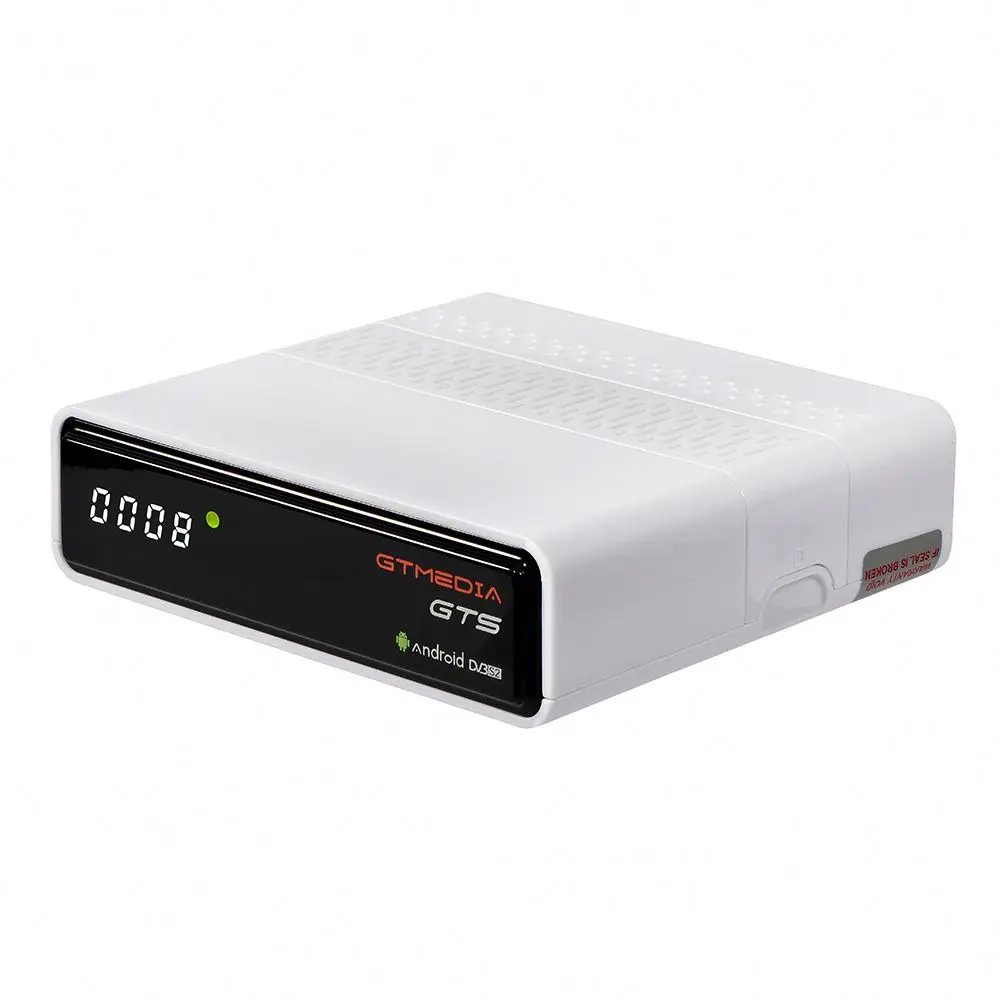

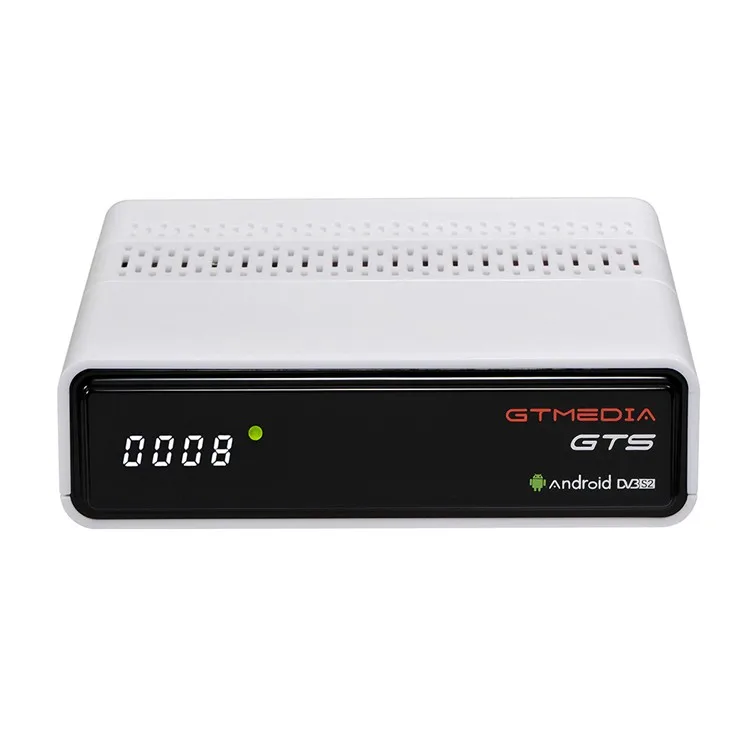

GTS GT media DVB S2 Android 6.0 TV CAIXA Receptor DVB S/S2 android 6.0 gb RAM CAIXA de TV 2 8 gb ROM BT4.0 GTMEDIA G
- Category: >>>
- Supplier: Dongguan Menuosi Electronic Technology Co. Ltd.
Share on (1600320128407):
Product Overview
Description
Product Paramenters
Product Paramenters
Product Description
Product Description
I. Highlight:
1, Android 6.0 TV BOX+DVB-S/S2,DVB+T/T2/Cable/ISDBT.
2, XBMC Addons pre-installed.(KODI15.2)
3, 4K/3D/H.265/MPEG-4 movies supported.
4, Amlogic S905D 2GBRAM +16GBROM
5, Built-in Wifi 2.4G+BT4.0, 802.1.1b/g/n
6. Netflix,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.
7, Technical support website : www.freesat.cn
Note: We reserve the right to change the design and OEM/ODM supported
II. Hardware:
CPU Amlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53
GPU Penta-core ARM Mali-450 , up to 750MHz+(DVFS)
Flash Memory eMMC Flash 16G
DDR3 Memory 2GB DDRIIII
3D Graphics OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video Decode UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
Audio Decode MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3,Dolby+
Panel display 4-digit LED display
LED Indicator Power ON :Green; Standby :Red
Button NOT
Wifi Built in 2.4G WiFi Support IEEE 802.11 b/g/n/ac
Blutooth BHT 4.0
IR Exit IR for 38KHz,Infra Remote control

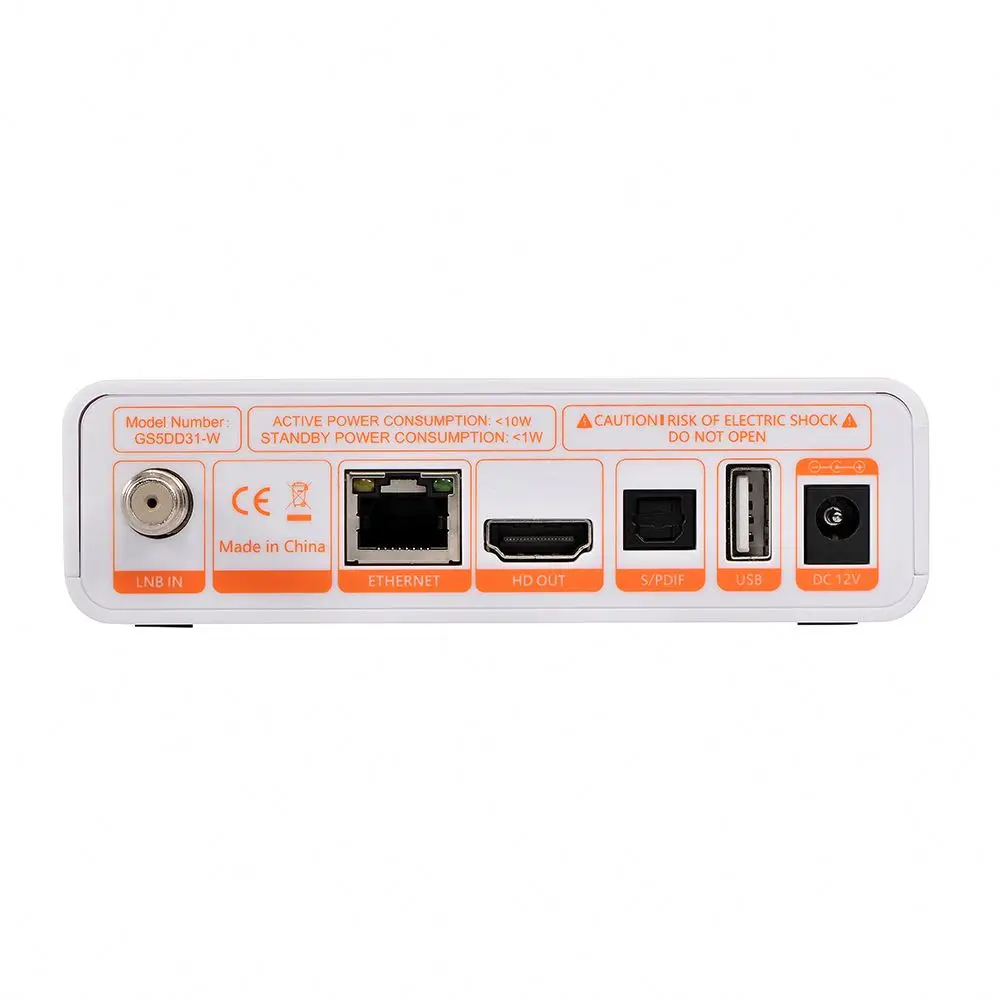

Rear Panel RF IN ( EC-type IEC169-2 Female)
LNB IN (Frequency Range950MHz to 2150MHz)
HDMI 2.0 (V1.3/V1.4)
2*USB HOST
1*TF CARD
1*SPDIF
1*RJ45
Power (DC 12V/1.5A)
CPU Amlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53
GPU Penta-core ARM Mali-450 , up to 750MHz+(DVFS)
Flash Memory eMMC Flash 16G
DDR3 Memory 2GB DDRIIII
3D Graphics OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video Decode UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
Audio Decode MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3,Dolby+
Panel display 4-digit LED display
LED Indicator Power ON :Green; Standby :Red
Button NOT
Wifi Built in 2.4G WiFi Support IEEE 802.11 b/g/n/ac
Blutooth BHT 4.0
IR Exit IR for 38KHz,Infra Remote control
Rear Panel RF IN ( EC-type IEC169-2 Female)
LNB IN (Frequency Range950MHz to 2150MHz)
HDMI 2.0 (V1.3/V1.4)
2*USB HOST
1*TF CARD
1*SPDIF
1*RJ45
Power (DC 12V/1.5A)
III. Tuner specifications:
DVB-S2 DVB-S2 system standard:ETS 302 307
Symbol Rates: QPSK,8PSK
Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol Rates: 1- 55 Msps
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE F
DVB-T2 DVB-T2 system standard:ETSIEN 302 755
Support MPLP
Demodulation: QPSK,16QAM,64QAM or 256QAM
Forward error correction rate 1/2,2/3,3/4,3/5,5/6
Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128
Bandwith: 6/7/8MHz
Input Frange range:54--860MHz Input Impedance:75 Ω
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female
DVB-C IEC 169-24 female 75Ω for input
Demodulation: 16QAM,32QAM,64QAM,128QAM,256QAM
Input Frange range:50--860MHz Input Impedance:75 Ω
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female
ISDB-T ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX
FFT Mode: 2K/ 8K/32K
Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK
Forward error correction rate 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard interval : 1/4,1/8,1/16,1/32
Bandwith: 6/7/8MHz
Input Frange range:VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz
Input Signal level: -83 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female
IIV. Sortware Features:
Standard Fully comply with DVB-S/S2 (SCPC and MCPC receivable from C/Ku band satellite), DVB-T/T2/Cable/ISDBT, MPEG-2/4 H.264 Standard
switch protocol DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX,Overload Protection, 0/22K
Channels Number 10000 channels TV and Radio programmable
Favorites 8 different favorite groups selection
OSD Language OSD Multi-language for options(Arabic, Catalan, Czech, Dansk, Deutsch, Eapanol,English,Euskar,Farsi,French,Finnish,Galego,Greek,Hrvatska,Italian,Magyar,Nederlands,Polska,Spanish,Slovakian,Svenska,Portuguese,Russian,Ukrainian,Turkish,Thai and etc.)
EPG Fully support to 7 days Electronic Program Guide(EPG)
OSD Color 256 color/16bit On Screen Display
Picture JPEG,BMP,PNG,GIF Supported
Channel Search Supports NIT Search ,Automatic network search for newly added transponders
Channel Edit Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Parental Ctrl Parental control for channels
Easy Menu Plug and Play installation, with an easy to use Menu System
PAL/NTSC Automatic PAL/NTSC conversion
SoftUpgrade Software upgrades through USB port, Support OTA and HTTP/FTP upgrade.
Channel Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Subtitle support DVB EN300743 and EBU
Teletext support DVB ETS300472 by VBI and OSD
Time Set Time set by GMT offset automatic and manual,Summer Time support
Timer 5 event timers,off/Once/Daily/Weekly Mode
USB 2.0 Support FAT/FAT32/NTFS big capacity hard disk
PVR Option USB 2.0 for PVR,TIMESHIFT,media files playback
Media Codec TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG/M4A files
Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec JPEG, BMP, PNG
Detailed Images
Detailed Images
Our Advantages
Our Advantages
1.Start a business for over 8 years.2.Keep the increasing rate of 30% for 5 consecutive years.3.Estimated annual turnover of 30 million USD.4.The turnover rate of staff less than 4%, a proportional relationship between professionalism and working status.5.Product optimization and upgrading to reach a leading position in the Consumer Electronics industry.6.Professional QC process system to ensure product quality.7. More than 300 customers' success cases, the satisfaction rate is over 97%.
8.Most of our products are in stock and can be shipped within 24 hours.

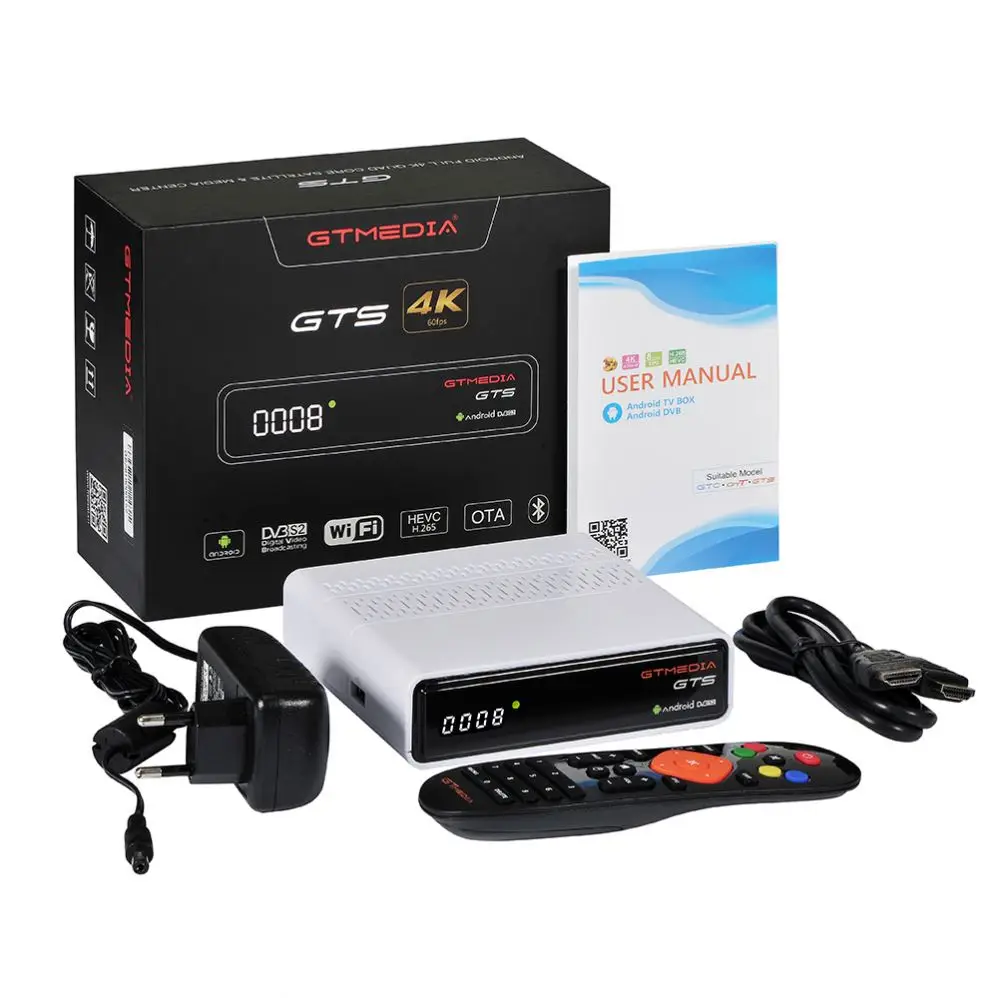

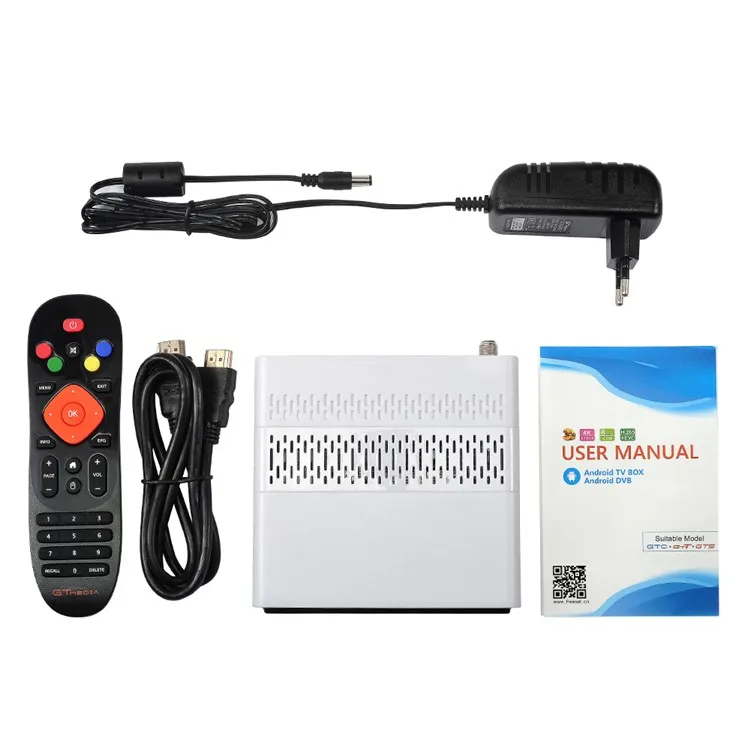

Packaging and transportation
