Agricultural Machinery Disk Harrow Atv Disc Plough Harrow

Product Overview

Description

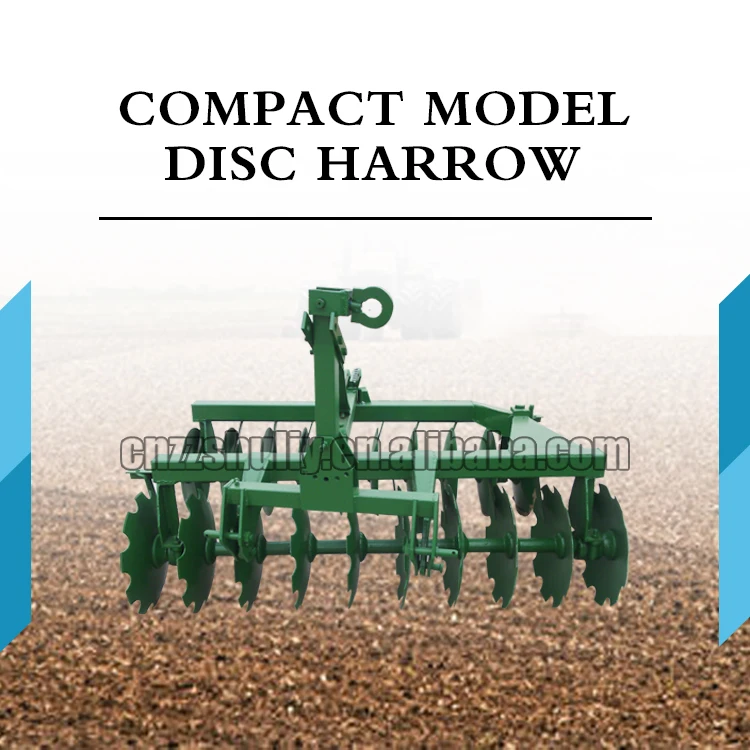

Introduction of disc harrow :

1.Compact Model Disc Harrow is used in open field working for the superficial ploughing , for the shattering of clods, preparation of soil for sowing, burial of organic substances and remains.
2.Compact Model Disc Harrow can be used in both forms i.e.mounted as well as trailed.

Model	1BJX-1.4A	1BJX-1.6A	1BJX-1.8A	1BJX-2.0A	1BJX-2.3A	1BJX-2.5A	1BJX-2.7A
Width of cut (mm)	1400	1600	1800	2000	2300	2500	2700
Depth of cut (mm)	140

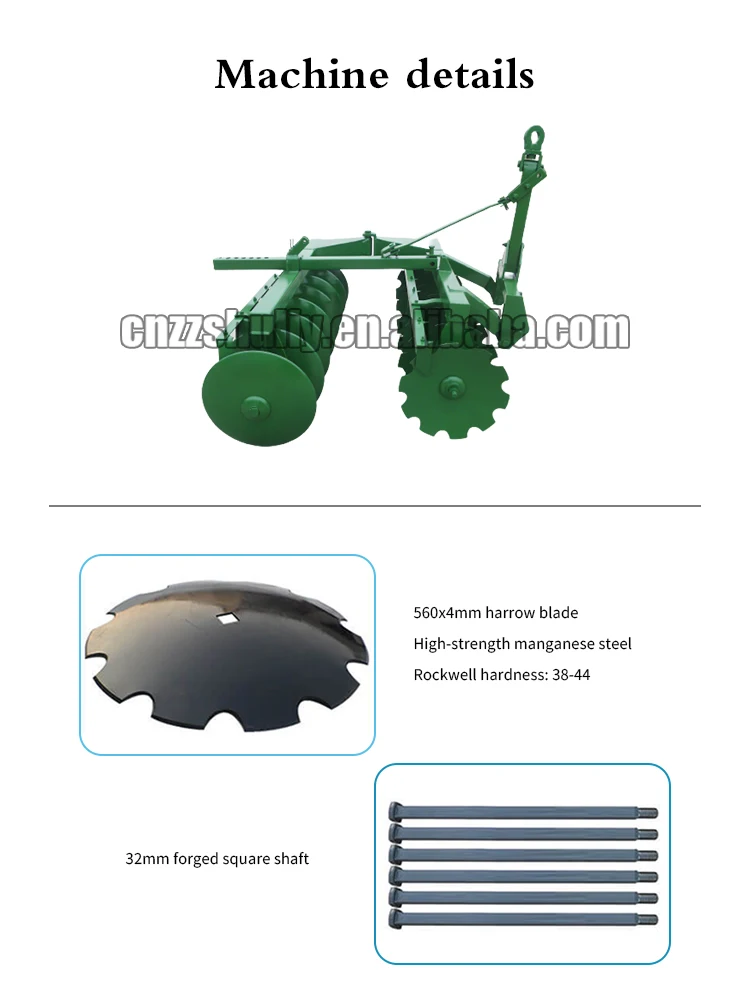

Dia of disc	560/610
Qty of disc	12	14	16	18	20	22	24
Weight (kg)	440	490	550	590	620	650	720
Tractor power (hp)	30	40	50-60	60-70	70-80	80-100	90-110
