ACH200 FINCM Hydraulic CNC Angle Tower Manufacture Power Transmission Notching Machine
- Category: >>>
- Supplier: Shandong Fin Cnc Machine Co. Ltd.
Share on (1600320159293):
Product Overview
Description
Products Description

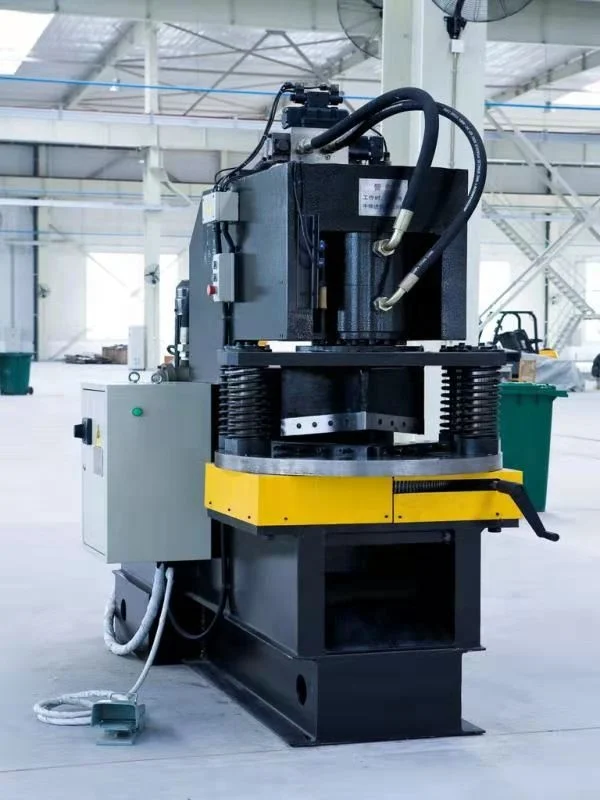

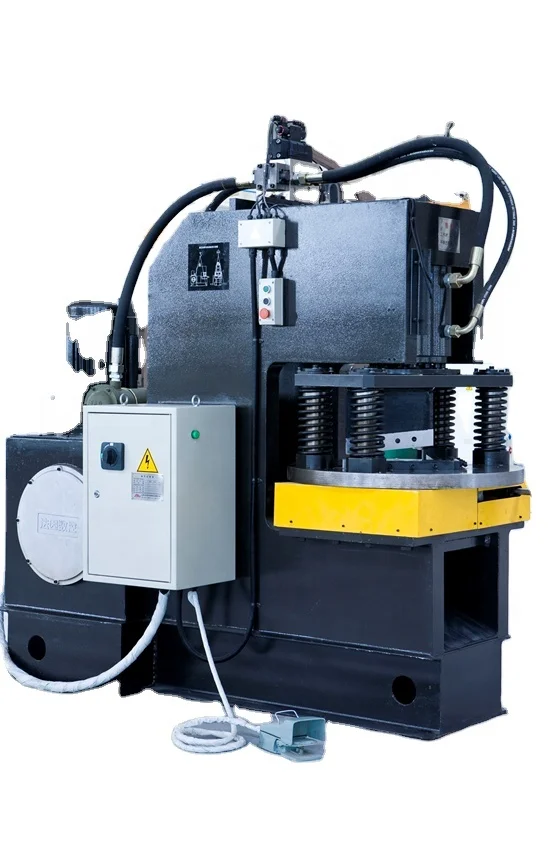

The main machine is welded by steel plates in a C shape. The upper part is the oil cylinder, and the lower part is the working table, which provides support for the mould and meets the strength and rigidity requirements of the machine.
The mould part is guided by sliding rails, this structure bears large partial loads and has high guiding accuracy. The mold is divided into indenter, coupling shaft, upper tool holder, lower tool holder, upper blade, lower blade, and worm gear drive system.
The hydraulic system is composed of oil tank, motor, high and low pressure pump, control valve, oil filter shearing cylinder, etc.It is the power source of shearing cylinder. The electromagnetic reversing valve, overflow valve,unloading valve, etc. are imported parts with reliable performance and long service life.
Nominal force | 1000KN | |
Rated pressure of hydraulic system | 22Mpa | |
Number of dry runs | 16 times/min | |
Single edge shear | 200x200x20mm(Q235-A, σb≈410MPa) | |
200x200x 18mm(Q420, σb≈680MPa) | ||
Shear angle | 0°~45° | |
Maximum cutting length | 300 mm | |
200x200x16mm(Q235-A, σb≈410MPa) | ||
200x200x12mm(Q420, σb≈680MPa) | ||
Ambient temperature | 0℃~40℃ | |
Hydraulic pump motor power (kW) | 18.5kw | |
Machine size | 2635mmx1200mmx2090mm | |
Machine weight | About 6500kg |
Company Profile
Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research,design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger,boiler, bridge, truck and other industries .
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
1. We have a professional research and development team
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
