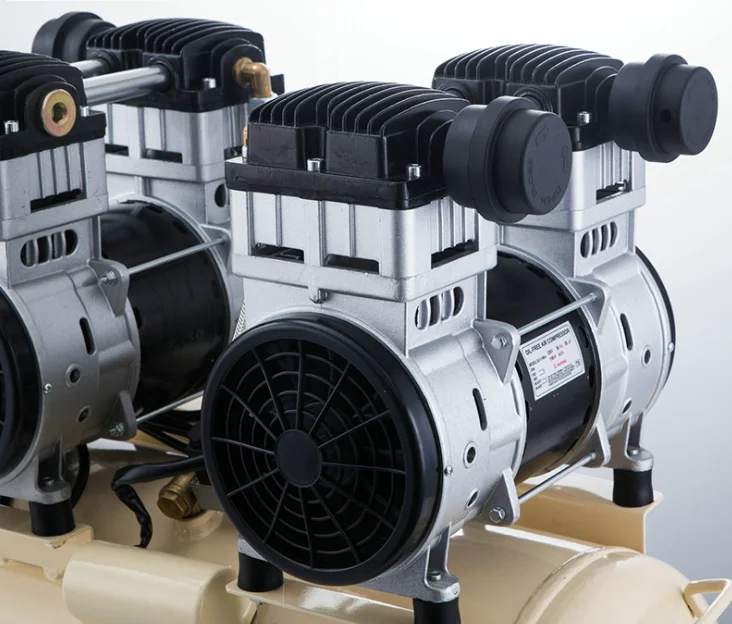

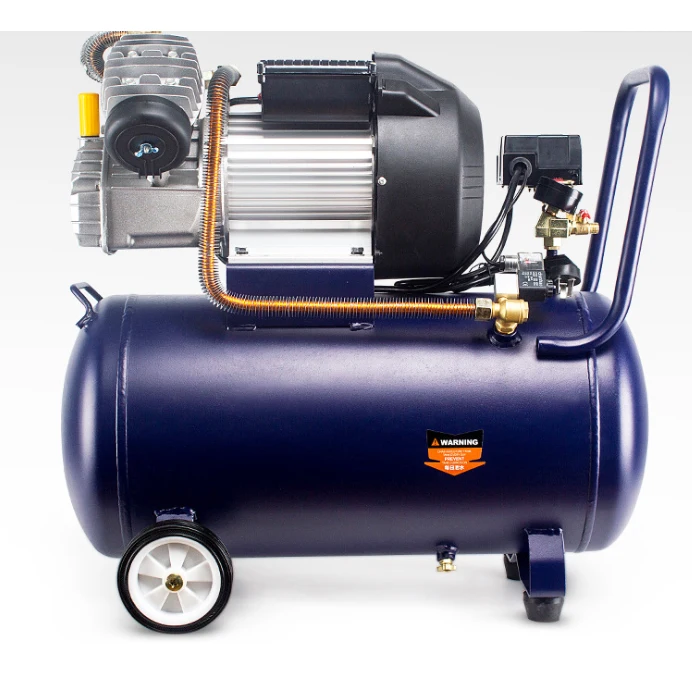

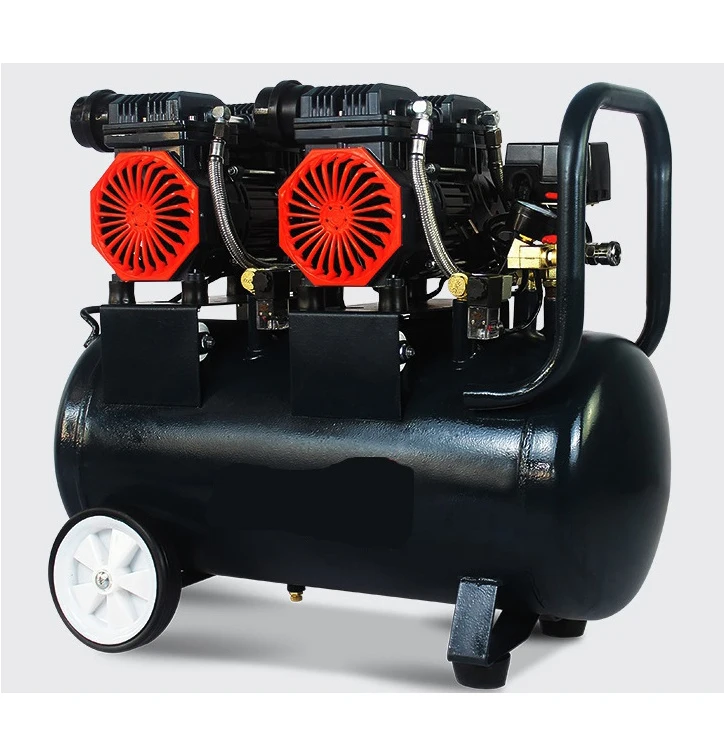

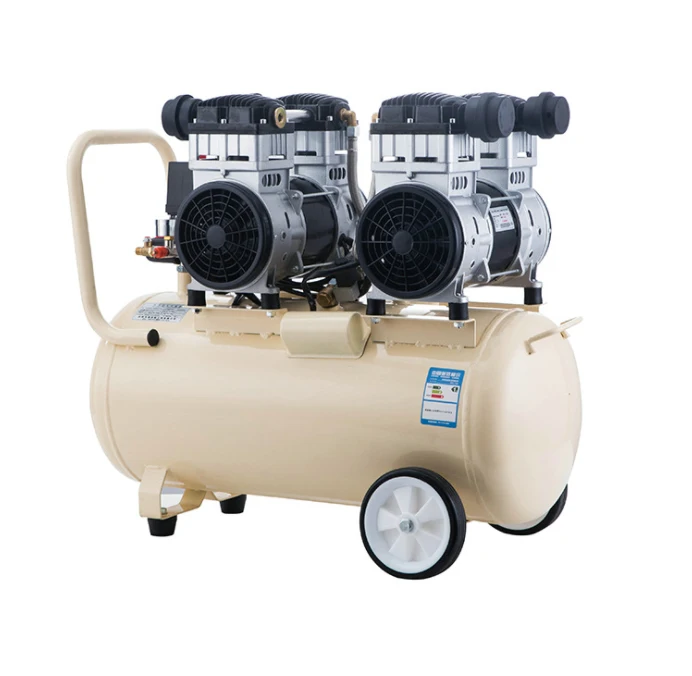

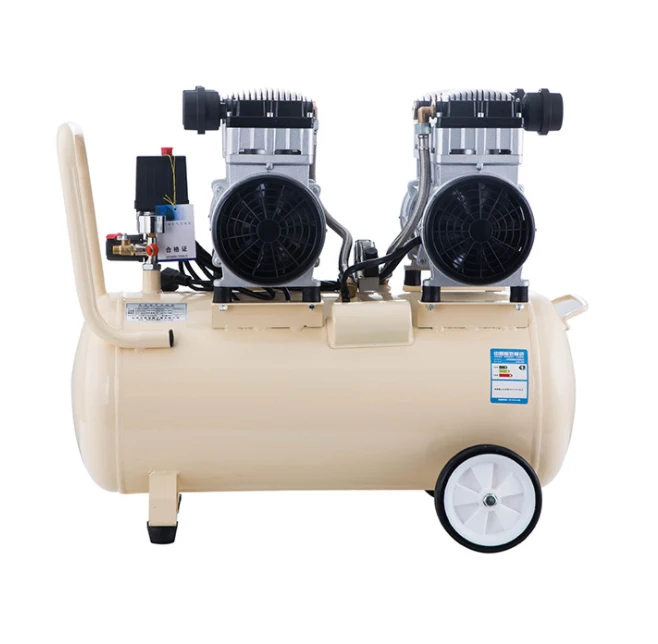

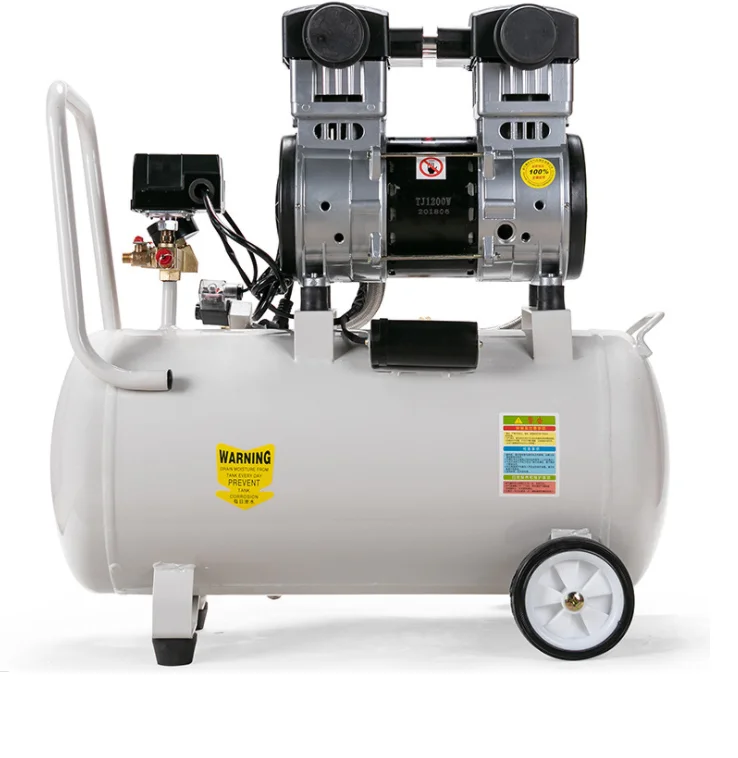

air compressor small air compressor air compressor portable
An air compressor is a pneumatic device that converts power(using an electric motor,diesel or gasoline etc) into potential
energy stored in pressurized air(i.e. compressed air).

Air compressor are lightweight and portable but powerful enough to drive most air tools.Many of these models are designed for professional woodworkers and carpenters,their small size,quite motors and low price make them widely used.

Compact air compressors are comprised of two main components :an electric pump and an air storage tank.The pump forces air into the tank until it reaches the desired pounds per square inch(PSI) of pressure.The pump motor then shuts off,and the compressor is fully charged and ready to work.As you use an air tool,pressure inside the tank drops and the motor kicks back to repressurize the tank to the desired PSI.

Compressors are also rated by the volume of air delivered at 90 PSI.The number is expressed in cubic feet per minute

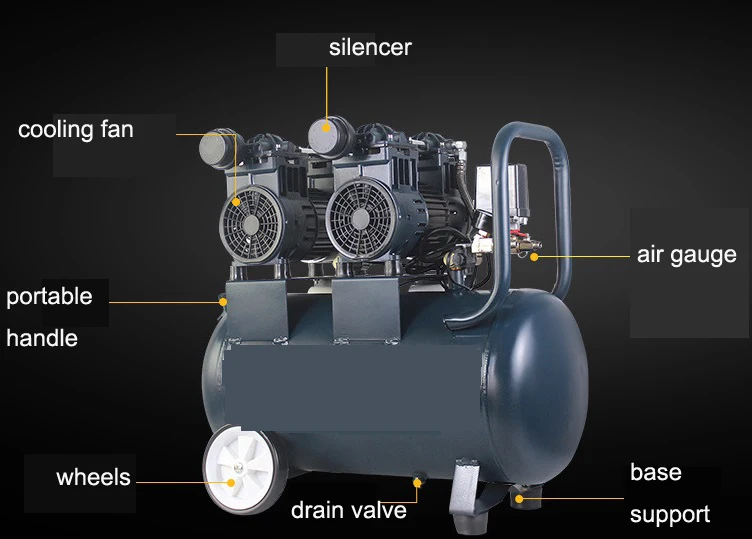

details of air compressor

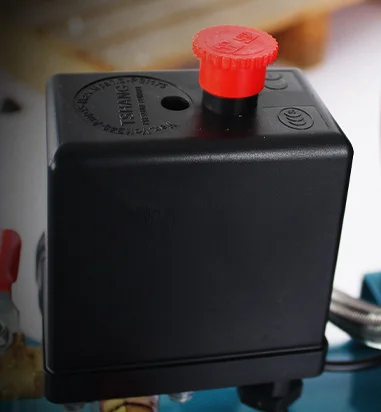

Press and pull the red button for on and off

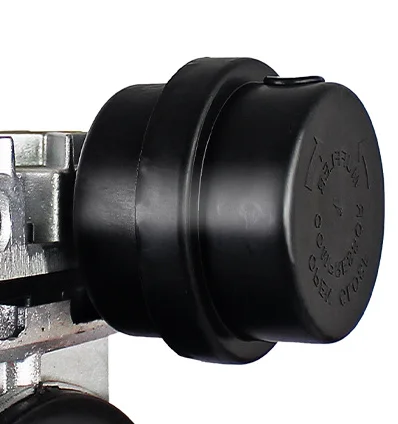

Silencer
for lower noise and dust proof

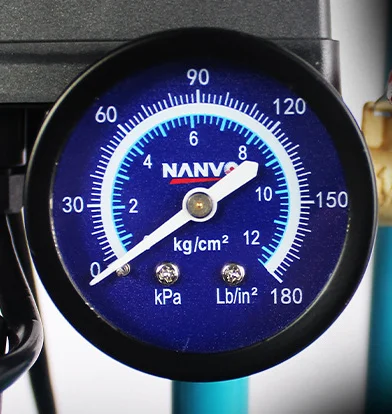

pressure gauge
read air pressure of storage tank

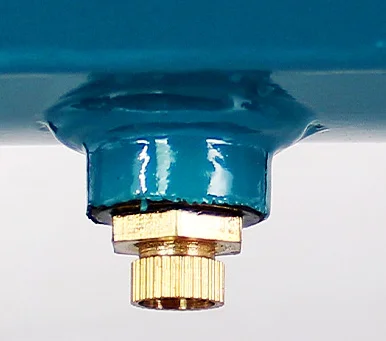

drain valve
discharge water in storage tank weekly.

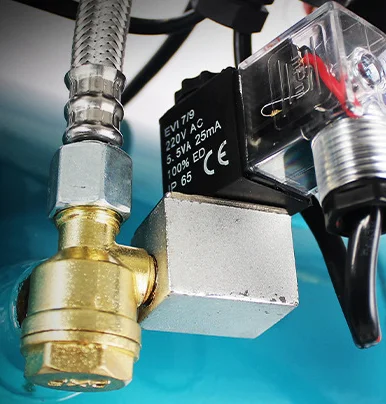

Electromagnetic valve
protect motor when power off.

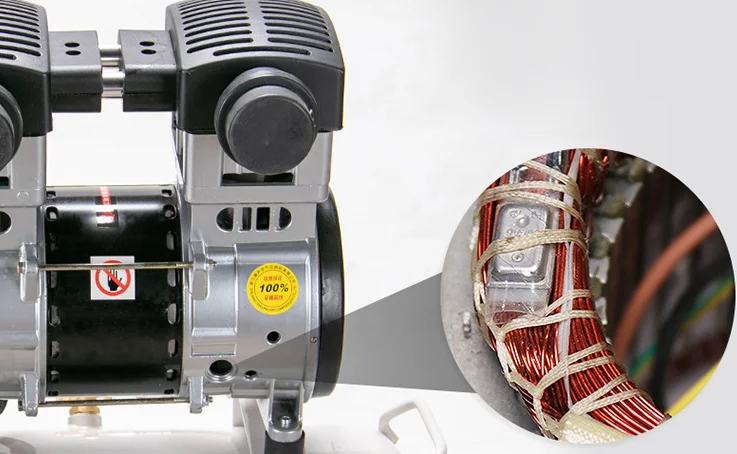

copper coil motor


parameters of air compressor


Model
motor power/W
Air delivered
L/min
rotation speed r/min
Storage tank
volume/ L
Dimensions/cm
net weight
/kg
600W-9L
600
40
1380
9
42*20*50
14
600W-30L
600
40
1380
30
54*29*57
18
600W*2-55L
1200
80
1380
55
66*35*63
35
800W-9L
800
60
1380
9
45*20*50
15
800W-30L
800
60
1380
30
54*29*57
19
800W-35L
800
60
1380
35
62*29*56
21
800W*2-55L
800
120
1380
55
66*35*63
36
980W-15L
980
90
1380
15
42*22*53
18
980W-30L
980
90
1380
30
54*29*57
21
1200W-40L
1200
110
1380
40
65*34*66
30
1200W*2-65L
1200
220
1380
65
77*34*74
56
1600W-40L
1600
140
1380
40
65*34*66
31
1600W*2-65L
1600
280
1380
65
77*33*74
57
