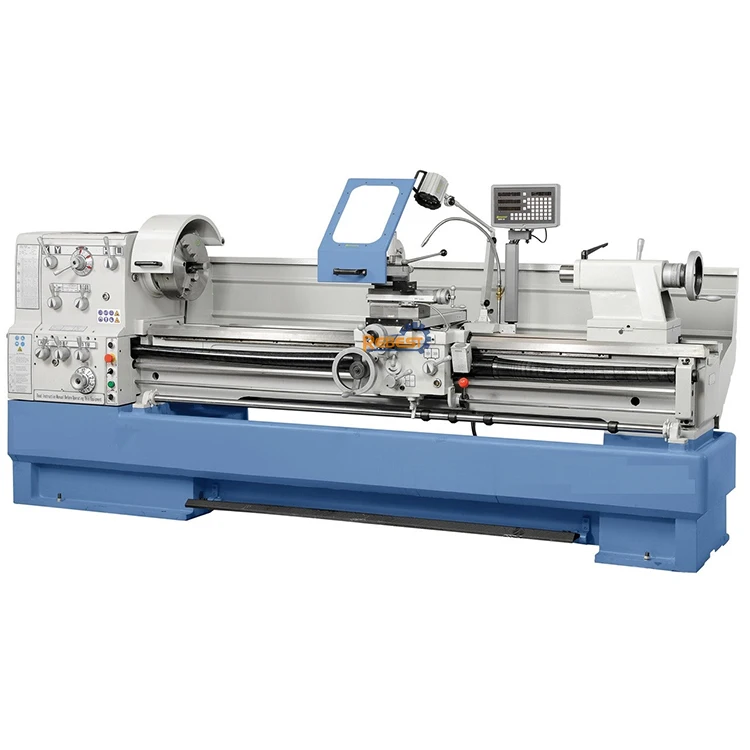

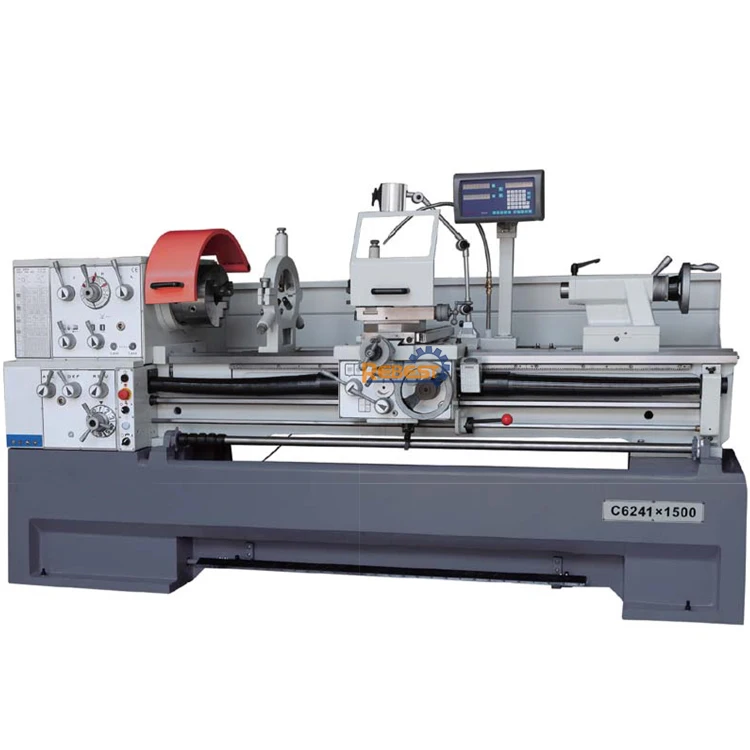

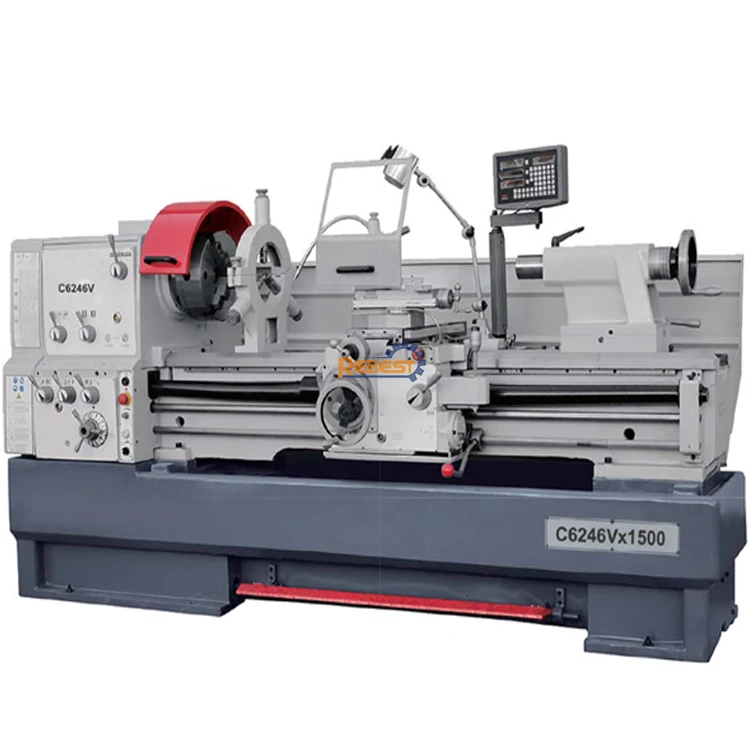

C6251 Engine Lathe Machine Manual Mechanical Metal Lathe Machine C6251 Manual lathe
- Category: >>>
- Supplier: Nantong Rebest Technology Co. Ltd.
Share on (1600320163586):
Product Overview
Description

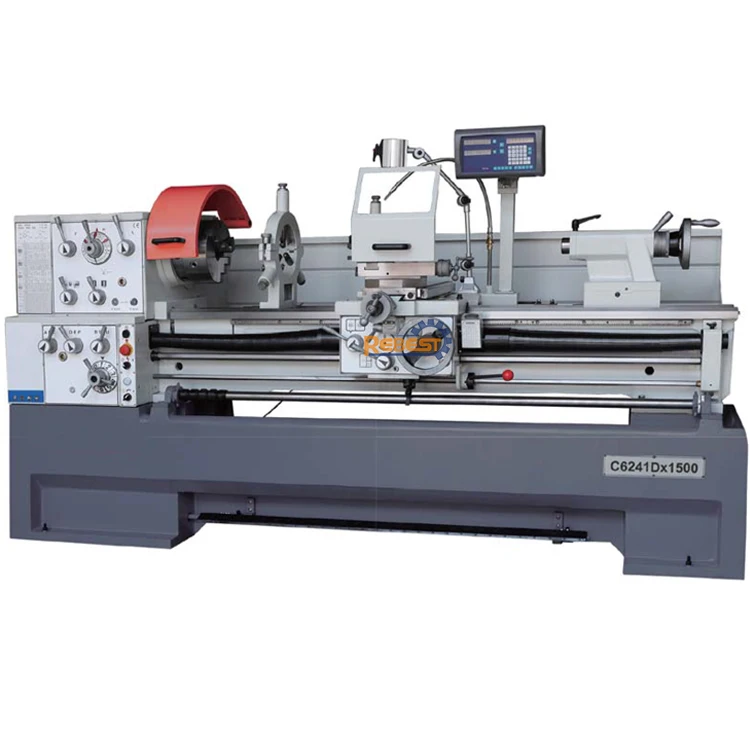

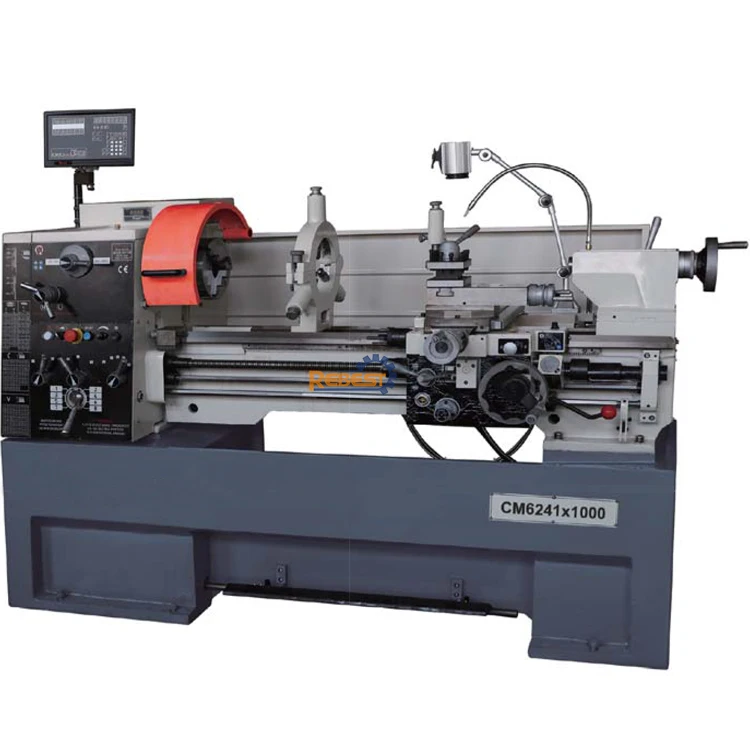

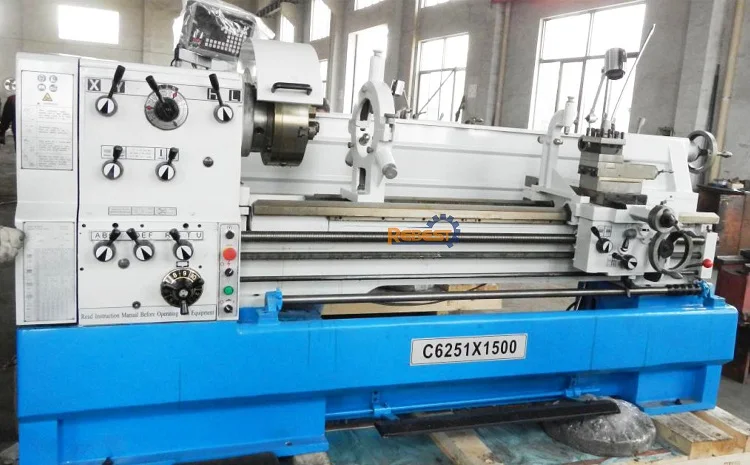

C6251 Engine Lathe Machine Manual Mechanical Metal Lathe Machine C6251 Manual lathe

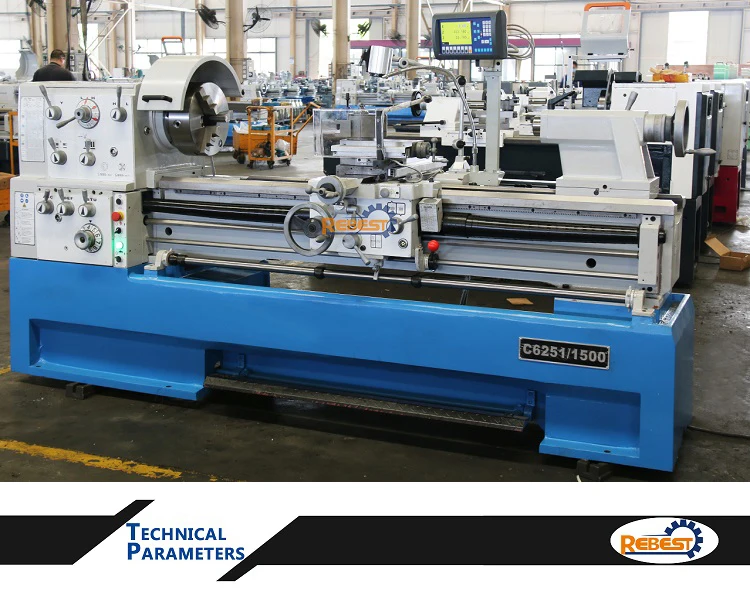

Technical Parameters
The surface of lathe machine is supersonic frequency hardened and precision ground. Head stock gears are ground precisely and are hardened to reduce noise. Integrated stand ensures the machine high working rigidity. Variable speed is optional.
1). Bed rail by super audio quenching and precision grinding;
2). Precision grinding of the main shaft box, low noise;
3). More thread type;
4). Electrical safety performance is good, high reliability;
5). With electromagnetic brake, the color of available options;
C6251 Engine Lathe Machine Manual Mechanical Metal Lathe Machine C6251 Manual lathe
| SPECIFICATION | Unit | C6241 | C6246 | C6251 | C6256 |
| Swing over bed | mm | Φ 410 | Φ460 | Φ 510 | Φ560 |
| Swing over cross slide | mm | 220 | Φ270 | Φ 305 | Φ355 |
| Swing in gap diameter | mm | Φ 640 | Φ690 | Φ 735 | Φ 785 |
| Distance between center | mm | 1000/1500/2000/2500 | |||
| Valid length of gap | mm | 165 | 170 | ||
| Width of bed | mm | 300 | 350 | ||
| Spindle nose | mm | D1-6 | D1-8 | ||
| Spindle Bore | mm | Φ58 | Φ80 | Φ80 | Φ105 |
| Taper of spindle bore | MT6 | MT7 | MT7 | MT7 | |
| Range of spible speed | r.min | 12 changes 25-2000 | |||
| Compound rest travel | mm | 128 | 130 | ||
| Cross slide travel | mm | 285 | 316 | ||
| Max.section of toll | mm | 20x20 | |||
| Lead screw thread | mm | 6 or 4T.P.I | |||
| Longitudinal feeds range | mm/rev | 42 kinds,0.031-1.7 | 35kinds,0.059-1.646 | ||
| Cross feeds range | mm/rev | 42 kinds, 0.014-0.784 | 35kinds,0.020-0.573 | ||
| Metric threads range | mm | 41 kinds, 0.1-14 | 47kinds, 0.2-14 | ||
| Inch threads range | 60 kinds, 2-112T.P.I. | ||||
| Diametrical pitches range | 50 kinds, 4-112DP | ||||
| Module pitches range | 34 kinds, 0.1-7MP | ||||
| Tailstock quill diameter | mm | Φ60 | Φ75 | ||
| Tailstock quill travel | mm | 130 | 180 | ||
| Tailstock quill taper | MT4 | MT5 | |||
| Power of main motor | KW | 5.5 | 7.5 | ||
| Power of coolant pump | KW | 0.1 | |||
| Overall sizes | mm | 2200/2750/3250×1080×1370 | 2900/3400×1120×1430 | ||
| Weight | KG | 1980/2265/2450 | 2700/3070 | ||
C6251 Engine Lathe Machine Manual Mechanical Metal Lathe Machine C6251 Manual lathe
--- Machine Featurers ---
♦ Taper turning attach fitted to saddle is optional for C6251 Universal metal lathe machine.
♦ Triple bearings supporting headstock spindle
♦ Adjustable taper roller bearings providing spindle accuracy
♦ Precision 'V'-beds & headstock gears are all hardened & ground
♦ C6251 Universal lathe machine for sale with one piece cast iron base increases rigidity
♦ Overload protection on drive motor and coolant system
♦ Universal enclosed gearbox incorporating metric & imperial thread capabilities
♦ Inching button incorporated on the control panel for convenient spindle speed selection
♦ Foot operated spindle brake with safety cut out switch
♦ 300mm wide induction hardened heavy duty cast iron bed
♦ Removable gap bed allowing work piece to swing up to 690mm
♦ Chuck guard fitted with safety micro switch
♦ Powered longitudinal and cross feeds
♦ Adjustable 4 position length-stop mechanism for accurate repetitive operation
♦ Micro adjustable saddle stop
WHY CHOOSE US - REBEST GROUP?
Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales:
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
Guarantee:
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.
All the service is for machine whole life.
REBEST-GROUP is professional Metal Forming Machine enterprise integrated with design, R&D, manufacturing, sales and service. Our main products: 1). CNC Milling Machine 2). CNC Lathe Machine, 3). Pipe Bending Machine 4). Plate Rolling Machine 5). Shearing Machine 6). Press Brake Machine 7). Section Bending Machine 8). Notching Machine 9). Hydraulic Press Machine 10). CNC Plasma Cutting Machine 11). Ironworker Machine 12). Roll Forming Machine 13). Drilling Machineetc.
Our machines exported to Canada, Russia, Vietnam, Colombia, Qatar, Peru, Malaysia, Brazil, Uganda, Thailand, Germany, Poland, Panama and etc. meanwhile, we have got very good feedback from our customer. We look the quality and customer’s approval as root of company and we shall continue to try our best to meet customer’s full satisfaction.
We introduce both modern management system and operation system into each work links of enterprise, combining the abroad MBA management mode with actual state of Chinese enterprise, and then makes a full set of proper management methods.
The company advances with times, keeps innovating and establishes business relations with friends from all over the world to realize the win-win.
REBEST-GROUP: Best-Quality, Best-Service, Best-Offer.
1. How to choose Lathe machine?
According following informtaion to choose Lathe machine:
Pls give your wanted Lathe machine Working table sizes
2. Do you provide training to operation C6251 Lathe Machine ?
1). Will provide operatiing video and manual book with our lathe machine.
2). Welcome your operators to our factory, we'll arrange everything at our factory.
3. What about your C6251 Lathe Machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
3. What certificate for C6251 Lathe Machine ?
We have ISO certificate for our factory and CE Certification for our machine.
4. What delivery time milling machine?
Within 30 working days after received advanced payment.
