INKSON SIMCOM GSM LTE Cellular Module SIM7600G 2G 3G 4G Cellular Module for Communication

Product Overview

Description



Product Name

SIM7600G

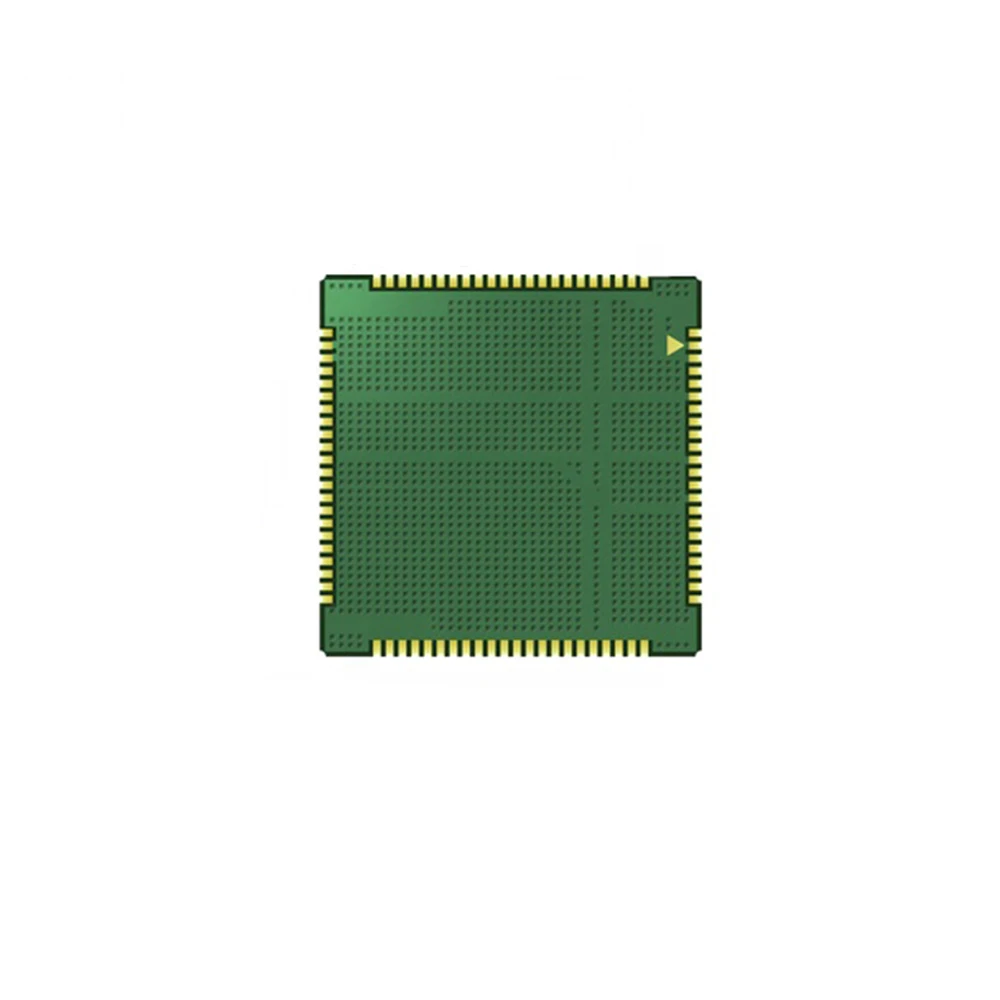

SIM7600G-PCIE is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in Mini PCIE type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer.It is combined with a SIM7600G (LCC) module and a Mini PCIE adapter board.

General Features
•Mini PCIE package
•Control Via AT Commands
•Supply voltage range: 3.0V~ 3.6V, 3.3V Typical
•Operation temperature: -40℃ to +85℃
•Dimension: 50.8*31*5.35mm
•Weight: 12.6g
•Bandwidth: 1.4/3/5/10/15/20MHz

•LTE CAT4
- Uplink up to 5Mbps
- Downlink up to 10Mbps
•HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
•UMTS
- Uplink/Downlink up to 384Kbps
•EDGE
- Uplink/Downlink up to 236.8Kbps
•GPRS
- Uplink/Downlink up to 85.6Kbps

Other Features
•USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS
/HTTP/HTTPS/SMTP/SMTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA

Interfaces
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Support Primary/Rx-diversity/GNSS active
antenna
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
Approval(plan)
•FCC/IC
•CE/ACMA

Frequency
LTE-TDD:
B34/B38/B39/B40/B41
LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
UMTS/HSPA+:
B1/B2/B4/B5/B6/B8/B19
GSM/GPRS/EDGE:
850/900/1800/1900MHz
