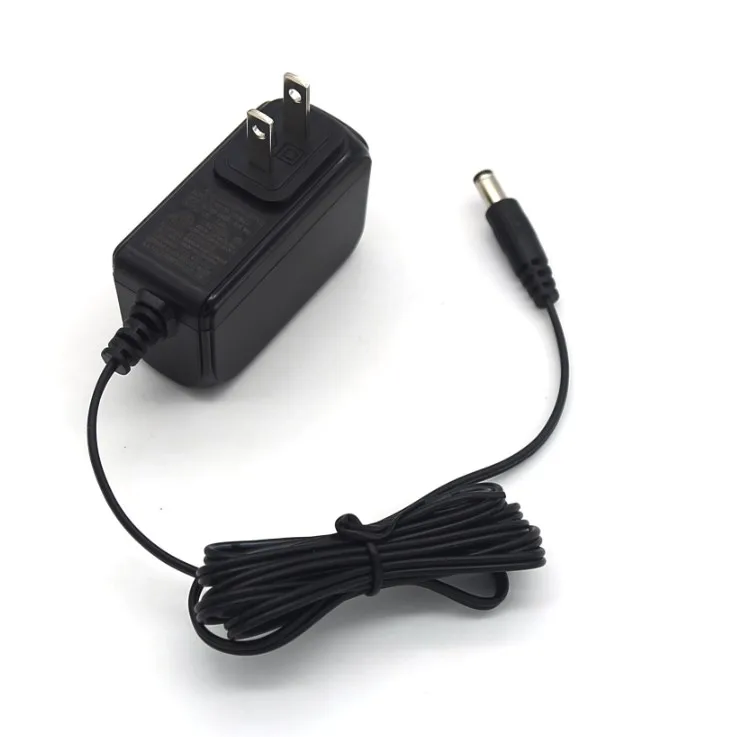

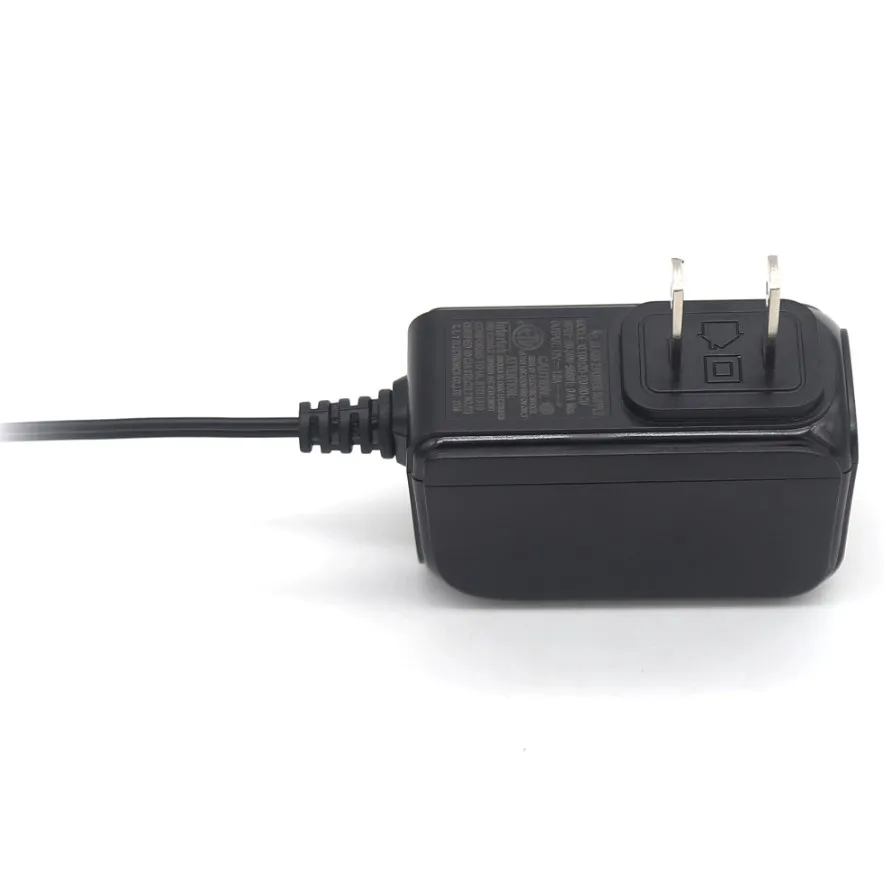

12W AC DC Adapter 5V 6V 9V 12V Power Adopt 500mA 800mA 1A 2A 3A 4A 5A Switching Power Supply Adaptor
12W AC DC Adapter 5V 6V 9V 12V Power Adopt 500mA 800mA 1A 2A 3A 4A 5A Switching Power Supply Adaptor
12W AC DC Adapter 5V 6V 9V 12V Power Adopt 500mA 800mA 1A 2A 3A 4A 5A Switching Power Supply Adaptor
12W AC DC Adapter 5V 6V 9V 12V Power Adopt 500mA 800mA 1A 2A 3A 4A 5A Switching Power Supply Adaptor

12W AC DC Adapter 5V 6V 9V 12V Power Adopt 500mA 800mA 1A 2A 3A 4A 5A Switching Power Supply Adaptor

Share on (1600320168511):


Price:$2.00 - $2.20

Quantity:


Product Overview

Description



Product Description


Feature:


Spec customized
Protections:Short Circuit/Overload/Over Voltage
No Load Power Consumption
Class II Power Unit Pass LPS


RoHS compliant:Yes
2 Years Warranty




























































Input

100-240VAC, 50/60 Hz


Output Voltage/Current/Watt3V-36V ,100mA-4.16A,3-60W max
Output cable2468/2464/1185/SPT-1/SPF1
Ripple Noise200mV
Start time0.3s
Protection against Electric ShockClass II;SELV
MTPF50000Hours
Ta;TcTa:40℃;Tc:75a℃
Cabinet Material  ABS+PC Fireproof Material
Energy savingERP V/CEC VI/DOE VI
Safety StandardEN61558-2-16/EN61347-2-13/UL1310
Cable materialRubber/fabric/textile or customized
PackingInside:white box or PE bag;outside:carton







Output Ratings









































Model No.Min&Max Output Voltage:VMin&Max Current:AMin&Max Watt:W
XY06J-xxxyyyy3.0-36V DC0.01-2.40A3-6
XY12-xxxyyyy5.0-36V DC0.2-2.00A6-12
XY24-xxxyyyy5.0-36V DC0.01-4.00A14.4-24
XY36-xxxyyyy5.0-36V DC0.1-4.00A36 Max
XY50-xxxyyyy9.0-30V DC0.01-4.16A50 Max

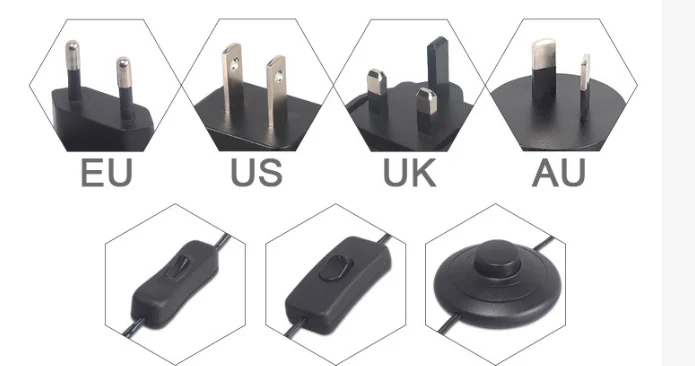

EU US UK AU Standard & can be made in different switches

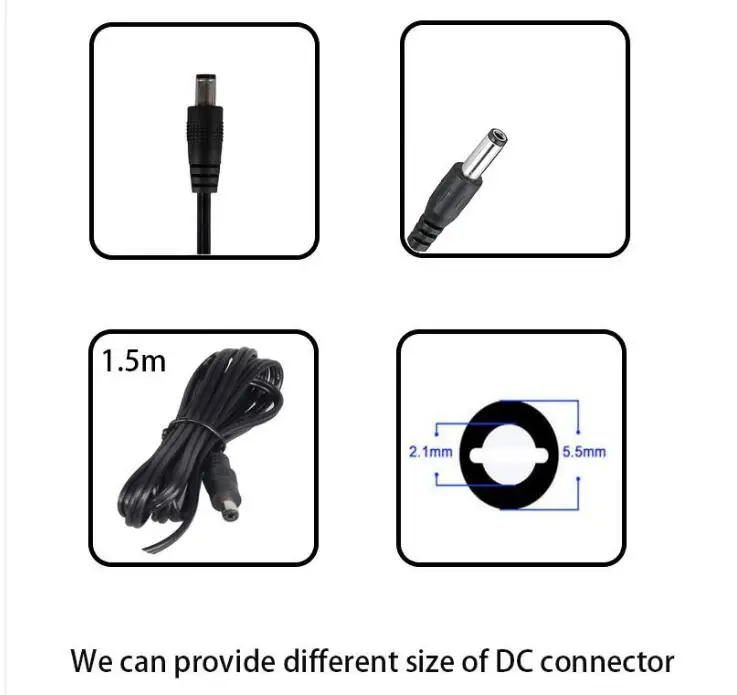

Specifications of DC plug in 5.5*2.1mm/5.5*2.5mm/4.0*1.7mm/3.5*1.35mm or customized

Output Cable can be made in 1.2m/1.5m/1.8m or customized

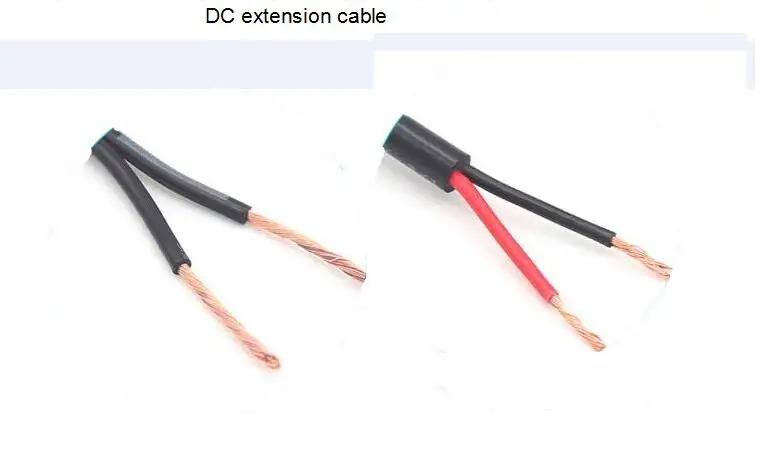

DC extension cable 1.jpg




 4

Two packages for option

.jpg
