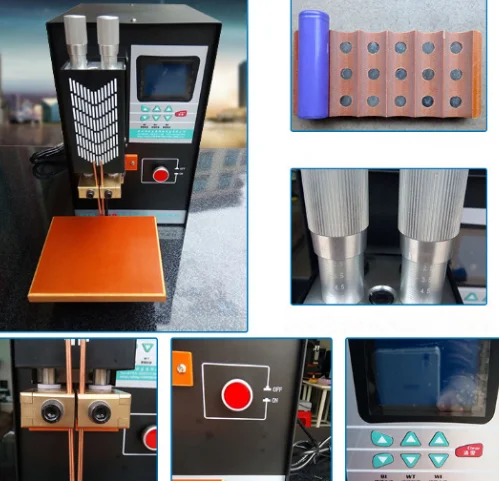

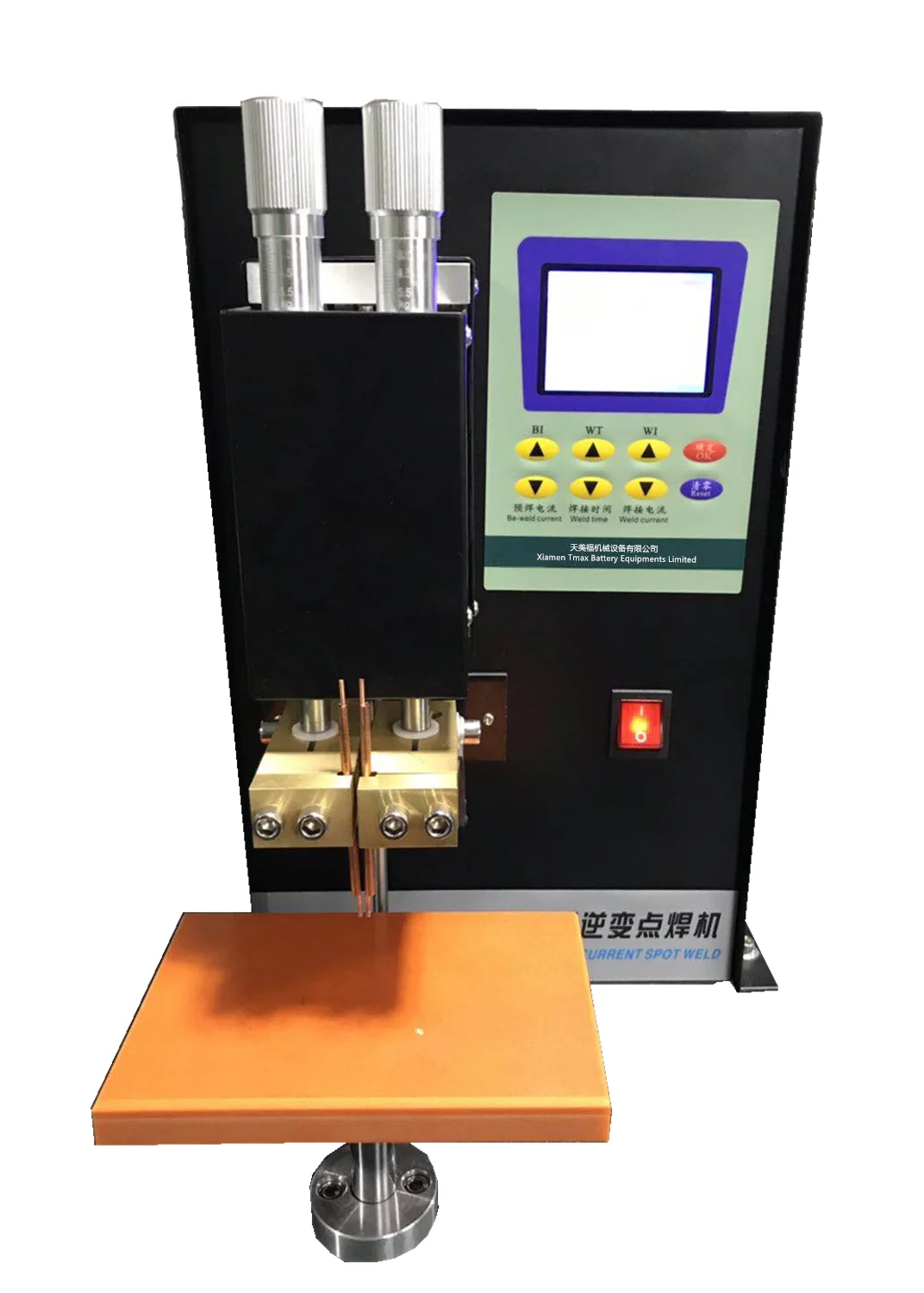

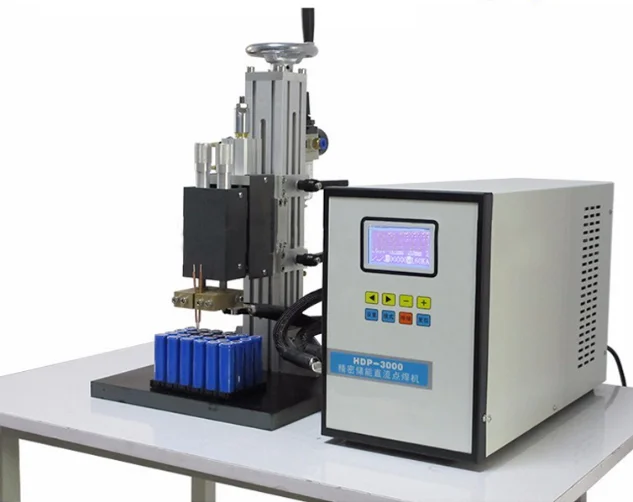

Manual Lithium Cylindrical Battery Cell Spot Welding Machine Nickel Plated Strip Sheets Welder

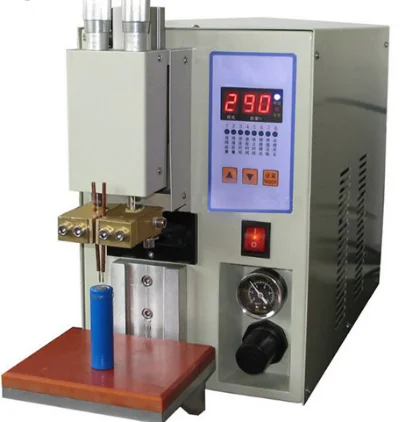

This pneumatic spot welding machine is mainly used for 18650 cylinder cell pack welding, it can weld Nickel tab thickness from 0.03-0.25mm with good welding effect.
Power Supply | 220-240V, Single Phase 50/60Hz |
Max. Power | 10KW |
Air Pressure Range | 0.1 - 0.7 Mpa ( air compressor is required) |
Welding Current | 2500A |
Welding Thickness | 0.03 - 0.25mm |
Operation Temperature | -20 - 40℃ |

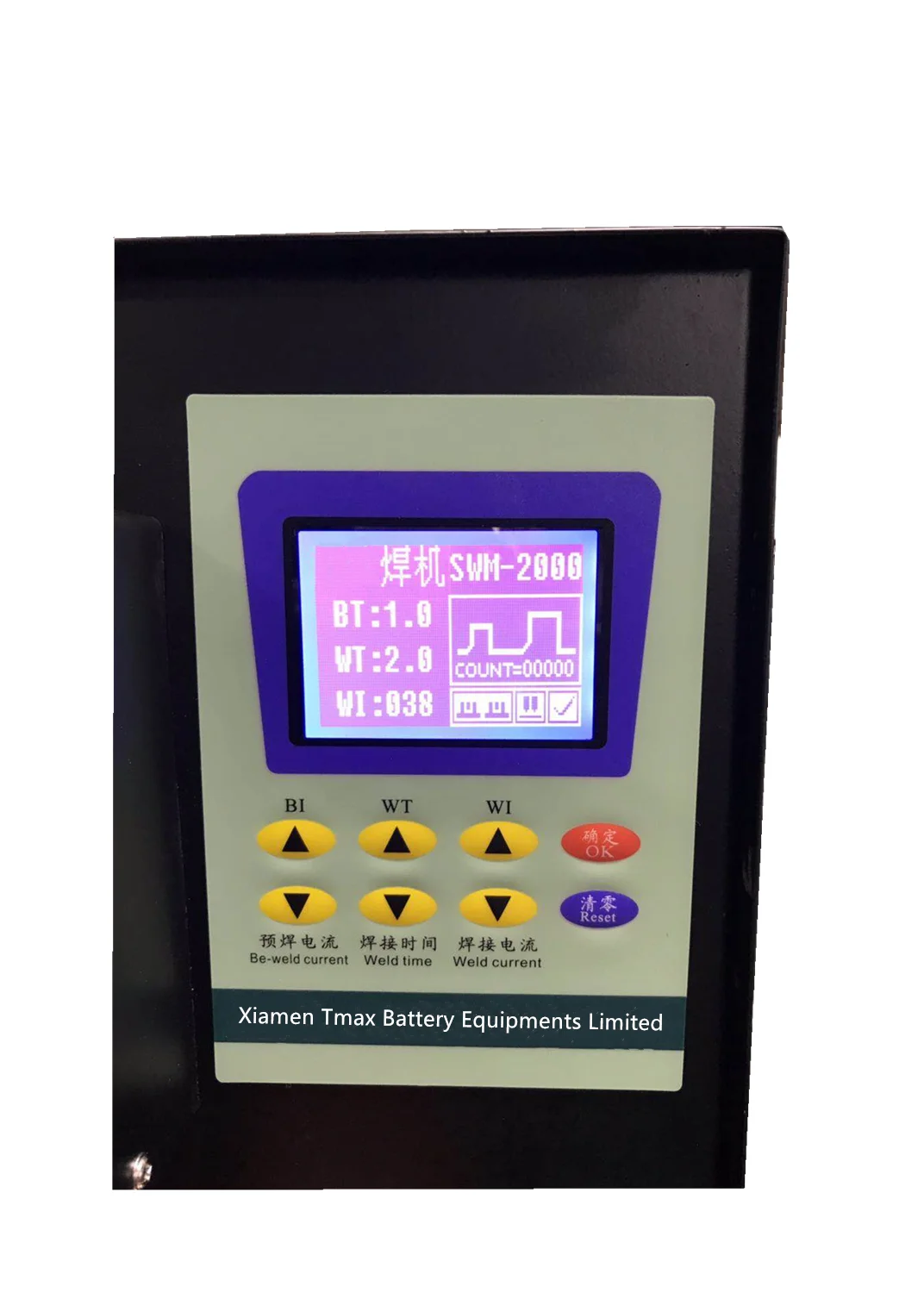

Controller | Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding |

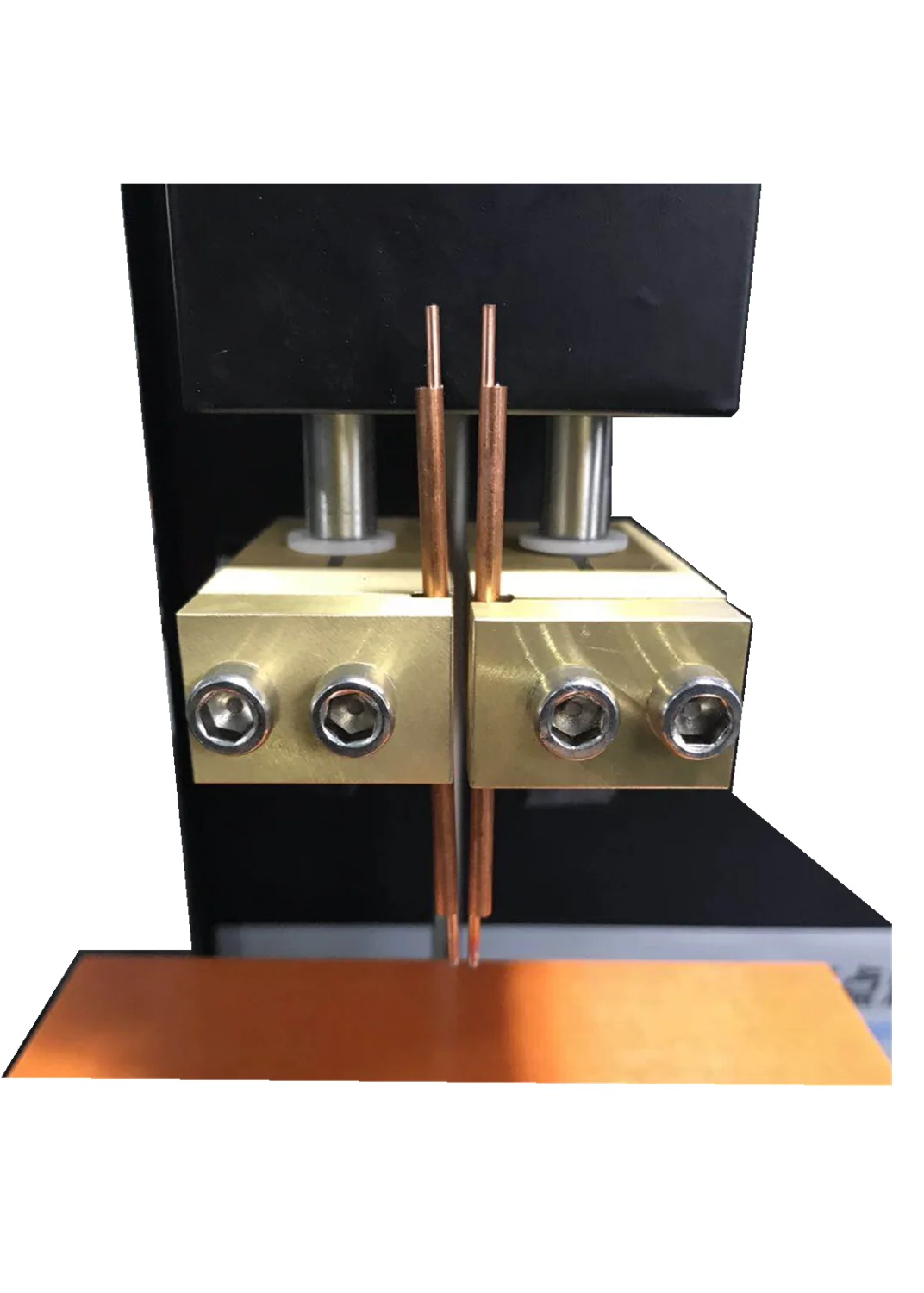

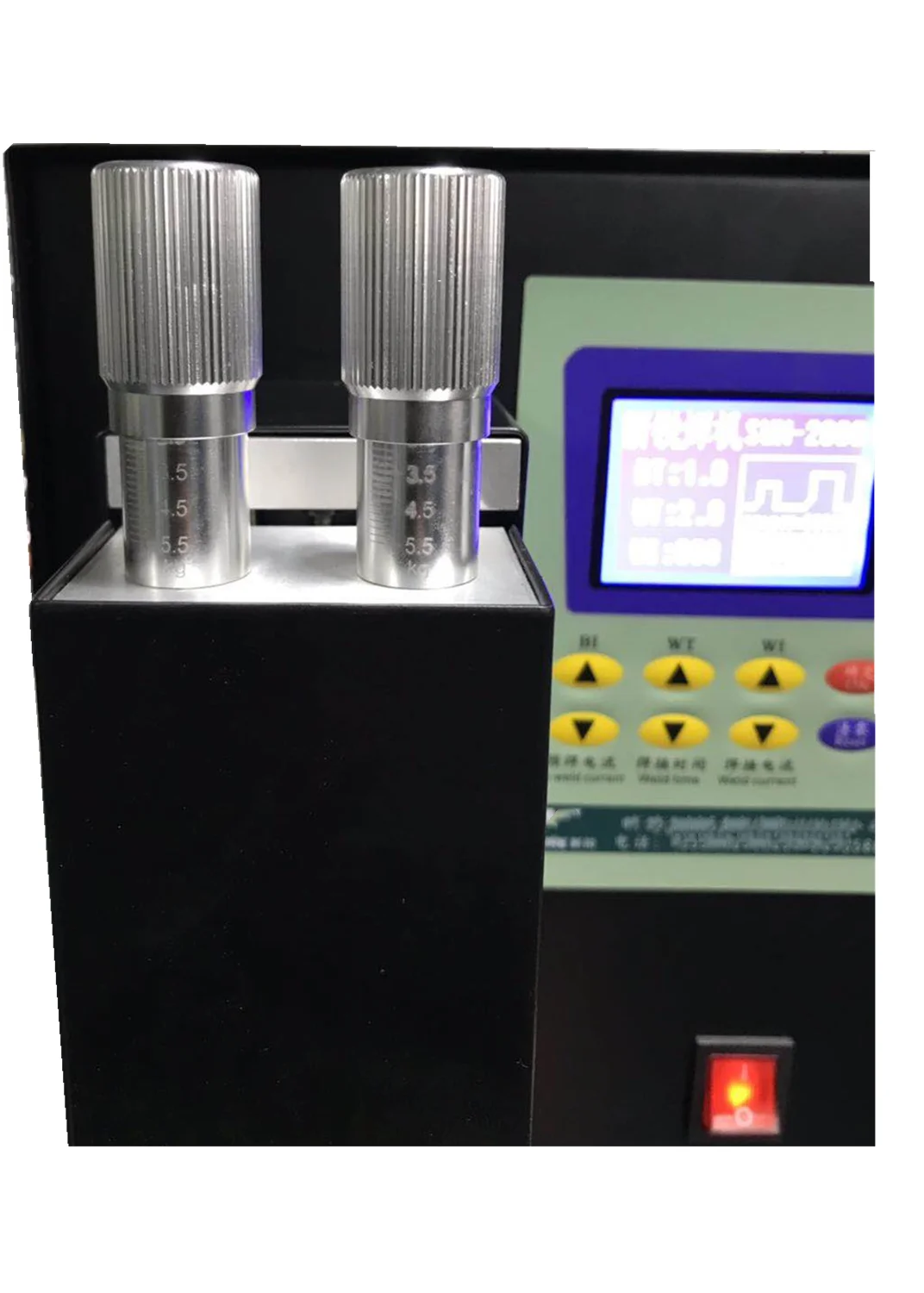

Pressure | The pressure applied on the welding needle can be adjusted independently and easy to operate |
Design | 1. Unique Photoelectric switch design 2. Good appearance, small size and light weight 3. Welding spot looks beautiful,free spark, stable welding current |
Product Dimensions | L800×W600×H130mm |
Net Weight | 30kg |
Compliance | CE Certificate |
Warranty | One Year limited warranty with lifetime support |
Spot Welding Machinie | |||
Type | Product Name | Features | Picture |

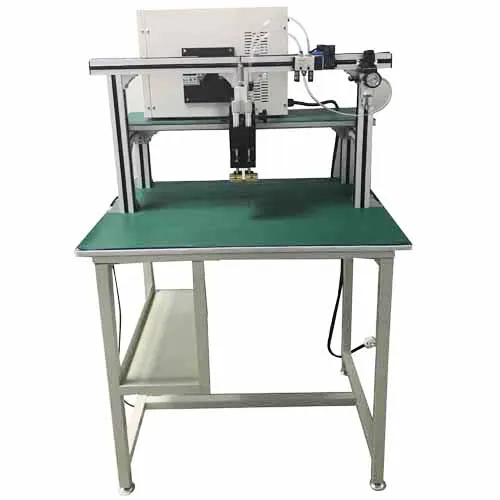

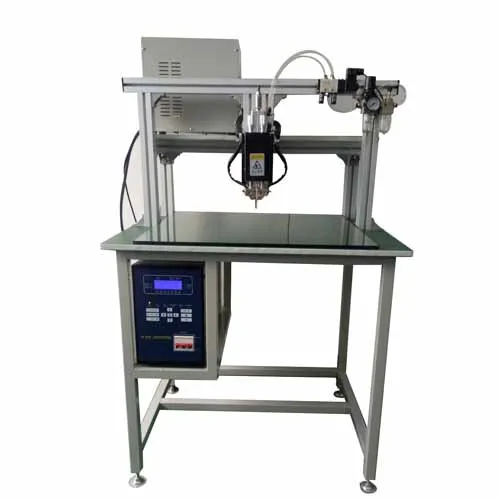

Manual | Pneumatic Spot Welding Machine | Welding Thickness:0.03 - 0.25mm Air Pressure Range:0.1 - 0.7 Mpa |  |
AC Plus Pneumatic Spot Welding Machine | Welding Thickness:0.03~0.2mm |  | |
5000A/8000A Pneumatic Inverter DC Spot Welding Machine | Maximum thickness of parallel welding:0.03mm~0.5mm
Maximum Output Short Circuit Current:5000A or 8000A |  | |
DC Output Spot Welding Machine | Maximum thickness of parallel welding:0.03mm~0.5mm |  | |

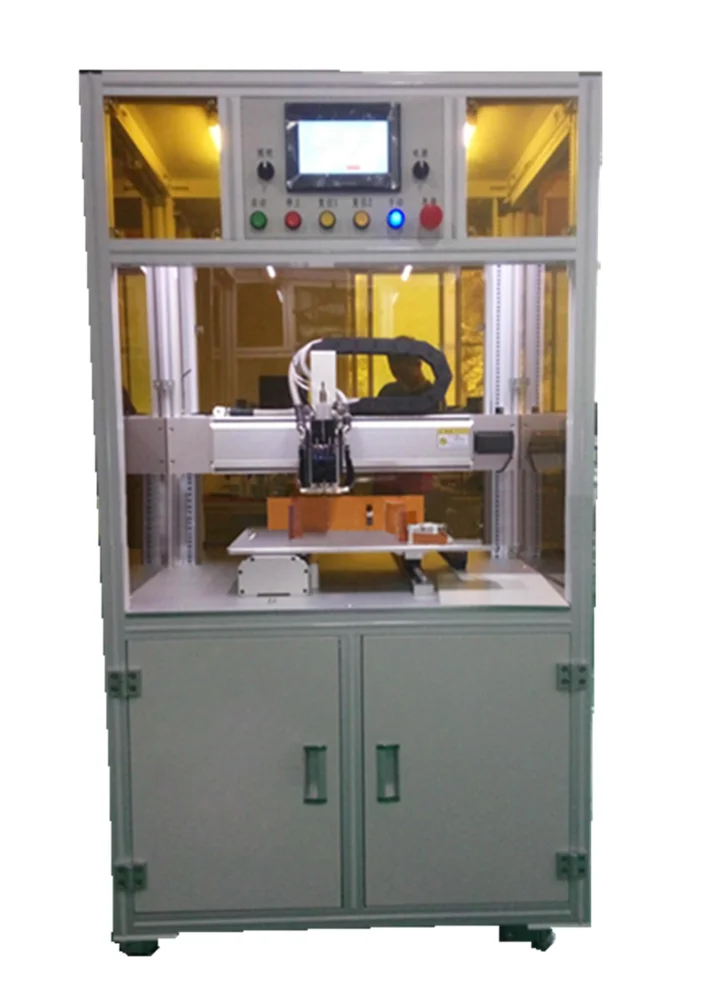

Automatic | Automatc Single Side Spot Welding Machine (Pneumatic/ Electric) | Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour |  |

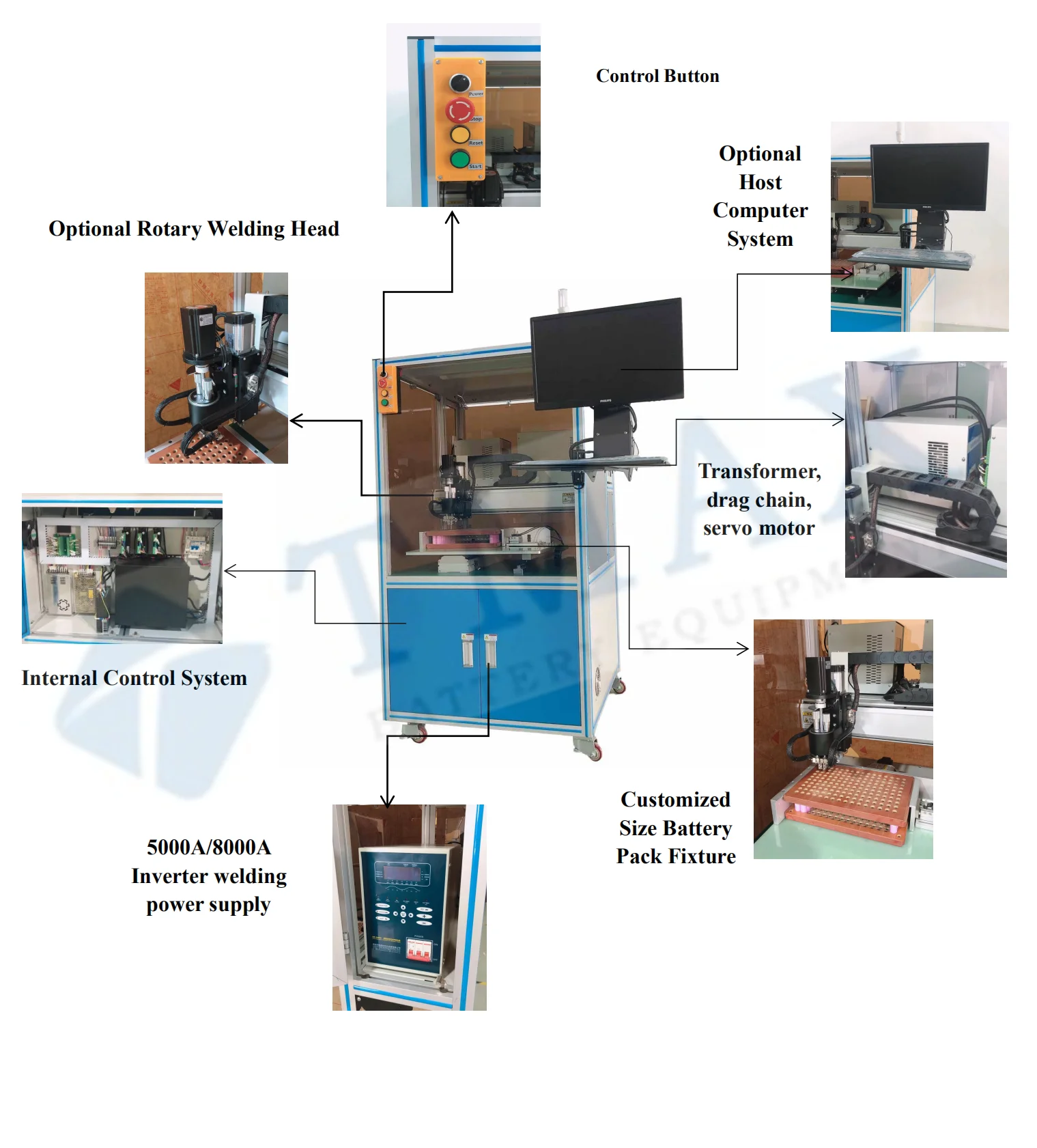

Automatic Single Side Rotary Welding Head Spot Welding Machine (Pneumatic /Electric) | The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed.
Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour |  | |

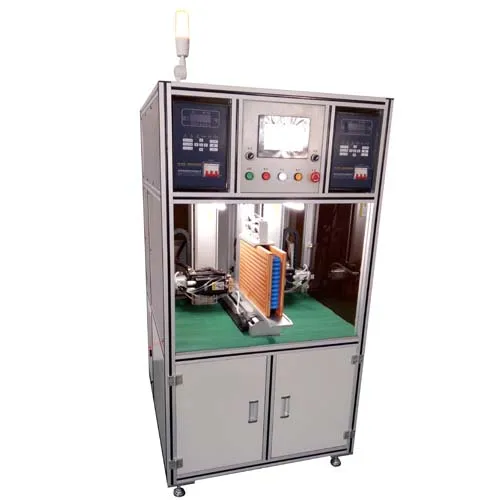

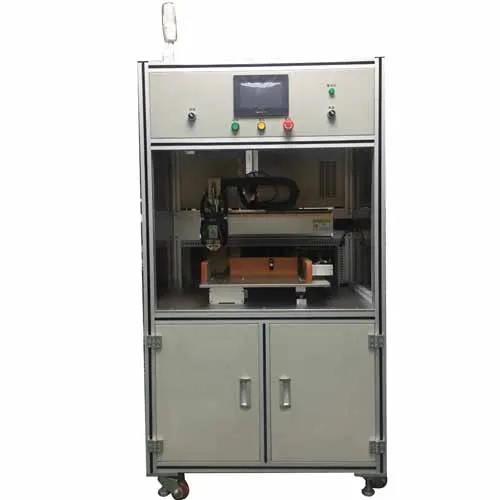

Automatic Double Sides Spot Welding Machine (Pneumatic/ Electric) | Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h |  | |
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
