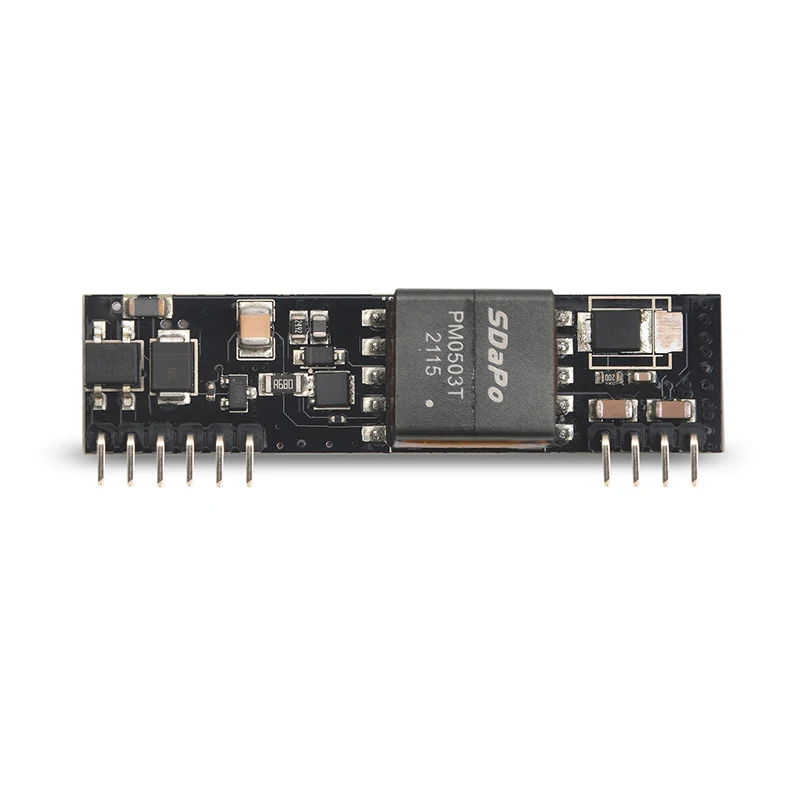

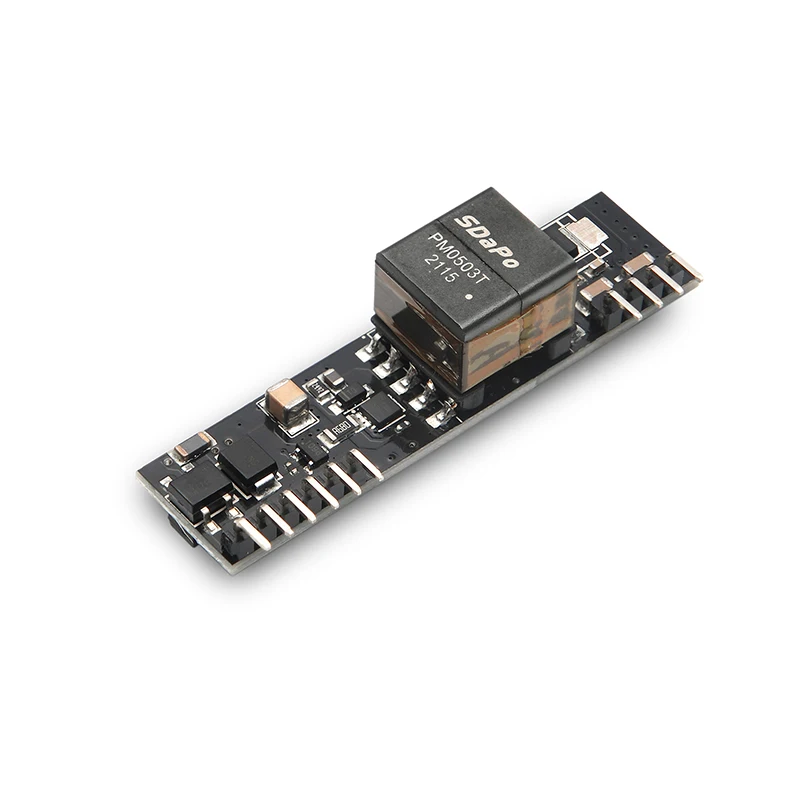

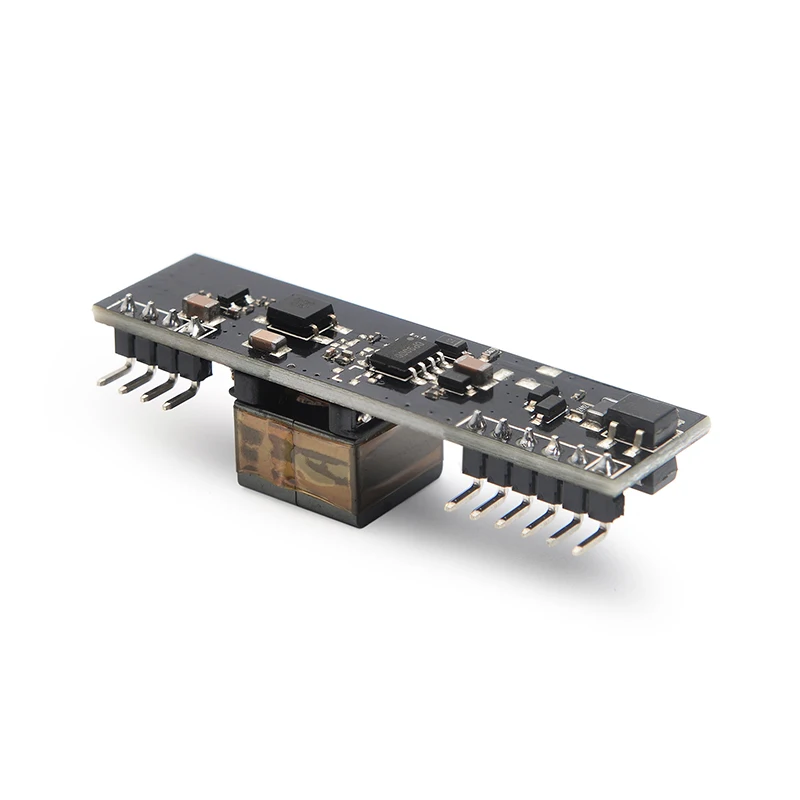

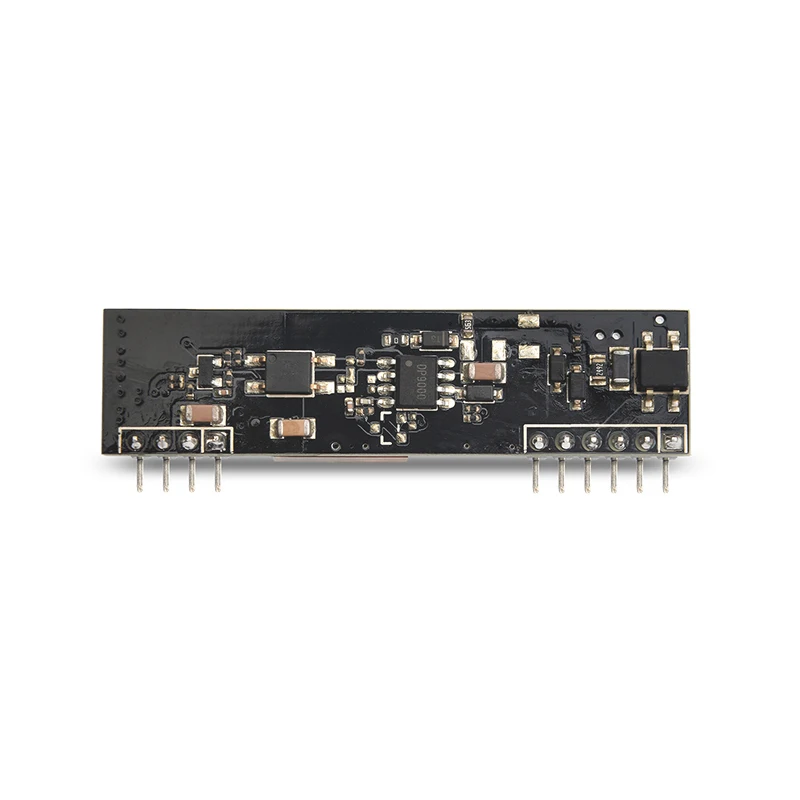

SDAPO AG9700/DP9700 IEEE802.3af IP Cameras Power Over Ethernet 12V1A 5V2.4A 3.3V2A PoE Module board
- Category: >>>
- Supplier: Shenzhen Sdapo Communication Co. Ltd.
Share on (1600320214965):
Product Overview
Description
Products Description
DESCRIPTION
This new version is a non-capacitor version. Low ripple. Life is long. Performance is better
13W PD(Powered Device) Integrated Module (Isolation Type)
FEATURES
* EEE802.3af compliant.
* Low cost.
* Support PoE applications in both of Fast / Gigabit Ethernet environments.
* Support wide input voltage range 37Vdc to 57
* Thermal cut off.
* Short circuit protection.
* Over current protection
* High DC/DC converting efficiency.
* Less external component one output decoupling capacitor.
* Isolation level 1.5KVrms.
* Enhanced surge protection
* Internal build in 2 channel bridge rectifiers
Product List
This new version is a non-capacitor version. Low ripple. Life is long. Performance is better
13W PD(Powered Device) Integrated Module (Isolation Type)
FEATURES
* EEE802.3af compliant.
* Low cost.
* Support PoE applications in both of Fast / Gigabit Ethernet environments.
* Support wide input voltage range 37Vdc to 57
* Thermal cut off.
* Short circuit protection.
* Over current protection
* High DC/DC converting efficiency.
* Less external component one output decoupling capacitor.
* Isolation level 1.5KVrms.
* Enhanced surge protection
* Internal build in 2 channel bridge rectifiers
Product List
Part Number | Nominal Output Voltage / Current | Maximum Output Power | Nominal Input Voltage | Marking |
DP9705 | 5.1Vdc / 2.4A | 13W @ 25°C | 48Vdc | DP9705 |
DP9712 | 12.1Vdc / 1.1A | 13W @ 25°C | 48Vdc | DP9712 |
DP9703 | 3.3Vdc/2A | 6.6W @ 25°C | 48Vdc | DP9703 |

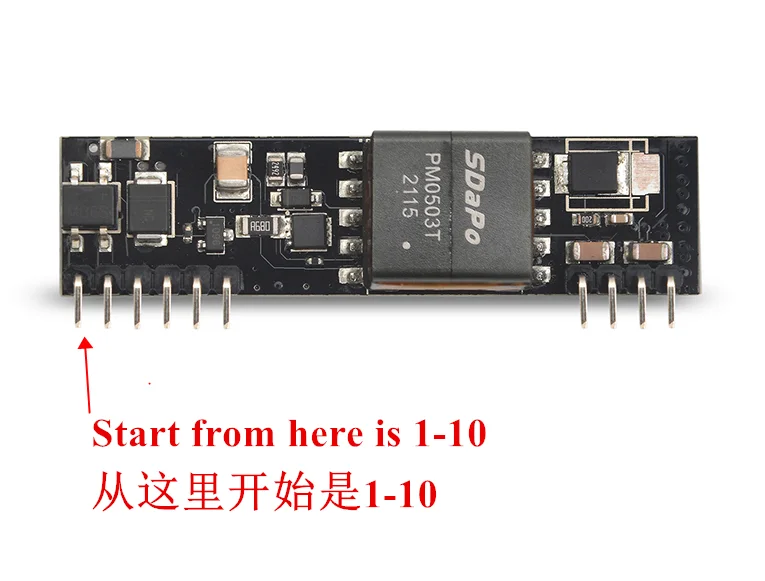

PIN ASSIGNMENT
Pin | Name | Description |
1 | VA1 | RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive. |
2 | VA2 | TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive. |
3 | VB1 | Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive. |
4 | VB2 | Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive. |
5,6 | NC | No Connection |
7 | -VDC | DC Return. This pin is the return path for the +VDC output. |
8 | +VDC | DC Output. This pin provides the regulated output from the DC/DC converter. |
9,10 | NC | No Connection |

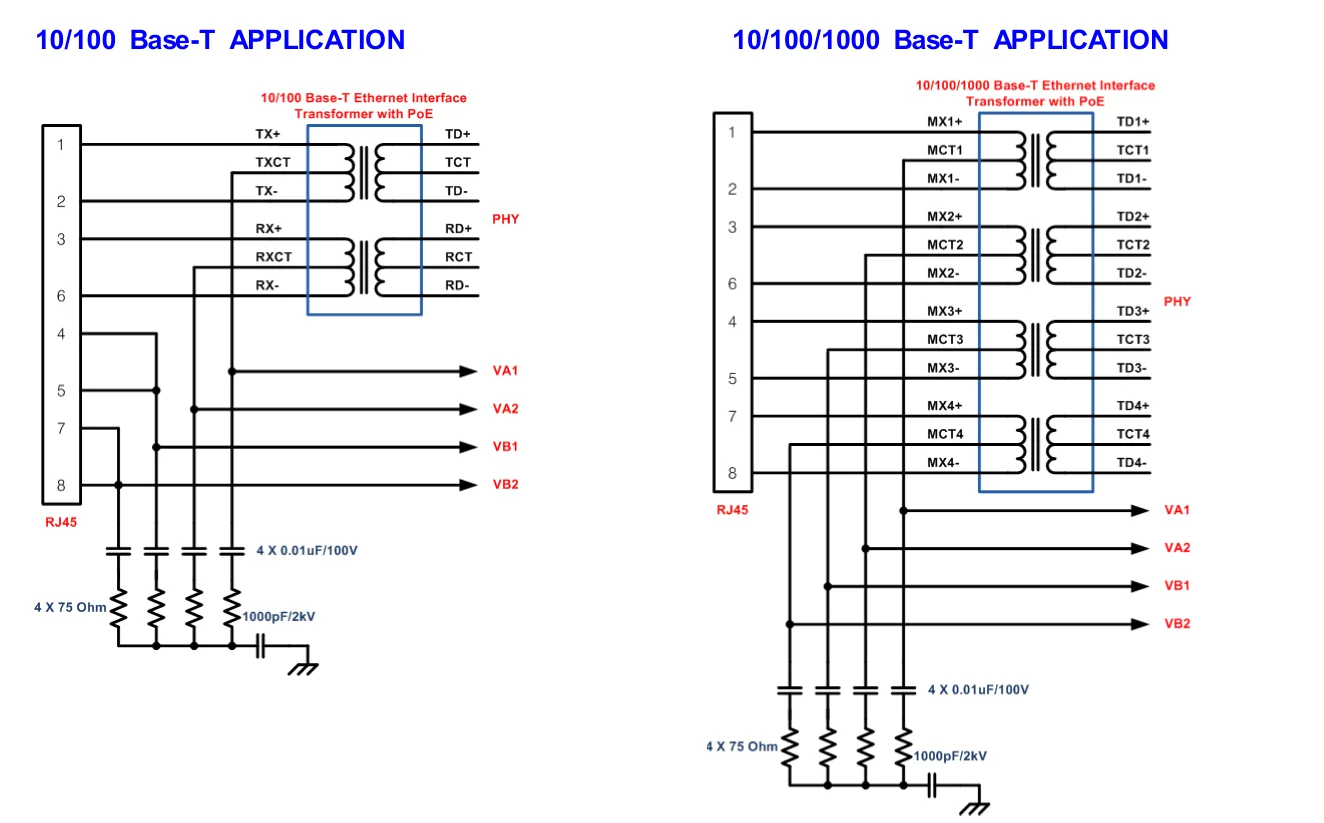

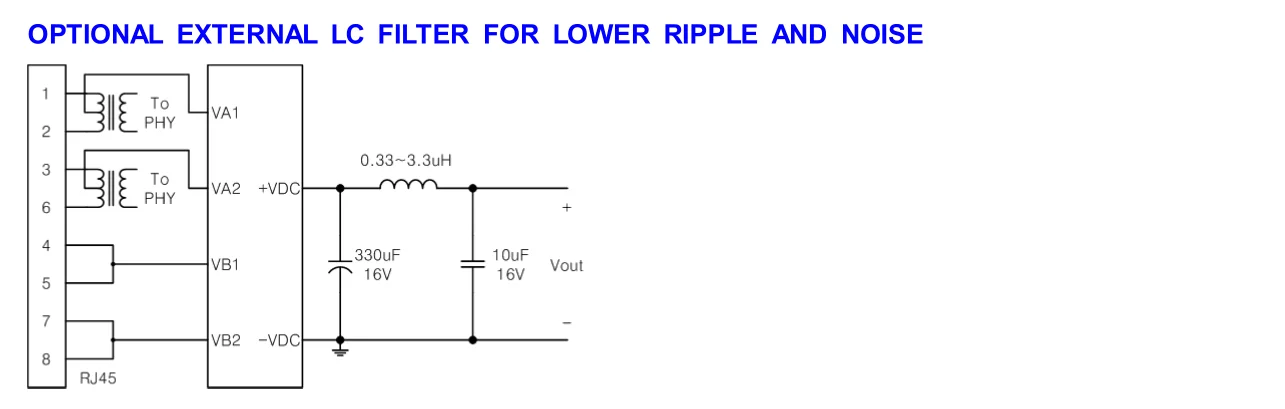

Typical Application
ELECTRICAL SPECIFICATIONS
No | Item | Specification | Comment |
1 | Input Voltage | 44~57V | |
2 | Output Voltage | 12.1V Typ. | DP9712 |
5.1V Typ. | DP9705 | ||
3.3V Typ. | DP9703 | ||
3 | Output Current (Vin=56V) | 1.3A Max. | DP9712 |
3A Max. | DP9705 | ||
4 | Line Regulation | 5% | |
5 | Load Regulation | 5% | |
6 | Ripple & Noise | 200mVp-p max. | |
7 | Efficiency | 88% max. | DP9712 |
84% max | DP9705 | ||
80% max | DP9703 | ||
8 | Input to Output Isolation | 1.5 KV | |
9 | Type of DC/DC Converter | Flyback Type | |
10 | Operating Temperature | -40 ~ +85 ℃ |

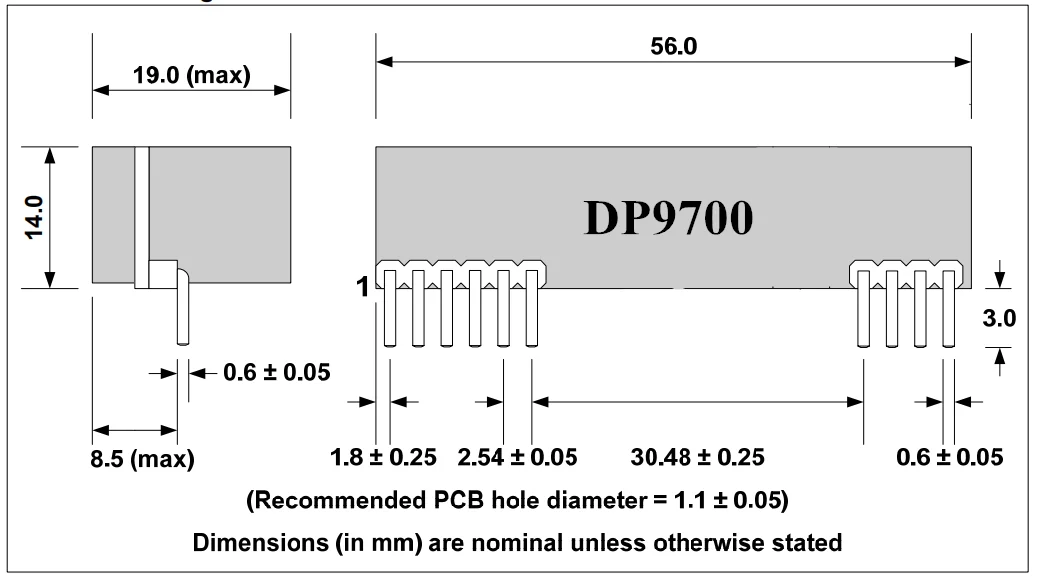

package
Recommend Products
Company Profile
Our Certificate
Exhibition
Our Advantages

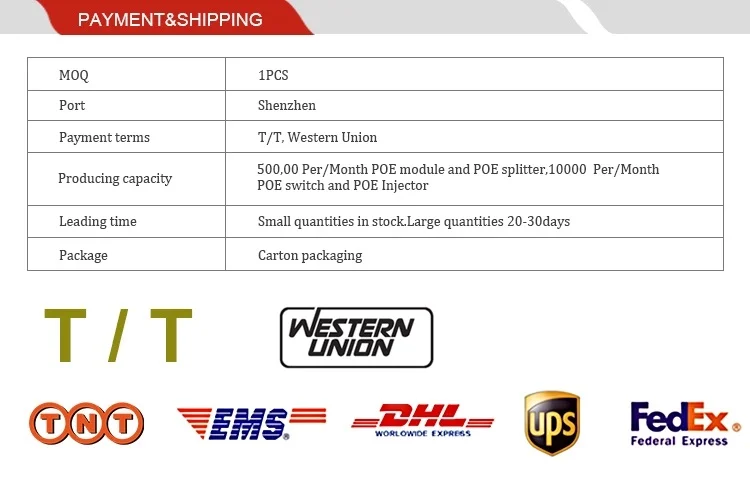

Payment & Shipping
