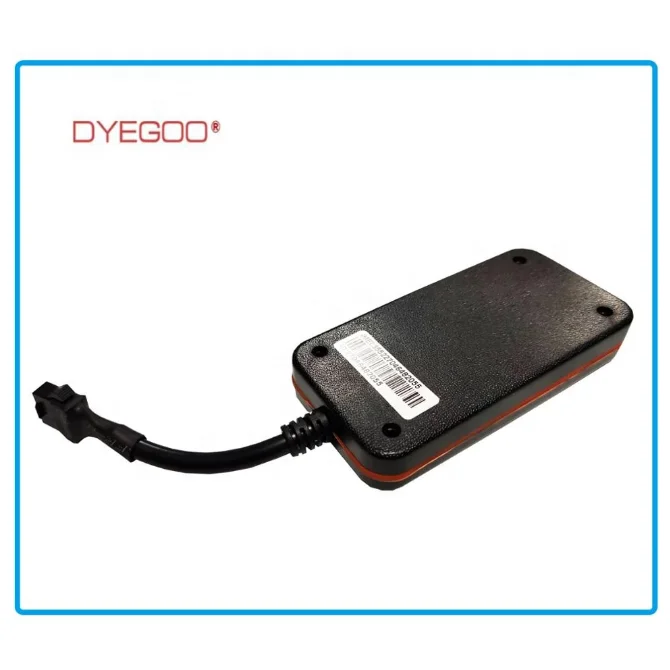

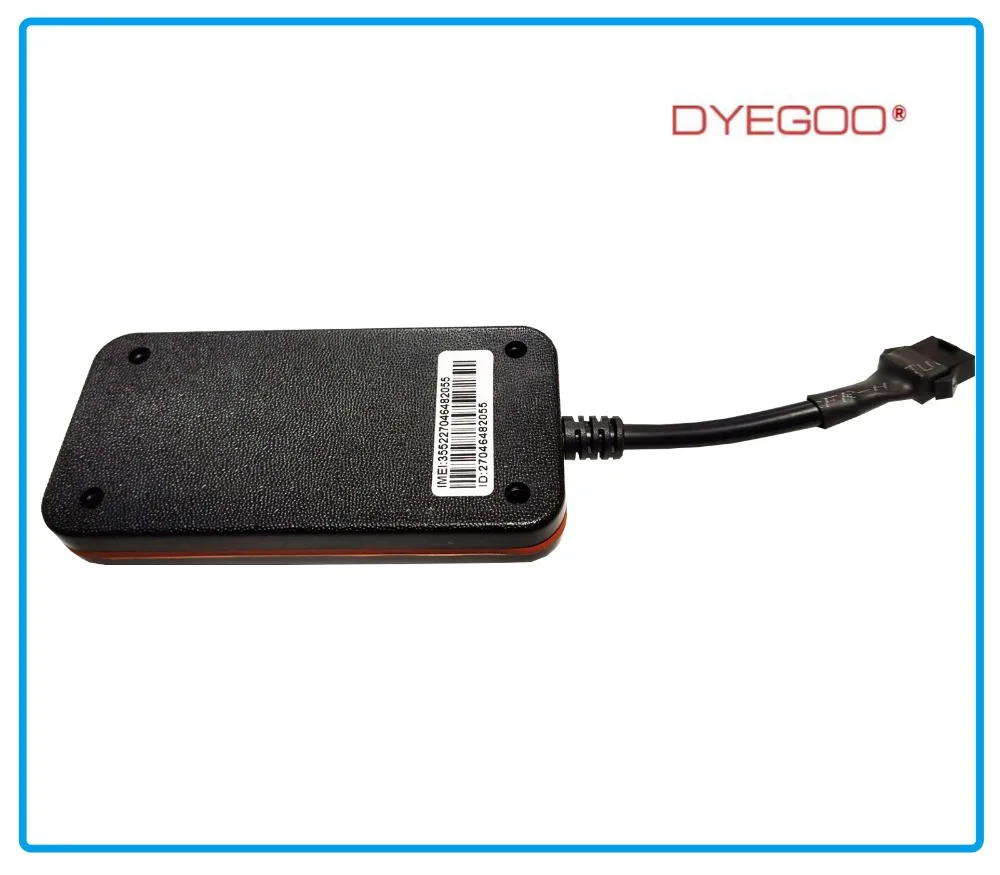

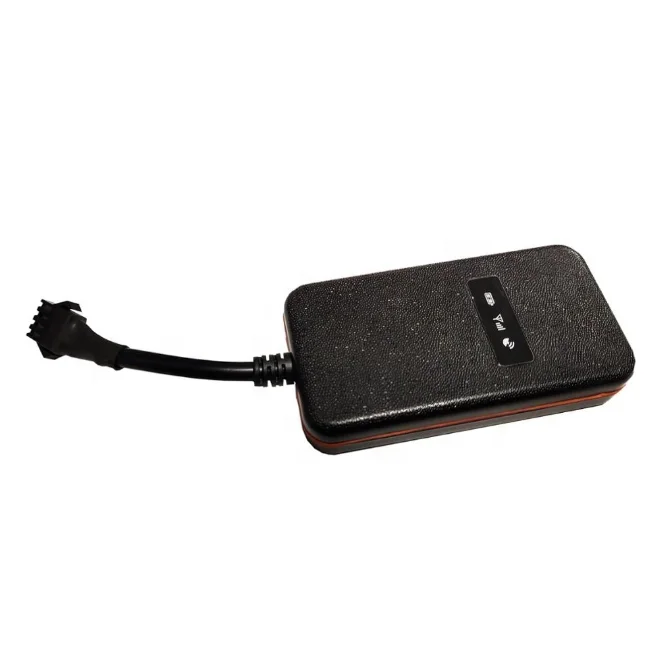

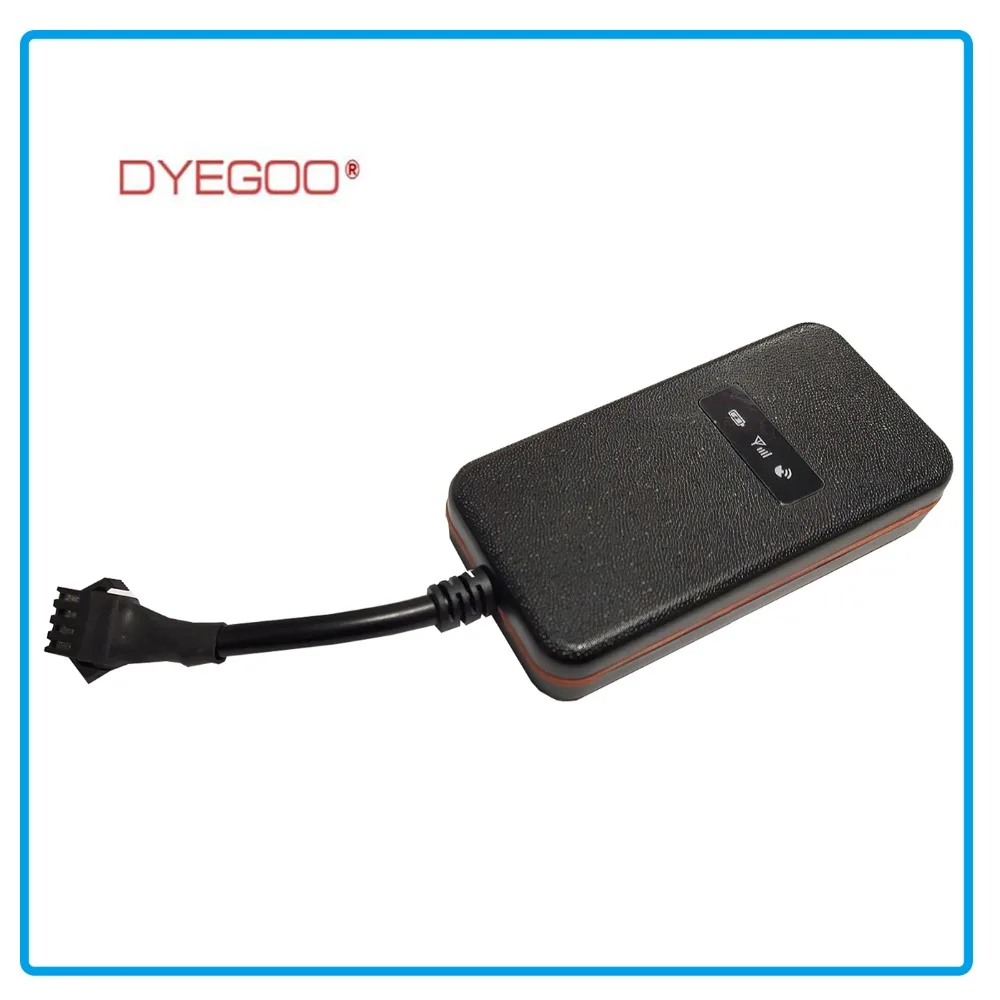

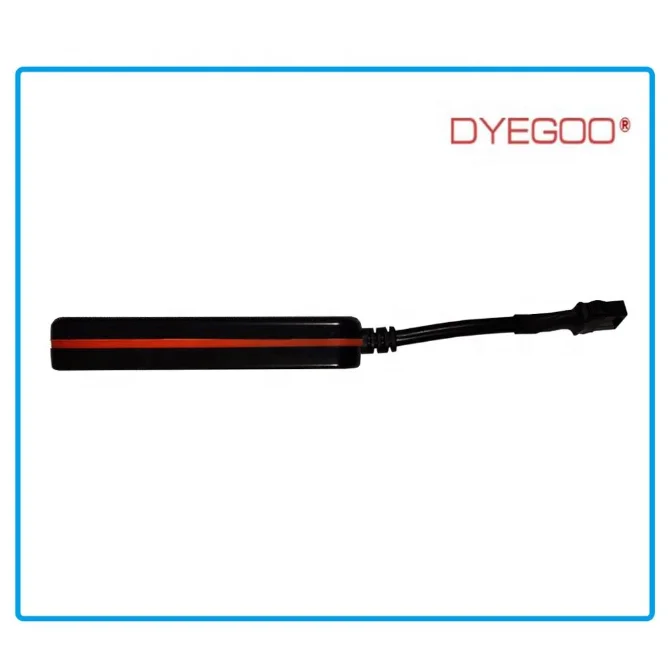

DYEGOO GT003 Vehicle Motorcycle Car GPS Tracker Waterproof Multiple Alarm Remote Control Google android ios APP

GT003 is a Mini intelligent GPS Vehicle positioning terminal. It combines the GSM wireless communication technology and GPS positioning system technology,terminals using industrial-grade highly integrated design,intelligent power-saving and passive drift suppression,installation is simple,connect the power supply to start work immediately,wide inpute voltage range,wide applicable to all types of cars,motor cycles,electric cars,ships,etc., can provide all-weather,real-time vehicle positioning function,with global positioning service platform,you can achieve remote vehicle management.

The best GSM chip and GPS chip:

Bttery inside for wire-cut aram

GSM chip:MT6260

GPS chip:Ublox 7020

 Device feature

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.

Overview of the characteristics:

1.GPS position.

2.GSM 850/900/1800/1900MHZ.

3.G-sensor inside,power saving,GPRS flow saving.

4.Oil cut function.

5.ACC alarm.

6.Shock alarm.

7.400MA battery inside,wire-cuted alarm.

8.Overspeed alarm.

9.Auto set APN.

10.Voltage 6V-50V.

11.SOS,MICROPHONE port reserved.

12.Waterproof Design.

 1. Specification

1).GSM:850/900/1800/1900MHZ

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-50V DC

4).Working current:22mA (12VDC)

5).Working current:12mA (24VDC)

6).GPS locating time:

       Cold start:38s(Open sky)

       Warm start:32s

       Hot start:2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20 Celsius~+70 Celsius

9).Working humidity:20%~80%RH

10).Measurement:87(L)×43(W)×14(H)mm

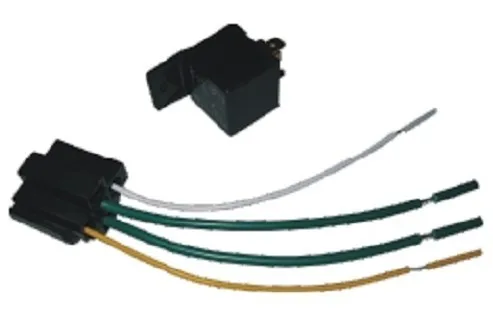

2.Accessories

Power wire

 Relay

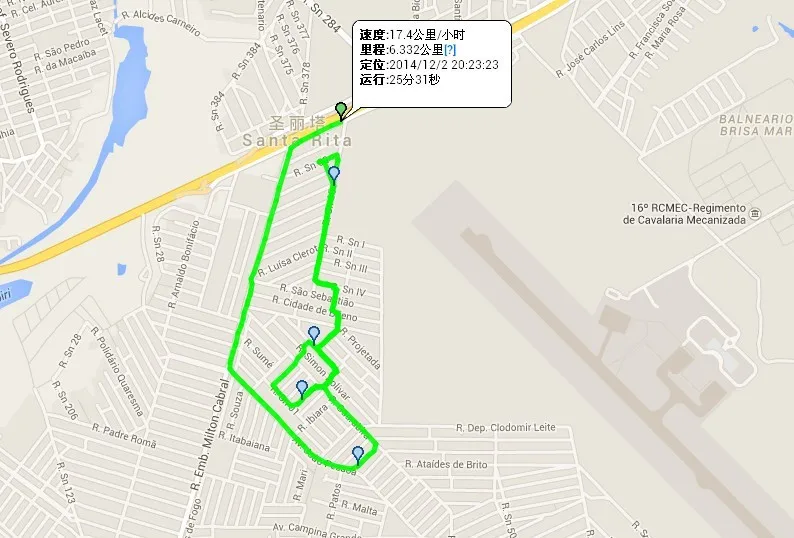

3.Platform:

The platform free use for 1 year.

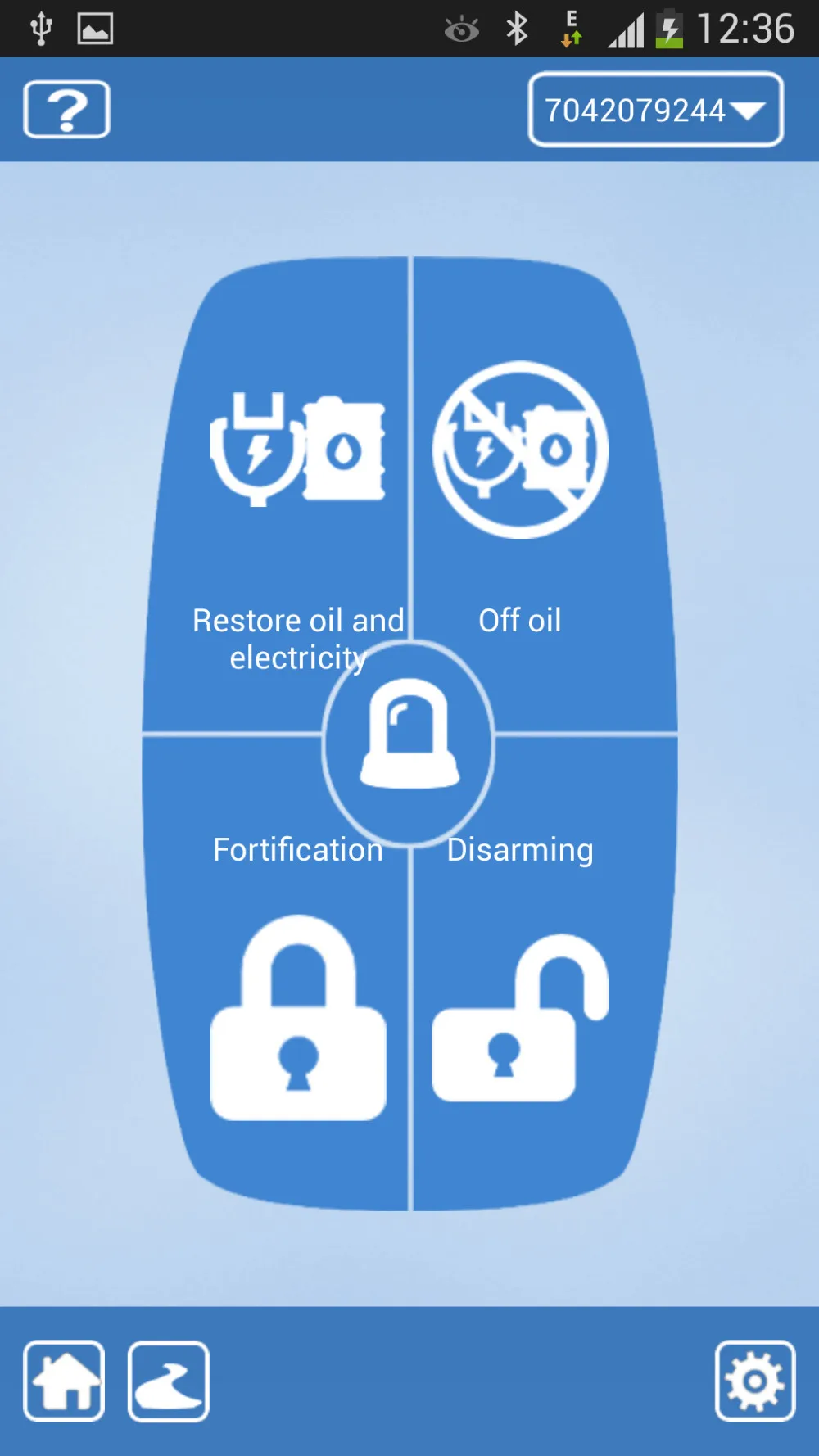

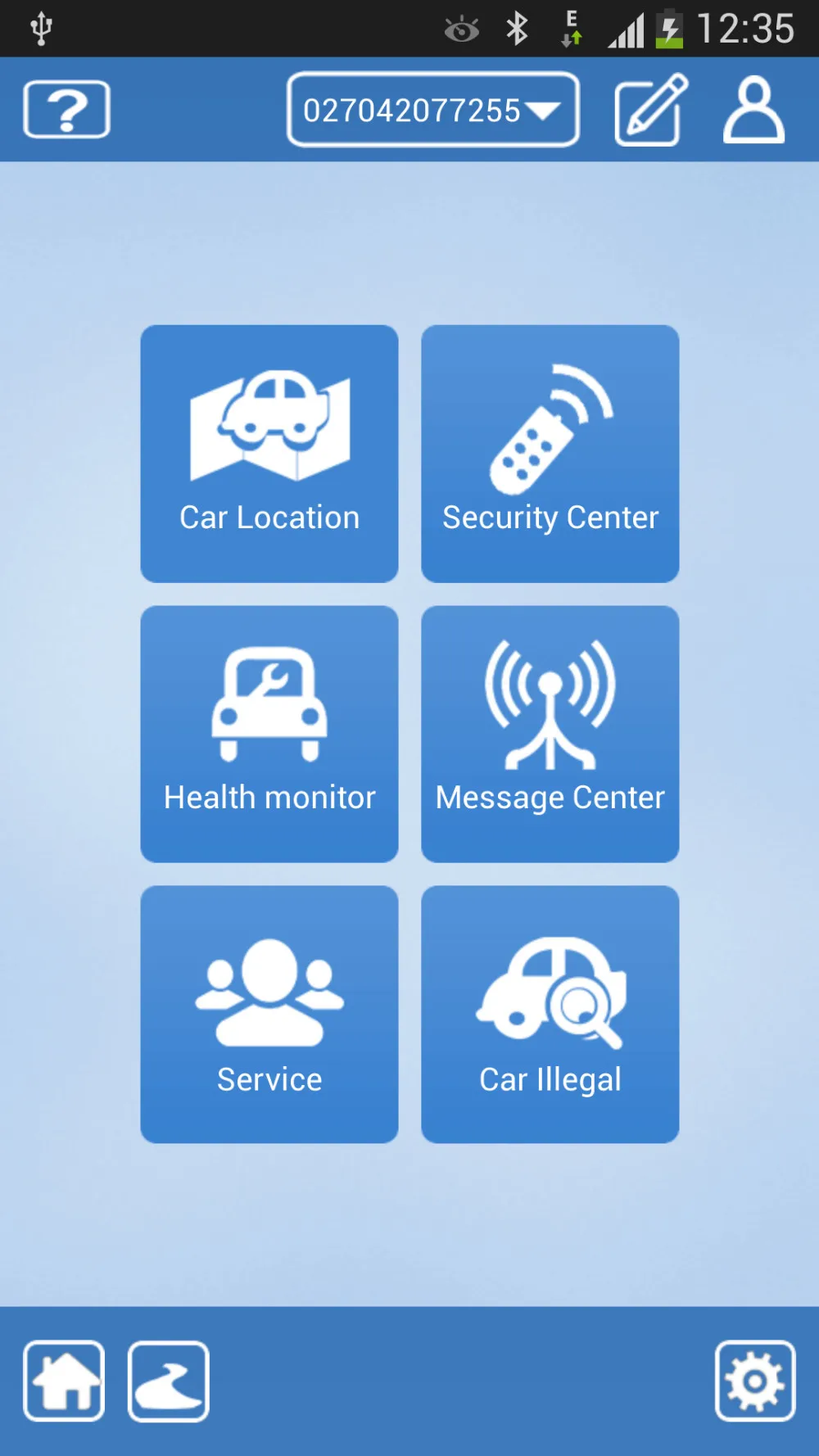

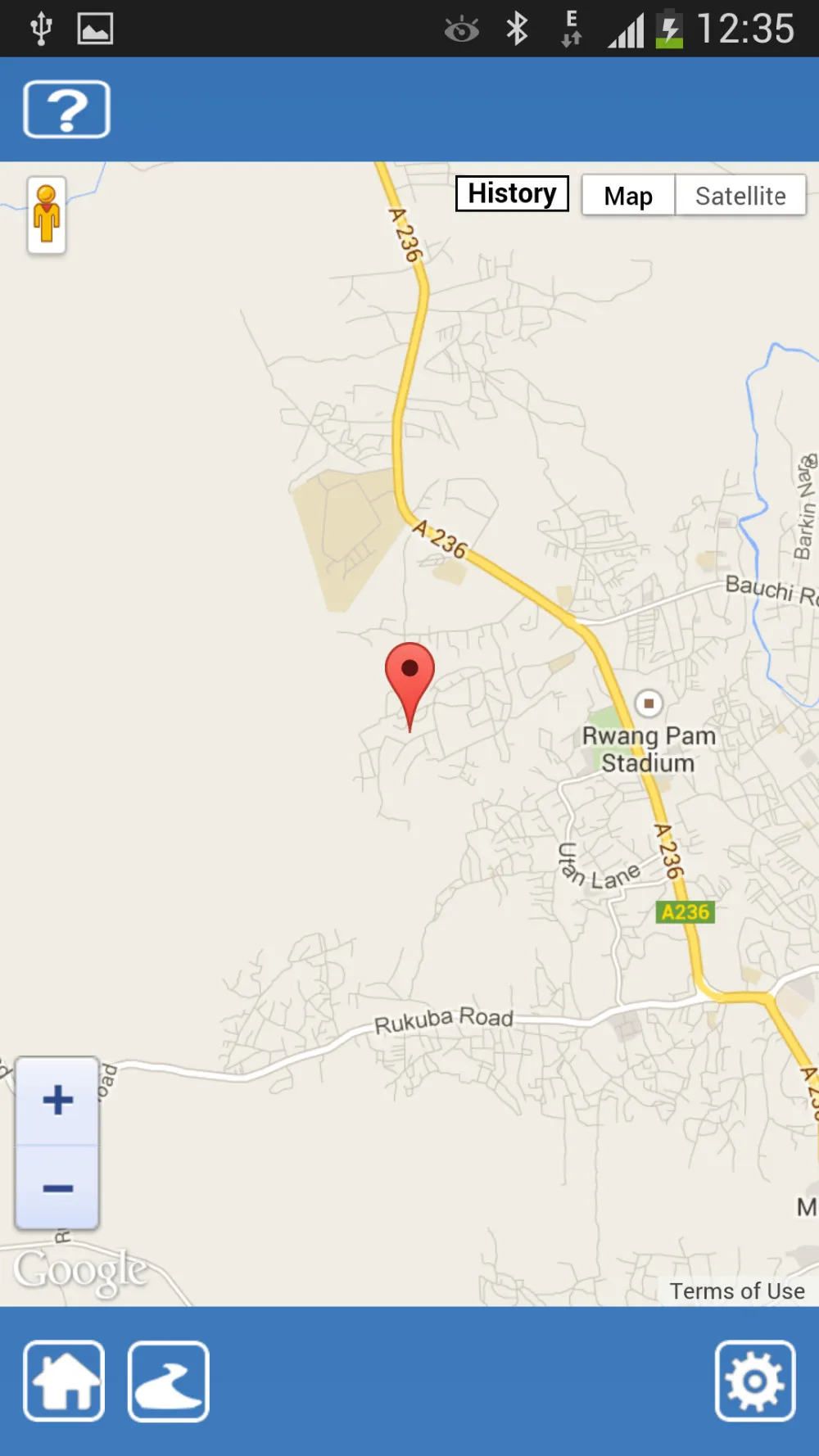

portable device  APP:

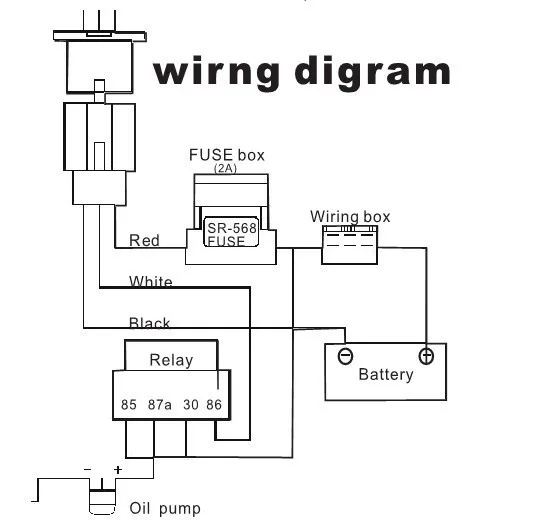

4.Device wiring

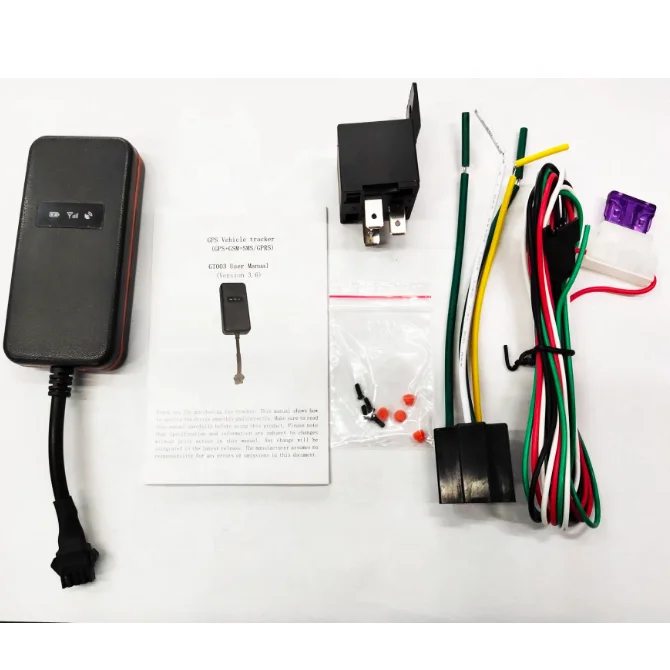

5.Packing:

1.gps tracker--GT003

2.english manual

3.wire

4.relay

Manual Download By QR Code:
