Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
JQLASER 3000W 4000W 6000W metal tube metal stainless steel 1500 watts fiber laser cutter machine
- Category: >>>
- Supplier: Jinan Jinqiang Laser Cnc Equipment Co. Ltd.
Share on (1600320457050):
Product Overview
Description
Product Description
This cutting machine is designed for cutting extremely small diameter pipes on the market. Mainly used for ordinary carbon steel pipes, stainless steel pipes, aluminum alloy pipes, copper pipes, cutting diameter for round pipe Φ15mm-φ120mm, square pipe side length≤80mm, rectangular pipe contour diagonal≤120mm, L≤6250mm.
Product Show

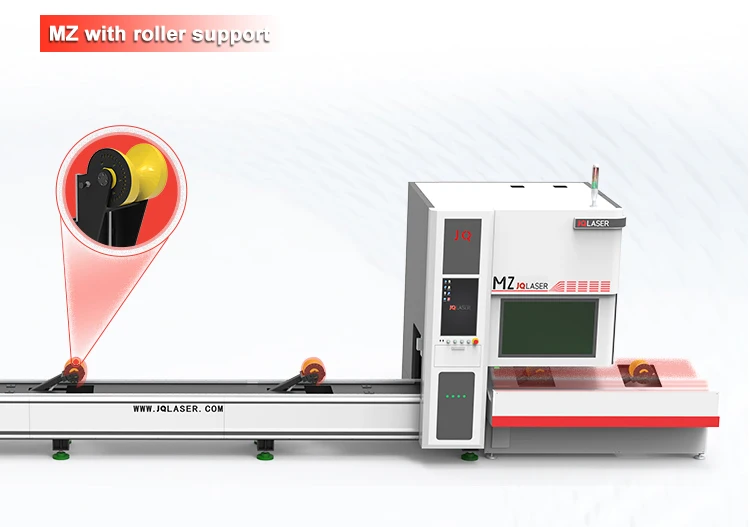

roller support
Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.

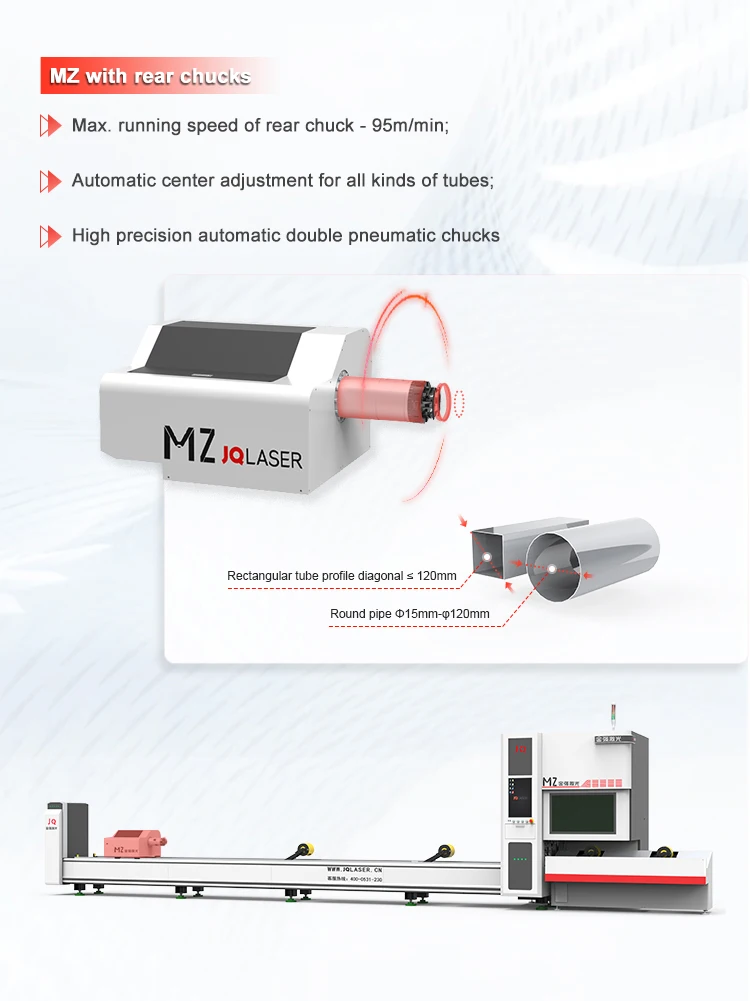

rear chucks
1. Max. running speed of rear chuck - 95m/min;
2. Automatic center adjustment for all kinds of tubes;
3. High precision automatic double pneumatic chucks
2. Automatic center adjustment for all kinds of tubes;
3. High precision automatic double pneumatic chucks
front chucks
Intelligent clamping, precise perception. It can sensitively capture the state of the chuck clamping and react quickly; real-time wireless data transmission, self-adaptive adjustment of the clamping force.

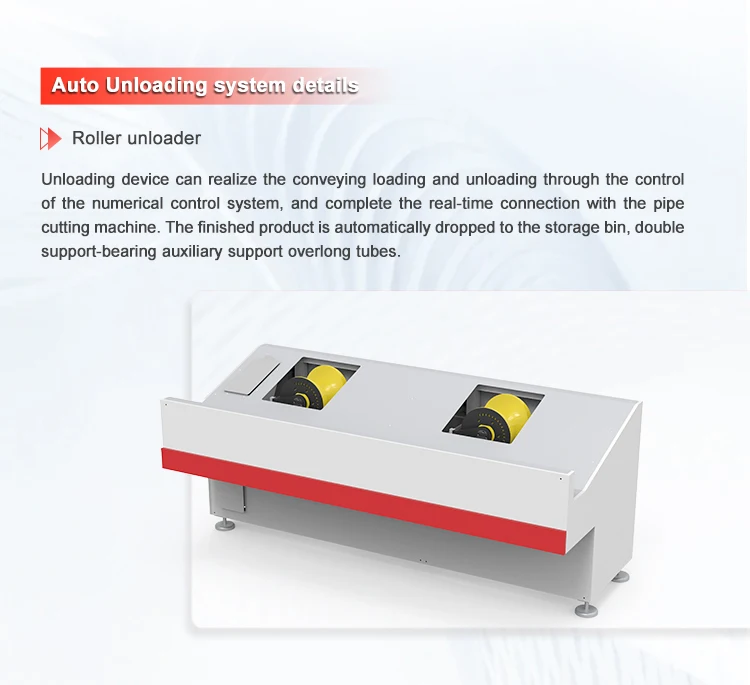

auto unloading system setails
Unloading device can realize the conveying loading and unloading through the control of the numerical control system, and complete the real-time connection with the pipe cutting machine. The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.
high power fiber laser
Using well-known fiber laser tools, whcih photoelectric conversion efficiency is high, power consumption is low.
Power Distribution Cabinet
Independent electric control cabinet, making a easier operating and maintaining.
Product Paramenters
NO. | Item | Parameter | Unit |
1 | Maximum cut pipe length | 0~6400 (more than 3 meters need to extend the front joint material) | mm |
2 | Cut pipe diameter | 16~220 (external circle of workpiece) | mm |
3 | Minimum tail material | 90 | mm |
4 | X、Y-axis positioning accuracy | ±0.05/1000mm | mm |
5 | X、Y axis repeat positioning accuracy | ±0.03/1000mm | mm |
6 | Acceleration speed | 1.5G | m/s² |
7 | Max. running speed | 100 | m/min |
8 | Max. speed of chuck | 150 | rpm |
9 | Chuck load weight | Front and rear chucks 120Kg each | kg |
10 | Weight of loading machine | 5000 | Kg |
11 | Main machine shape (length, width and height) | Approx. 10700×3700×2410 | mm |
12 | Laser power | 1 | kw |
13 | Control system | Bertrud 5000B | |
14 | Power of the whole machine | 24 | kw |
15 | Power supply requirements | 380v/50Hz |
Sample
Company Profile
laser change the world
Jinan Jinqiang Laser CNC Equipment Co., Ltd. was established in 2006. It is a high-tech industry focusing on laser application and sheet metal automation complete equipment research and development, production and sales. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding.
JQ Laser currently has more than 200 employees, technology research and development and after-sales service account for more than 50%; we have a professional quick response customer service team, providing 24-hour online and offline technical services in 12 languages.
Now JQ Laser exports to more than 100 countries and regions around the world relies on reliable product quality, reasonable price and perfect after-sales service system.
JQ Laser currently has more than 200 employees, technology research and development and after-sales service account for more than 50%; we have a professional quick response customer service team, providing 24-hour online and offline technical services in 12 languages.
Now JQ Laser exports to more than 100 countries and regions around the world relies on reliable product quality, reasonable price and perfect after-sales service system.
Exhibition
EXHIBITION
Listening carefully to customers' needs and making laser tube cutting machines that meet the needs of most customers is the product direction that Jinqiang Laser has been pursuing.
JQ adopts the twin-engine power model of coming from the customer site and going to the customer site, driving R&D with the market and driving the market with R&D.
Jinqiang laser R & D technical team accounts for more than 20% of the total number of people in the whole division.
JQ adopts the twin-engine power model of coming from the customer site and going to the customer site, driving R&D with the market and driving the market with R&D.
Jinqiang laser R & D technical team accounts for more than 20% of the total number of people in the whole division.
Details&Parts
Certifications
New Outlook New Experience
Suitable for all kinds of industrial sheet metal processing.
