Manufacturer Directly coal/charcoal powder ball press machine/briquette making machine
Instruction:

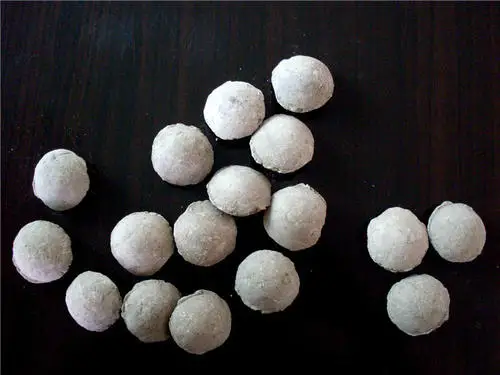

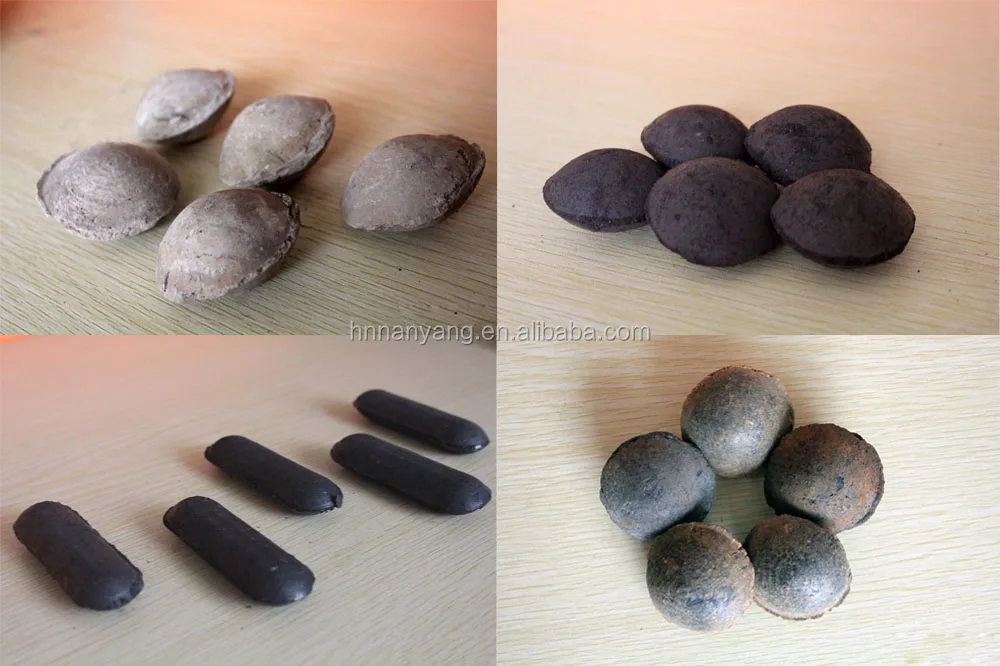

The charcoal briquette machine is a featured products in our factory. It is used to make briquettes from powder, dust or granule, such as charcoal powder carbon black, coal dust, coke, iron powder. After the pressing of our machine, powder and granule are formed into various shapes of balls. This processing changed the using way of coal brings many good efforts. First, small pellet/briquette/ball provide gap for burning, so the efficiency can be improved, and the energy can be saved. Second, during briquetting, we fill binder in the raw material, as a result, SO2 and solid dust are reduced, the environment can be protected. Third, briquetting changes the defect of a single coal performance, diversifies the using way of coal. Fourth, briquetting can effectively alleviate.
Feature
1. High profit and low cost in raw material
2. Increase the calorific value per unit volume after briquetting
3. Energy saving, friendly-environment, Low-consumption
4. No chemical additives, no smell, no smoke
5. Easy to transport and store as densities product

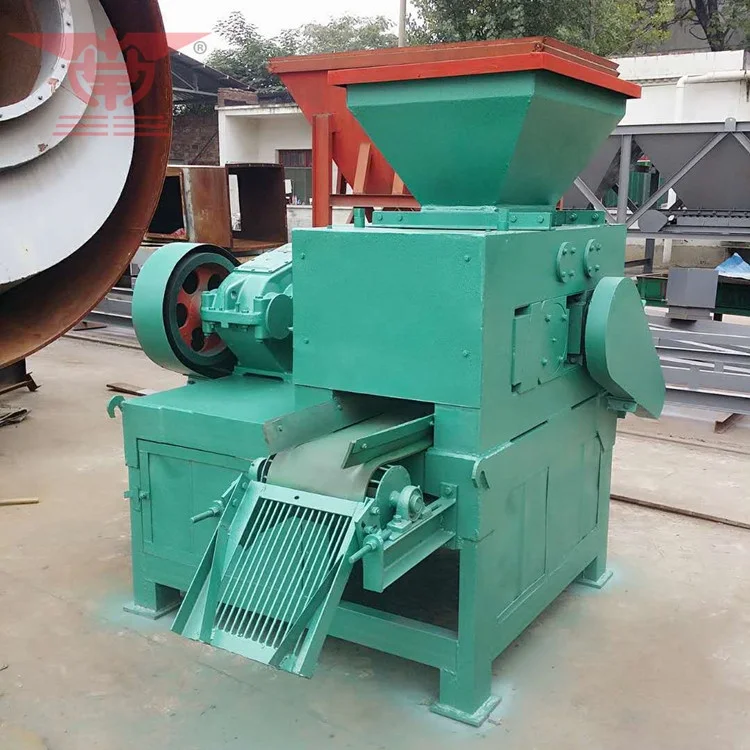

charcoal powder briquette machine
Technical parameters
Model
(unit)
Power
(kw)
Capacity
(kg/hr)
Rollers Diameter
(mm)
Briquette diameter
(mm)
Max feeding size
(mm)
Material of Roller
Packing Dimension
(mm)
NYYQ-290
5.5
1500-3000
290
Less than 50
3
Mn65
1100*700*1500
NYYQ -360
7.5
2500-5000
360
Less than 50
3
Mn65
1380*1620*1710
NYYQ -450
22
5000-8000
450
Less than 50
3
Mn65
2000*1700*1750
NYYQ -650
30
8000-16000
650
Less than 50
3
Mn65
2500*1500*1700
NYYQ -1000
55
18000-25000
1000
Less than 50
3
Mn65
3980*4950*3800
Company Information
Henan nanyang environmental protection machinery is the designated manufacture plant of National Mechanical & Electrical Industry Bureau in Henan Province for cement building materials and beneficiation equipments. Henan nanyang environmental protection machinery is an integrated modern enterprise with scientific research, design, development, manufacturing, sales, installation, commissioning and training services.Our product won the "Chinese famous brand", "Chinese famous quality products", Our Product exported to Indonesia, Russia, Syria, Vietnam, north Korea, Egypt, azerbaijan and other countries, which have received a lot of praises of our users.
