Product Overview
Description
Products Description

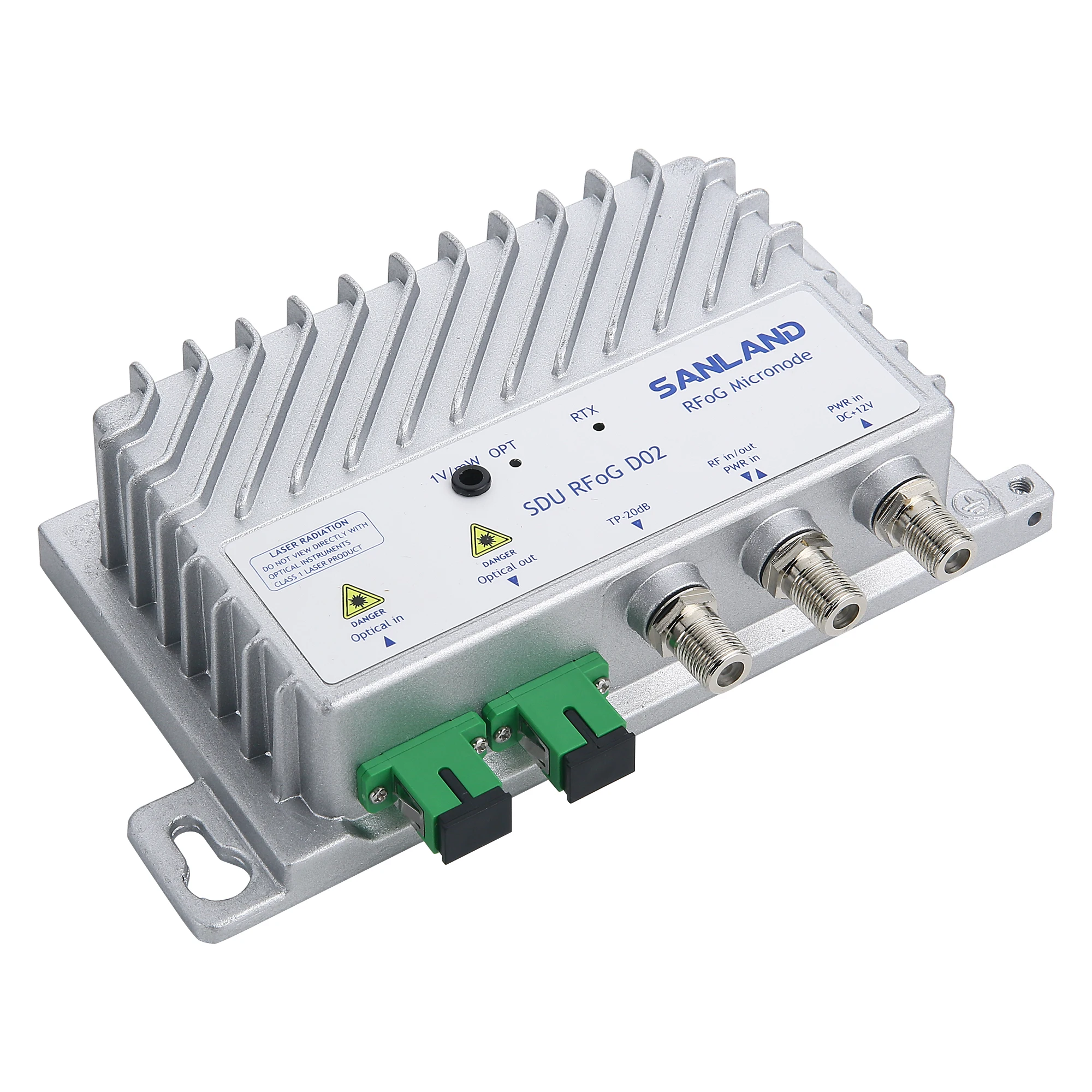

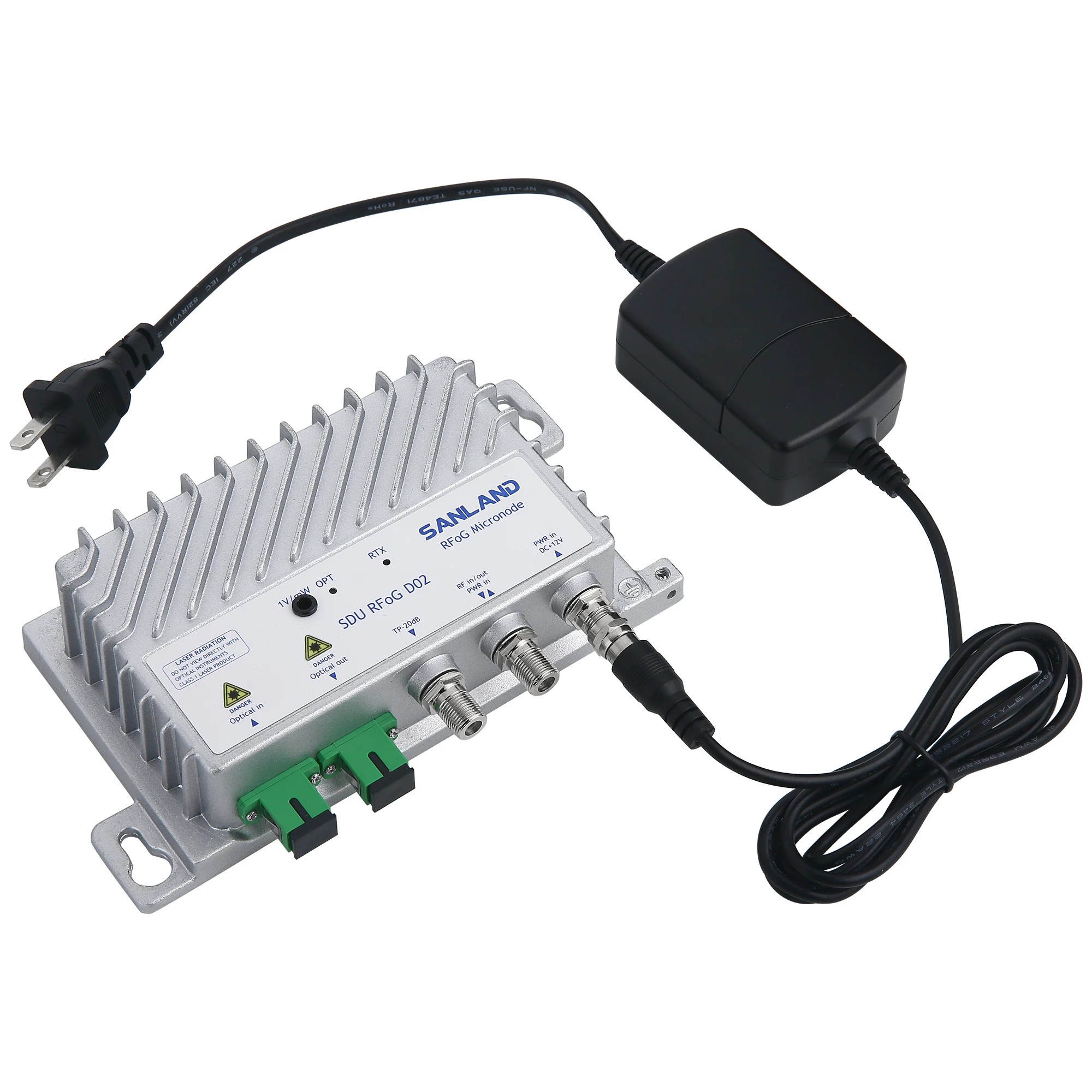

The RFoG Mini Node is a small home optical
node specially developed for cable TV
operators using the DOCSIS protocol
standard, to provide users with two-way,
interactive TV and network services.
Compared with other two-way optical
nodes, this series of products has the
characteristics of small size, flexible networking and high cost performance.
node specially developed for cable TV
operators using the DOCSIS protocol
standard, to provide users with two-way,
interactive TV and network services.
Compared with other two-way optical
nodes, this series of products has the
characteristics of small size, flexible networking and high cost performance.
Features
*Designed for DOCSIS network
*Forward 1260-1550nm input power: -9~+3dBm, forward AGC Range: -6~+2dBm
*Forward frequency: 54~1002MHz, EQ 3±1.5dB, RF output level: 73dBuV
* Reverse 1610nm output Power: 2mW
* Reverse frequency: 5~42MHz, RF input level: 75~112dBuV
* LED on the housing for forward optical power, reverse optical power and 1V/ mW forward optical power
* With -20dB RF output test port
*Power consumption ＜3W
*Compact Aluminium cast housing, perfect heat dissipation
* Fully Compatible with SCTE Standards
*Forward 1260-1550nm input power: -9~+3dBm, forward AGC Range: -6~+2dBm
*Forward frequency: 54~1002MHz, EQ 3±1.5dB, RF output level: 73dBuV
* Reverse 1610nm output Power: 2mW
* Reverse frequency: 5~42MHz, RF input level: 75~112dBuV
* LED on the housing for forward optical power, reverse optical power and 1V/ mW forward optical power
* With -20dB RF output test port
*Power consumption ＜3W
*Compact Aluminium cast housing, perfect heat dissipation
* Fully Compatible with SCTE Standards
Specificication
No. | Item | Unit | Specification | |||
Optical Specification | 1260-1550±10 | |||||
1 | Receiving Wavelength | nm | 1260-1550±10 | |||
2 | Transmitting Wavelength | nm | 1610±10 | |||
Forward Optical Specification | ||||||
1 | Wavelength | nm | 1260-1550±10 | |||
2 | Optical Power | dBm | -9-+3 | |||
3 | Optical AGC Range | dBm | -6-+2 | |||
4 | Optical LED | ≥-9dBm Green LED on ≤-9dBm Red LED on | ||||
Forward RF Specification | ||||||
1 | Bandwidth | MHz | 54—1002 | |||
2 | Flatness | dB | ≤±1 | |||
3 | Return Loss | dB | ≤-14 | |||
4 | Slope | dB | 3±1.5 | |||
5 | Output Level | dBmV | 13±1.5 @130MHz | |||
6 | C/N | dB | ≥48 ①@Pin=-5dBm | |||
7 | C/CTB | dB | ≥65 ②@Pin=0dBm | |||
8 | C/CSO | dB | ≥62 ③@Pin=0dBm | |||
9 | Output Impedance | Ω | 75 | |||
Reverse Optical Specification | ||||||
1 | Wavelength | nm | 1610 | |||
2 | Optical Output Power | mW | 2.5±0.5mW | |||
3 | Laser Type | DFB | ||||
4 | Laser Operation Mode | Burst Mode | ||||
5 | RF ON Threshold | dBmV | 16±1.5 | |||
6 | RF OFF Threshold | dBmV | 1±1.5 | |||
7 | Time Delay On | us | ≤1.3 | |||
8 | Time Delay Off | us | ≤1.6 | |||
Reverse RF Specification | ||||||
1 | Bandwidth | MHz | 5—42 | |||
2 | Flatness | dB | ≤±1 | |||
3 | Return Loss | dB | ≤-14 | |||
4 | Input Level Range | dBuV | 75—112 | |||
5 | NPR Dynamic Range | dB | 20（@NPR≥30dB） | |||
Other Specification | ||||||
1 | Input Voltage of Power Adaptor | VAC | 100—240 | |||
2 | Input Frequency of Power Adaptor | Hz | 47—63 | |||
3 | Cabel Length of Power Adaptor | cm | — | |||
4 | Input Voltage of Device | VDC | 12 | |||
5 | Power Consumption | W | ＜3 | |||
6 | Working Temperature | ℃ | -10—+50 | |||
7 | Working Humidity | %RH | 0—85 | |||
8 | Fiber Connector | SC/APC | ||||
9 | RF Connector | F-type imperial connector | ||||
10 | Surge Protection | KV | 4 | |||
11 | Dimension (L*W*H) | mm | 180×85×40 | |||
Note:
①、PAL-D 60 channels flat; measured at 543.25 MHz;Optical power receiving at –5dBm
②、PAL-D 60 channels flat; measured at 543.25 MHz;Optical power receiving at 0dBm
③、PAL-D 60 channels flat; measured at 543.25 MHz;Optical power receiving at 0dBm
①、PAL-D 60 channels flat; measured at 543.25 MHz;Optical power receiving at –5dBm
②、PAL-D 60 channels flat; measured at 543.25 MHz;Optical power receiving at 0dBm
③、PAL-D 60 channels flat; measured at 543.25 MHz;Optical power receiving at 0dBm

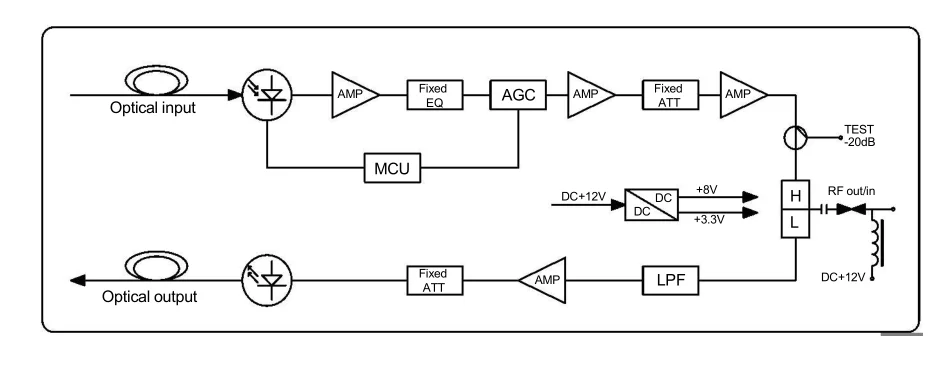

Block Diagram
