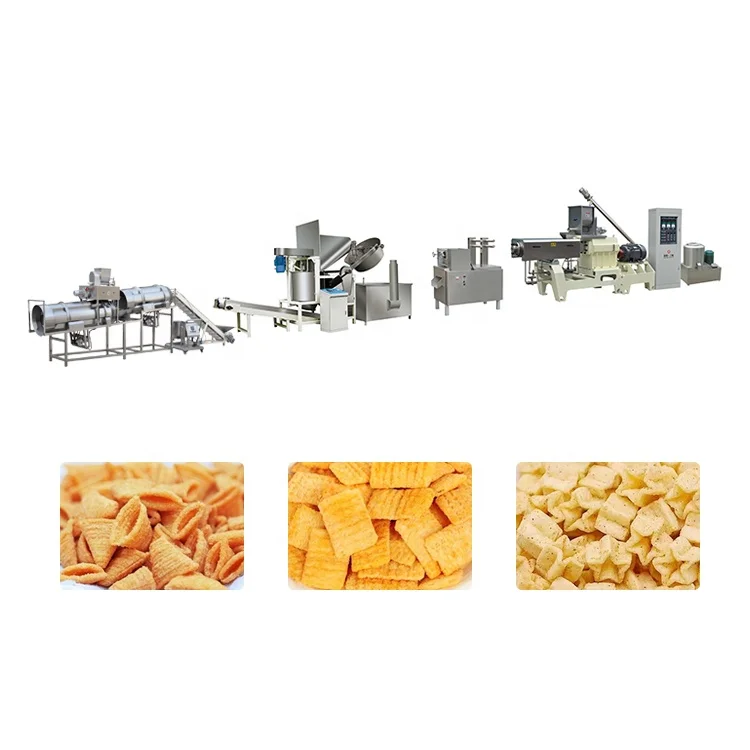

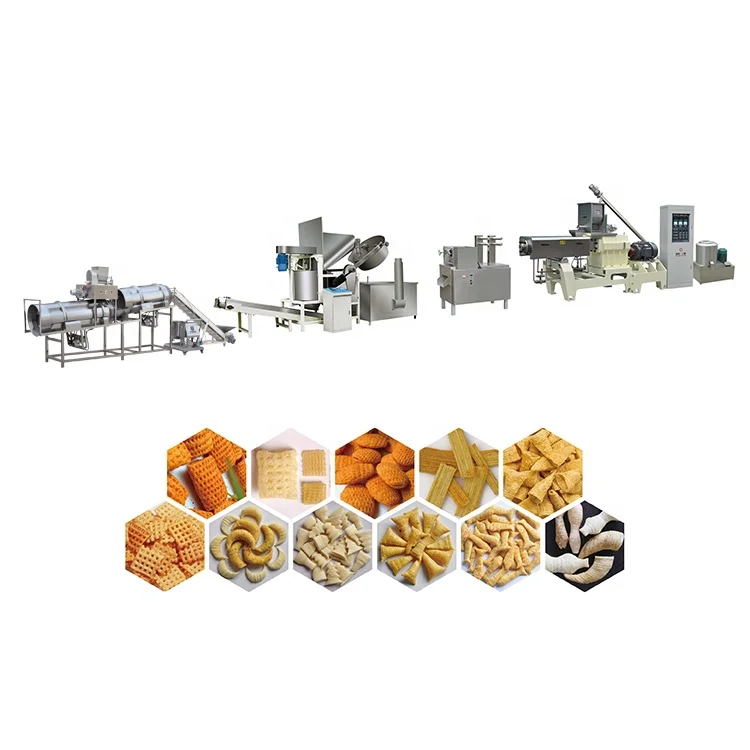

Ultron Corn Puff Snack Packing Machine Corn Puff Snacks Extruded Making Machine Food Processing Line Machinery
- Category: >>>
- Supplier: Henan Ultron Intellegent Technology Co. Ltd.
Share on (1600320500643):
Product Overview
Description
Product Parameter
The data is for reference only and can be customized as required

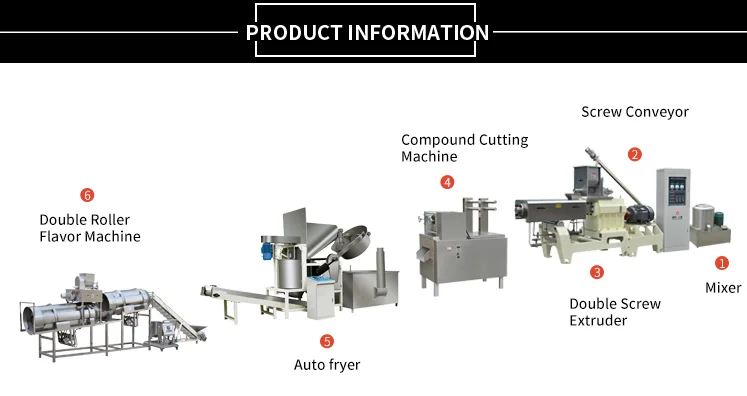

EQUIPMENT | QUANTITY | TECHNICAL PARAMETER | FUNCTION | |

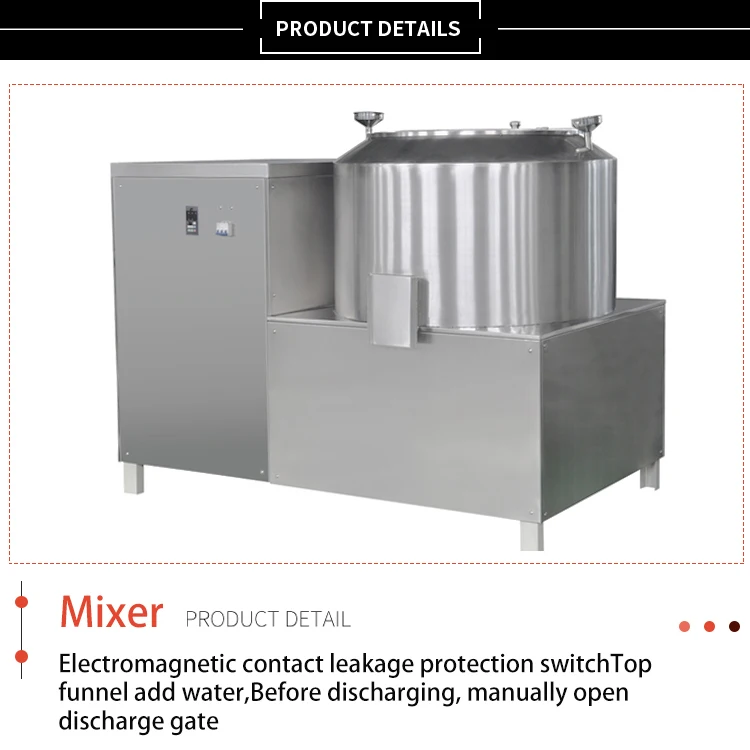

1 | Mixer | 1 | Power:4kwOutput:50kg/tube Size:0.8*0.7*1.2m | To mix the raw materials with the water |

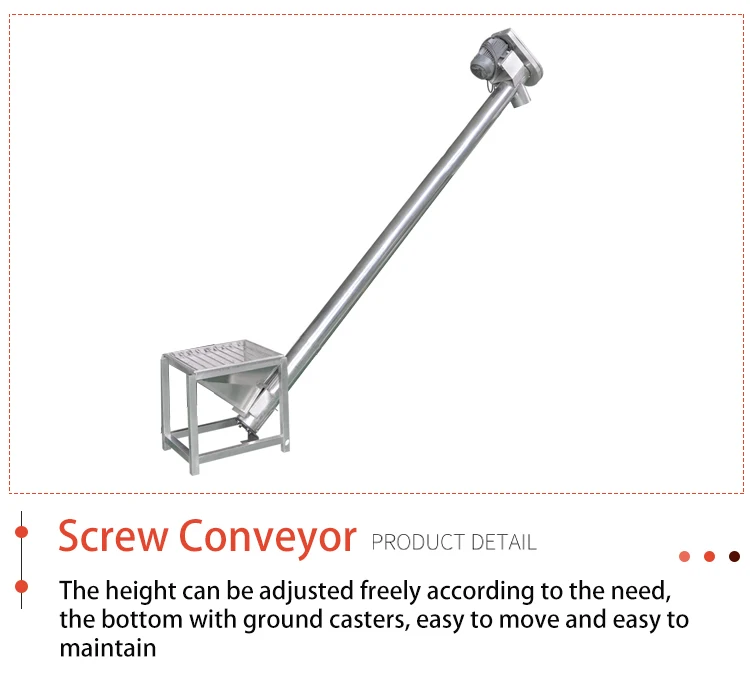

2 | Screw Conveyor | 1 | Power:1.1kw Output:120-150kg/h Size: 0.2*0.8*1.8m | To send the materials to the extruder |

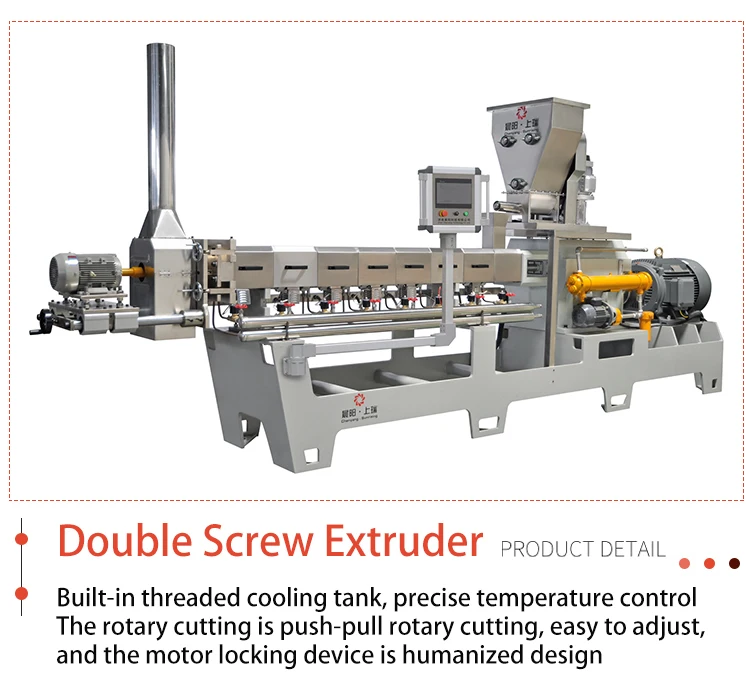

3 | Double-screw extruder | 1 | Power:35kwLength-diameter ratio:1050*65 Output:120-150kg/h Size: 2.5*1.0*1.8m | To extrude and inflate the food.the main machine of the line |

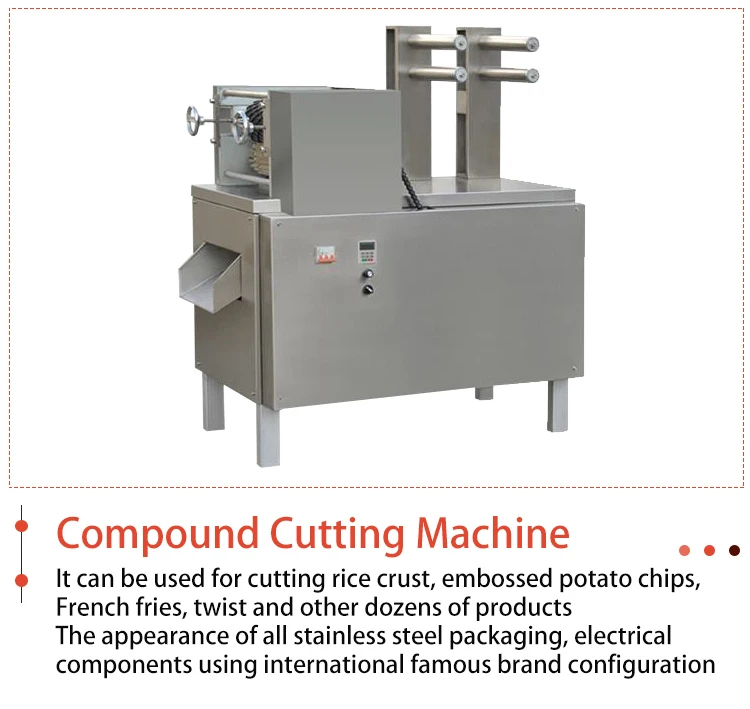

4 | Compound Cutting Machine | 1 | Power:1.5kwOutput:120-150kg/h Size: 2.5*1.0*1.8m | Used for cutting all king of puffing machine |

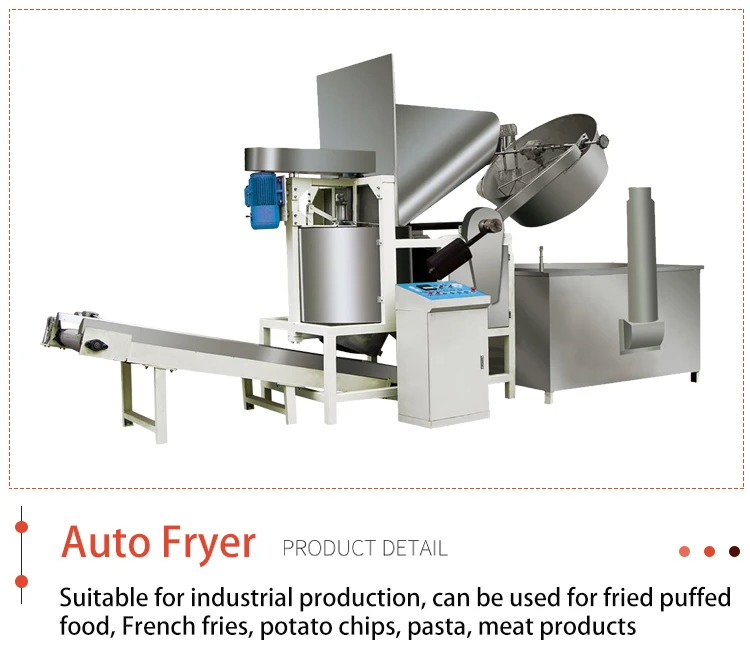

5 | Auto fryer | 1 | Heating Power:1.5kwOutput:150-200kg/h Size: 1.0*0.8*1.2m | Can be used for fries , potato one -sided meat products fried |

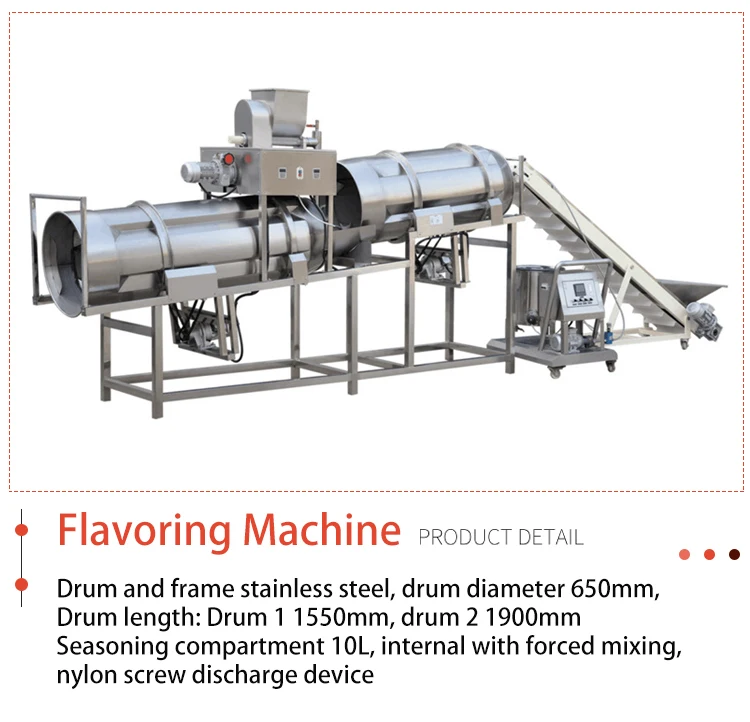

6 | Automatic flavoring line | 1 | Power:0.37kwOutput:120-150kg/h Size: 2.1*0.7*1.6m | To flavor the production |
Output | Processing line | lnstalled Capacity | Power Consumption | Size |

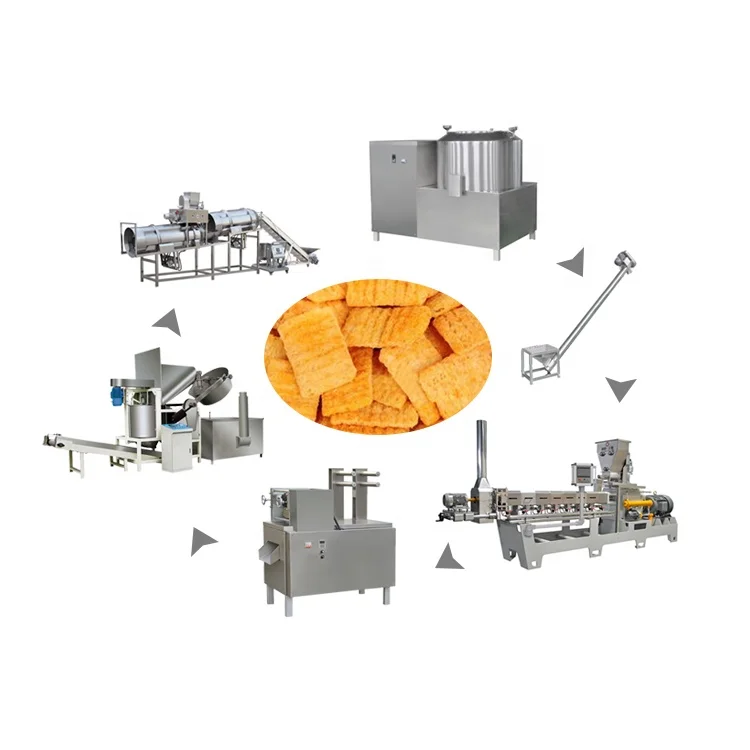

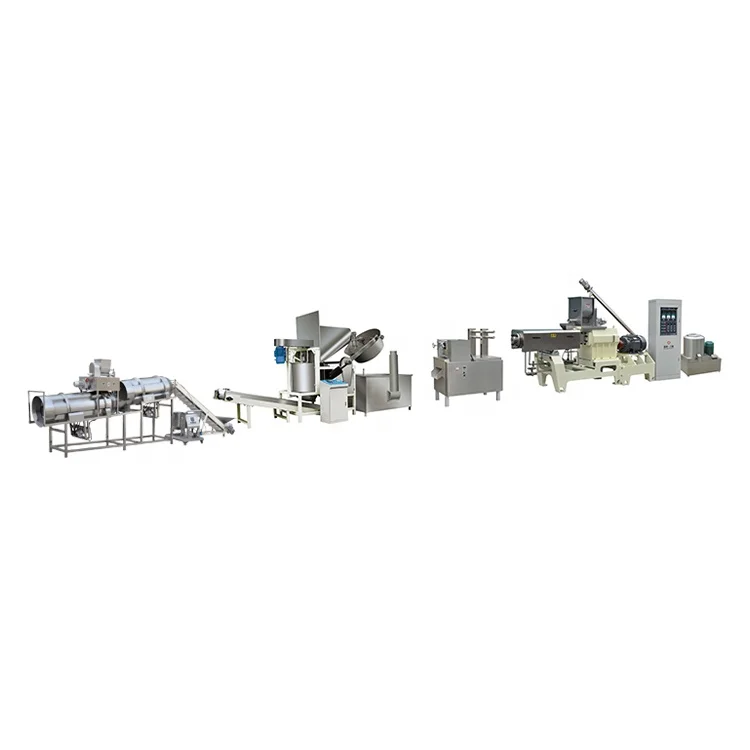

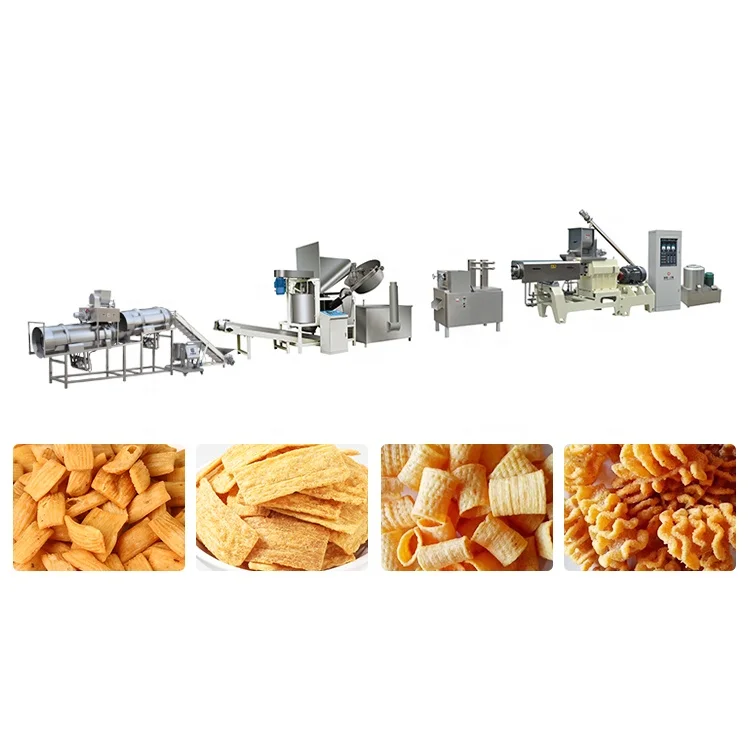

120-150kg/h | 1.Mixer 2.Screw Conveyer 3.Double-Screw Extruder 4.Compound Cutting Machine 5.Autc Fryer 6.Flavoring Line | 45KW | 30KW | 12000*1600*2300MM |
180-250kg/h | 1.Mixer 2.Screw Conveyer 3.Double-Screw Extruder 4.Compound Cutting Machine 5.Autc Fryer 6.Flavoring Line | 55KW | 35KW | 13000*1600*2300MM |
Details Images
Company Profile
Customer Visit

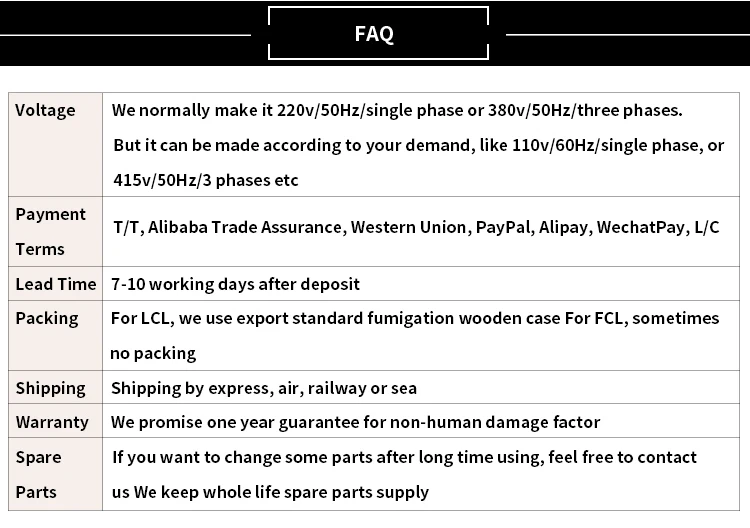

FAQ
