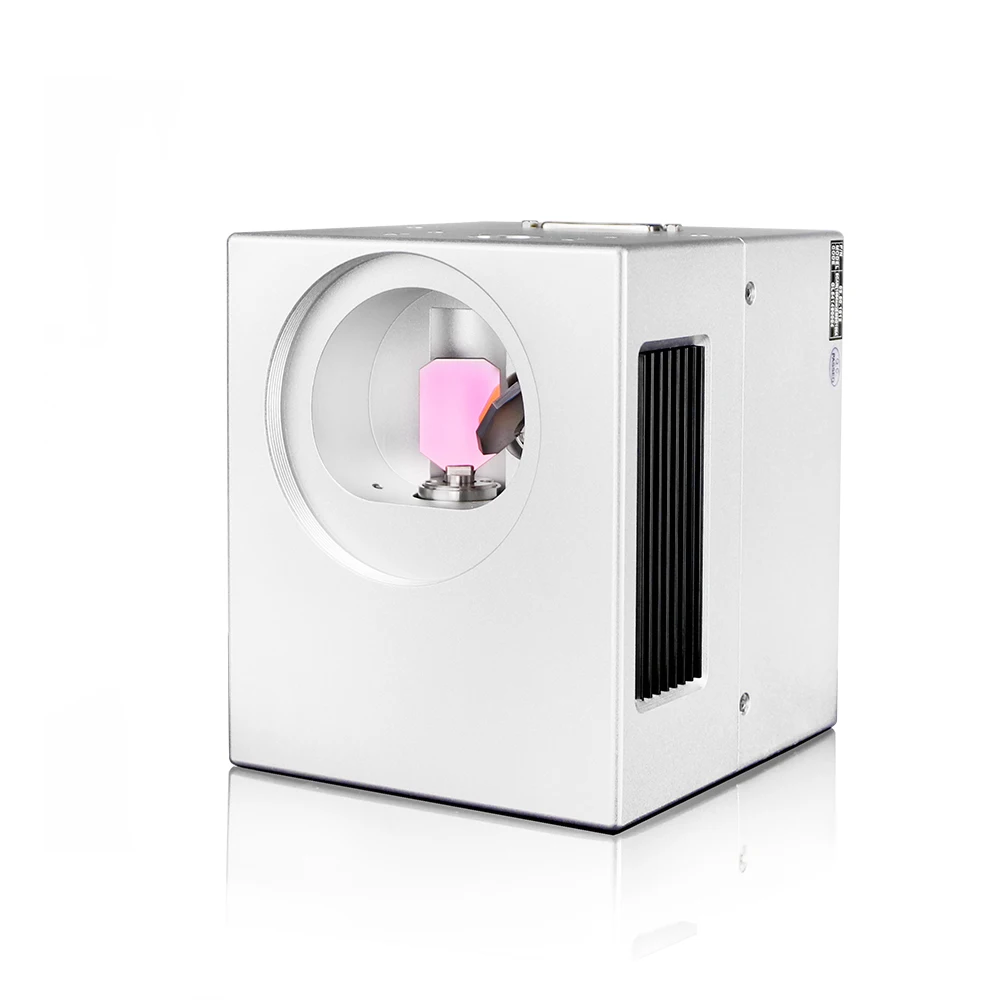

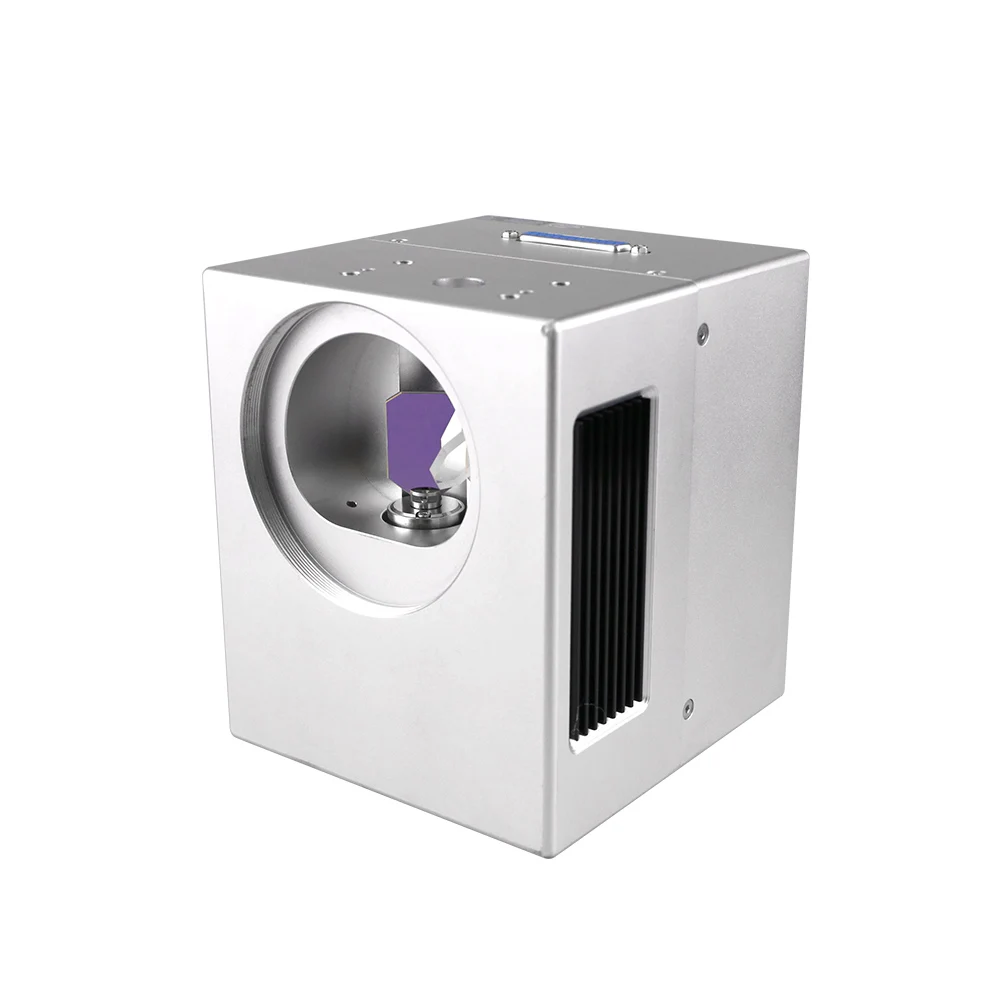

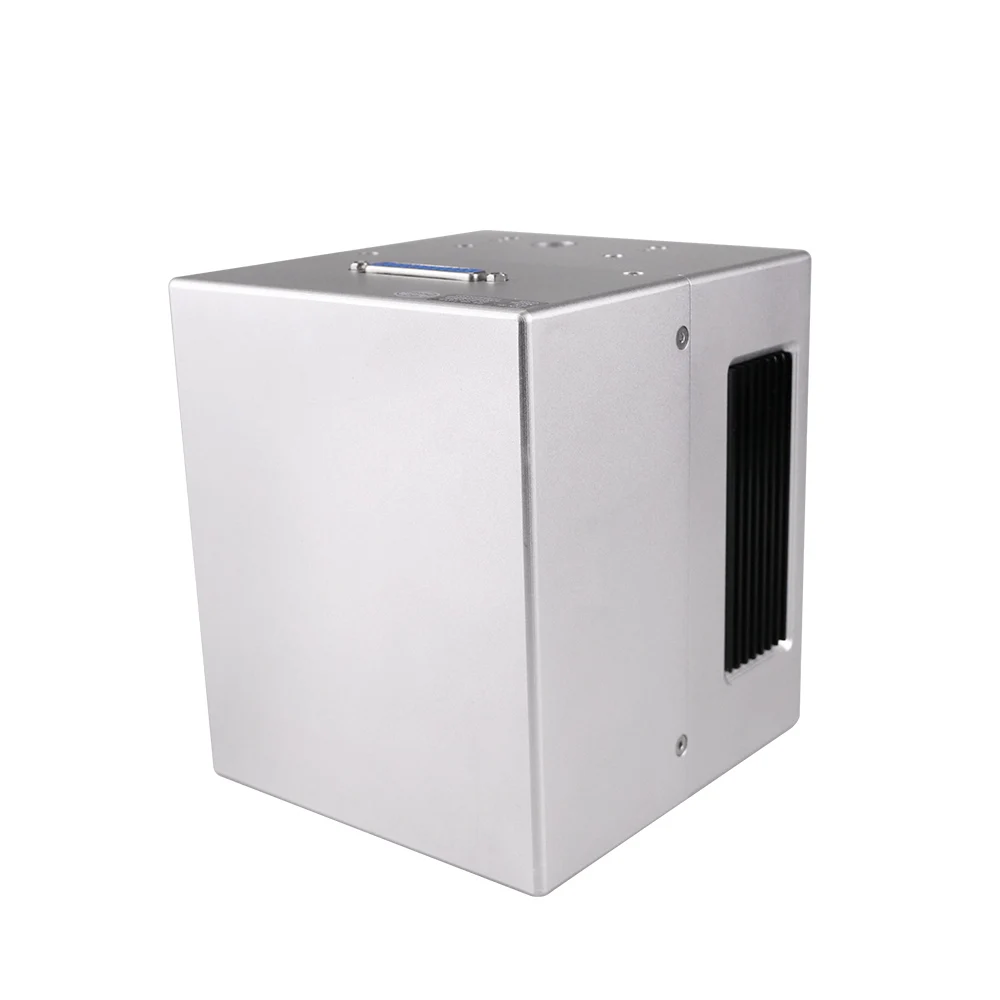

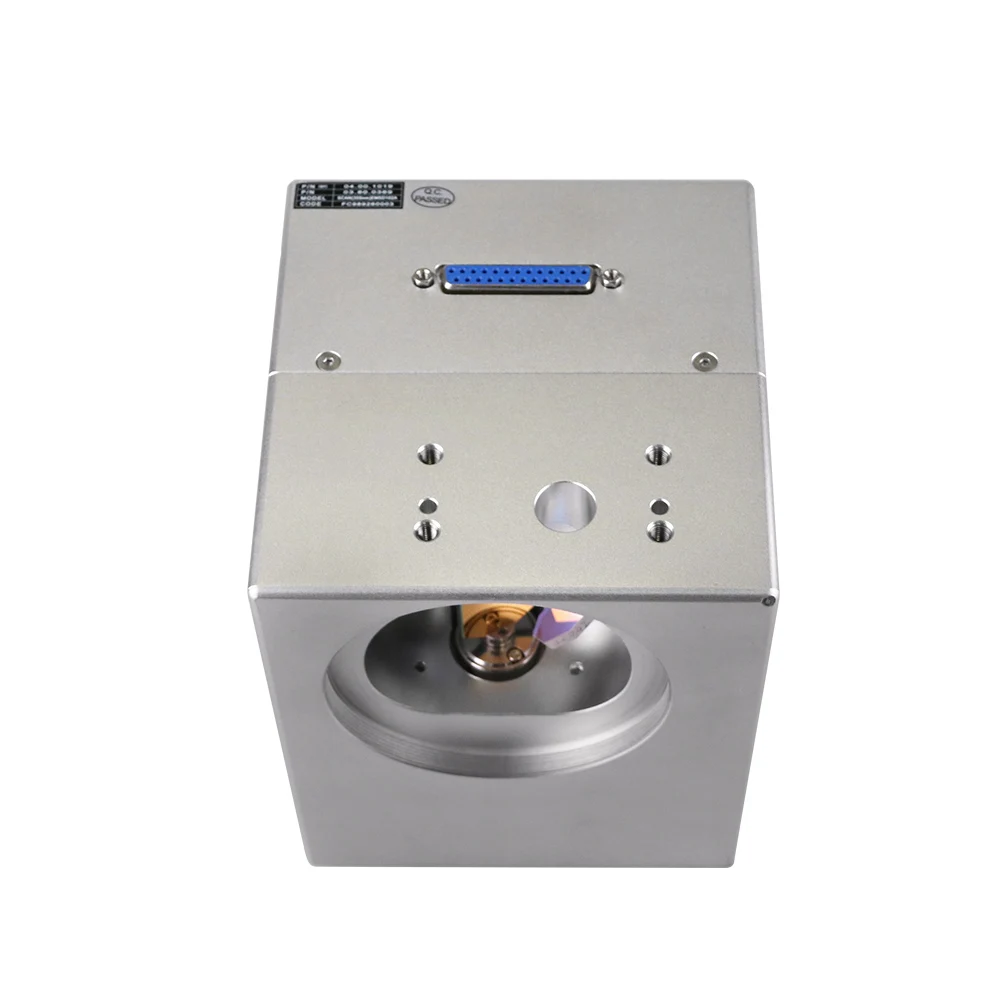

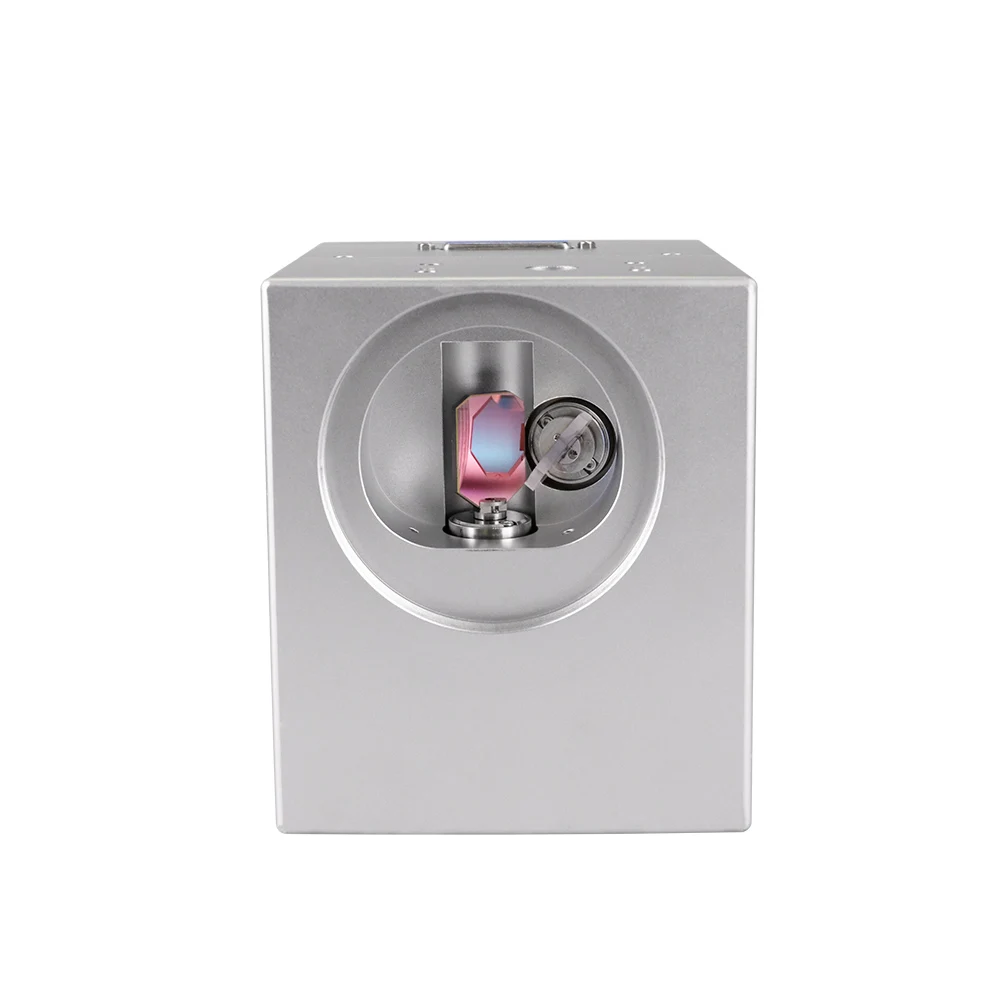

Fully Functional Long Lifespan Sannylaser SL ES14A1 Used To Welding Fiber Laser

Product Overview

Description







Product description

Sannylaser SL-ES14A1 the input aperture is 14mm (compatible with 1064nm 355nm 532nm 10.6um lenses ), uses digital driver and high-precision sensor, full closed loop control system, self-developed driver/ control algorithm/ motor. Strong interference resist performance, high speed, high precision; suitable for high-precision marking, cutting and welding.

Product details:





Model	SL-ES14A1
Input Beam Aperture (mm)	14
Beam Displacement  (mm)	16.42
Tracking Error (ms)	0.4
Repeatability (µrad)	<1
Offset Drift (µrad/K)	<15
Gain Drift (ppm/K)	<8
Long-term drift over 8 hours (mrad)	<0.1
1% of full scale (ms)	0.85
10% of full scale (ms)	1.8
Positioning Speed (m/s)	5
Typical Scan Angle (°)	±12.5
Gain Error (mrad)	<5
Zero Offset (mrad)	<5
Nonlinearity (%)	<0.1
Power Requirements	±15VDC, ≥3A
Digital Interface	XY2-100
Operation Temperature (℃)	25±10
Weight (kg)	2.3



















Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.

Q: How long is your delivery time?
A: When the order is confirmed, 5 working days for the small order,10~15 days for the bulk.

Q:Can you offer me OEM service?
A:Yes,However,you should give me more request as you can.

Q:How to choose suitable model?
A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion .

Q:What's your MOQ?
A:Normally one piece. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .

Q: What is your terms of payment ?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shippment.

Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.

Q: Can I get a sample to check the quality ?
A: Yes, we are glad to offer you sample for test, And there is a discount for Trade Assurance Sample Order.
