Semi Universal Dividing Heads BS0 BS1 BS2 Dividing Head

Product Overview

Description

Semi Universal Dividing Heads BS0 BS1 BS2 Dividing Head

1. BS-0 and BS-1 series

The universal index center has been designed to carry out all types of gear cutting.
Precision dividing and spiral word with greater precision and efficiency than ever the

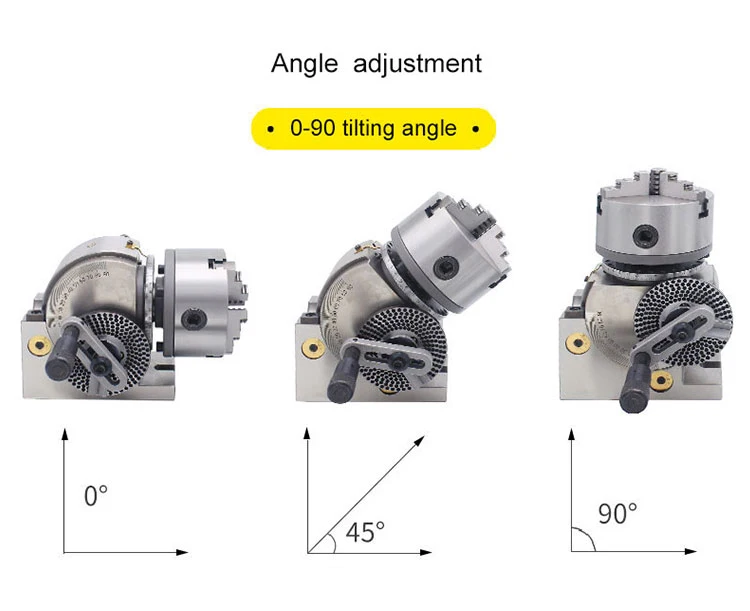

center face can be tilted from a horizontal position of 90 degree down to -10 degree
from vertical, and inclinations can be read off ascale graduated in degrees.The center
is built to highest engineering standards and is factory inspeted and tested to assure
complete satisfaction.The ratio of worm to gear is 1:40



Features:

BS series semi-universal dividing head is a simple index center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, but the whole construction is the same as universal type. The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexing.Attaches 3 dividing plate along with the dividing head indirect dividing in any division indexing 2-50,51-380.

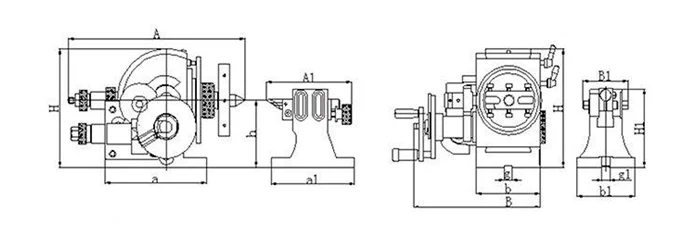

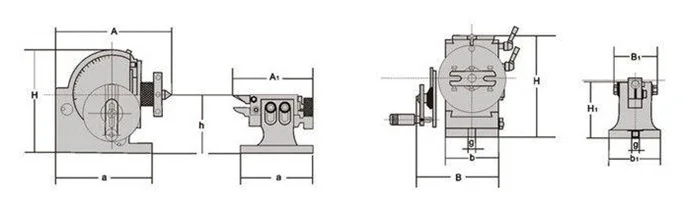

Model	A	B	H	h	a	b	g	Taper of center	Diameter of spindle hole	N.W.(kg)
BS-0	193	140	173	100	166	90	16	MT2	18	23.8
	7.59	5.51	6.81	3.93	6.53	3.54	0.63	B&S NO.7
BS-1	242	168	220	128	206	113	16	MT3	20	35.8
	9.52	6.61	8.66	5.04	8.11	4.45	0.63	B&S NO.9



Semi-universal index center B&S type No.1(head-stock)



Model	A1	B1	H1	h	a	b	g	N.W.(KG)	Measurement m3
BS-0	175	87	107	100	130	92	16	Packed with the dividing head
	6.89	3.42	4.21	3.93	5.12	3.62	0.63
BS-1	183	87	137	128	158	110	16	Packed with the dividing head
	7.20	3.42	5.39	5.04	6.22	4.33	0.63



Standard Accessories  Dividing plate A.B.C

Numbers of holes of dividing plate(worm gear reduction ratio 1:40)



Numbers of hole	Plate A	15	16	17	18	19	20
	Plate B	21	23	27	29	31	33
	Plate C	37	39	41	43	47	49



BS-0 can match  125mm 3 jaw Chuck.

BS-1 can match 125mm or 160mm 3 jaw chuck.

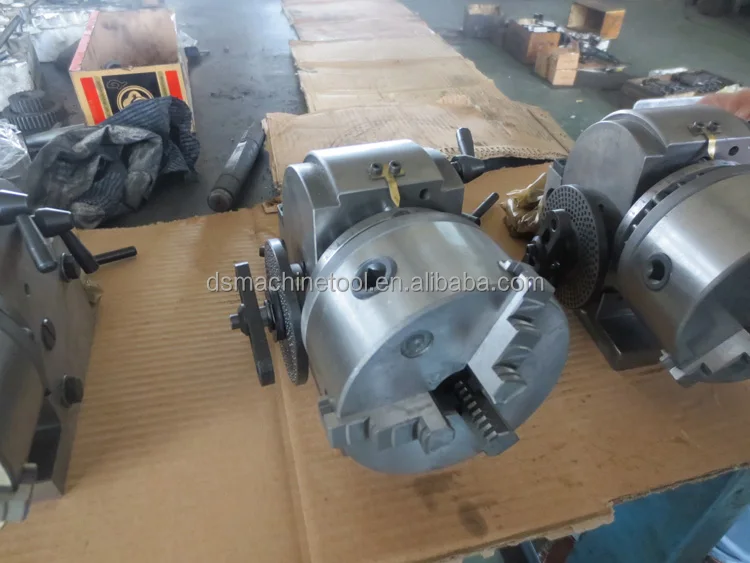

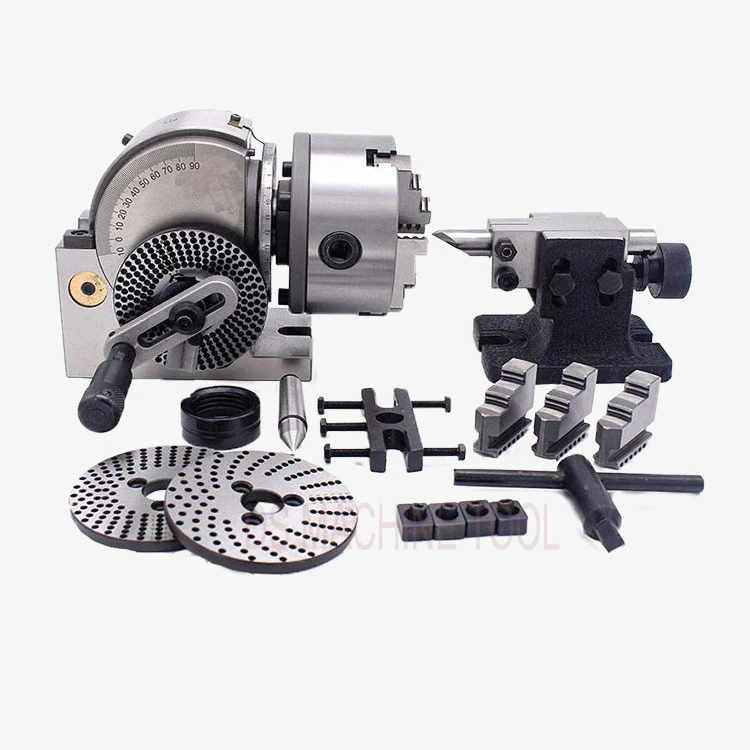

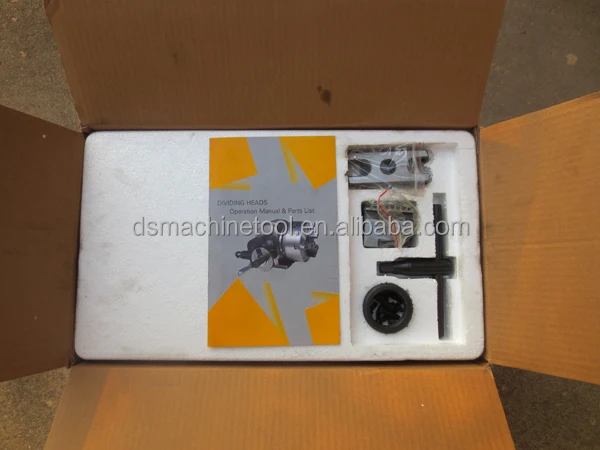

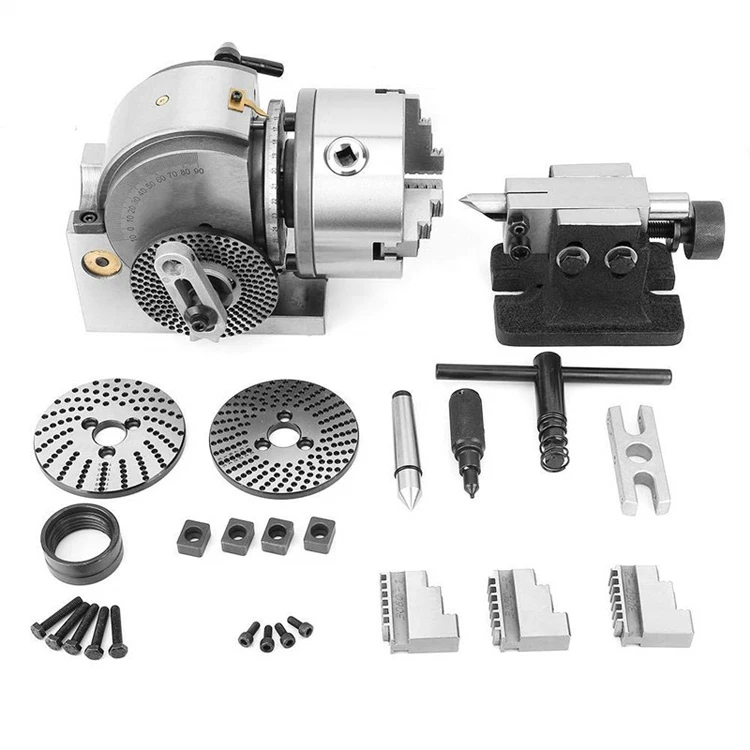

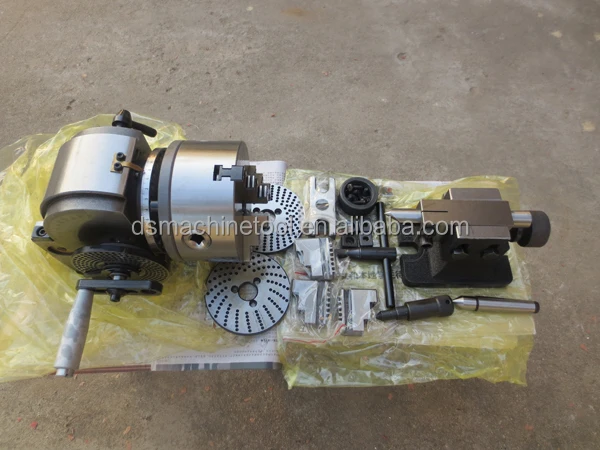

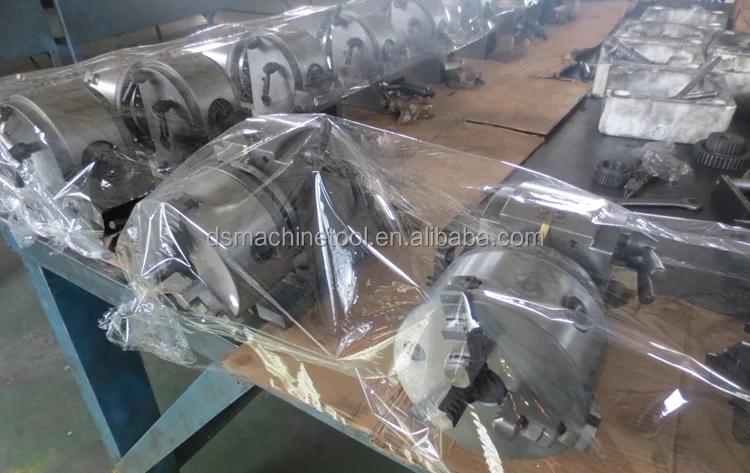

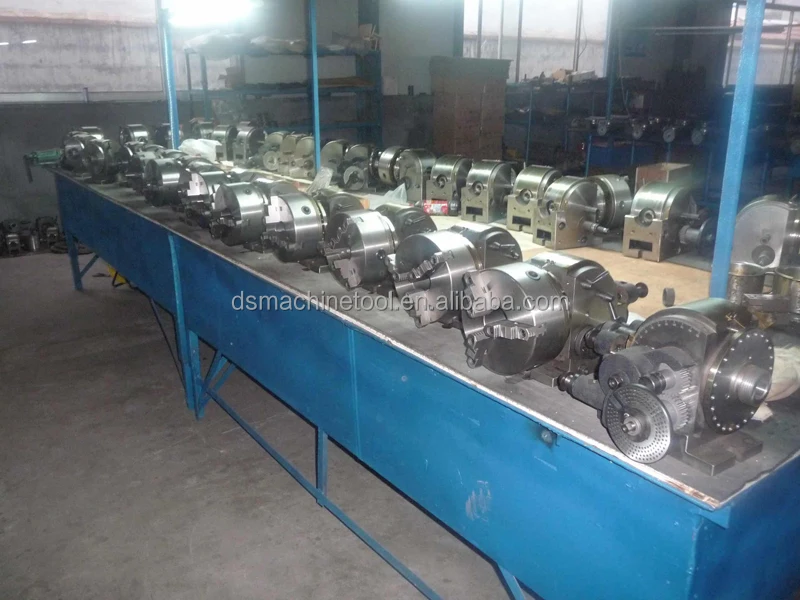

As below is BS-0 with 5''(125mm) some pictures:

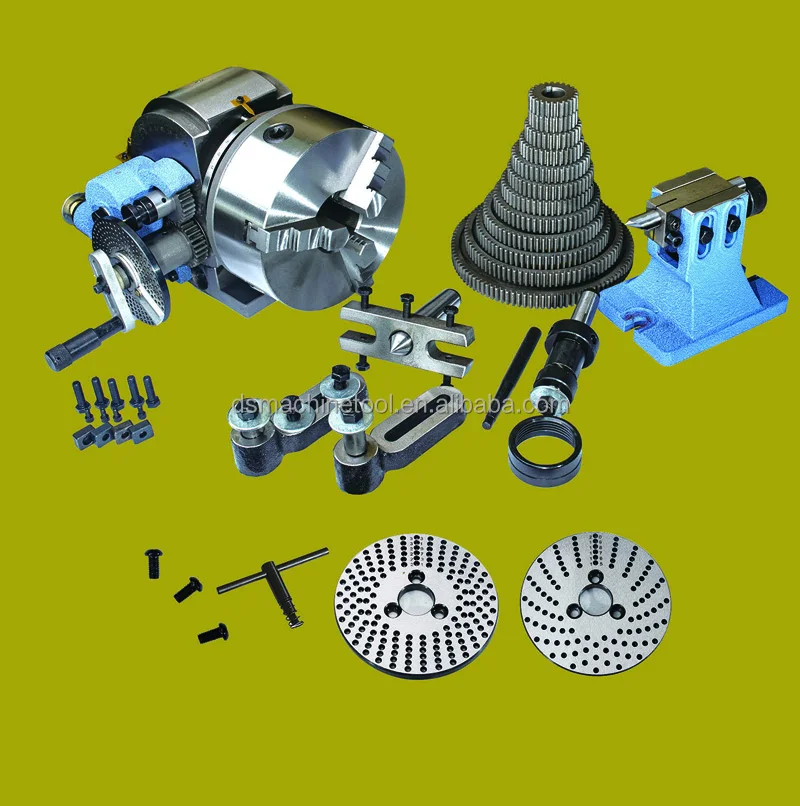

2. BS-2 Universal index center



BS-2 universal dividing head is synthesizing type assist equipment ,indexing accuracy, easy operation,and spiral continuous rise more ratio than before. the center surface can be tilted from a horizontal

position of 90° down to -10°from vertical and inclinations can be read off a scale graduated in degrees the centre is built to highest engineering standard and is factory inspected and tested to assure complete satisfactory the ratio of worm to gear is 1:40

Universal index center B&S NO.2 (head-stock)

Model	A	B	H	h	a	b	g	Work hole taper	N.W (KG)
BS-2	370	280	236	133	212	134	16	MT4	73
	14.57	11.02	9.29	5.24	8.35	5.28	0.63	B&S NO.10

Universal index center B&S no.2 tail-stock



Model	A1	B1	H1	h	a	b	g	N.W.(KG)	Measurement m3
BS-2	183	87	156	133	175	122	16	Packed with the dividing head
	7.2	3.42	6.14	5.24	6.89	4.80	0.63

Standard Accessories

Dividing plate A.B.C

Numbers of holes of dividing plate(worm gear reduction ratio 1:40)



BS-2 can match 160mm or 200mm 3 jaw chuck.
