Product Overview
Description
Product Description
Product Name | BIT-Ma-GS-0404-2.0 /Ultra HD Matrix Switcher |
Resolution | Up to 3840x2160@60Hz |
Supporting Agreement | HDMI 2.0 、HDCP 2.2 |
Way To Control | Panel buttton control 、 infrared remote control |
Audio output | HDMI Output Comes With Audio、3.5mm Headphone holder、PDIF Audio |

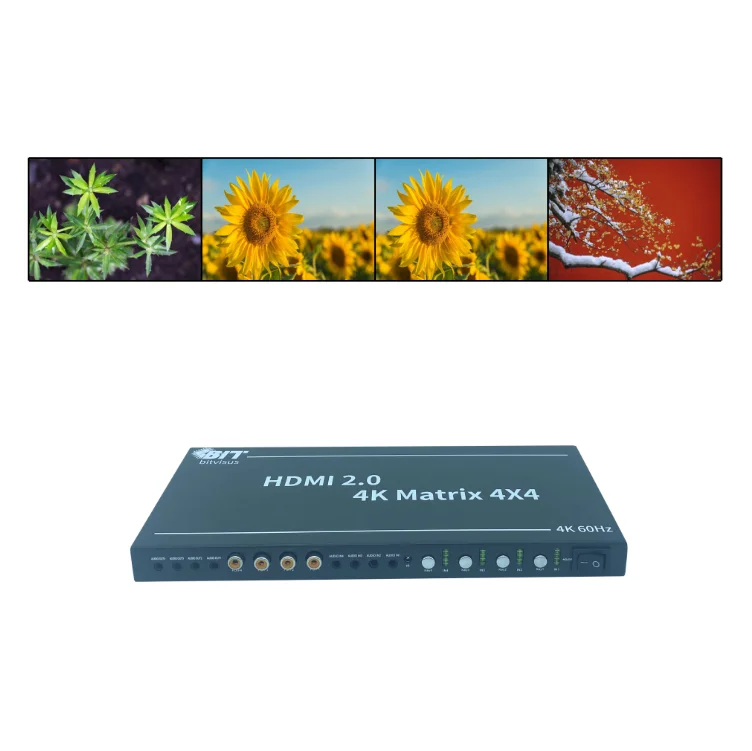

BIT_Ma_GS_2.0_0404 is a 4 in 4 out all-digital ultra-clear matrix switcher,Freely switch four HDMI signals,the highest supported resolution can reach 3840x2160@60, 3D video. Support HDMI 2.0, HDCP 2.2, and audio output, which can bring users a lossless and true ultra-clear and fully digital experience.
Product More Description：

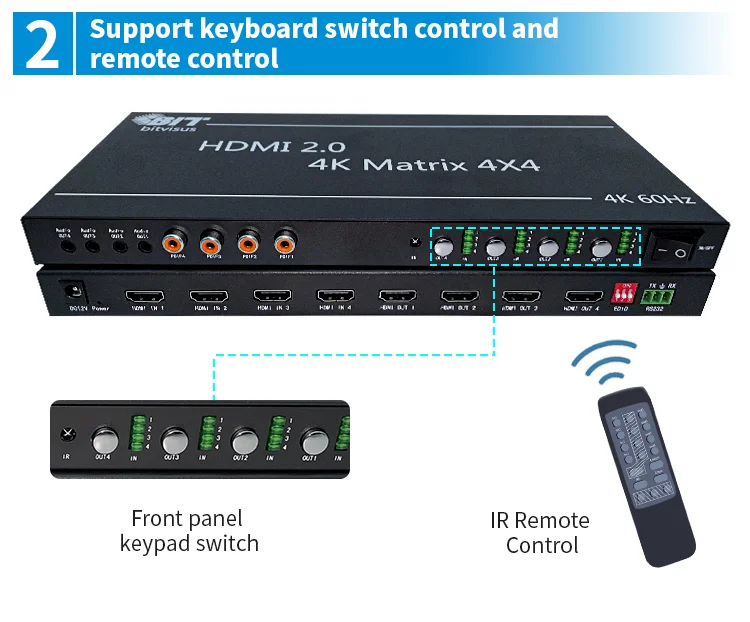

The instruction of remote control button:
【Enter】key:
In1+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 1.
In2+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 2.
In3+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 3.
In4+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 4.
【All】key:
In1+All: All 4 output ports are switched to the signal of input port 1.
In2+All: All 4 output ports are switched to the signal of input port 2.
In3+All: All 4 output ports are switched to the signal of input port 3.
In4+All: All 4 output ports are switched to the signal of input port 4.
In2+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 2.
In3+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 3.
In4+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 4.
【All】key:
In1+All: All 4 output ports are switched to the signal of input port 1.
In2+All: All 4 output ports are switched to the signal of input port 2.
In3+All: All 4 output ports are switched to the signal of input port 3.
In4+All: All 4 output ports are switched to the signal of input port 4.

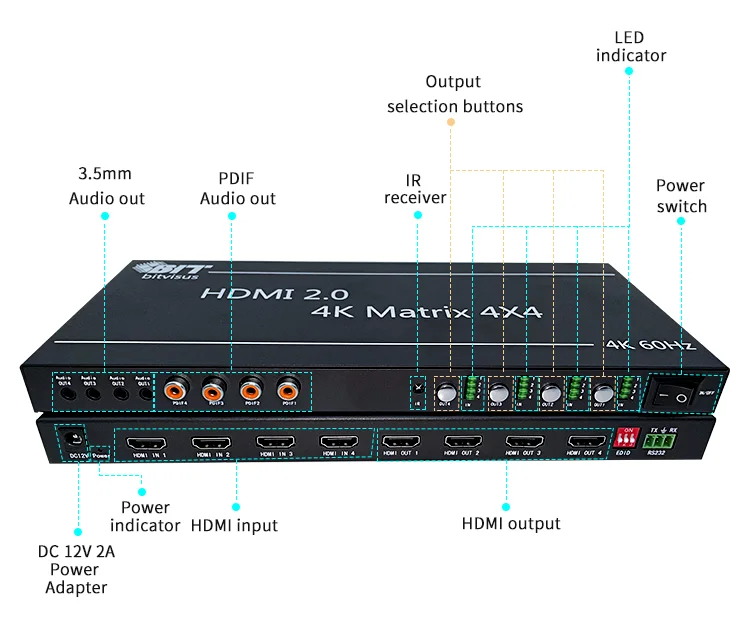

Device panel description
Front Panel
A: 3.5mm headphone socket, audio output, can be connected to headphone audio, etc.
B: RCA socket, PDIF audio output.
C: IR, used to receive remote control signals.
D: OUT4 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
E: OUT3 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
F: OUT2 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
G: OUT1 button and signal indicator, used for signal switching and signal input signal display, from top to
B: RCA socket, PDIF audio output.
C: IR, used to receive remote control signals.
D: OUT4 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
E: OUT3 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
F: OUT2 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
G: OUT1 button and signal indicator, used for signal switching and signal input signal display, from top to
H: Power switch.
Back Panel
I: Power interface, connected to 12V@2AAC-DC power supply. The LED light (power) next to the interface is the power indicator light. The LED light is on when the device is normally powered.

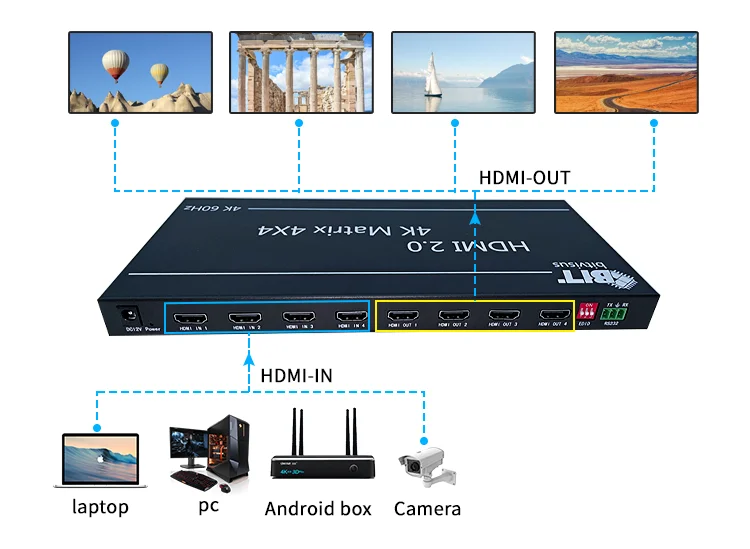

J: 4 HDMI input ports, used to connect signal input sources.
K: 4 HDMI output interfaces (the interface sequence corresponds to the sequence of the front panel audio output interface and operation buttons), used to connect display devices such as displays, TVs, or monitors.
J: 4 HDMI input ports, used to connect signal input sources.
K: 4 HDMI output interfaces (the interface sequence corresponds to the sequence of the front panel audio output interface and operation buttons), used to connect display devices such as displays, TVs, or monitors.
Features
1.Support 4 HDMI inputs (4 4K@60Hz), 4 HDMI outputs (4K@60Hz).

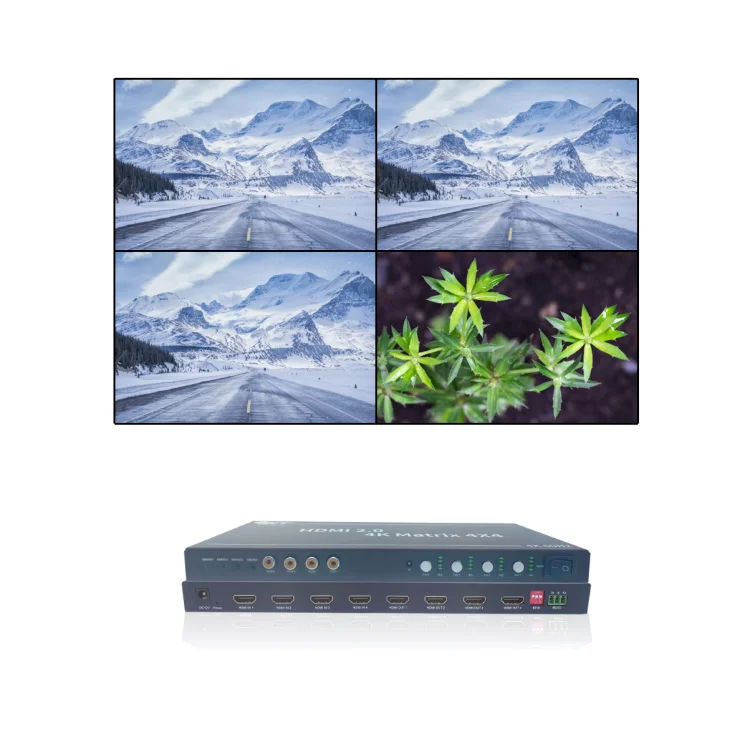

2.Support Single device, 4 inputs and 4 outputs (compatible with 1 input and 4 outputs).
3.Support audio format DTS-HD/Dolby trueHD/L PCM/DTS/Dolby-AC3/DSD.
4.Support output resolution, maximum support 3840x2160@60Hz, backward compatible.
5.With power-down memory function.
6.Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation, no external heat dissipation measures, and extremely high reliability.
7.Support computers, Android boxes, game consoles and other devices as input sources.
8.Support HDMI audio output, audio separation.
9.No stretching, no deformation, no need to compress the input source, and the picture is clear.
Specification
Input the highest supported resolution | 3840*2160@60Hz |
Maximum supported bandwidth | 18Gbps |
HDMI port | HDMI 2.0 x4 |
Single port support output maximum resolution | 3840*2160@60Hz |
HDMI output port | HDMI 2.0 x4 |
Audio output | HDMI, 3.5mm Headphone Holder,PDIF Audio |
Control method | Panel button control, infrared remote control |
Default resolution | 1920*1080@60Hz |
Work temperature | 0℃-50℃ |
Power consumption | 12W |
Power supply | 12V@2A AC-DC power supply |
Size Length: Width: Height | 270mm*122.5mm*20.5mm |
Accessories | 1 12V@2A AC-DC power supply 1 remote control |
Warranty | 1 Year |
Best Selling Product
Packing & Delivery
Paking:
1.HDMI Matrix 0404: 1pc.
2.Remote Control: 1pc.
3.Power Supply: 12V/2A AC-DC.
4.User Manual: 1pc
1.HDMI Matrix 0404: 1pc.
2.Remote Control: 1pc.
3.Power Supply: 12V/2A AC-DC.
4.User Manual: 1pc
Delivery:
1.EXW ShenZhen /ShangHai /HuNan /HanZhou /Hong Kong
2. Shipping days : depend on the area or religion
3. By express / By sea / By air
1.EXW ShenZhen /ShangHai /HuNan /HanZhou /Hong Kong
2. Shipping days : depend on the area or religion
3. By express / By sea / By air
