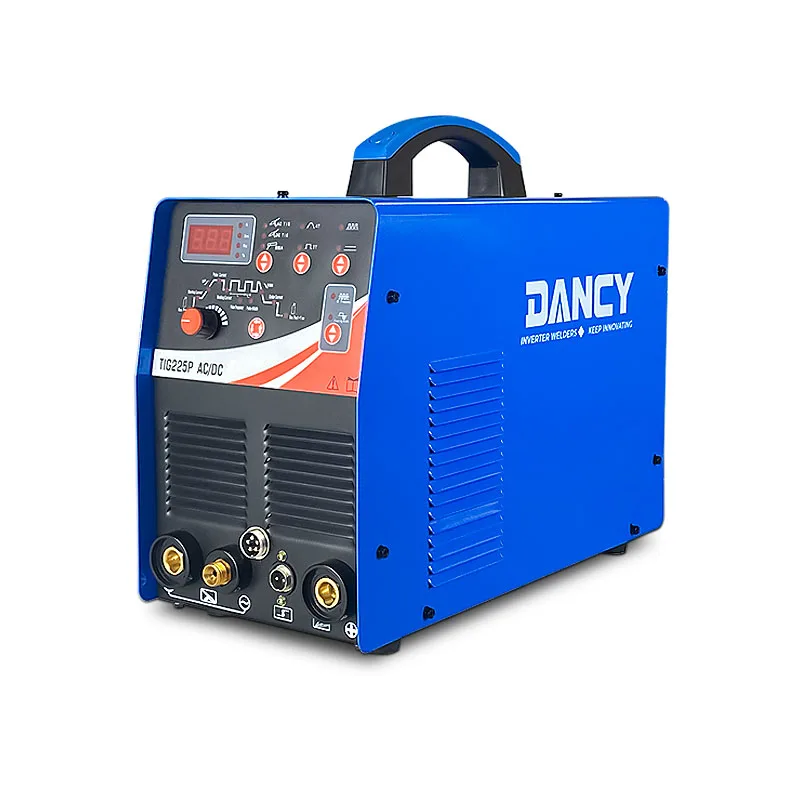

AC DC TIG 225A Pulse welder TIG TIG Pulse MMA 3 in 1 HF welding machine good for aluminum carbon stainless steel welding
- Category: TIG Welder >>>
- Supplier: Yongkang Dancy Machine Co. Limited
Share on (1600320889441):
Product Overview
Description
Products Description
Ac dc soldadura tig pulse welding machine HF tig welder 225P
perfect for aluminium alloy welding TIG/MMA fasty supply
1.This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA / Suitable For Aluminum and Stainless Steel Welding / Suitable for 6010 Electrode / IGBT Inverter
2. With big advantage of easy operation design / one press and hold for 3 seconds enter to aluminum welding
presetting,very convenience for fast operation.
presetting,very convenience for fast operation.
3. Remote Control for Trigger / Foot-pedal optional.
4. Compact size only 45X35X20CM,net weight only 16.5KGS,very easy to remove.
5.Great performance for aluminum welding.Please check the video
TIG225P TECHNICAL SPECIFICATION | ||||||
Input voltage | Single-phase AC220V | Pulse width ratio | 0.2-0.8 | |||
Rated output current | 225A | Down slope time | 0.1-5.0S | |||
Rated output voltage | 20V | Crater arc current | 10-225A | |||
Rated input power | 7.0KW | Post flow time | 5s-25s | |||
No-load voltage | 56V | Clean width | 25%-75% | |||
Current range | 10-225A | AC frequency | 50-150HZ | |||
Start arc current | 10-225A | Duty cycle | 200A@40% | |||
Up-Slope time | 0.1-5S | Efficiency | 83% | |||
Pulse current | 10-225A | Protection | IP21S | |||
Welding Current | 10-225A | Machine size | 450X200X350MM | |||
Pulse frequency | 0.5-100HZ | Machine wight | 17.0KGS | |||

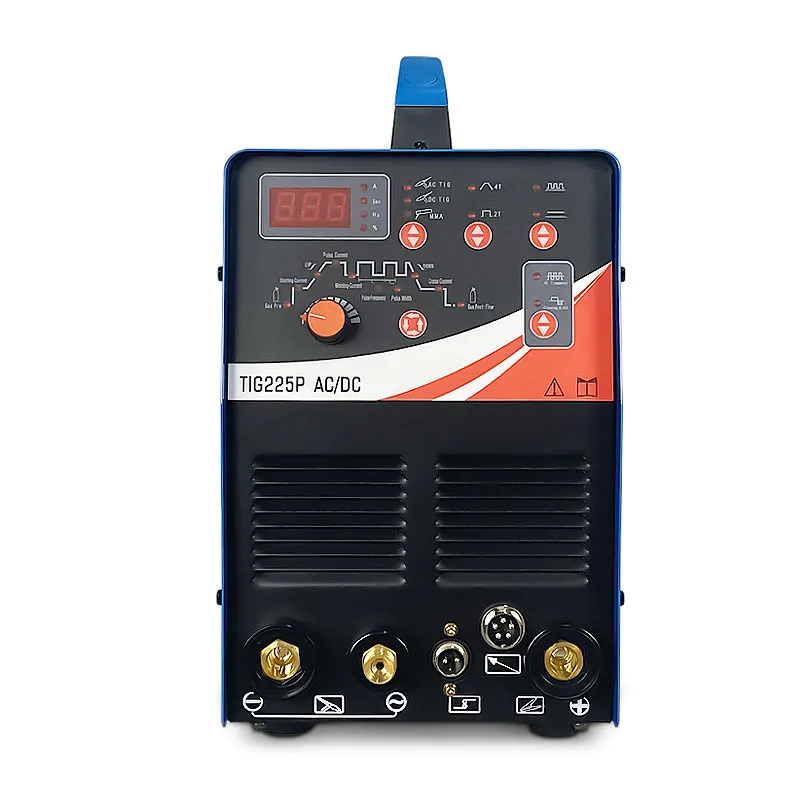

1.AC TIG mode
2.DC TIG mode
3.MMA mode
4. 4T conttrol
5.2T control
6.Pulse welding
7.Without pulse
8.Pulse current
9.Current up
10.Starting current
11.Gas Pre flow
12.BIG Adjust knob
13.Welding current
14.Pulse frequency
15.Pulse width
16.Adjust knob
17.Current down
18.Crator current
18.Crator current
19.Gas post flow
20.AC frequency
21.Cleaning width
22.Adjust knob
23. Digital display
24.Adjust knob
Our Advantages
How to set the data,it is headache for new welder men
How to set the data ?
How to start a fast aluminium welding?
WE CAN HELP YOU!
One touch and hold 3s to enter fast Aluminium welding
A talent design to get fast aluminium welding.When you press the big knob and hold 3s,,the machine turn on aluminum welding at perfect station.
Product packaging
SAFETY and FAST SHIPMENT
Each of your machine is packed with protection foam and completed accessories into a strong box.

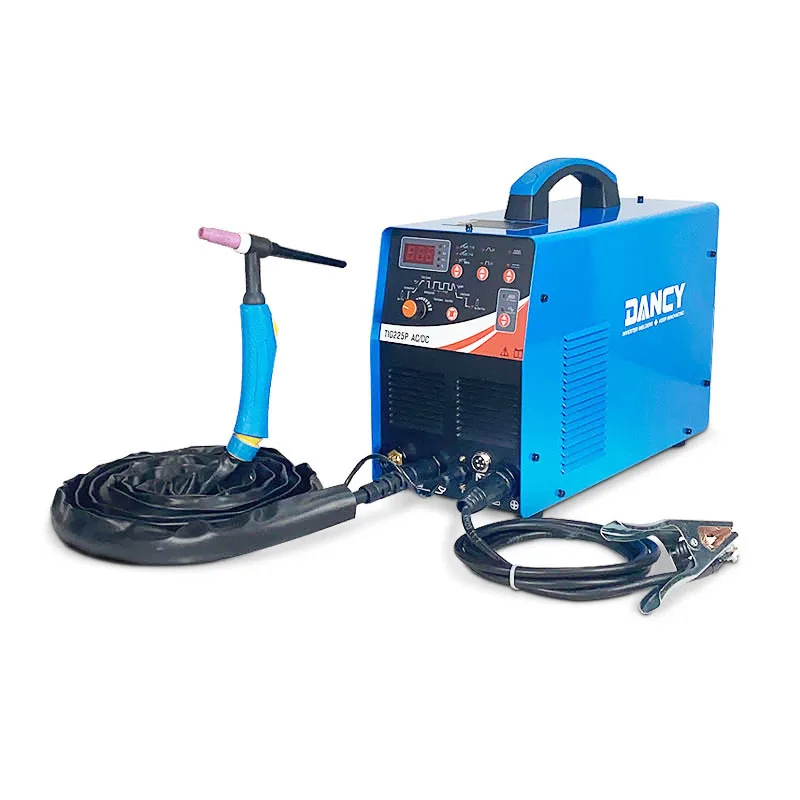

What the package inlcude
1.One piece of TIG225P
2.Quality WP-26 tig torch,
3. electroder holder with cable,
4.earth clamp with cable
5.Gas hose
6.Foot steeper and gas regulator are optional (please contact us for price)
1.One piece of TIG225P
2.Quality WP-26 tig torch,
3. electroder holder with cable,
4.earth clamp with cable
5.Gas hose
6.Foot steeper and gas regulator are optional (please contact us for price)
FAQ
1.what is input power of this machine ?
it is 220V,one phase,50-60HZ
2.Does this machine has high frequency starter?
Yes
3.Does it has both AC and DC output?
yes,it has ac tig,dc tig,ac tig pulse,dc tig pulse
4.Does it has manual electrode welding?
yes,it is both tig and mma process.
5.What the tungsten size usually be taken?
it usually take 1.6/2.4/3.6mm
6.Does this machine comes with foot pedal?
NO,it does not.This machine works with foot pedal, foot pedal is optional at purchase.
7.The tig is air cooled or water cooled?
It is air cooled tig.
8.What is about warranty?
This machine offers 12 month warranty.We offer 24 months warranty too,please contact us for details.
9.What we do if the machine give problem during warranty?
For the machine got problem without human-factor during warranty time,we supply spares at free.
All machines are quality checked and produced reliable.In case it get problem,we will send repair video and diagram.The machines are designed friendly to make repair.For the machine out of its warranty time,we supply spares at it's material cost.For more details,please contact us at free.
Customer feedback
We trust quality is all for business,we treat each of our customer sincerely by heart.Lots of positive feedback received,here some are just for reference.
Company Profile
Golden supplier for welding machines, MMA,TIG,MIG,Air Plasma Cutter Click to contact us for request!
WE,Dancy Machine company are a professional manufacturer engaged in the research, development, production, sale and service of welding machine incldue of MMA,MIG,TIG,PLASMA CUTER and its related machines.
In recent years, our company have introduced a series of advanced equipment to marketing,like MIG pulse,AC DC TIG,LGK-80,MMA pulse,MIG350,MIG500,etc.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance , you can talk to our customer service center about your requirements.Hope you join us,we trust our products and services will take you good benefit.
FAQ
1.Are you a trader or manufacturer?
We are professional manufacturer and trading office together,supply inverter welding machines and its related
supplies.We can help to souce other products if customer demands.
2.Are you happy to work with small size customers?
Whenever you run a big business or own a small shop,you are welcome to contact us.
3.Why choose DANCY as our partner ?
5. What is Warranty?
Usually,we offer 12-24 months warranty for each shipment since the shipping date.
6.What is delivery time?
We are professional manufacturer and trading office together,supply inverter welding machines and its related
supplies.We can help to souce other products if customer demands.
2.Are you happy to work with small size customers?
Whenever you run a big business or own a small shop,you are welcome to contact us.
3.Why choose DANCY as our partner ?
Our message is "quality is all for business".With us your business is in safety,your money is
safety. We offer 24 hours pre-sales and after-sales service.
4.Are you competitive suppliers?
safety. We offer 24 hours pre-sales and after-sales service.
4.Are you competitive suppliers?
We has been specialized in welding industry since 2009.
There is professional wrok team,enginner and sales,Research and technical,Skilled production manager, and advanced equipment,big warehouse and clean building.
Big sales quantity and updated technical spread our administration cost,that help to reduce our cost.
5. What is Warranty?
Usually,we offer 12-24 months warranty for each shipment since the shipping date.
6.What is delivery time?
About samples,most of models's sample can be delivered in 24 hours from stock.
About Mass produciton, 25-45days according to different quantity.
