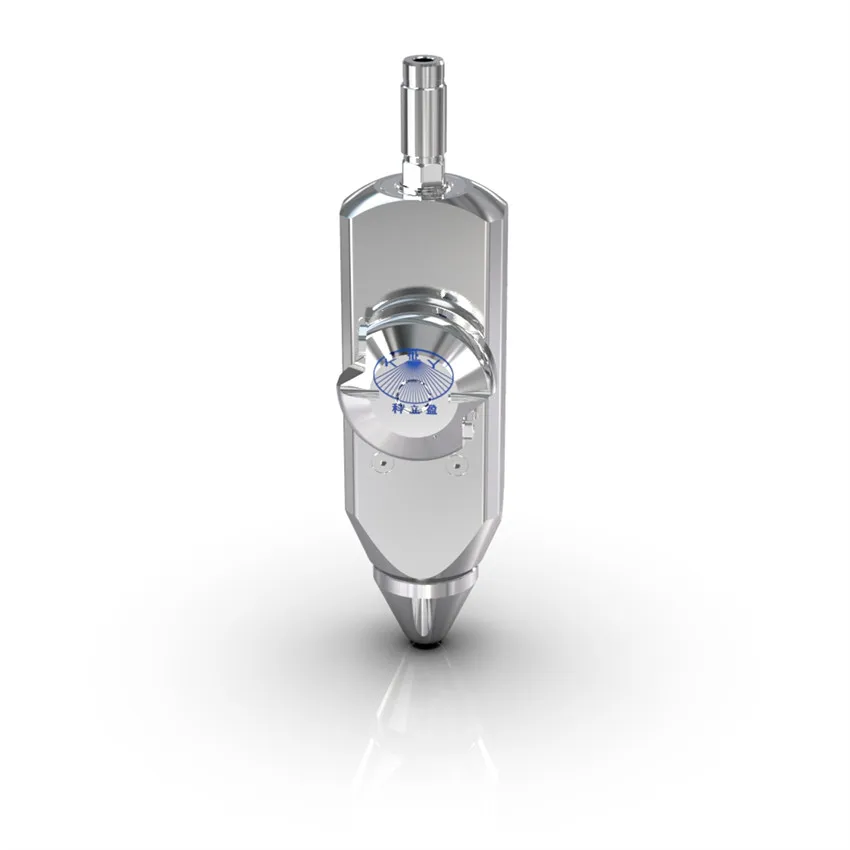

1000 bar 3D rotating nozzle, high pressure tank cleaning heads for polymerization tanks, reactors
Model | 3D rotating nozzle, high pressure water tank cleaning machine |
Materials | 304SS |
spray angle | 360° |
Recommended Pressure | 300-800 bar |
Max. Pressure | 1200 bar |
Spray diameter | 1-5 m |
Feature | three-dimension cleaning |
Connection | 1" BSPP (NPT thread on request) |
Application | rinsing and cleaning of reactor |
Min. tank openings | 149mm |
HP 1000 tank cleaning heads are used for cleaning polymerization tanks, reactors, spray dryers, and various other tanks. The cleaning nozzle rotates and revolves due to the reactive force of the high-pressure water spray, thoroughly cleaning the inside of tanks.
Working principle:
The high-pressure cleaner drives the transmission mechanism to rotate through the principle of reaction force, and passes through reducer regulate rotation speed, realize revolution and rotation through the transmission mechanism according to the set trajectory, so as to form a 360-degree spray pattern to achieve complete tank coverage.
Design feature:
It adopts dynamic balance design to maintain stable rotation and swing under high pressure.
The speed and cleaning cycle can be adjusted steplessly, with a long service life.
Cleaning trajectory is uniform and dense, ensuring efficient and high-quality cleaning.
Unique nozzle structure design makes high-pressure water jet with greater impact force.
Powerful high-pressure water jet can efficiently clean stubborn dirt.
No need for people to enter the restricted space, greatly reducing labor intensity, improving the working environment, and avoiding safety hazards.
The high-pressure cleaner drives the transmission mechanism to rotate through the principle of reaction force, and passes through reducer regulate rotation speed, realize revolution and rotation through the transmission mechanism according to the set trajectory, so as to form a 360-degree spray pattern to achieve complete tank coverage.
Design feature:
It adopts dynamic balance design to maintain stable rotation and swing under high pressure.
The speed and cleaning cycle can be adjusted steplessly, with a long service life.
Cleaning trajectory is uniform and dense, ensuring efficient and high-quality cleaning.
Unique nozzle structure design makes high-pressure water jet with greater impact force.
Powerful high-pressure water jet can efficiently clean stubborn dirt.
No need for people to enter the restricted space, greatly reducing labor intensity, improving the working environment, and avoiding safety hazards.
Application:
HP1000 high pressure tank cleaning machine is suitable for three dimension cleaning of containers, reactors, autoclaves,tank , such as chemical, petrochemical, synthetic fiber, paper and food industry, chemical raw materials, Coating industry and occasions requiring ultra-high pressure cleaning.
HP-1000 high pressure tank cleaning machine can effectively clean boiler deposits, Coke, polymer, PVC resin or residue that is difficult to remove.
HP-1000 high pressure tank cleaning machine can effectively clean boiler deposits, Coke, polymer, PVC resin or residue that is difficult to remove.

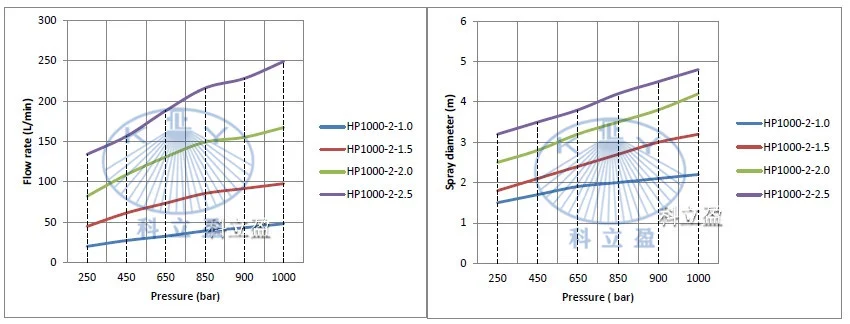

Performance data:

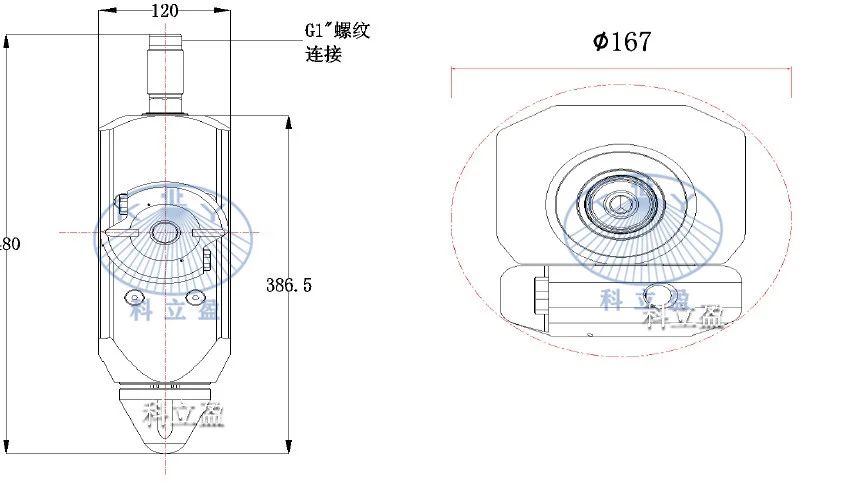

Dimensions of tank cleaning nozzle:
Cleaning process:
Cleaning effect:
Application of 3D rotary tank cleaning nozzle:
