Price:$8.00

Quantity:


Product Overview

Description



Product Description

The current Transformer (CT) is used to transform the high AC to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.







Characteristics

















  • Security factor: FS<5

  • Maximum system voltage: 720V AC

  • Test voltage: 3kV AC(1min)

  • Standards: IEC/EN61869-1, IEC/EN61869-2




  • Rated frequency: 50/60Hz

  • Rated short-time thermal current: Ith=40~60In

  • Rated dynamic current: Idyn=2.5Ith

  • Rated secondary current: X/5A (X/1A upon request)

  • Rated primary current: Ranging up to 3000A




  • Continuous overload: 120%In

  • Protection level: IP30

  • Casing: Non-flammable, polycarbonate self-extinguishing ABS

  • Environment:


Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH

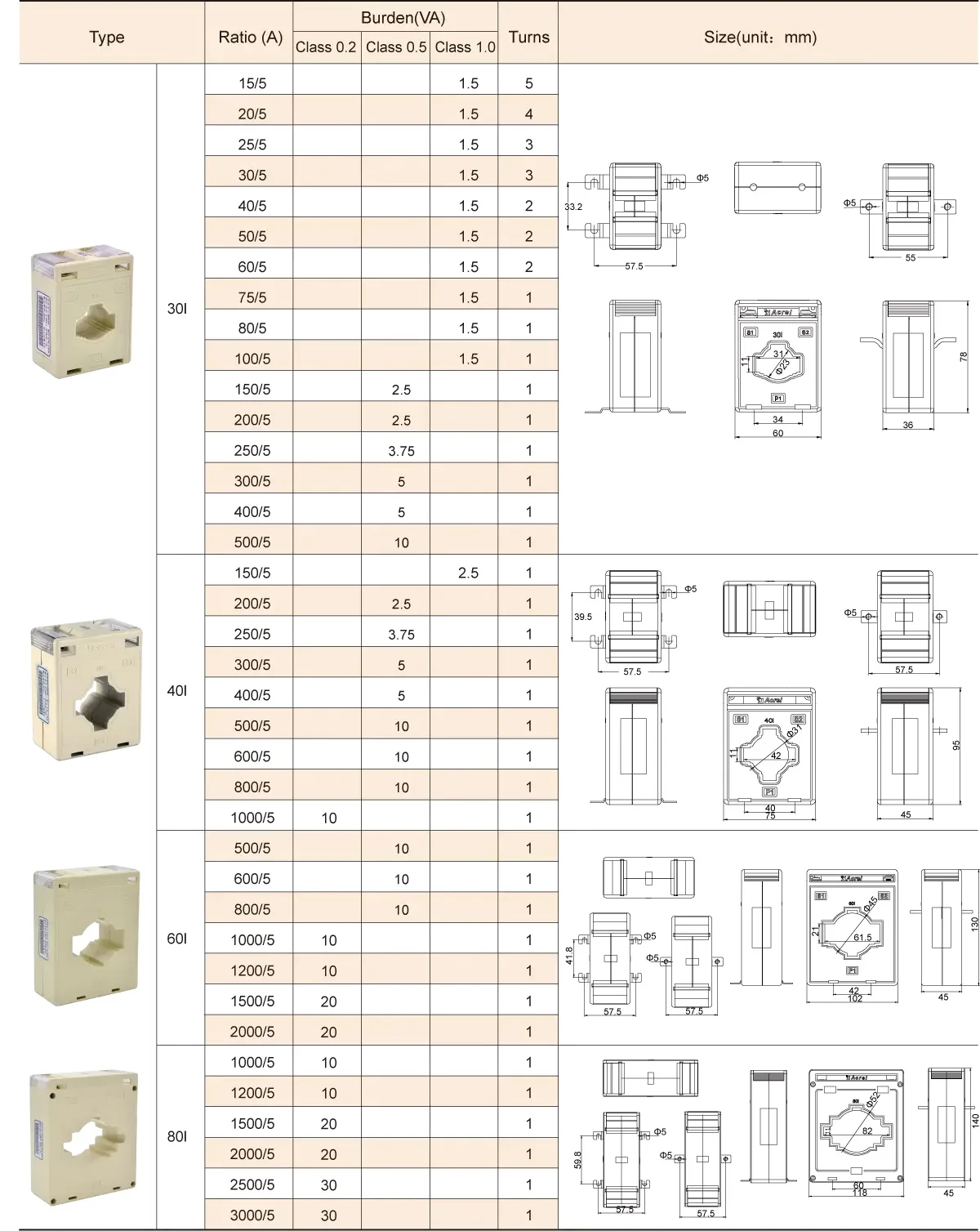

Parameters







Installation













INS TYPE A.jpgINS TYPE B.jpgINS TYPE C.jpg

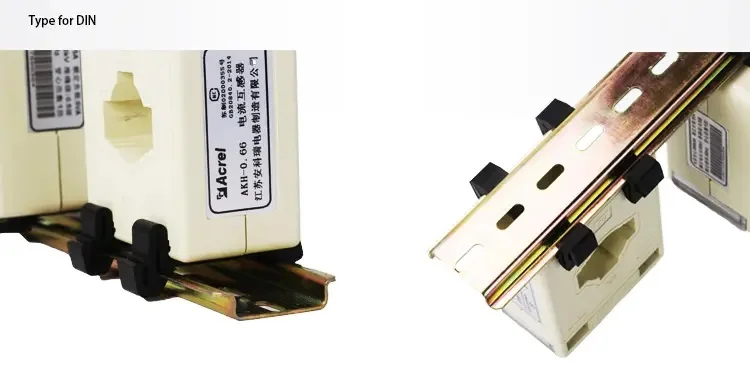

INS TYPE DIN.jpg

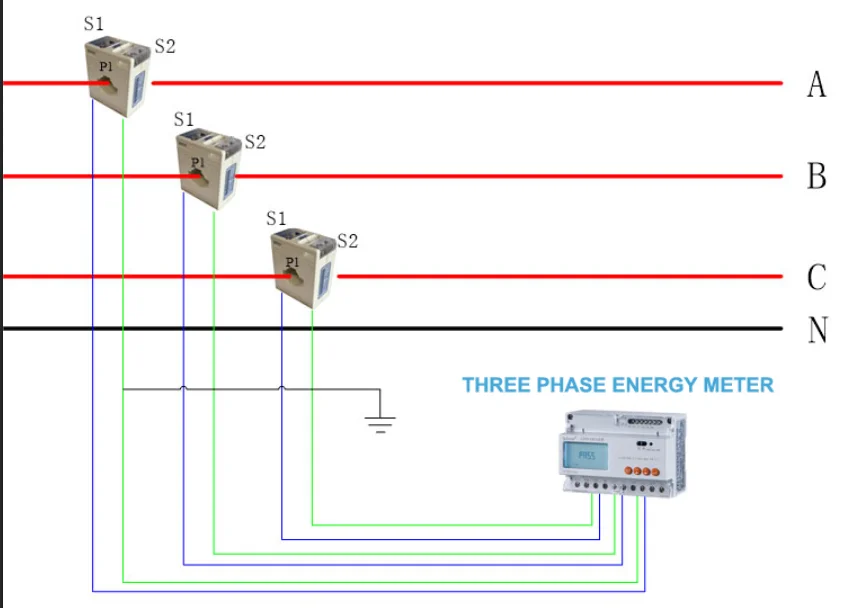

Wiring







Application




















Power Station.jpgChemical Factory.jpgMetallurgical Factory.jpgSteel Mill.jpg
Power StationChemical FactoryMetallurgical FactorySteel Mill
