Product Overview
Description

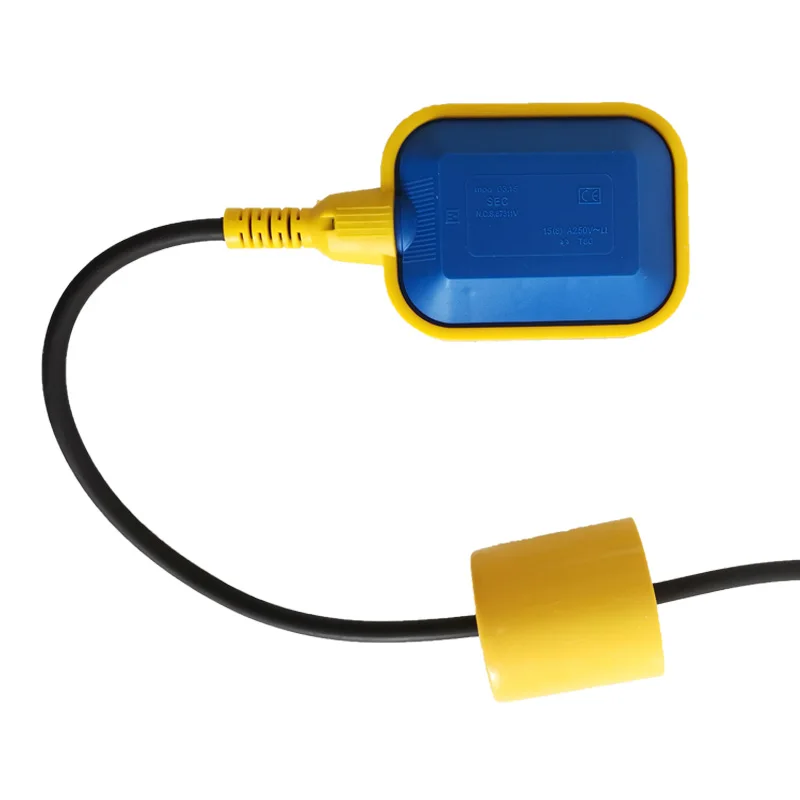

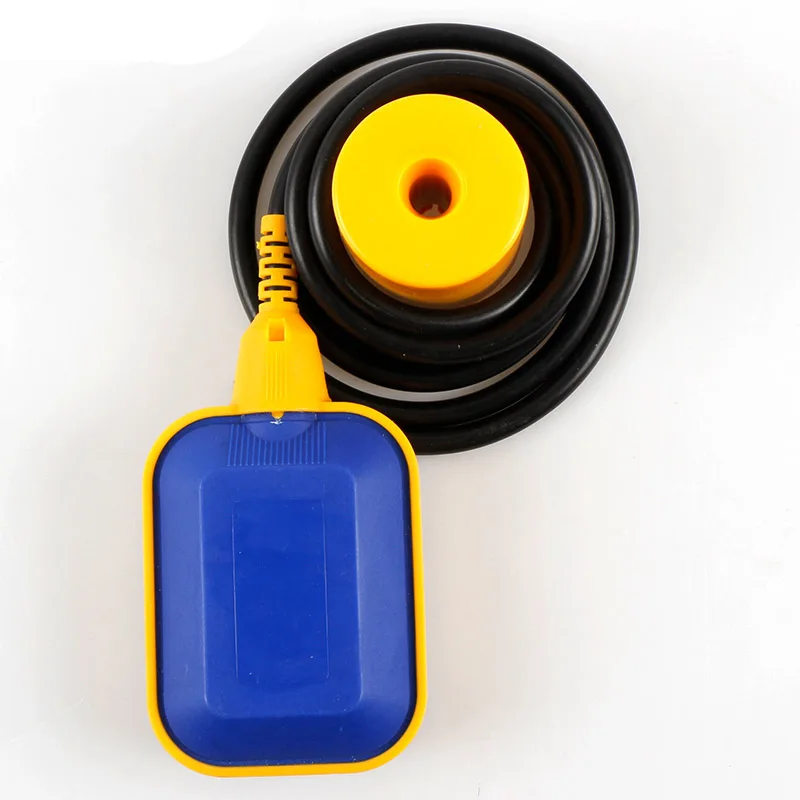

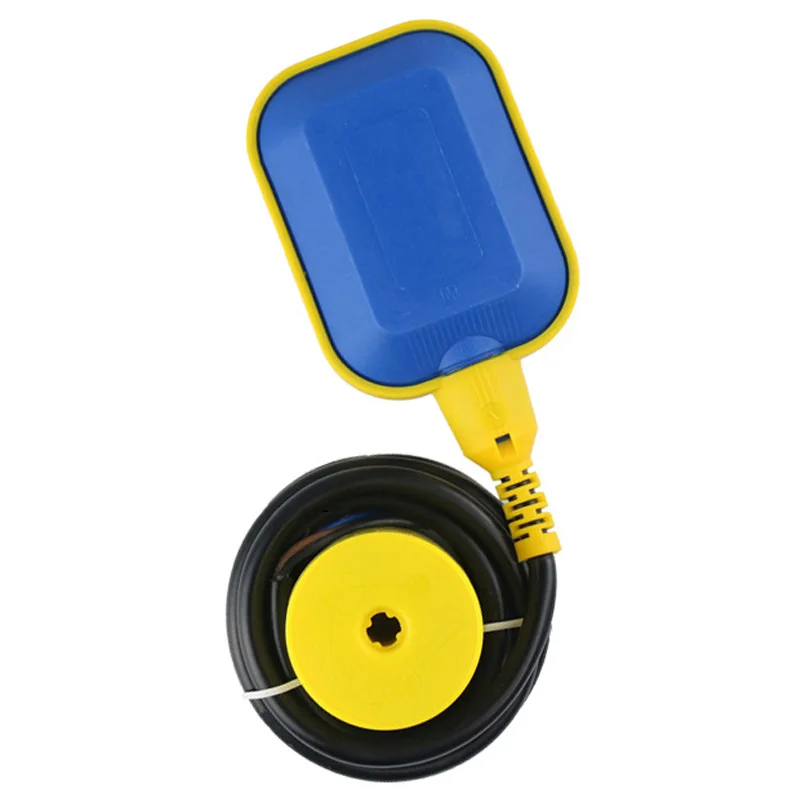

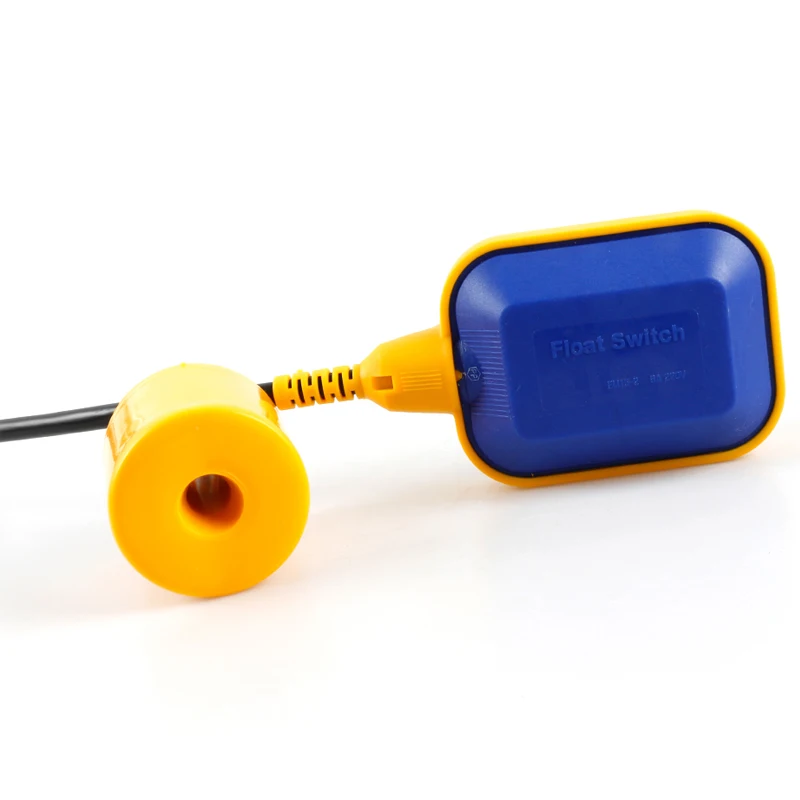

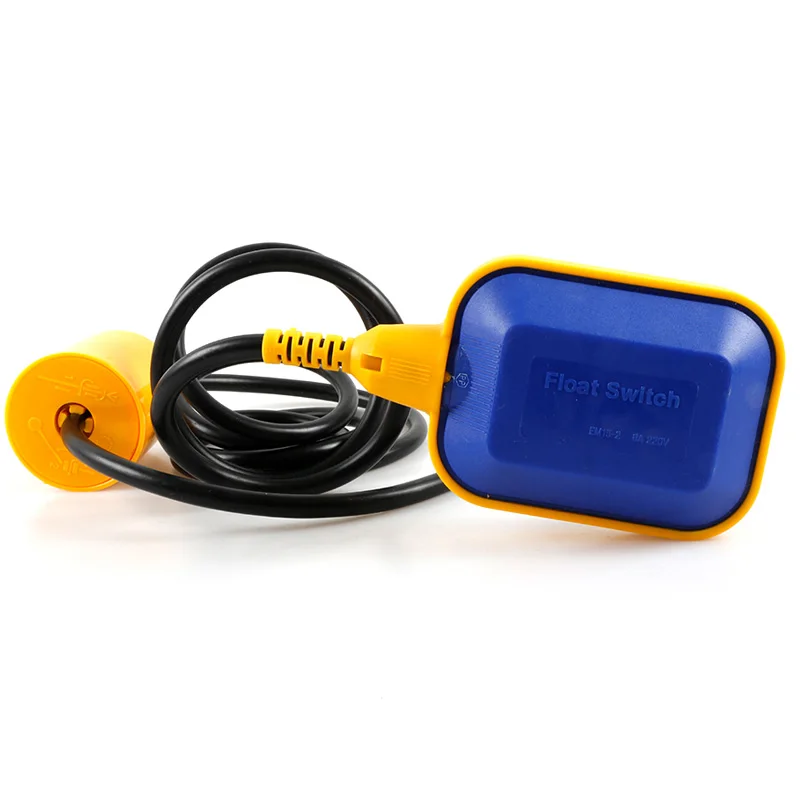

Good Selling Easy Installation Suppliers Float Switch For Level Control
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
Product Description
Working Principle

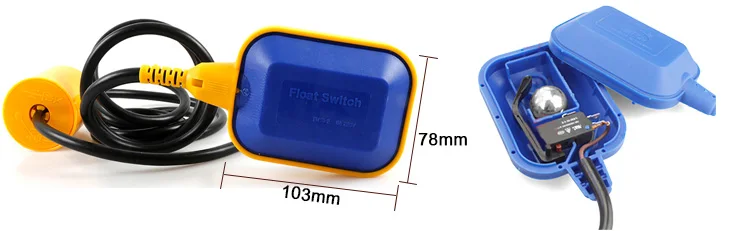

Float switch is using microswitch to be contact elements.When the liquid level rises to the float place, angle of floats place will be changed by the liquid level. When it reaches an certain angle, there will be ON or OFF contact signal output at the switches.
Basic Parameters | ||
Float Materia: | PP, SUS304 | |
Contact Capacitance: | 10A/250VAC(PP),2A/250VAC(SUS304) | |
Contact type: | 1A,1B or 1AB(PP),SPDT(SUS304) | |
Cable specification: | Rubber cable and PVC(PP),Silicone:0.75mm2×23C(SUS304) | |
Suitable temperature: | Rubber cable: -10℃~80℃,PVC cable:0℃~60℃,Silicone: 0~170℃ | |
Gravity: | >0.6g/cm3(PP),>0.5g/cm3(SUS304) | |
About us
Yuanda electronics focuses on the research and innovation of sensor technology, focusing on the accurate measurement and perfect control of high temperature melt pressure and temperature. The products have been widely used in chemical fiber textile, rubber and plastic, new materials, nonwovens, water treatment, aerospace, military, petroleum, chemical, power station, automation equipment manufacturing, pharmaceutical, food and other industries. Quality assurance Products are manufactured in strict compliance with ISO and CE directives and in full compliance with RoHS requirements. Based on large production plants and excellent international equipment, Yuanda Electronics is recognized for its inspection, testing and calibration throughout the world and provides experienced OEM services. The sales and after-sales technical service team has won the good reputation and great trust of thousands of customers around the world.
Packaging & Shipping
FAQ
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: What's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: What's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
