Product Overview
Description
Product Description

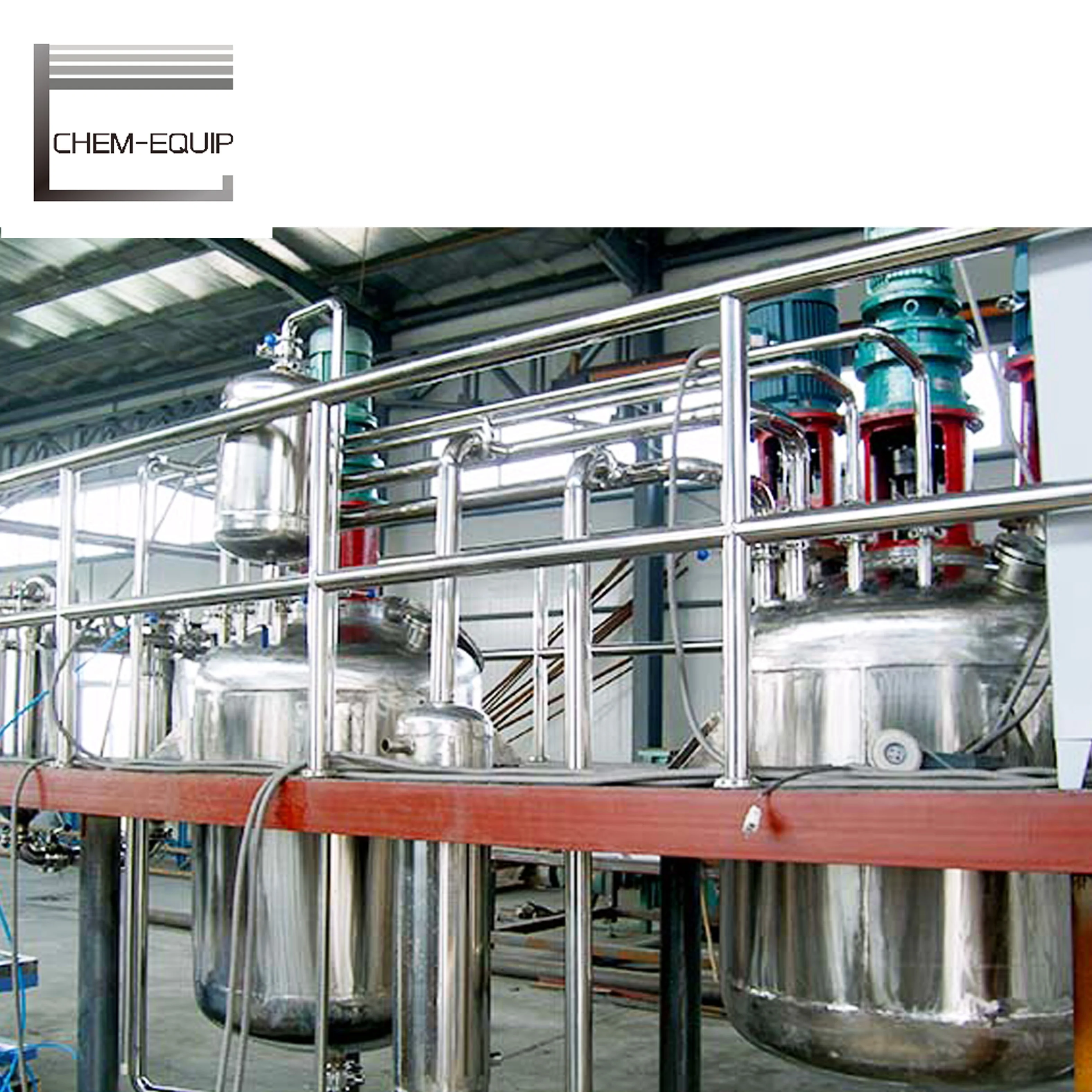

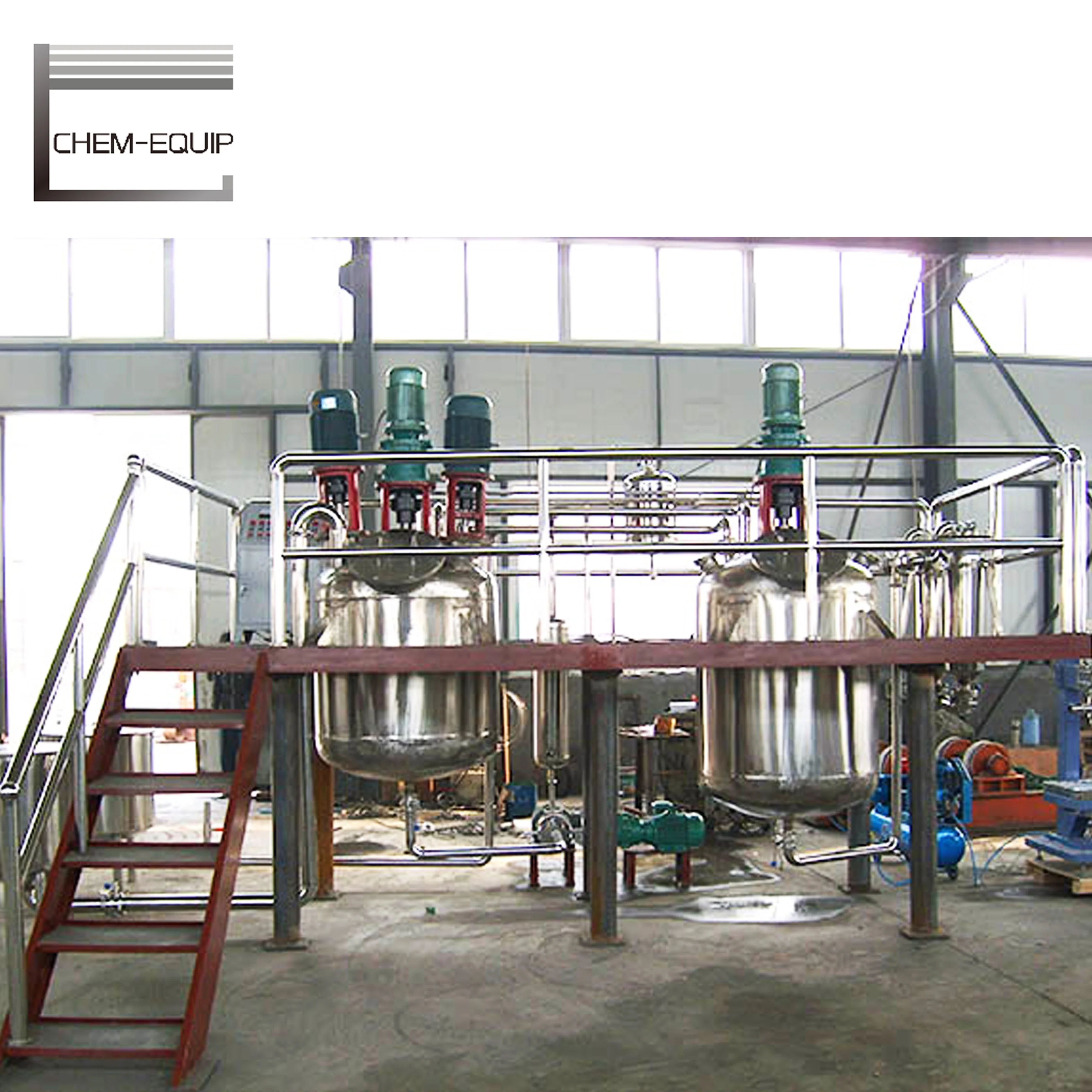

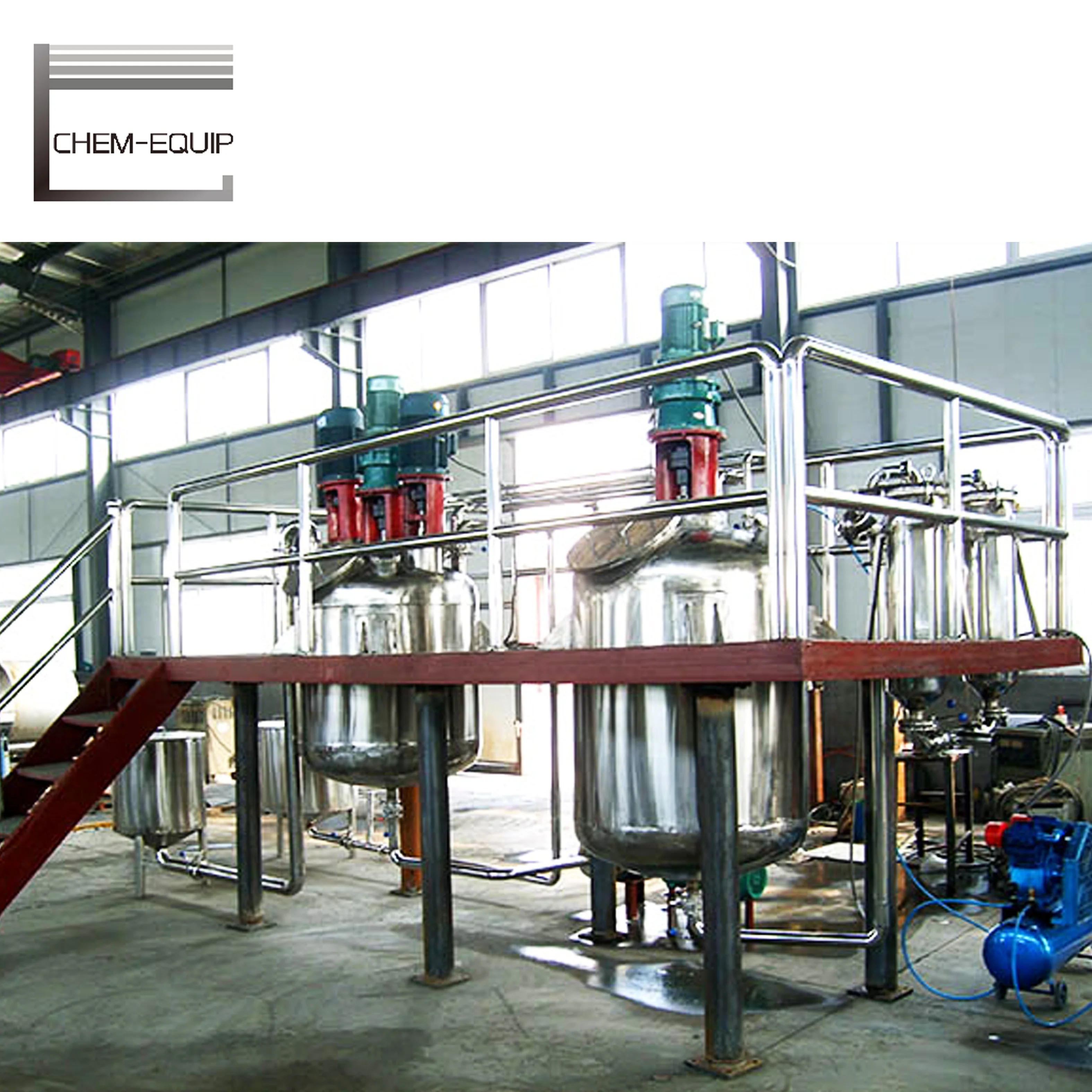

A Paint Manufacture Line consists of Powder Material Feeding Device (Vacuum Feeding Device, Conveyor), Liquid Material Feeding Device (Suction Pump), Slurry Making Machine (High Speed Disperser, Mixer), Different Color Tinting Machine (Two or Three Shaft Mixer), Grinding Machine (Basket Mill, Horizontal Sand Mill), Filter and Filling Machine, Platform and Controller System.
Our Equipment is used for mixing, dispersing, emulsifying, homogenizing, conveying and batching in the fields of ink, painting, coating material. It also can be used in daily chemical and bio-pharmaceutical industries.
With Heating and Cooling Jacket, the heating condition can achieve a better reaction effect while cooling for better reaction adjustment.
Chem-Equip Paint Production Line is suitable for water- based paint, water dilutable coating, water dispersible paint (latex paint) and solvent based nitrolacquer, polyurethane paint, enamel, varnish, anti-corrosion paint, finishing varnish, epoxy paint, etc.
Specification
Technical Parameters | ||||||||
Volume | 200L~5000L | |||||||
Working Medium | Water-based/ Solvent-based paint | |||||||
Medium Viscosity | ≤20,000 cps | |||||||
Scrapper Mixer Power | 1.5~11 KW | |||||||
Scrapper Mixer Speed | 0~65 RPM | |||||||
Disperser Mixer Power | 3~22 KW | |||||||
Disperser Mixer Speed | 0~1440 RPM | |||||||
Homogenizing Mixer Power | 3~22 KW | |||||||
Homogenizing Mixer Speed | 0~3000 RPM | |||||||
Heating Method | Steam or Thermal Oil Circulation, Electric Heater with Thermal Oil Batch | |||||||
Heating Power | 18~90 KW | |||||||
Whole Set Equipment | Disperser, Three/Two Shaft Mixer, Horizontal Sand Mill, Filter and Filling Machine | |||||||

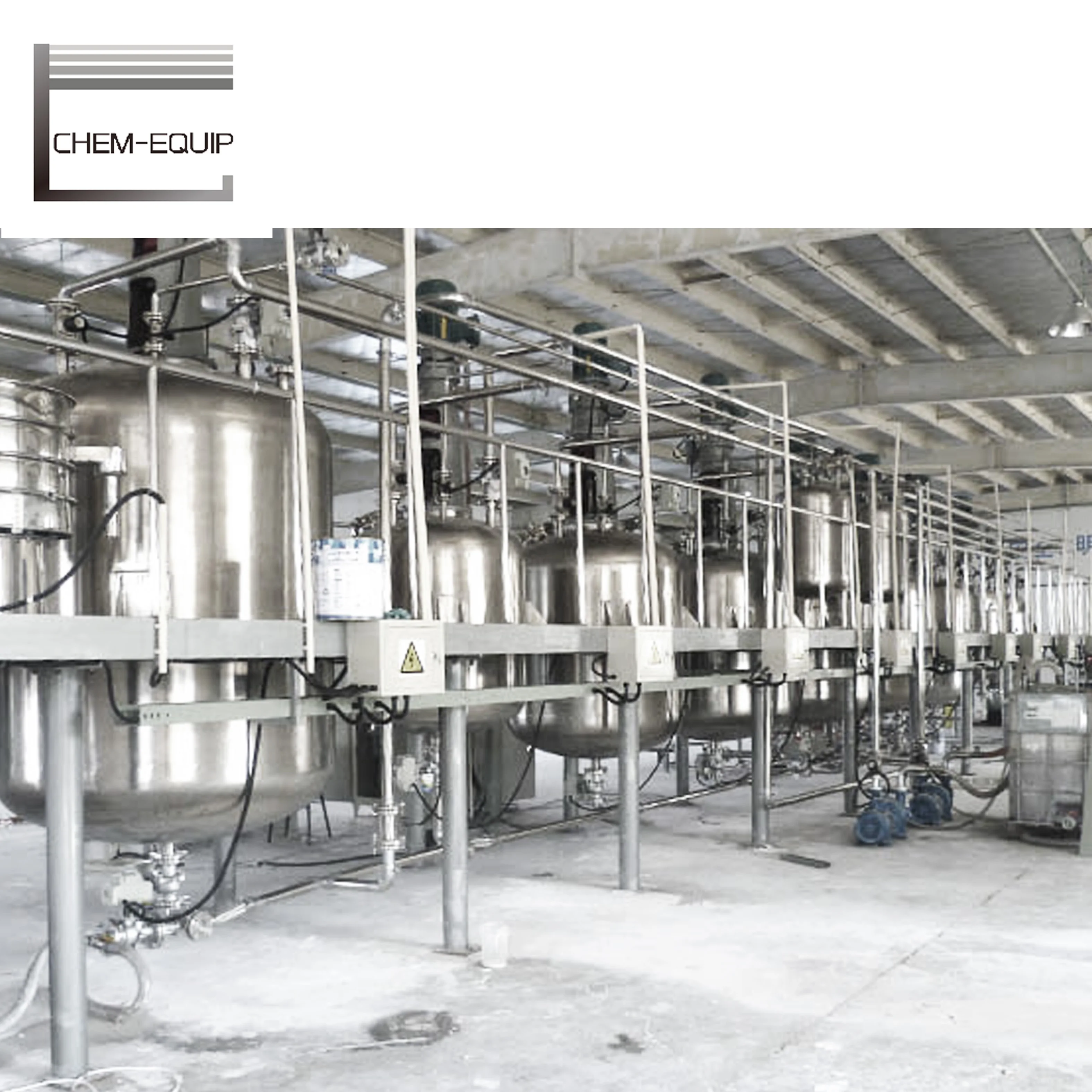

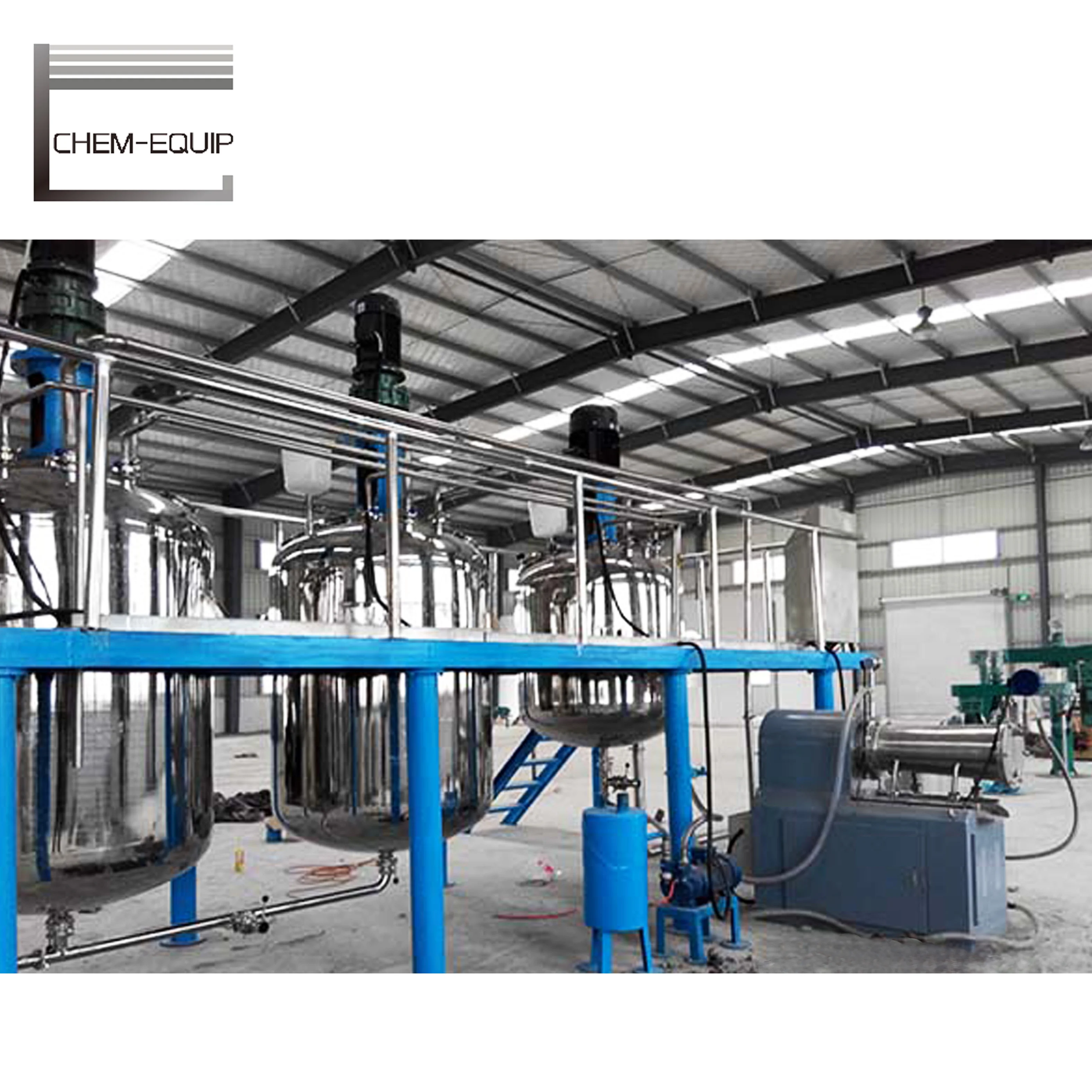

The Whole Paint Making System includes Disperser, Three/Two Shaft Mixer, Horizontal Sand Mill, Filter and Filling Machine, Clean System, Controller and Platform, etc.

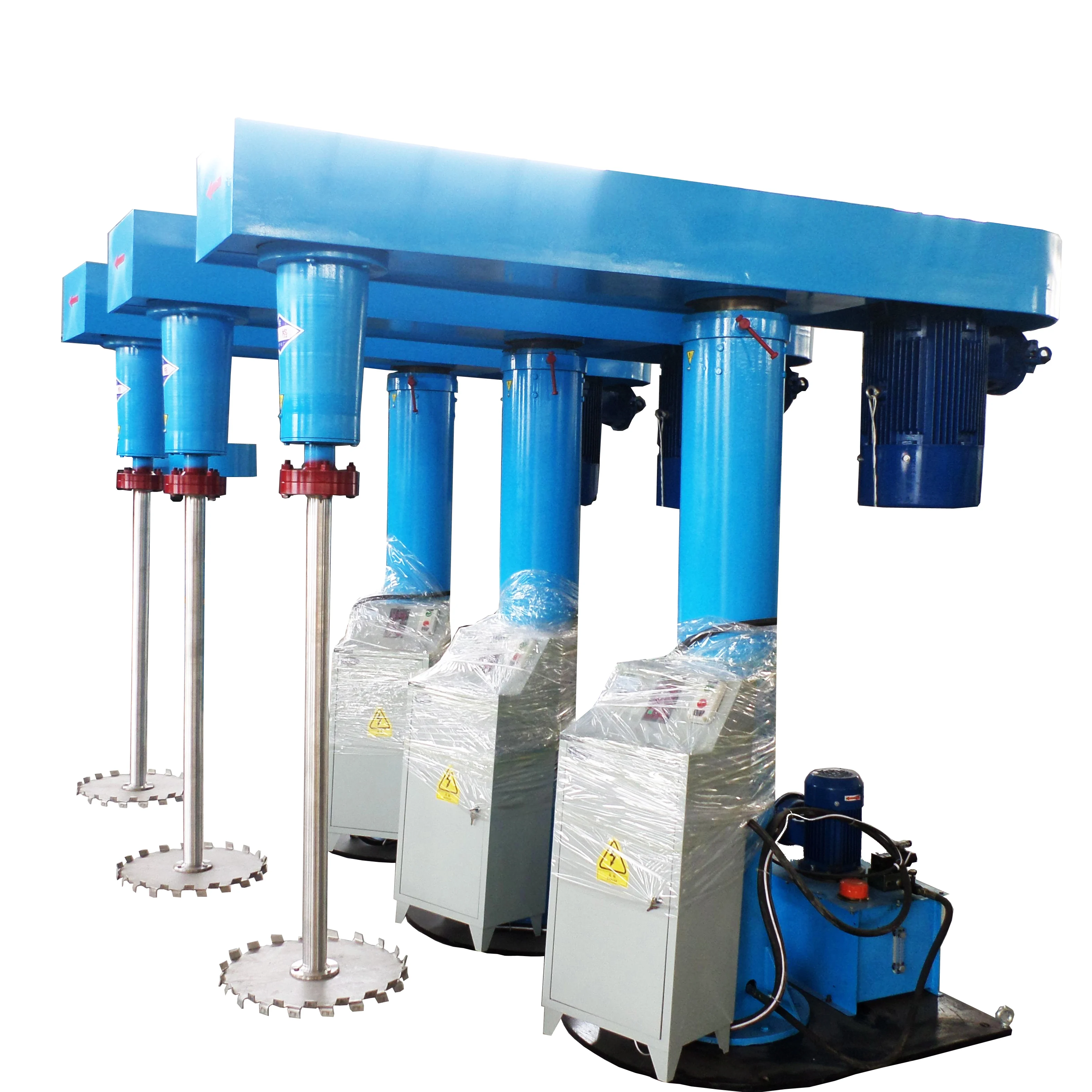

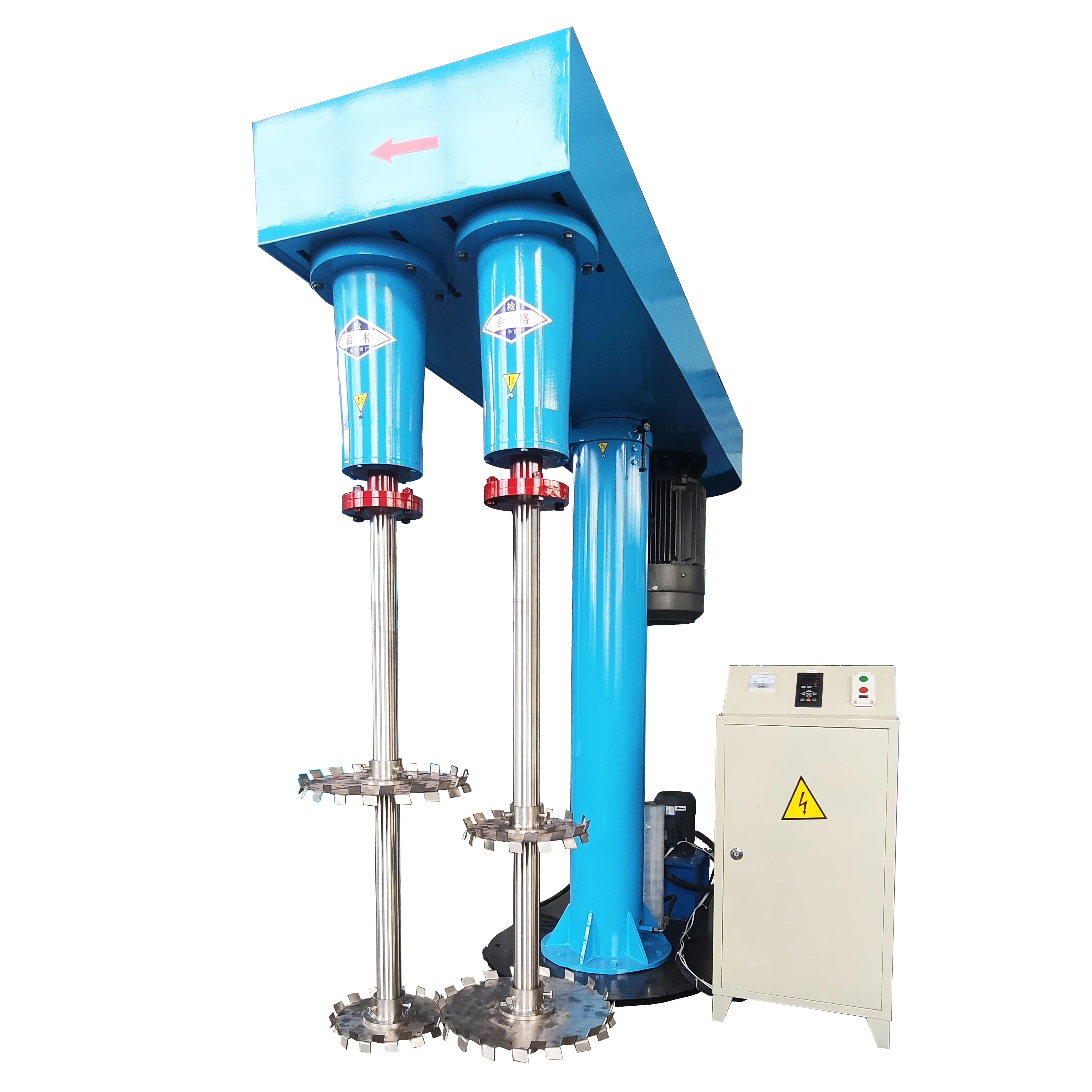

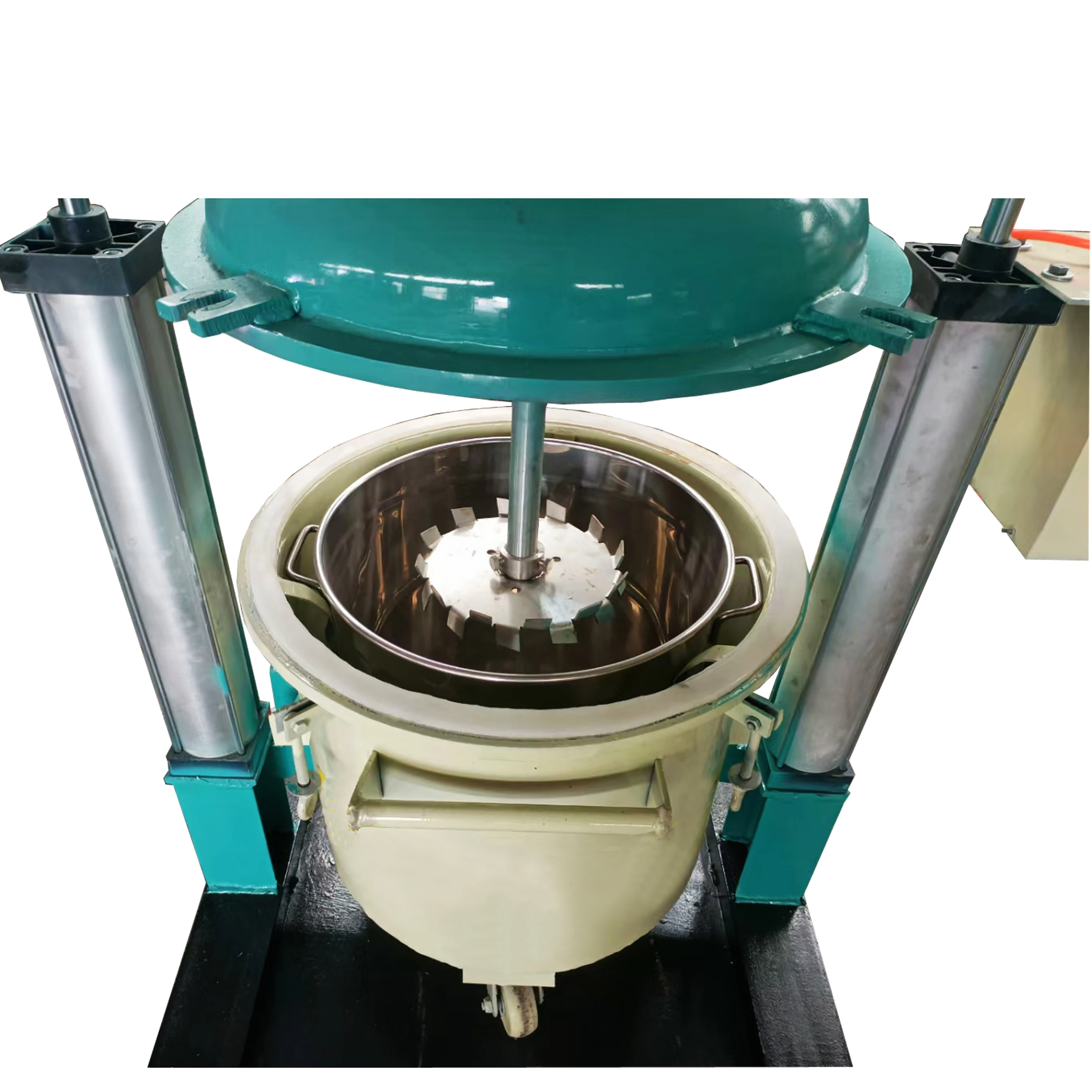

High Speed Disperser is used for mixing feeded powder and liquid. Powder are evenly dispersed into liquid under high shearing force which generates uniform white paste without aggregation. Many Styles High Speed Disperser Available:
* Disperser with scraper
* Vacuumed disperser
* Twin-shaft disperseremi
* Disperser with scraper
* Vacuumed disperser
* Twin-shaft disperseremi
Three Shaft Mixing Tank | ||

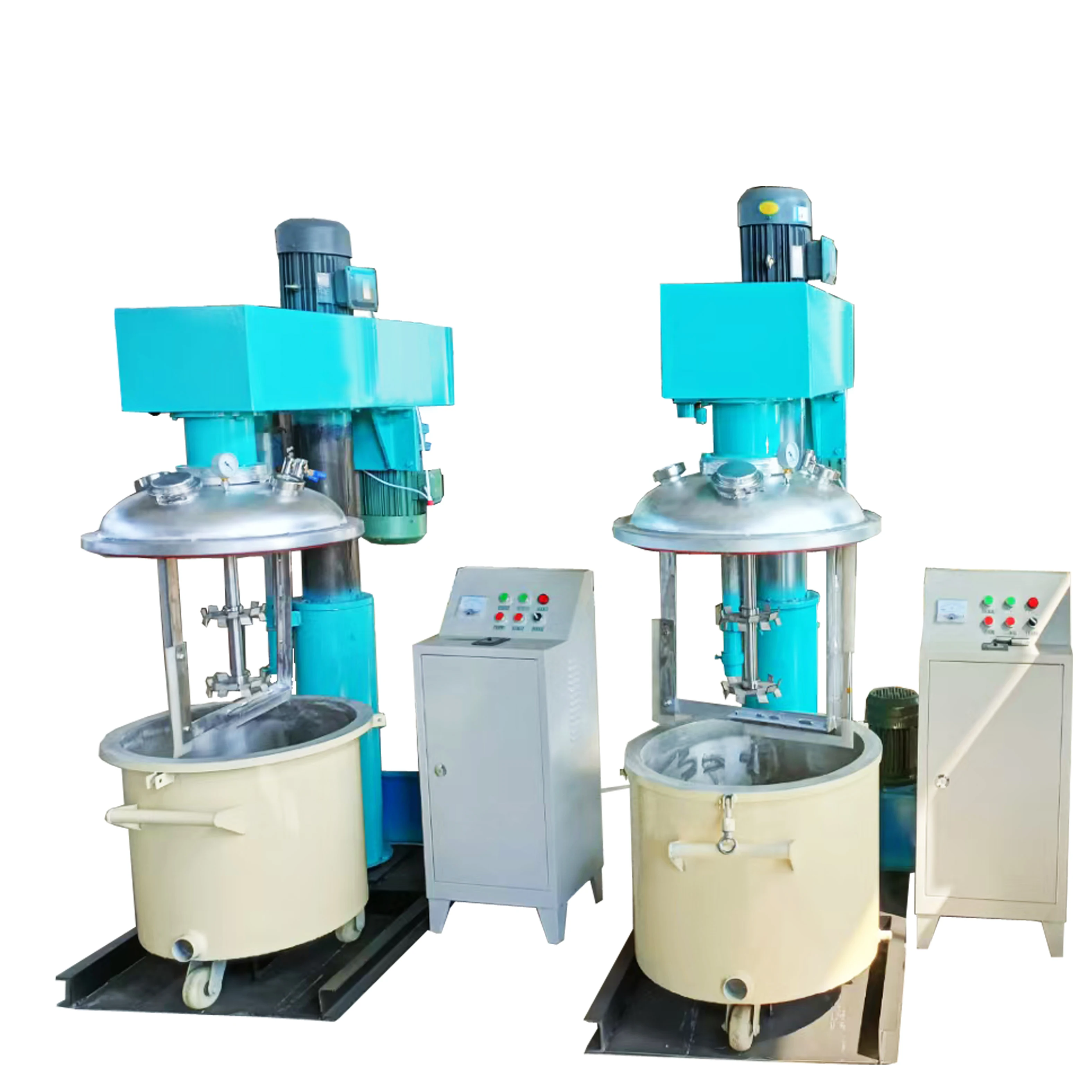

Three shaft mixing tank used to make different colors. Many Styles Available: * Vacuumed Type * Ex-proof Type * Dual Shaft Type * Tri-Shaft Type (Disperser + Emulsifier + Scrapper) | ||
Horizontal Sand Mill
Horizontal Sand Mill is used for milling paint into fine liquid, to achieve a better even mixing effect.
Many Styles Available:
* Ex-proof Type
* Nano Type
* Wear-Resisting or Anti-Corrosive Type
Basket Mill
High Speed Basket Mill is commonly used for color paste milling.
It can equip with more than 1 removable mixing tank, mixing and milling in continuous way.
Bag Filter Equipment, for filtering finished paint liquid.
Common mesh finess is 40/60 mesh, or as per request (for finer liquid, should go through Horizontal Sand Mill in before filter).

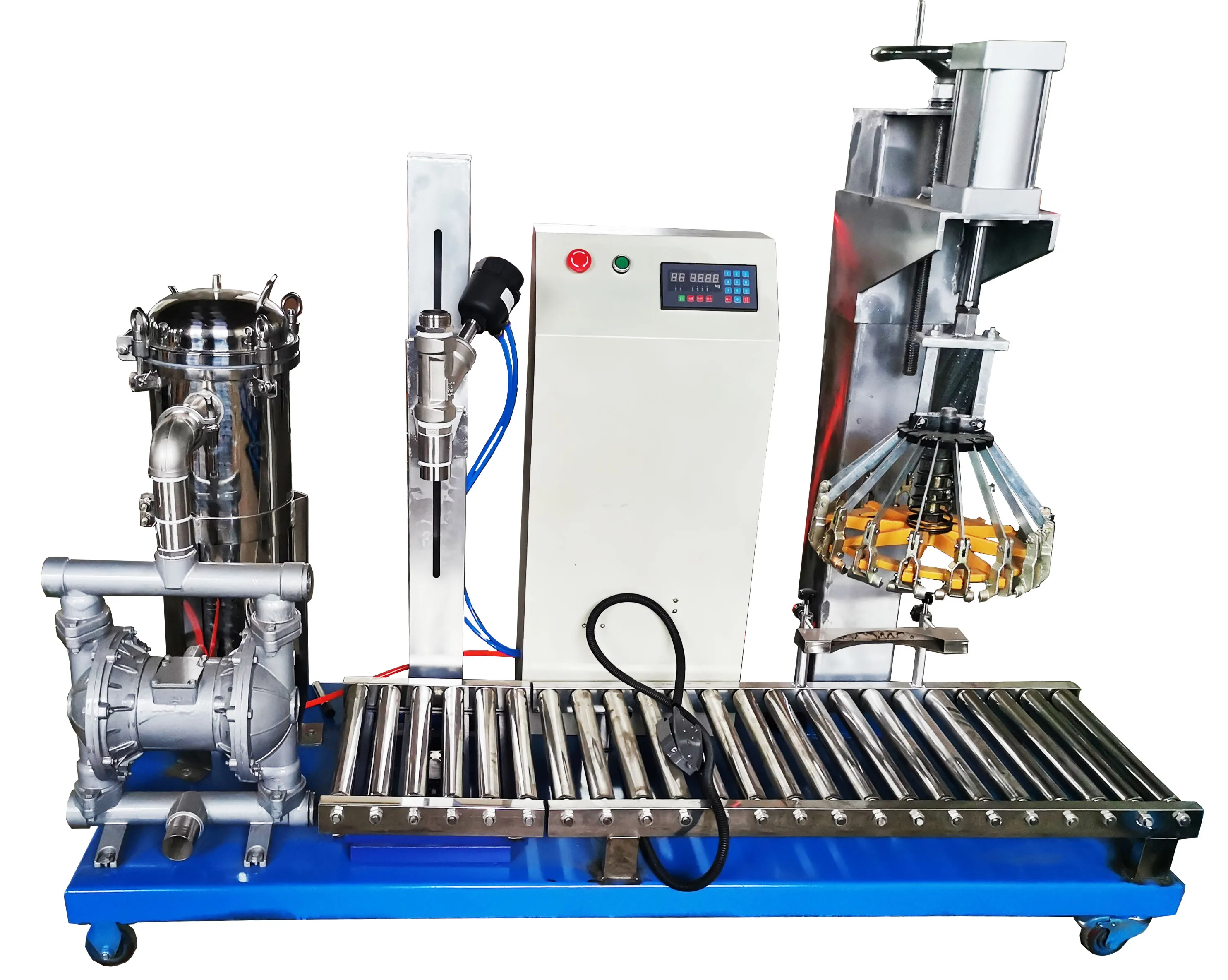

Semi-Auto Filling Machine, for filling and packing final product into barrels, common barrel size 10L/20L or as per request.
Company Profile
With 10 years experience in chemical industry,
Weihai Chem-Equip Machinery Co., Ltd is a professional supplier in various chemical equipment, we help customer design, develop and fabricate suitable production lines, from initial chemical process design, to workshop building and long term maintaince.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.
FAQ
Pre-Sale Stage
Provide Chemical Process , Project Drawing and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, Electric Circuit Drawing, All Related Test Report, Approval Certificate.
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
Arrange engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
