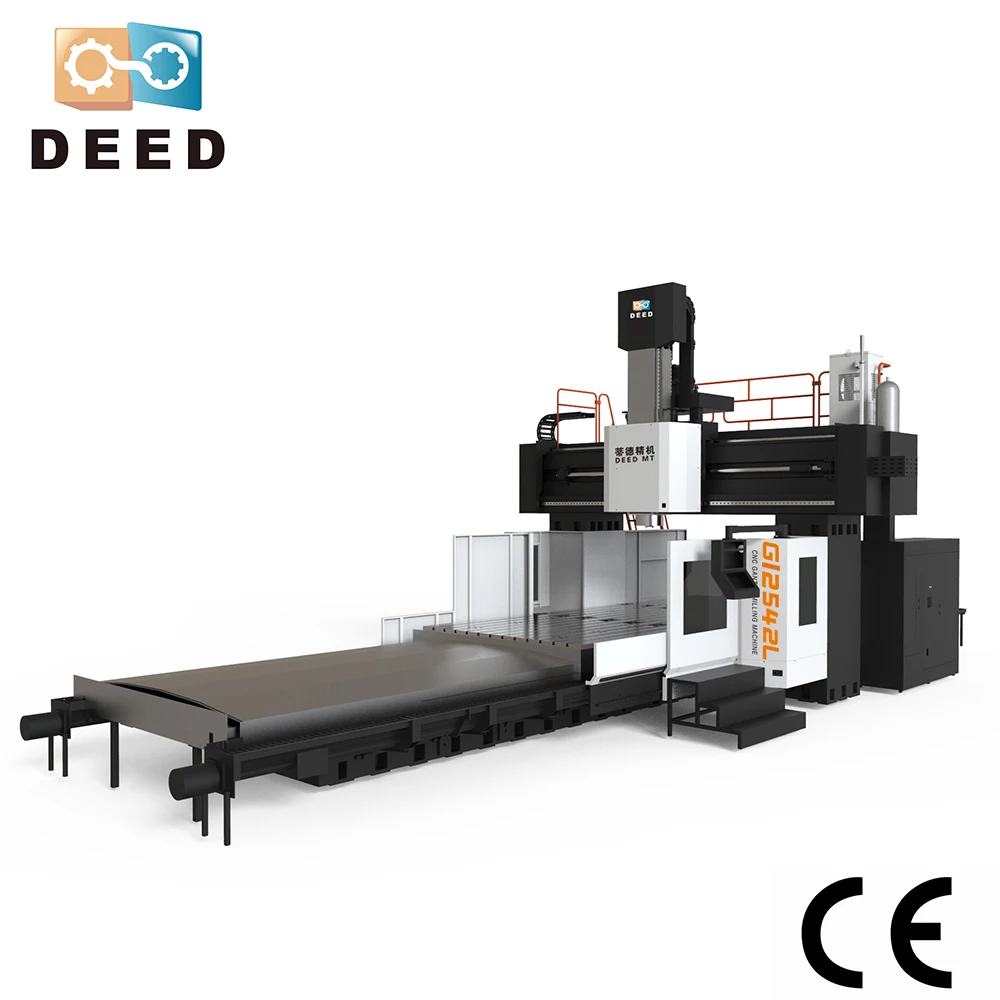

Gantry machining center DEED G12542L CNC Gantry Milling machine
- Category: >>>
- Supplier: Jinan Deed Precision Machine Tool Co. ltd.
Share on (1600320972913):
Product Overview
Description

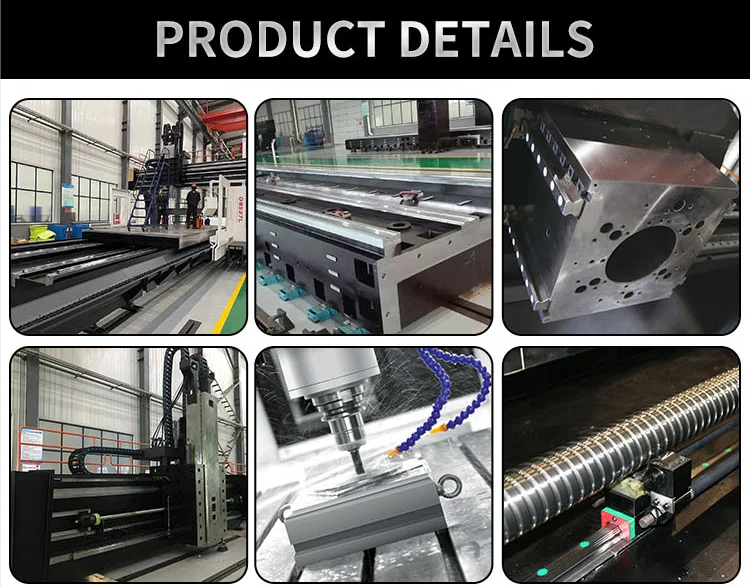

Product Details
| TRAVEL | |
| Distance between columns | 4200mm |
| X-axis travel | 12500mm |
| Y-axis travel | 4300mm |
| Z-axis travel | 1250mm |
| Spindle nose to table surface | 200-1450mm |
| SPINDLE | |
| Drive type | Direct drive+Gear reducer |
| Spindle taper | BT50 |
| Max. Speed | 6000 rpm |
| Spindle Power | 30/37 KW |
| Spindle Torque | 996.4/1228Nm |
| Spindle box section | 500*450mm |
| WORKTABLE | |
| Worktable width | 3500mm |
| T-Slot (size * quantity * space) | 28mm |
| Max load | 36000kgs |
| FEED | |
| Max.cutting speed | 6m/min |
| Rapid traverse | 8/10/10 m/min |
| ACCURACY | |
| Positioning(half-closed loop) | 0.054/0.029/0.018mm |
| Repeatability(half-closed loop) | 0.034/0.019/0.008mm |
| OTHERS | |
| Air Pressure | 0.65Mpa |
| Power Capacity | 80kVA |
| Machine Weight | 137000kgs |
| Machine Floor Space (L *W *H) | 31300*8000*6900mm |
Product Application
Exihibition&Customer
Company Profile
Certifications
Packing and Delivery
FAQ
