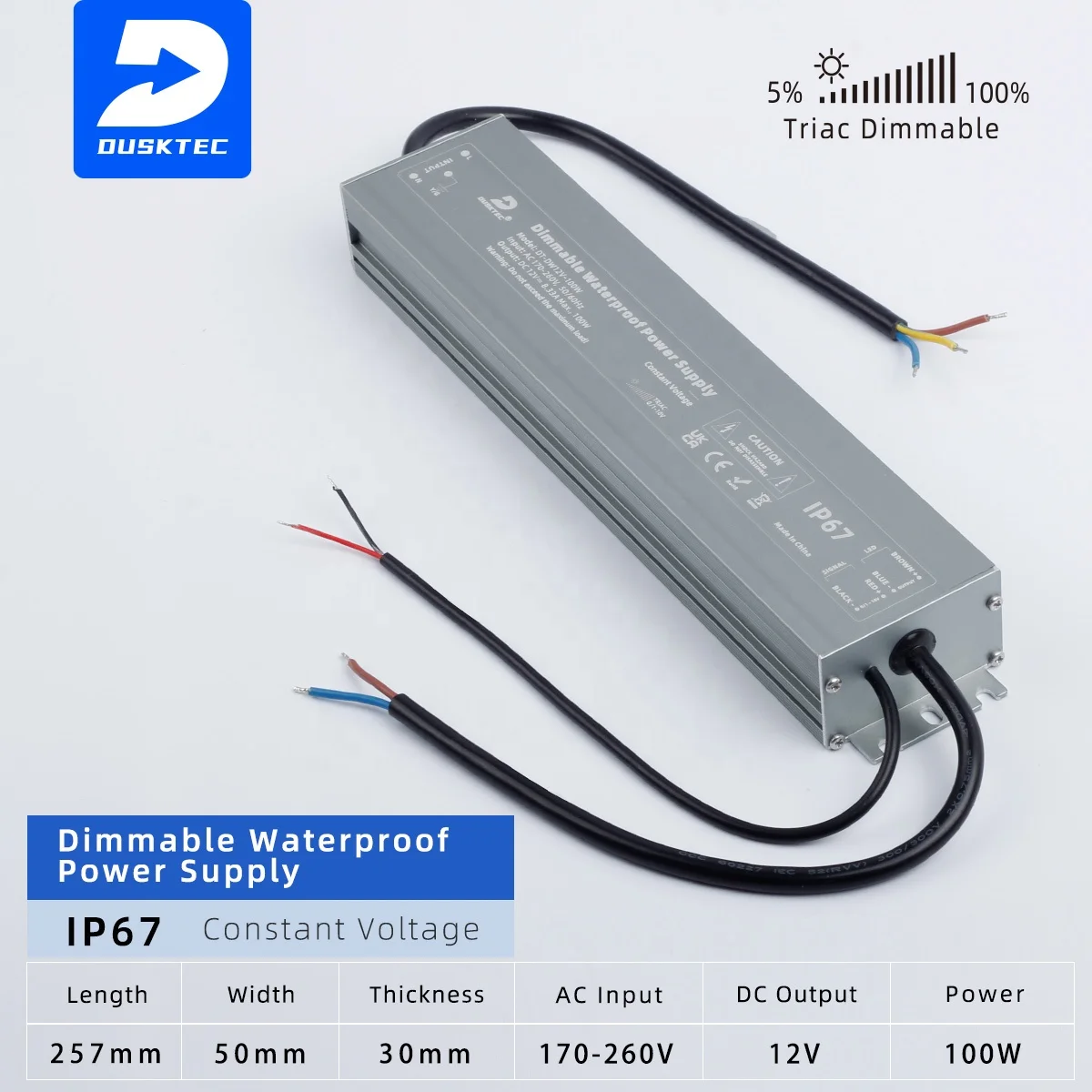

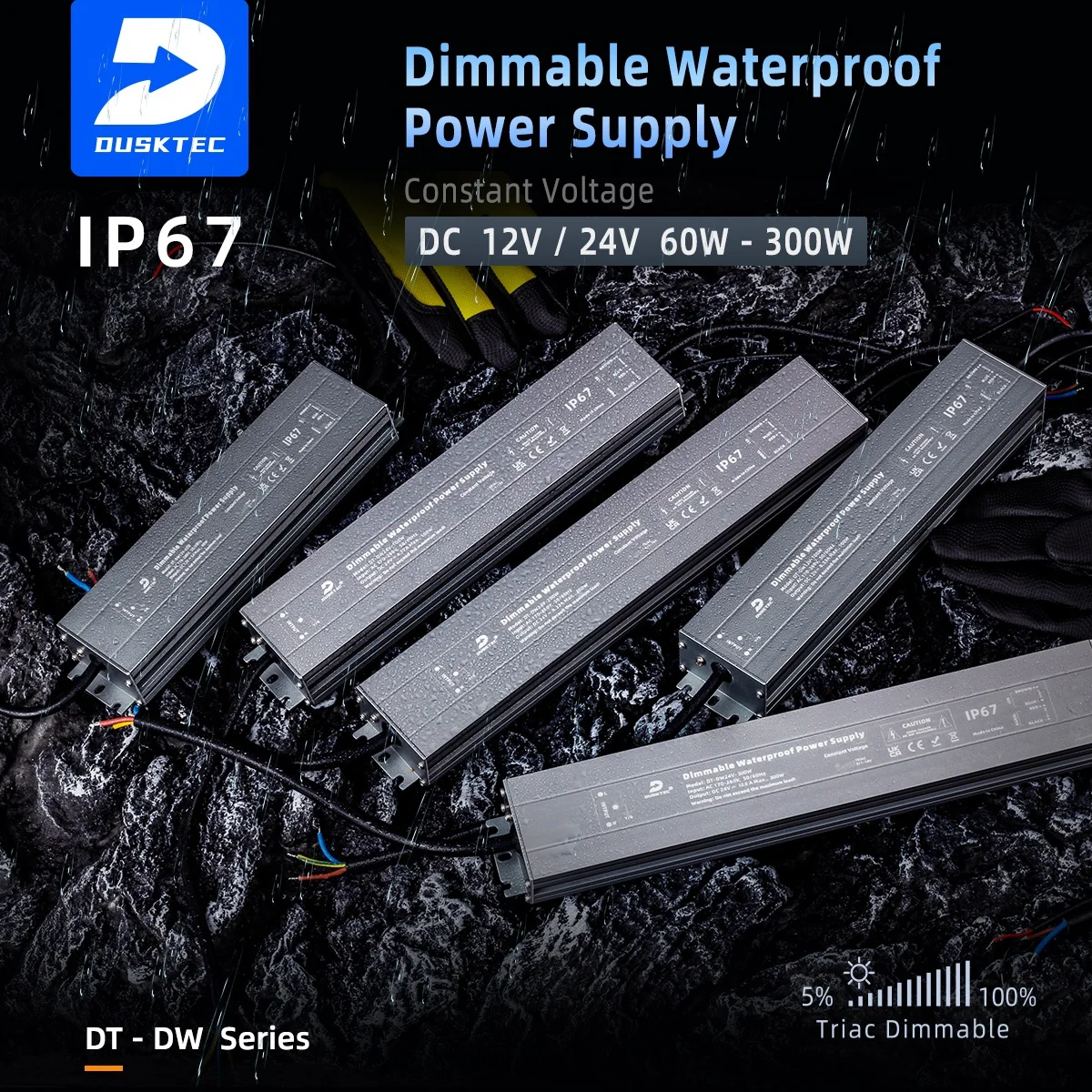

Dusktec водонепроницаемый 8330mA 8,33 Amp 100 Вт постоянное напряжение 170 260Vac 12Vdc Triac 0/1 10V затемняемый светодиодные импульсный источник питания светодиодного табло
- Category: Switching Power Supply >>>
- Supplier: Shenzhen Huanghun Technology Co. Ltd.
Share on (1600320985204):
Product Overview
Description

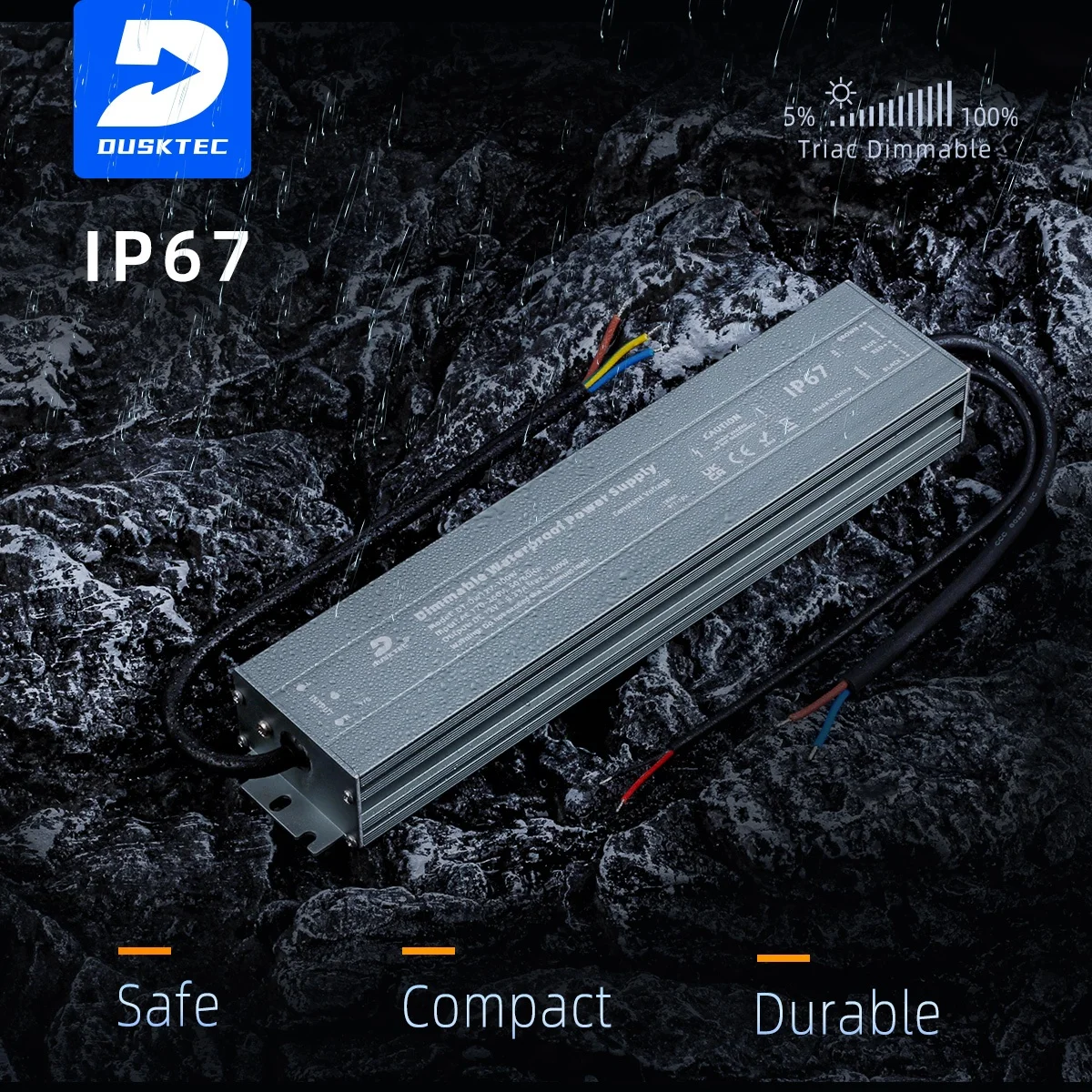

Safe
Fully certified. Protection against short-circuit, over-voltage, over-current and overload.
Compact

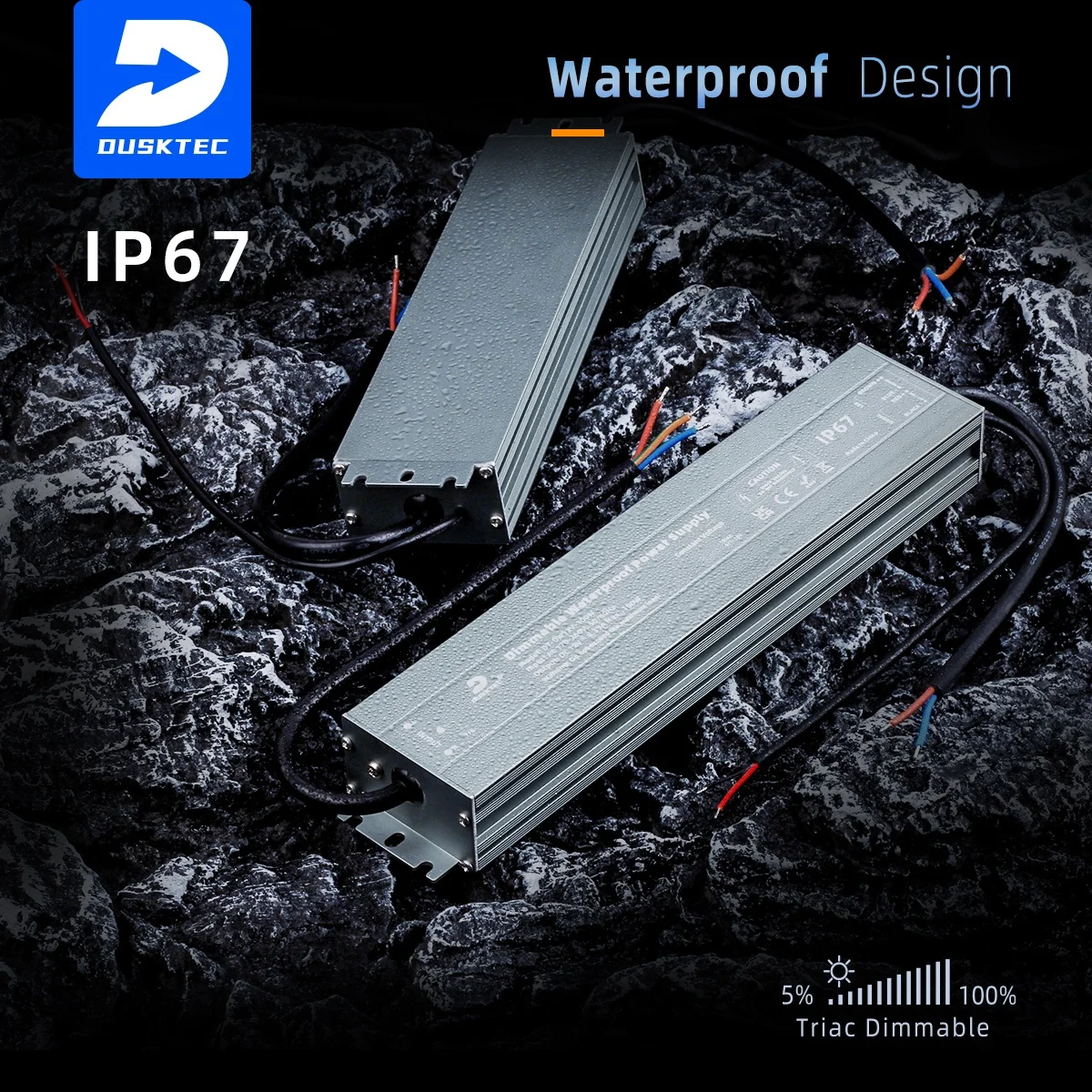

Waterproof design, heat dissipation optimized and able to withstand harsh outdoor conditions.
Durable
Well-constructed from quality components, smooth dimming, silent operation, zero radio interference, engineered to last.

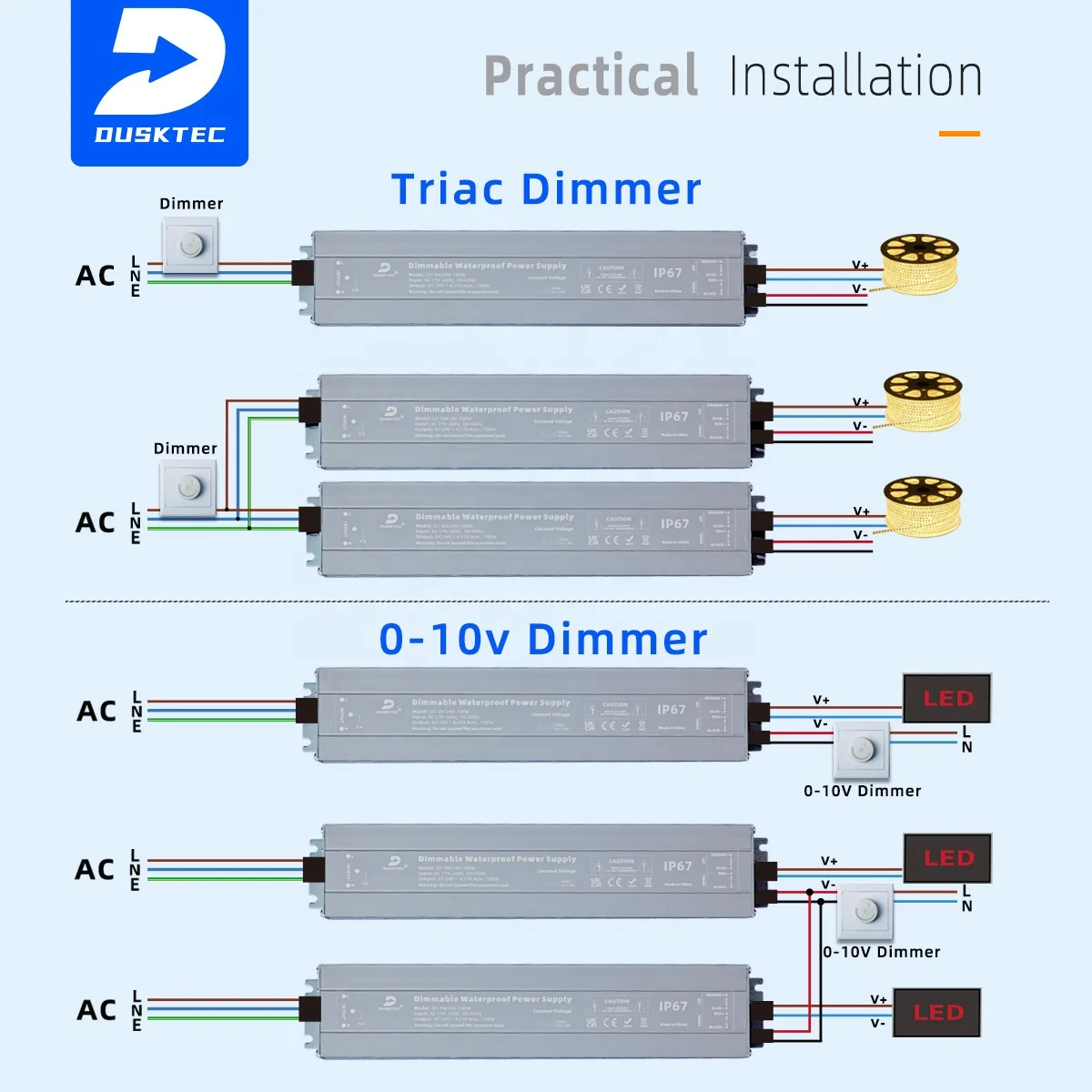

Applications
DT-DW Certifications Display
DT-DW Series Specificaions
DT-DW 12V Dimmable Waterproof Power Supply | ||||||||||||||
Model | Specification | Power | Output Current | Item Demension | Net Weight | Gross Weight | Units per Carton | |||||||
DT-DW12V-60W | IP67 Waterproof Triac Dimmable 0/1~10V Dimmable Input: AC 170-260V, 50/60Hz Output: DC 12V Constant Voltage | 60W | 5A | 205*50*30mm | 450g | 473g | 30pcs | |||||||
DT-DW12V-100W | 100W | 8.33A | 250*50*30mm | 550g | 578g | 22pcs | ||||||||
DT-DW12V-150W | 150W | 12.5A | 300*50*30mm | 700g | 735g | 20pcs | ||||||||
DT-DW12V-200W | 200W | 16.66A | 300*50*30mm | 750g | 788g | 20pcs | ||||||||
DT-DW12V-250W | 250W | 20.83A | 300*50*30mm | 750g | 788g | 20pcs | ||||||||
DT-DW12V-300W | 300W | 25A | 300*50*30mm | 760g | 798g | 20pcs | ||||||||
DT-DW 24V Dimmable Waterproof Power Supply | ||||||||||||||
Model | Specification | Power | Output Current | Item Demension | Net Weight | Gross Weight | Units per Carton | |||||||
DT-DW24V-60W | IP67 Waterproof Triac Dimmable 0/1~10V Dimmable Input: AC 170-260V, 50/60Hz Output: DC 24V Constant Voltage | 60W | 2.5A | 205*50*30mm | 450g | 473g | 30pcs | |||||||
DT-DW24V-100W | 100W | 4.16A | 250*50*30mm | 550g | 578g | 22pcs | ||||||||
DT-DW24V-150W | 150W | 6.25A | 300*50*30mm | 700g | 735g | 20pcs | ||||||||
DT-DW24V-200W | 200W | 8.33A | 300*50*30mm | 750g | 788g | 20pcs | ||||||||
DT-DW24V-250W | 250W | 10.41A | 300*50*30mm | 750g | 788g | 20pcs | ||||||||
DT-DW24V-300W | 300W | 12.5A | 300*50*30mm | 760g | 798g | 20pcs | ||||||||
Product Range Gallery View
LED Driver
(DT-NS Series)
Mini compact, easy to tuck away, constant voltage, ranging from DC 12V/24V 6W to 75W.
Power Supply
(DT-NT Series)
Slim thin, easy to install, constant voltage, ranging from DC 12V/24V 60W to 400W.
Dimmable LED Driver
(DT-DS Series)
ranging from DC 12V/24V 12W to 80W.
Dimmable Power Supply
(DT-DT Series)
One Step Ahead
Dusktec is a market driven research and development supplier in switching power supply.
Our roots began a decade ago in the UK before we recently extended our operations to Shenzhen, the “Silicon Valley” of China,
under Shenzhen Huanghun Technology Co., Ltd.
Market Driven R & D
Market driven R & D is our underlying principle.
It’s not just what we can make, It’s about what makes us.
It’s you！
Flexible Partnership
We cover a versatile range of specialized fully certified (CE, UKCA, RoHs etc.) products from the standard power supply to the dimmable and the waterproof ones. Coupled with flexible personalized OEM, ODM and RTS solutions, we aim to make us the one-stop sourcing partner for your LED lighting power supply and other applicable needs.
Decade Long Experience

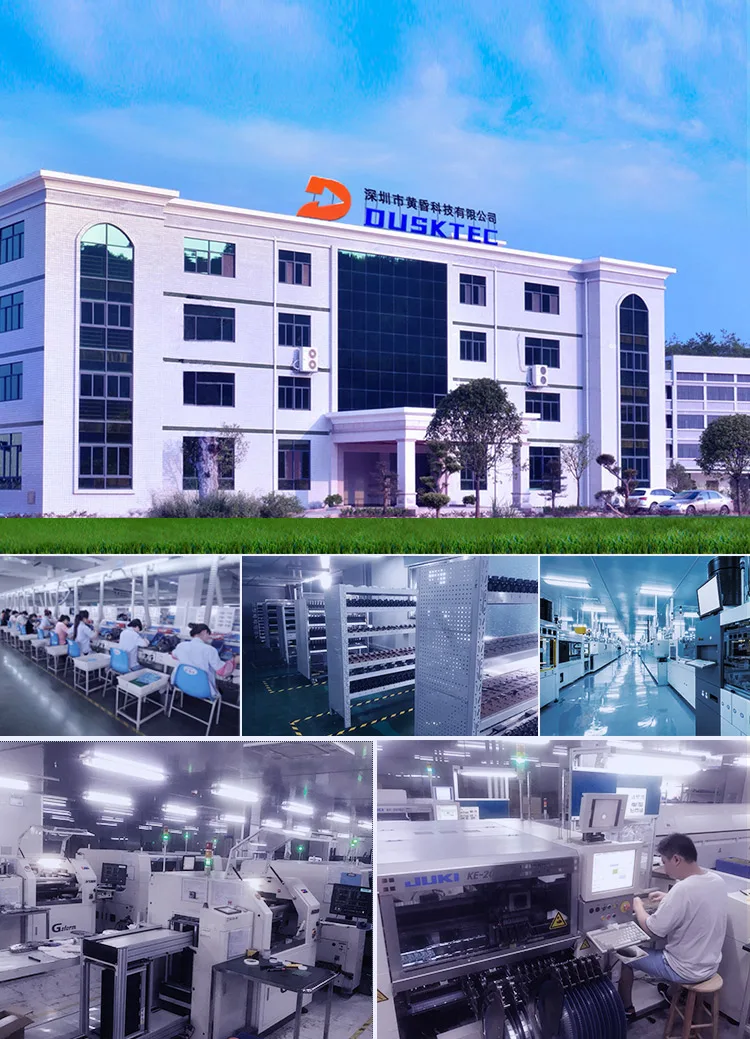

Our associated manufacturing plant houses automatic wave soldering machines, surface mount machines, automatic insertion machines and multi-function testing machines with a daily production capacity of 10,000 units. Our 10-man strong R & D team is not just good with their hands, but they are happily to provide any technical support over the phone at your will.
Production Process Outline
It’s not always easy to get something done right, the process can be challenging and tedious.
We are determined to do our part, so you can better do yours.
Every Detail Counts!
Focus on Delivering Value
We understand the importance of the supply chain and logistics in the ever-increasing globalized landscape under the new era of iinformation. At Dusktec, we no longer just strive to make good products, we want to get them to you efficiently and cost effectively.
Dedicated Partner Support
With our decade long experience in cooperating with many of our European partners, we understand what you value the most, rest assured you are in good hands. So, get connected with us today, sit back and leave the rest to us!
Frequently Asked Questions
A: Contact us and we will handle it.
Q2. Can I add my own logo?
A: Sure, we offer flexible OEM & ODM solutions. You can have your logo on the product, packaging, user manual, you name it.
Q3. What is your MOQ?
A: None.
Q4. What is the production lead time?
A: We keep a ready to ship stock level on certain product lines, others usually take 2-4 weeks.
Q5. What is the delivery time?
A: We offer shipping via sea, road, rail and air. The shipment time depends on the choice of
transportation.
Q6. What is the warranty?
A: We offer a minimum two years warranty along with a comprehensive after sale service.
Q7. Are the products certified?
A: Yes, we are fully certified for the EU and UK markets. If you require any other forms of
certificates, do get in touch.
certificates, do get in touch.
Q8. Are you a manufacturer?
A: For our involvement in the production line process, we may as well be. Do feel free to pay us a visit at any time.
