M7 Mount F2.0 Wide Angle Lens 2mm for VR camera Oculus
US $2.50-$3.00
M12 Mount Lens Holder Automatic M12 Filter Switch CCTV Surveillance Camera Accessories Device Ahn IR CUT
- Category: CCTV Lens >>>
- Supplier: Shenzhen,Hanvision,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Just send us an inquiry then you can get free sample ^_^
Advantages
1.Offer OEM&ODM service like add logo and customized package.
2.We have R&D department and provide good after-sales.
3.Select more than 600 excellent accessory suppliers to support customization of various functions and appearances.
4.Six years’ experience in assembling with high quality control.
Recommended by seller
Put Your Good Idea into Reality and Click “Contact Us”
Packing List
1PCS M12-1/2
Product Description

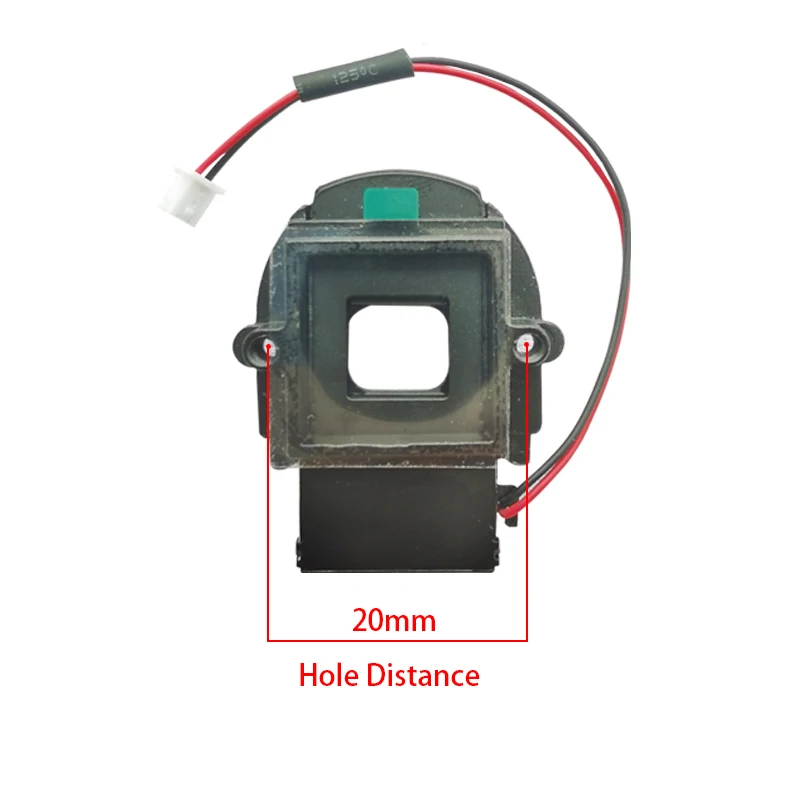

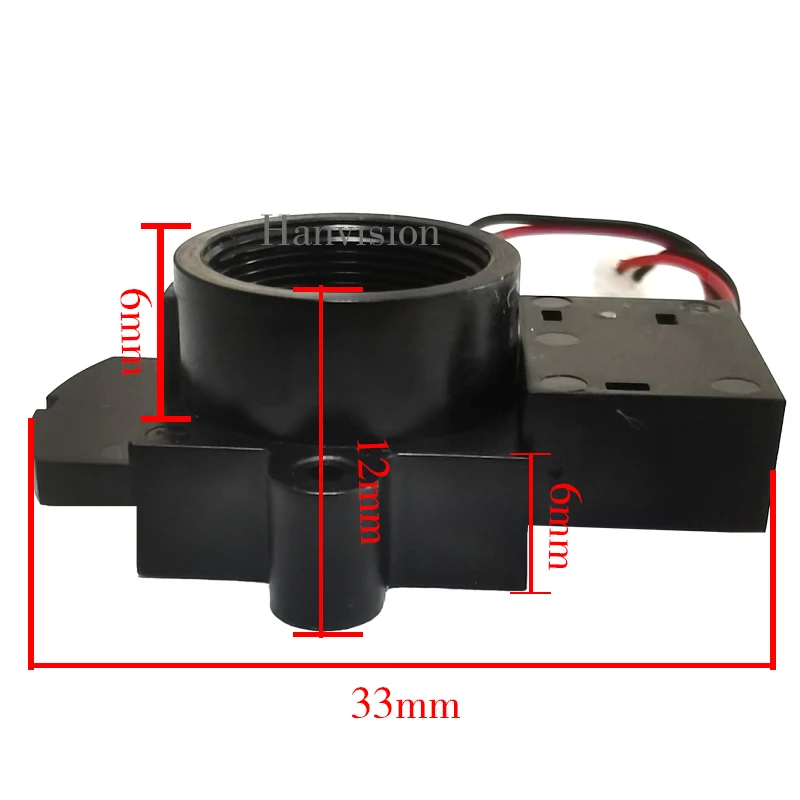

Day &Night IR Filter Changer
NO | Project | Condition | UNIT | Standard |
1 | Motor Type | Excitation type | - | Magnet moving |
2 | Motor size | Assembly exterior | - | 32.1×28.1×6.1[mm] |
3 | Driving direction | Rotate Clockwise From The Motor | - | Open* |
4 | IR Filter IR filter glass size | IR/AR | - | 8.2mm×7.5mm×0.21mm |
5 | Dummy glass size | AR | - | 8.2mm×7.5mm×0.21mm |
6 | Coil Resistace | 20℃ | Ω | 50±5%Ω |
7 | Drive Angle | Motor | degree | 69°±1.5° |
8 | Coil Diameter | High temperature resistant autolysis line | mm | 3uew0.07 |
9 | Terminal Line | AWM 3302-30# Red/blue halogen-free electronic wire，7*0.12TC（Copper wire twisted densely）OD=0.6 L=60MM Plastic shell 1.25Y Terminal 1.25T | mm | 2pin*1.25mm |
10 | Coil polarity | When permitted at pin1+ voltage | - | Open |
11 | control voltage | -20～80℃ | v | 3.3V~12V |
12 | Operating environment | -20～80℃ | - | temperature -20～80℃ humidity 10～90% -20～80℃ 10～90% Relative humidity |
13 | Storage environment | -20～80℃ | - | temperature -20～60℃ humidity 10～90% -20～60℃ 10～90% Relative humidity |
IR FILTER&Dummy Glass
IR Filter
ITEM | Result(Specification) |
Cut Off –Reference Wavelength(nm)/ | 650nm±10nm |
Transmittance between 420-590nm/ 420-590nm | Tave≧95% /≧95% |
Transmittance between700-1100nm/ 700-1100nm | Tave≦1% /≦1% |
Dummy Glass
ITEM | Result(Specification) |
Transmittance between 420-1100nm/ 420-1100nm | ≧95% |
Dimension
ITEM | Specification | ||
M(IR+AR) | Width(X) | 7.5+0.05/0mm | |
Length(Y) | 8.0+0/-0.05mm | ||
Thickness(T) | 0.21+/-0.02mm | ||
IR Filter Spectrum
Specification
