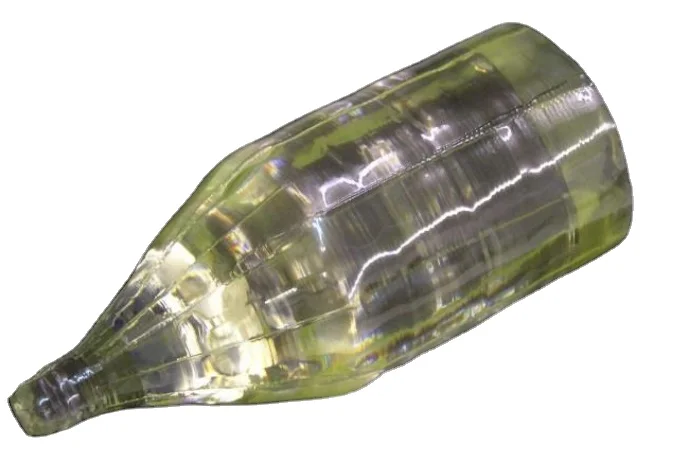

Terbium Scandium Aluminum Garnet Crystal

Product Overview

Description

•


  TSAG





• TSAG is a key isolator material for next generation fiber laser. As an ideal magneto-optic crystal in visible and infrared regions,TSAG has the advantages of high Verdet constant,excellent thermal and mechanical properties.

Main Features of TSAG:

     •   Large Verdet constant(48radT-1m-1 at 1064nm),about 20% higher than that of TGG;

     •   Low absorption(<3000ppm/cm at 1064nm),about 30% less than that of TGG;

     •   High power compliant;

     •   Low thermally-induced birefringence;

     •   Making the isolator small.



Main Applications:

     •   Faraday Rotator;

     •   Optical Isolator.



Transmittance Range(bulk/uncoated)	400-1600nm
Crystal Structure	Cubic,Space group Ia3d
Chemical Formula	Tb3Sc2Al3O12
Lattice Parameter	a=12.3Å
Growth Method	Czochralski
Density	5.91g/cm3
Melting Point	1970℃±10℃



CASTECH offers:

Orientation	±15′
Wavefront Distortion	<λ/8
Extinction Ratio	>30dB
Diameter Tolerance	+0.00mm/-0.05mm
Length Tolerance	+0.2mm/-0.2mm
Chamfer	0.1mm @ 45°
Flatness	<λ/10 at 633nm
Parallelism	<3′
Perpendicularity	<5′
Surface Quality	10/5
AR coating	<0.3% @ 1064nm



Applications:

Isolator

Faraday rotator
