Neware TMAX Cylindrical Cell 8 Channel 5V6A Battery Tester Analyser Capacity Testing Equipment

Items

Values

Input AC

AC 220V/110V ±10% / 50Hz

Input power

425 W

Resolution

AD:16bit;DA:16bit

Input impendence

≥1MΩ

Voltage

CV output range

25mV~5V

Min discharge voltage

1.0V for universial holder,1.5V for 2m cable

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS

Current

Output range/channel

Range1: 0.5mA-100mA; Range2: 100mA-6A

Accuracy

± 0.05% of FS

CV cut-off current

Range1: 0.2mA; Range2: 12mA

Stability

± 0.05% of FS

Power

Output power/channel

30

W

Stability

± 0.1% of FS

Time

Current rsponse time

Max rising time:1ms

Working step time

≤(365*24)h/step Time format-00:00:00.000(h,m,s,ms)

Data record

Data record conditions

Min data record interval:100ms

Min voltage change:10mV

Min current change:Range1: 0.2mA; Range2: 12mA

Frequency

10Hz

Charge

Charge modes

CC,CV,CCCV,CP

Cut-off condition

Voltage,Current,Time,Capacity,-V

Discharge

Discharge modes

CC,CP,CR,CV

Cut-off condition

Voltage,Current,Time,Capacity,-V

Pulse

Charge

CC,CP

Discharge

CC,CP

Min pulse width

500ms

Pulse counts

Up to 32

Chg and Dischg switch

Supported

Cut-off condition

Voltage,Time

DCIR

Supported

Cycle

Max cycles

65535

Max steps

254

Cycle nest

3

Protection

Safety protection

Power-off data protection

Off-line operation mode

User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.

Channels feature

Independent pairs of closed loop for constant

Channels control mode

Independent control

Data acquisition method

Kelvin connection

Noise

<85dB

Database

MySQL

Communicatin

TCP/IP

Operating system

Windows 7/8/10 64 bit

Data export

EXCEL,TXT,CSV,PDF,Plot/Graph

Disk drive

500GB

Communication port

Ethernet port

Leak Current

0.0000005mA

Channels per unit

8

Operation and storage environment requirement

Items

Values

Operation environment temperature

0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 50ppm /℃)

Storage environment temperature

-10℃~50℃

Operation environment humidity

≤70% RH(no moisture condensation)

Storage environment humidity

≤80% RH(no moisture condensation)

Clamps and dimensions

Items

Values

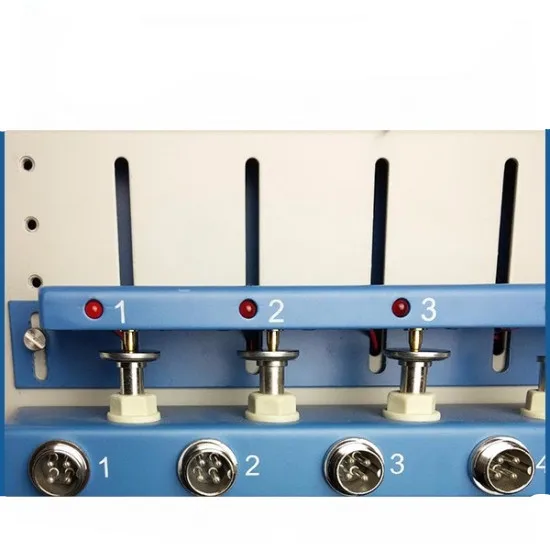

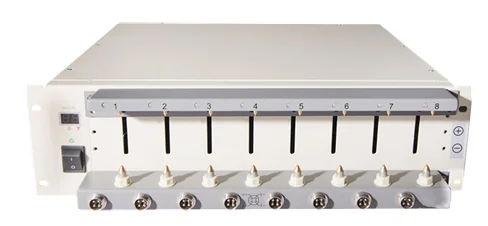

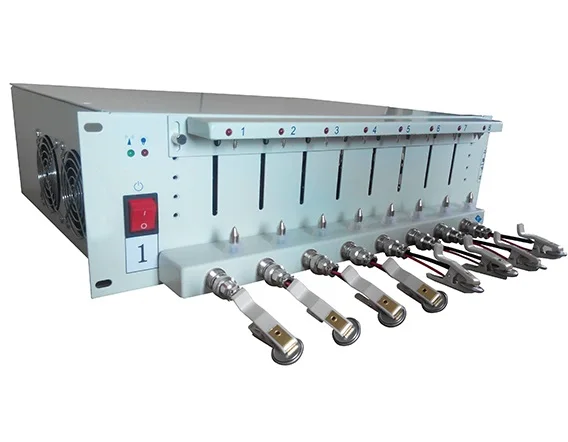

Tester pictures

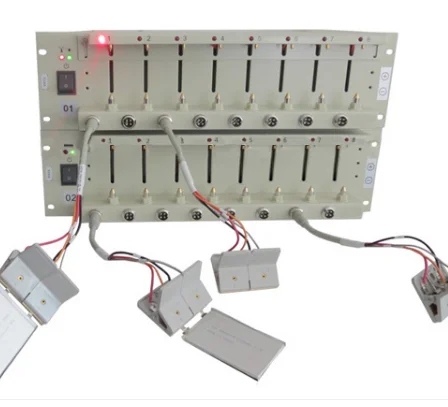

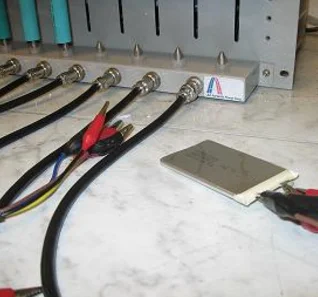

Clamps pictures

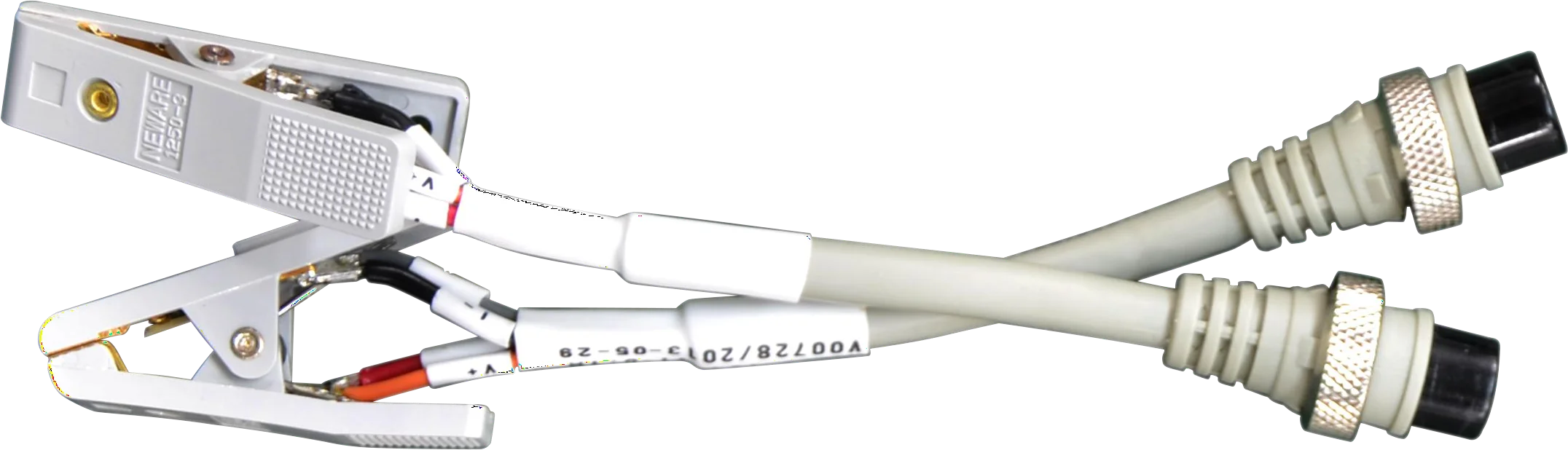

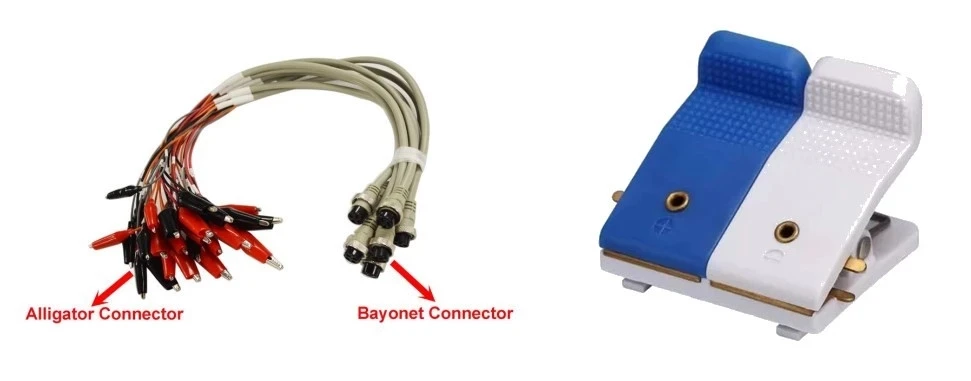

Alligator

Polymer

Coin

Pictures just for reference

Dimensions(W*D*H)(mm)

3U1F,480*380*130
