Product Overview

Description



IR Heating tech






Single Tube Design

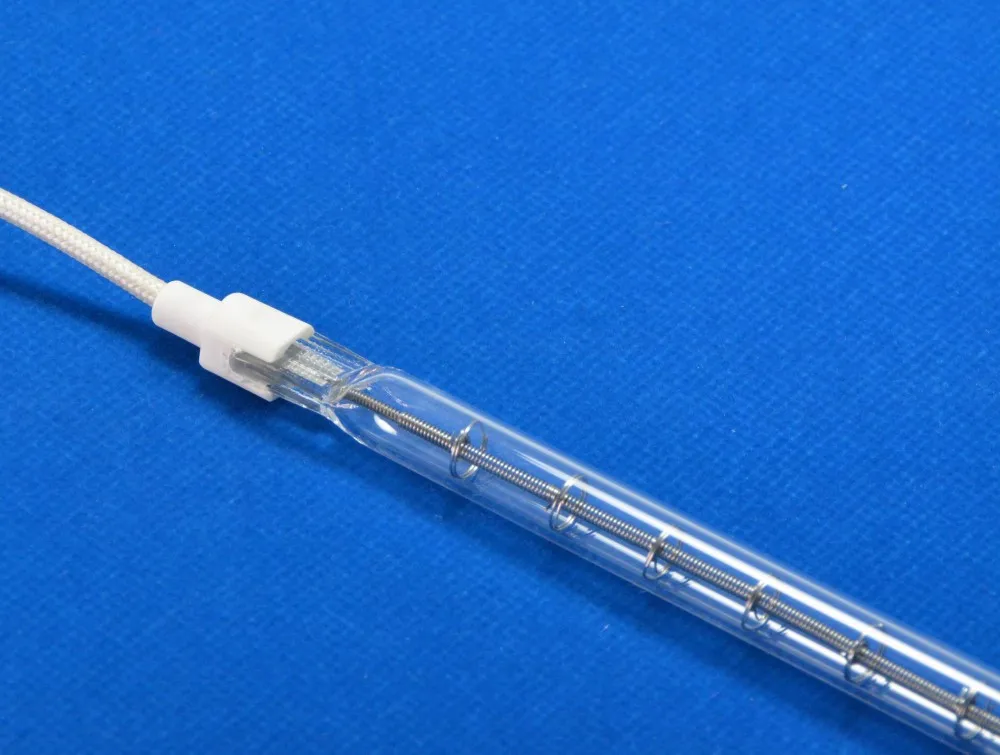

Short Wave Single Tube IR Lamp
Peak wavelength
1.0-1.4 μm
Heating filament
Tungsten
Filament working temperature
1800℃-2200℃
Response time
1 second
Diameter
10mm
11mm
12mm
14mm
15mm
19mm
Max. Length
1.1m
1.1m
1.5m
2.0m
2.0m
2.5m
Reflector
White ceramic or Gold reflector
Burning position
Horizontal or Vertical

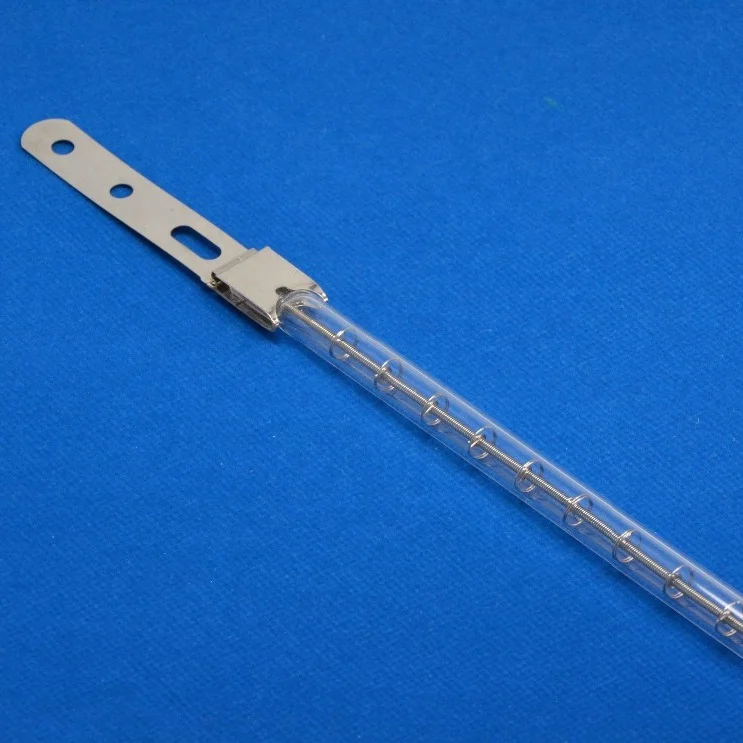

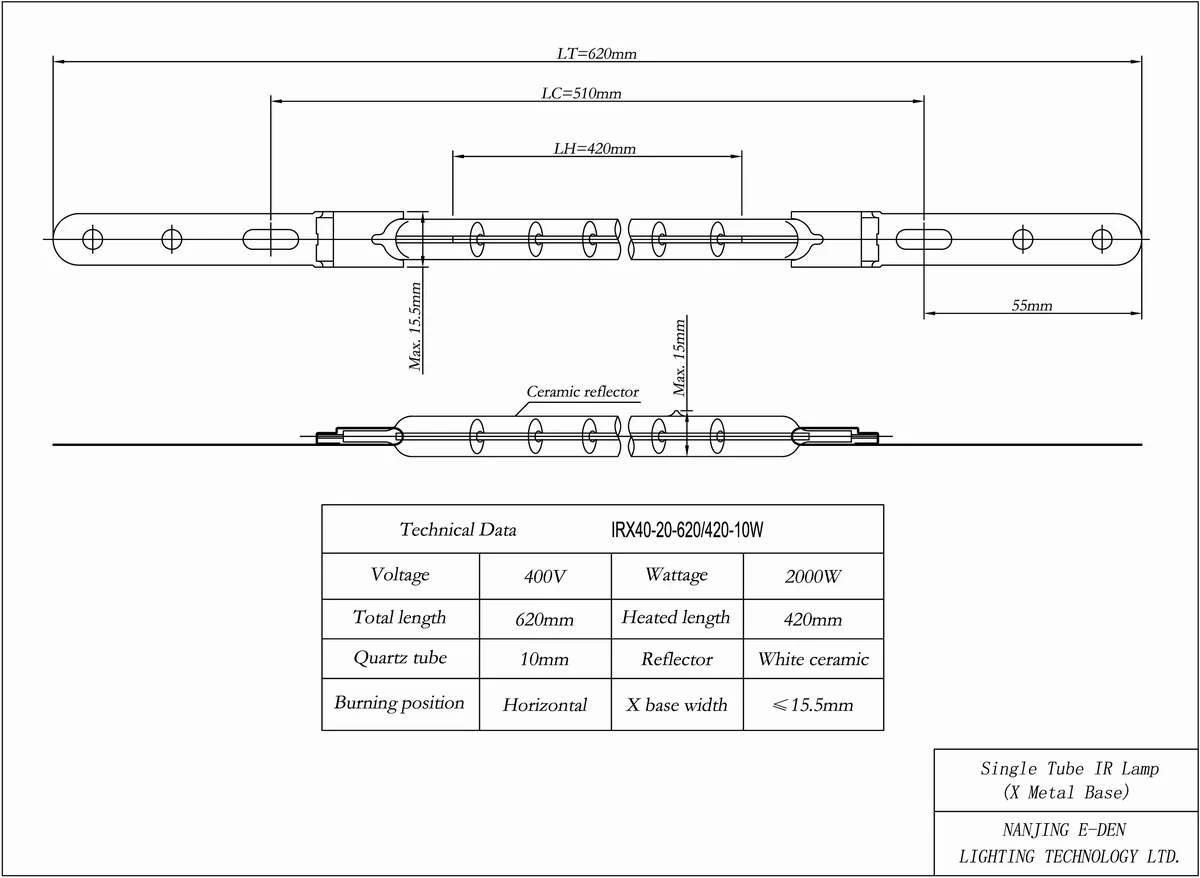

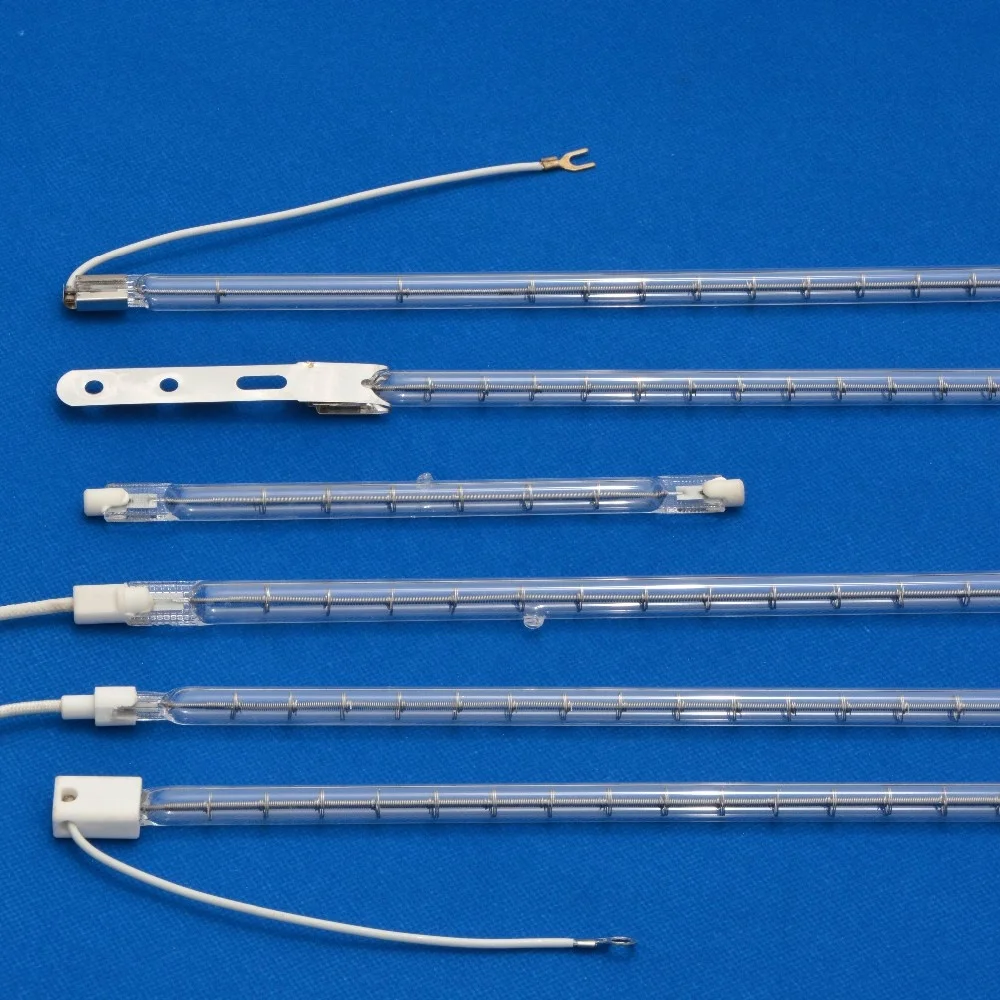

According to the different ending caps, single tube infrared lamps can be produced in the following different types.

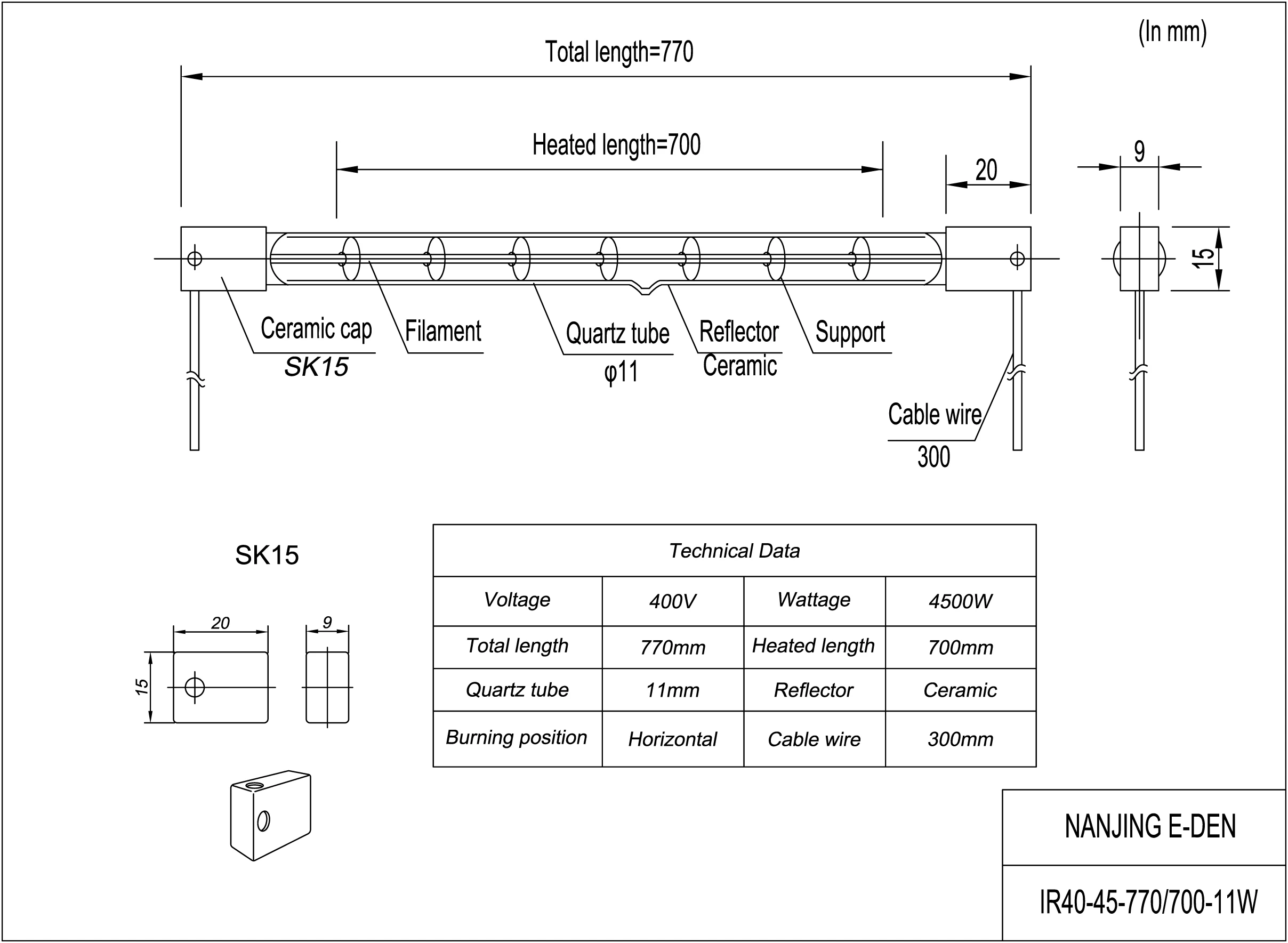

Halogen Single Tube Quartz Infrared Heater Lamp For Rubber/Plastics Heating Process
Heating Temperature: 20℃-300℃
Rated Heater Lamp Voltage: 400V
Rated Heater Lamp Power: 4500W








Standard Product


Total length (mm)
Heated length (mm)
Voltage (V)
Wattage (W)
Diameter (mm)
Reflector
End cap
Burning position
120
60
240
500
10
No
E/R7s
Universal
200
130
230
800
10
White
D
Horizontal
240
160
240
1000
10
Gold
D
Universal
300
230
230
1200
10
No
A/SK15
Horizontal
340
270
115
1000
10
No
E/R7s
Horizontal
350
280
235
2000
11
White
A/SK15
Vertical
355
285
400
2500
12
White
A/SK15
Vertical
355
285
400
3000
12
White
A/SK15
Vertical
380
310
400
3000
12
White
A/SK15
Vertical
500
430
230
2500
12
No
C
Horizontal
550
480
230
2500
11
No
D
Vertical
550
480
230
3000
11
Gold
D
Horizontal
620
550
230
2500
11
No
A/SK15
Vertical
630
560
230
2000
11
White
C
Vertical
680
610
230
2500
12
No
A/SK15
Horizontal
680
610
400
3500
12
No
A/SK15
Horizontal
800
700
230
3000
12
No
D
Horizontal
840
700
230
3000
12
No
D
Horizontal
900
800
230
2800
12
White
D
Horizontal
1000
900
230
3000
12
No
A/SK15
Horizontal
1100
1000
400
4000
12
White
A/SK15
Horizontal
1150
1070
400
3500
12
No
D
Horizontal
1200
1100
230
3000
15
White
A/SK15
Horizontal

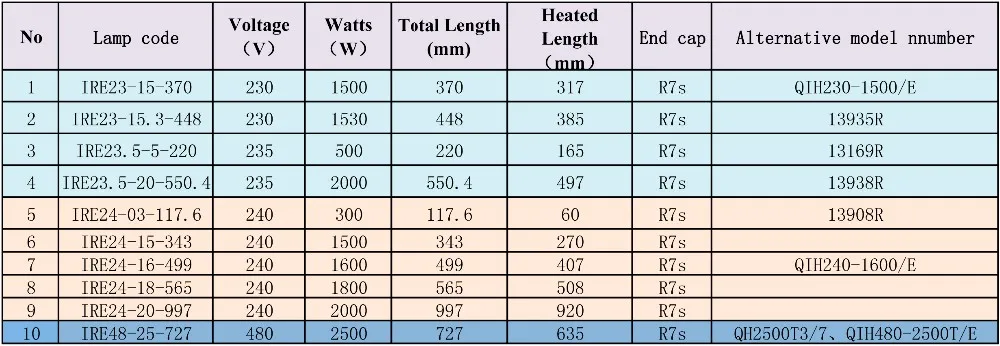

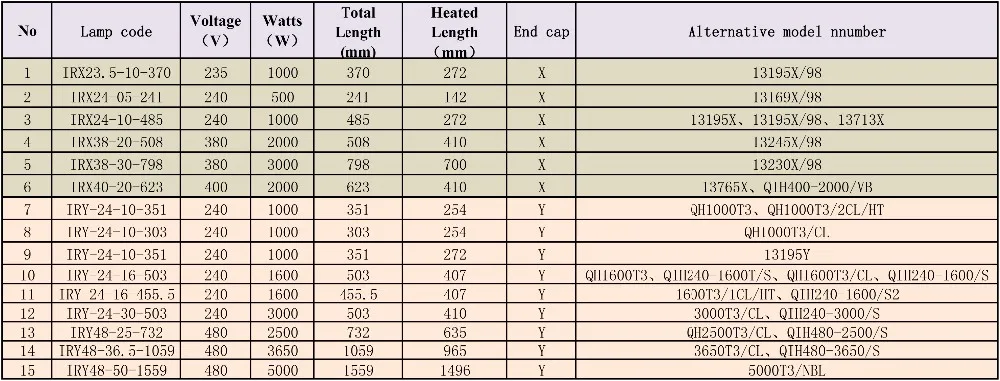

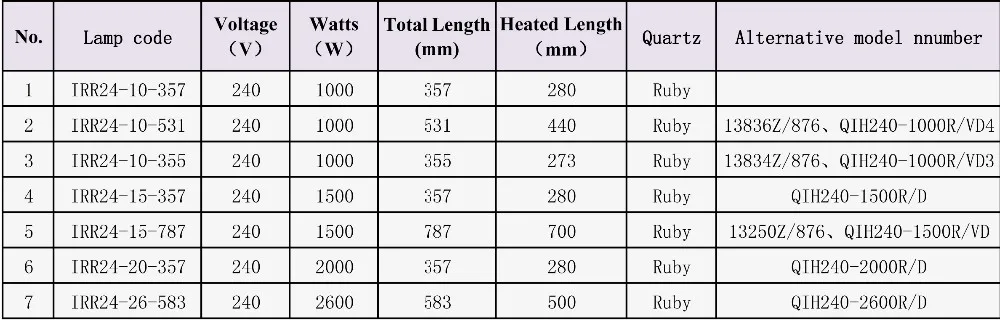

Alternative Models






















For other more specification IR lamps or heating solution, please feel free to contact with us! https://edenlamp.en.alibaba.com/


Please Do Not Choose Bad Quality Lamps, Lost Money, Waste Time!


NANJING E-DEN LIGHTING TECHNOLOGY LTD.一A Professional 10 years' IR HEAT LAMP MANUFACTURER


Nanjing E-DEN Lighting Technology Co., Ltd.
a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries.We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, we always do our best to provide our customers highest quality products and most satisfactory after-sales service.

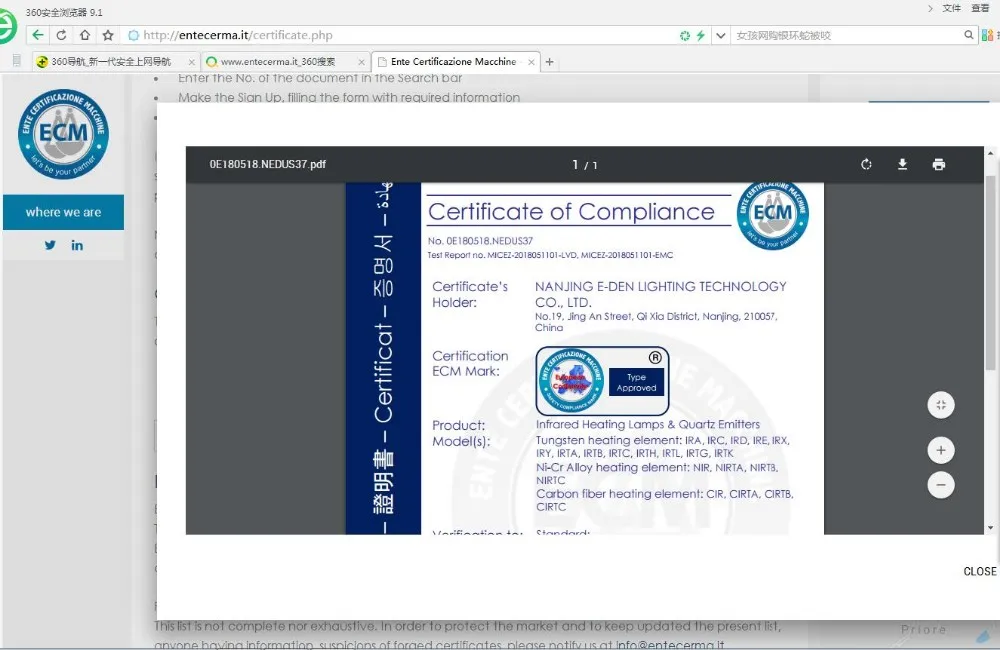

\t\t\t\t\t\t\t\t\tCertificates \t\t\t\t\t\t\t
