Product Overview

Description

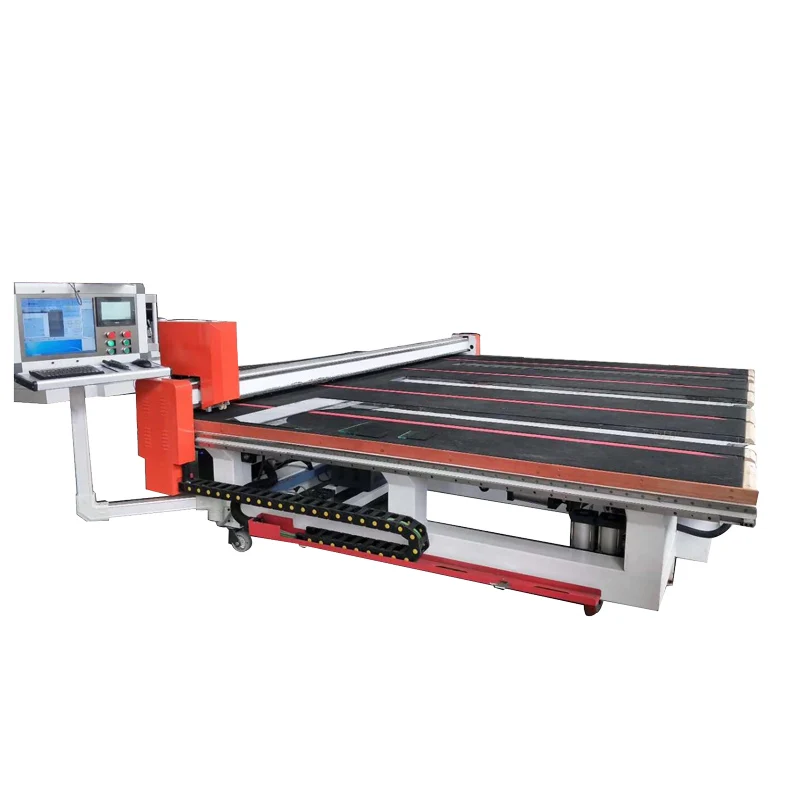

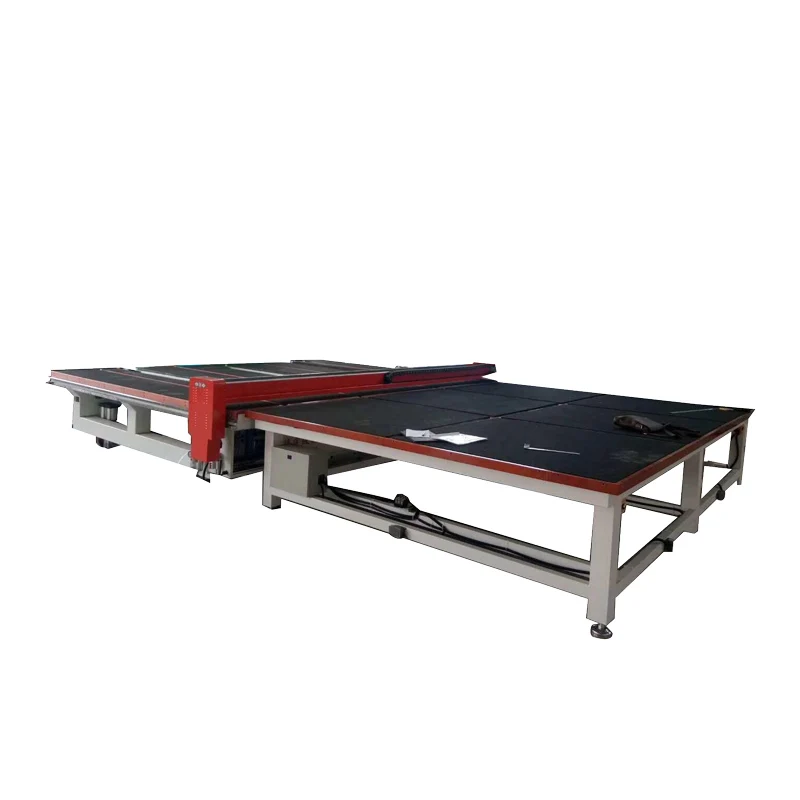

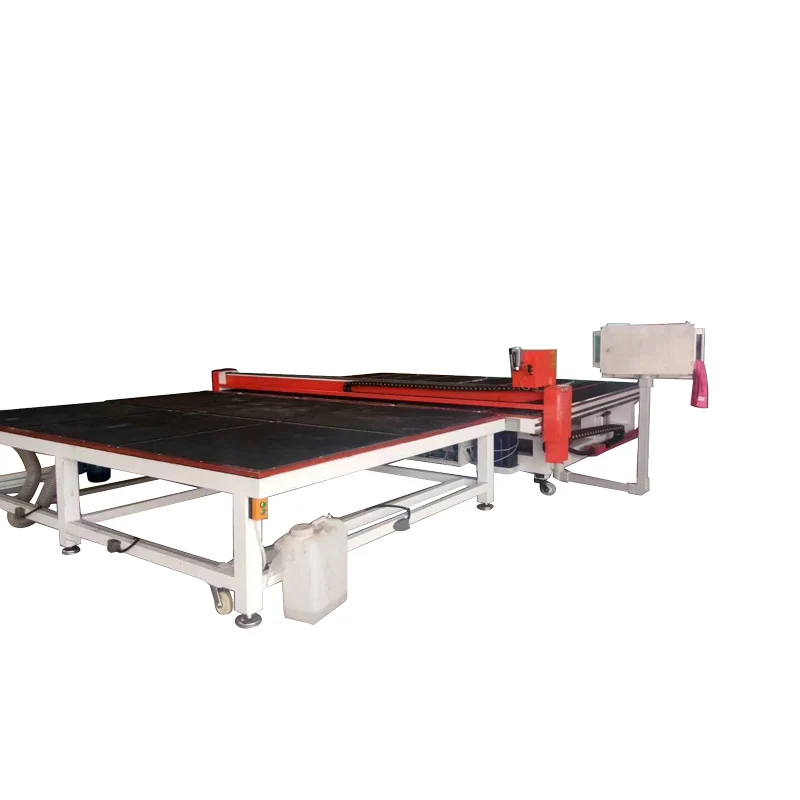

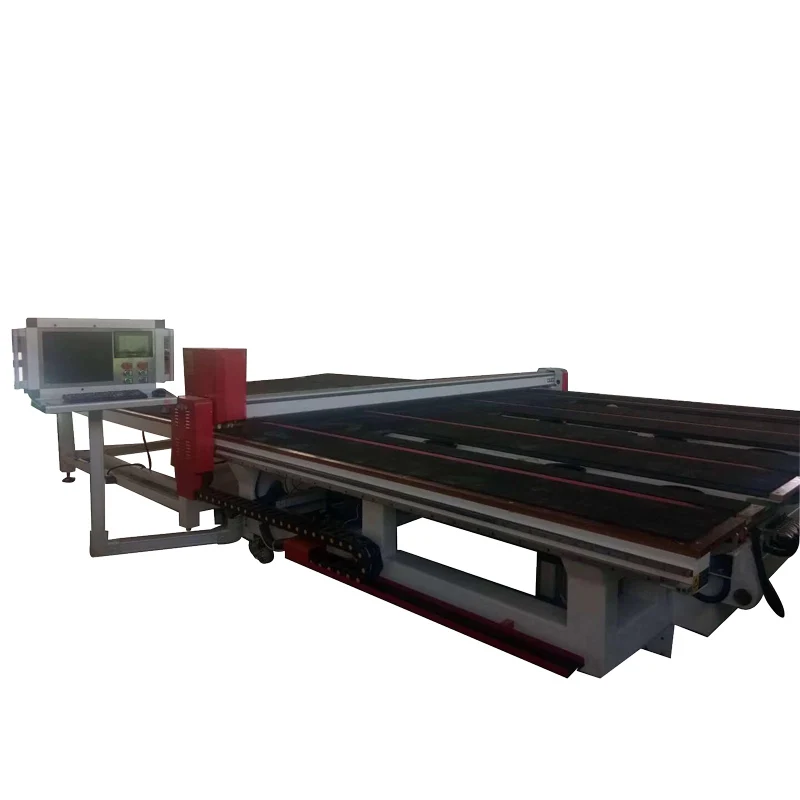

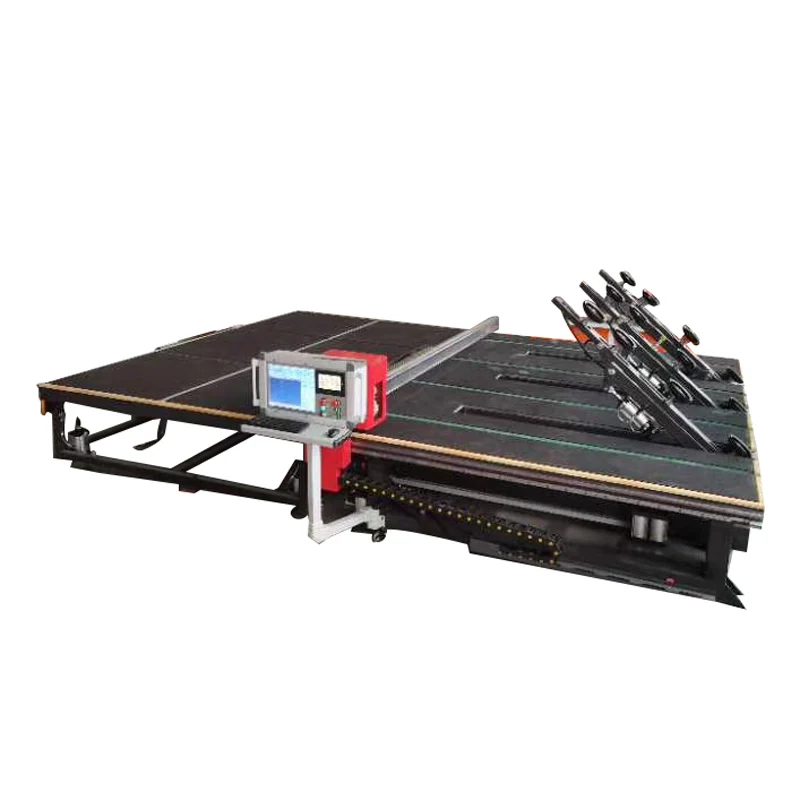

CNC3826 automatic glass cutting machine

multiple functions:

loading,straight line cutting,shape cutting,breaking,air flotation,walking

around,remote control......



Main features:to keep accuracy and stable:
1.GUIYOU optimization software(More than 2000 figures backup);
2.Germany smooth cutting wheels;
3.YASKAWA servo motors;
4.Switzerland trail and gear;
5.Double motors driving;
6.American GALIL Controller;
7.Cutting accracy≤±0.10mm/m;
8.Imported countertops and felt to prevent moisture deformation;
9.cutting speed up to 180m/min.



Specificatioins:



Model	CNC3826
Dimension	4300*3050*850mm
Maximum glass size	3660*2440mm
Glass thickness	2-19mm
Power supply	380V/50HZ/8KW(customized)
Weight	2800kg
The fastest loading cycle	25-50 seconds
The maximum suction depth	700mm
Maximum loading load	900KG

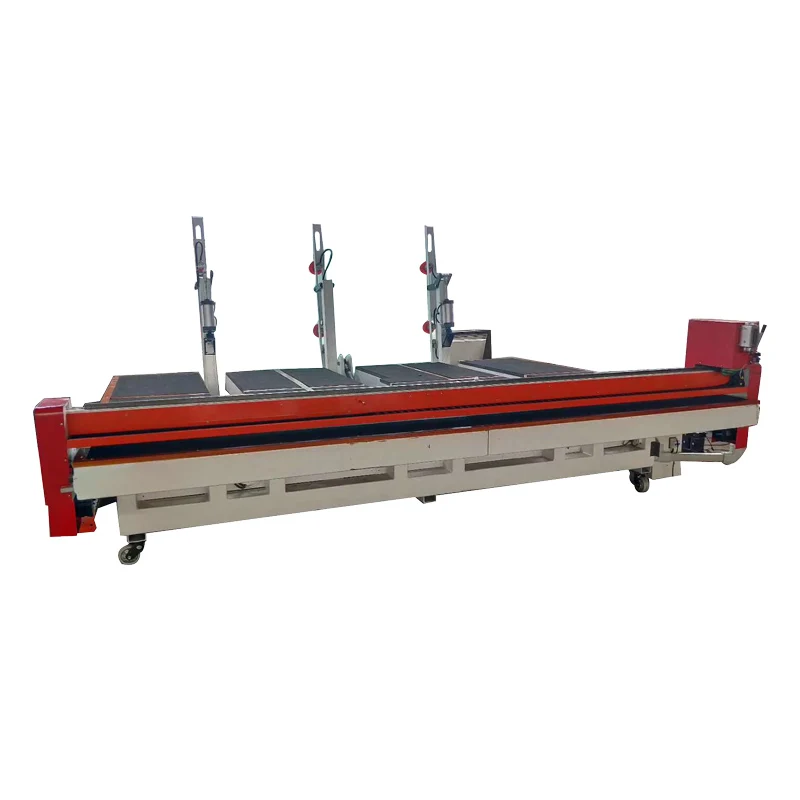

Number of loading arms on one side	3 arms
Number of single-arm suction cups	4 pieces
The loading arms	single side
Loading station	single station
Straight parallelism	0.25mm/m
Cutting speed	280m/min
Cutting accuracy	≤0.15mm
Diagonal accuracy	0.2mm/m
Cutting bridge speed	0~160m/min(adjustable)
Cutting bridge acceleration	≥3.0m/s²
Cutting head speed	160m/min
Cutting head acceleration	6m/s²
Belt conveying speed	≥40m/min
Cutting head positioning accuracy	≤±0.2mm
Compressed air	0.6MPA
Vacuum pressure	-70~90Kpa (adjustable according to glass thickness)





Payment terms:
1.LC at sight;
2.TT(30% in advance,the balance before delivery)



Trade terms:
EXW or FOB or others by request.



Package:
Wooden box



Delivery:
Regular standard items delivery will be 10 days after deposit;
Customized items delivery will be depended on negotiation.



After-service:
7*24 hotline:+8615866605088;
Video solutions;
Technicians provided.



Guarantee:
12 months guarantee after items recieved,damaged parts changed for free within one year;
Service provided for whole servcie life,just pay the parts cost;
