Single Phase Front Board Installed Mechanical Energy Meter
US $8.30-$8.79
Single phase STS Keypad Prepaid kWh meter /smart elenergy meter
- Category: Electrical Instruments >>>
- Supplier: Wuxi Zhongyi Smart Technology Co. Ltd.
Share on (1600321639677):
Product Overview
Description
Product introduction
ZY866 is a modern single phase prepaid energy meter designed according to latest craft and design. Customer purchases energy from the vending software to generate one 20 digits encrypted “TOKEN”, then enter into prepayment meter by keypad on the meter. The credit will be entered into the meter after the TOKEN being accepted.
The data transmission protocol of the meter complies with IEC62055-41, All the specifications comply with IEC62055-31. And meter designed in accordance with IEC62053-21.Optical port complies with IEC62056-21
The data transmission protocol of the meter complies with IEC62055-41, All the specifications comply with IEC62055-31. And meter designed in accordance with IEC62053-21.Optical port complies with IEC62056-21

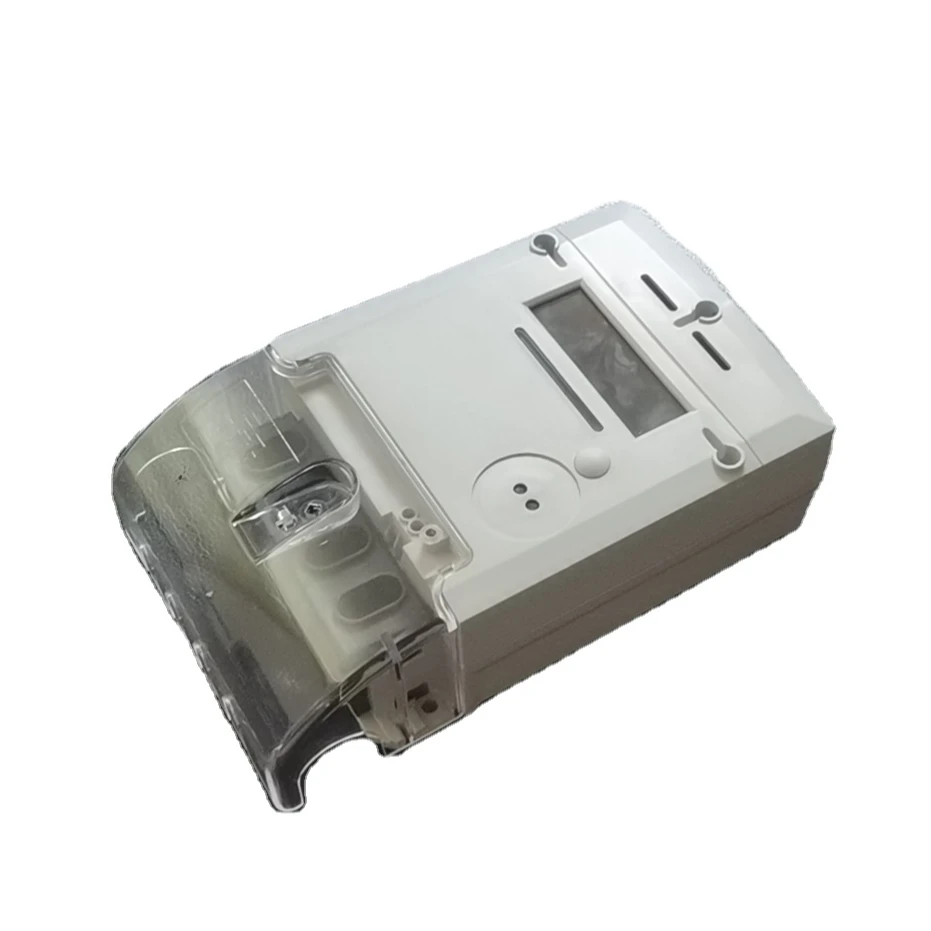

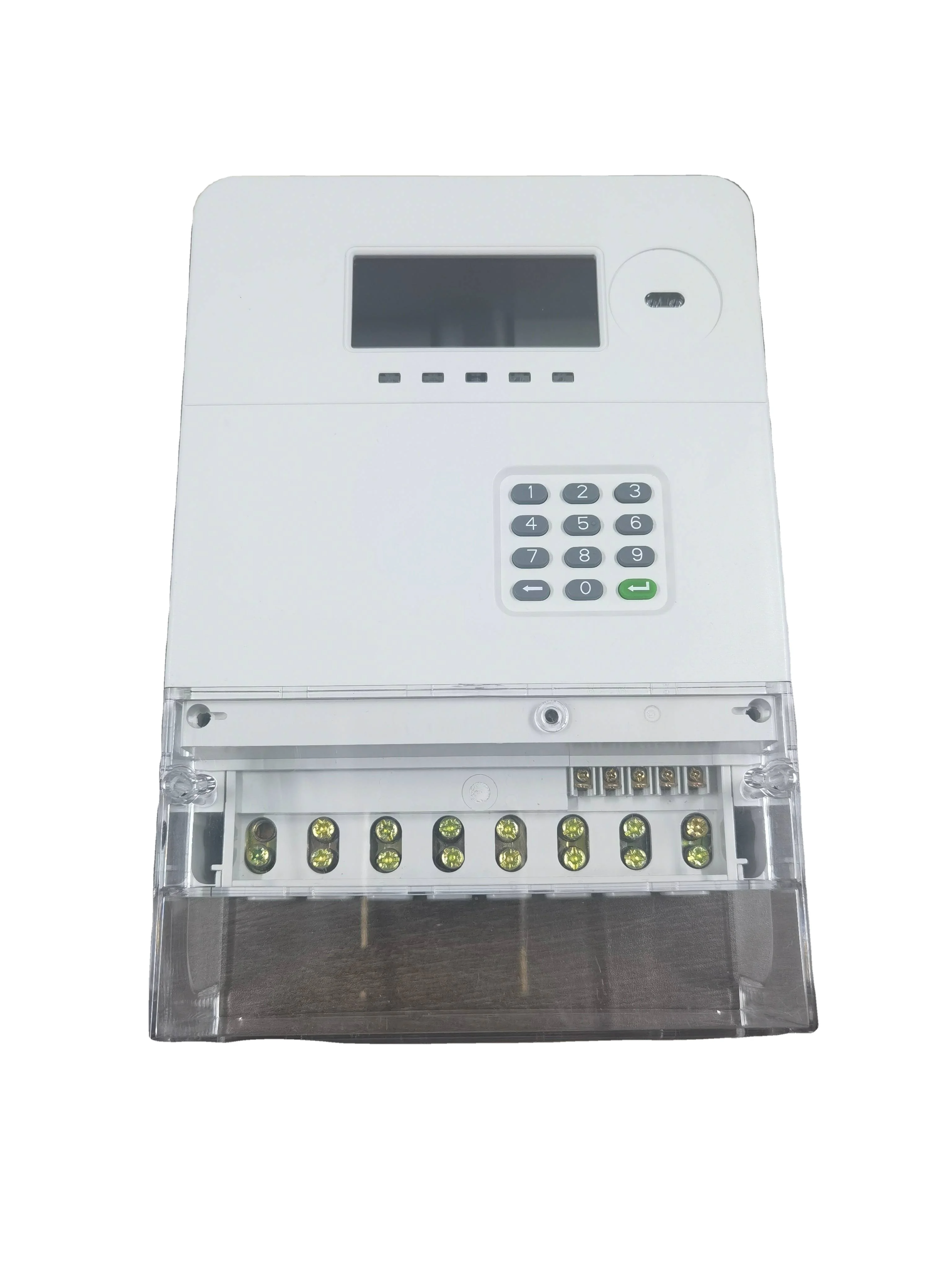

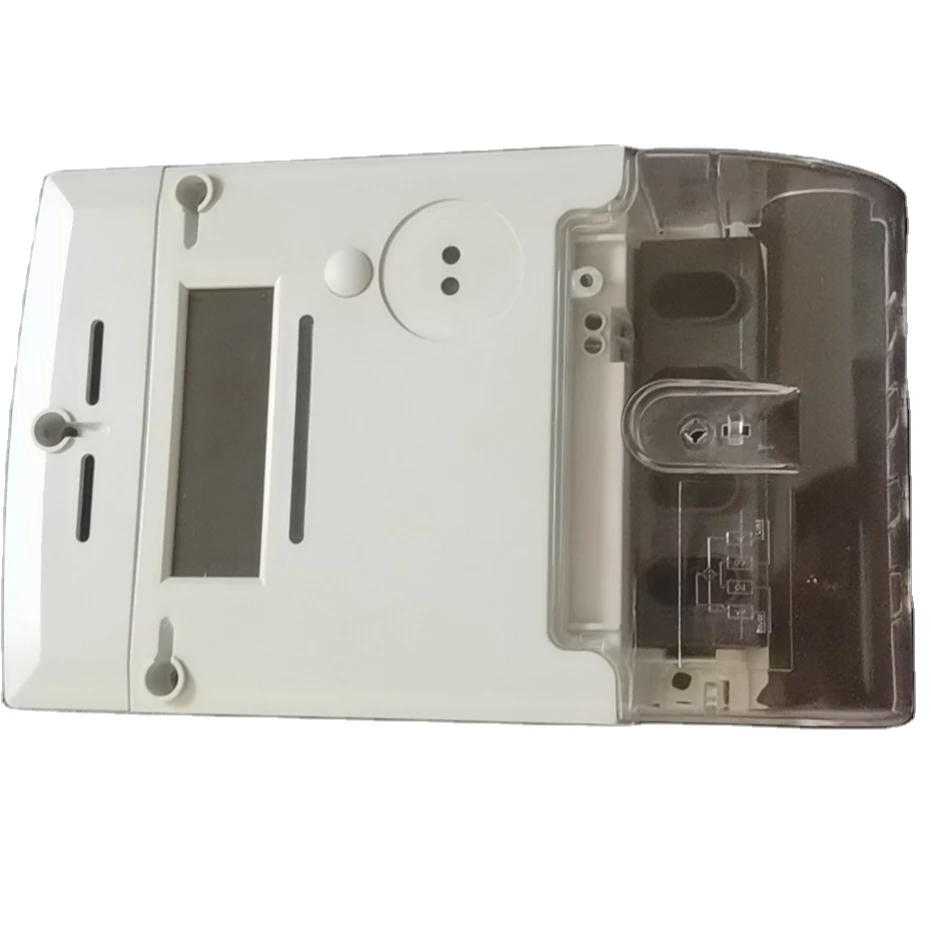

Product appearance：
Technical parameter：
Technical parameter name | Discriptions |
The reference current | 5(60)A, 5(80)A |
Rated voltage | AC 220V, 230V, 240V |
Accuracy grade | Level1/Level2 |
Meter constant | 1000imp/kWh |
Working temperature | -10℃～ 70℃ |
Power consumption | ＜4VA, 1.5W |
Starting current | 0.4%Ib |
Reference frequency | 50 / 60Hz |
Product features
1.Measure active energy (kWh);
2. Unidirectional or Bi-directional Measurement;
3. 6+2 LCD display with backlight;
4.20-digit transmission as a token, customer purchases energy before consumption; Low energy alarm and low energy trip to remind the customer to purchase energy;
5. With optical communication port for reading meter data and setting parameters;
6. Overload protection;
7. Open terminal cover and base cover detection alarm;
8. Meter Information supply short code Enquiry;
9. Multi-Level alarm value enable setup;
2. Unidirectional or Bi-directional Measurement;
3. 6+2 LCD display with backlight;
4.20-digit transmission as a token, customer purchases energy before consumption; Low energy alarm and low energy trip to remind the customer to purchase energy;
5. With optical communication port for reading meter data and setting parameters;
6. Overload protection;
7. Open terminal cover and base cover detection alarm;
8. Meter Information supply short code Enquiry;
9. Multi-Level alarm value enable setup;
After the communication module is superimposed, if combined with the integrated energy
control platform software independently developed by the company，It can realize：
control platform software independently developed by the company，It can realize：
* Unmanned, reduced manpower.
●automatic data logging.
●Industrial-grade communication equipment ensures the safety and reliability of meter reading.
●Complete system log traceability is available.
●Visual graphics, data statistics.
●Meter status alarm；When low-power and low-volume magnetic attack sampling fault leakage alarm (external leakage alarm) occurs,
real-time alarm information is uploaded to the background application platform.
●Control the gasmeter valve switch through background application software (desktop WEB and mobile APP).
●When the meteris removed or attacked by external forces, the information will be transmitted to the background application
platform in real time
●The stability of data transmission can be monitored.
●automatic data logging.
●Industrial-grade communication equipment ensures the safety and reliability of meter reading.
●Complete system log traceability is available.
●Visual graphics, data statistics.
●Meter status alarm；When low-power and low-volume magnetic attack sampling fault leakage alarm (external leakage alarm) occurs,
real-time alarm information is uploaded to the background application platform.
●Control the gasmeter valve switch through background application software (desktop WEB and mobile APP).
●When the meteris removed or attacked by external forces, the information will be transmitted to the background application
platform in real time
●The stability of data transmission can be monitored.
Application：
Factory environment
Qualification：
Packing and delivery：
