SINO STAHL 400C 3 functions planer wood planer thicknesser jointer combination wood planer cutting drilling machine rubber
- Category: >>>
- Supplier: Sichuan Vanwood Technology Co. Ltd.
Share on (1600321664580):
Product Overview
Description
PRODUCT SPECIFICATIONS
400C/300C difference

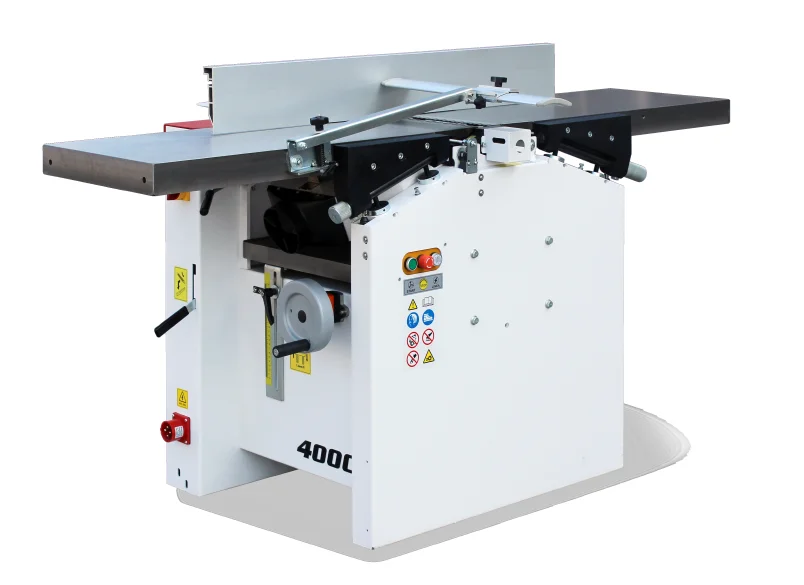

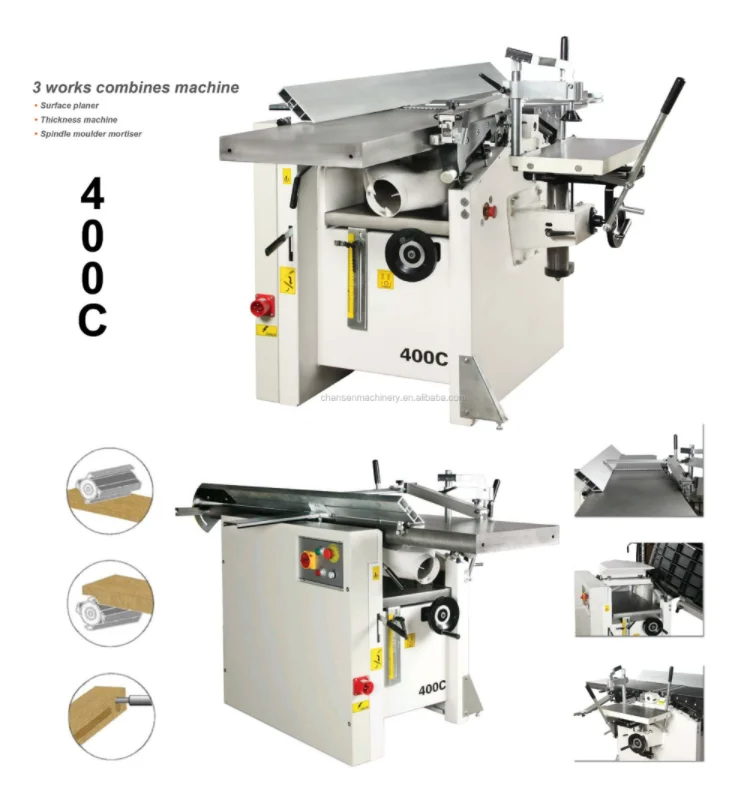

●400C / 300C, combined surface planer, thickness planer and mortiser,
compact and solid, passing from one process to another in
less than 15 seconds, without losing accuracy and stability.
compact and solid, passing from one process to another in
less than 15 seconds, without losing accuracy and stability.
● 400C / 300C, planer / thicknesser and mortiser, compact and
strong, you can change work unit in less than 15 seconds, without losing precision and stability.
strong, you can change work unit in less than 15 seconds, without losing precision and stability.

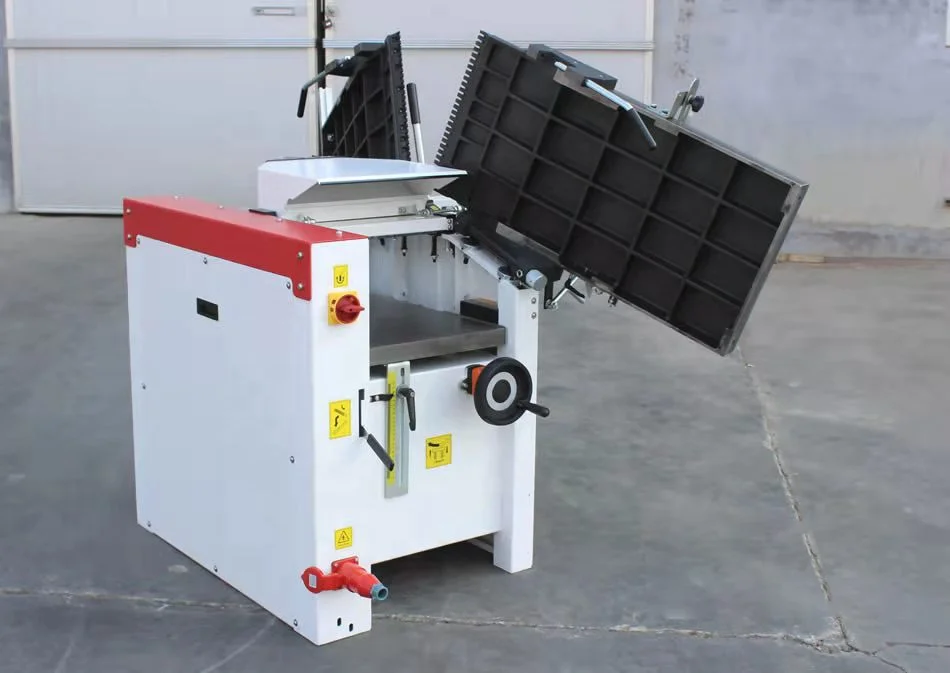

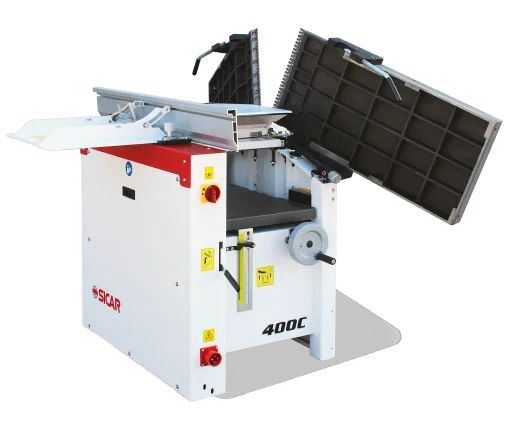

Thicknesser | ||
Worktable size | 760 x400mm | |
Feeding speed | 7m/min | |
Max. cutting depth | 4mm | |
Max. stock thickness | 220mm | |
Min. stock thickness | 4mm | |
Cutterhead speed | 5700 rpm | |
Mortiser | ||
Worktable size | 500 x250mm | |
Longitudinal travel | 205mm | |
Transversal travel | 95mm | |
Vertical travel | 90mm | |
Chuck capacity | 16mm | |
Spindle speed | 5700 rpm | |
Surface planer | ||
Worktabel size | 1800 x400mm | |
Cutterhead dia. | 70mm | |
No. of knives | 3 HHS straight blades | |
Knife size | 400 x20 x3mm | |
Max. table adjustment | 4mm | |

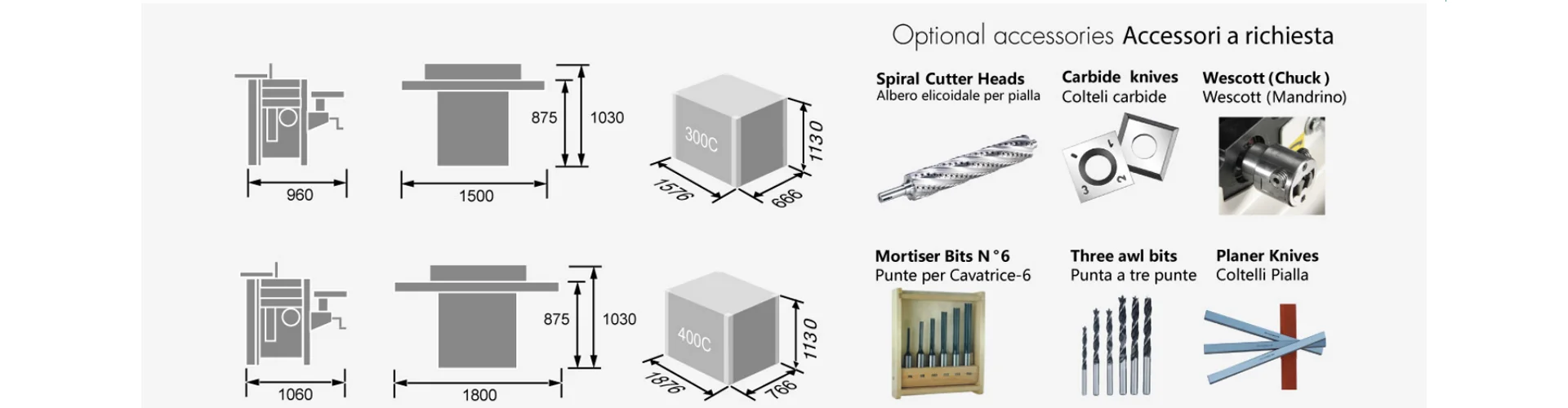

Optional accessories | ||||||||

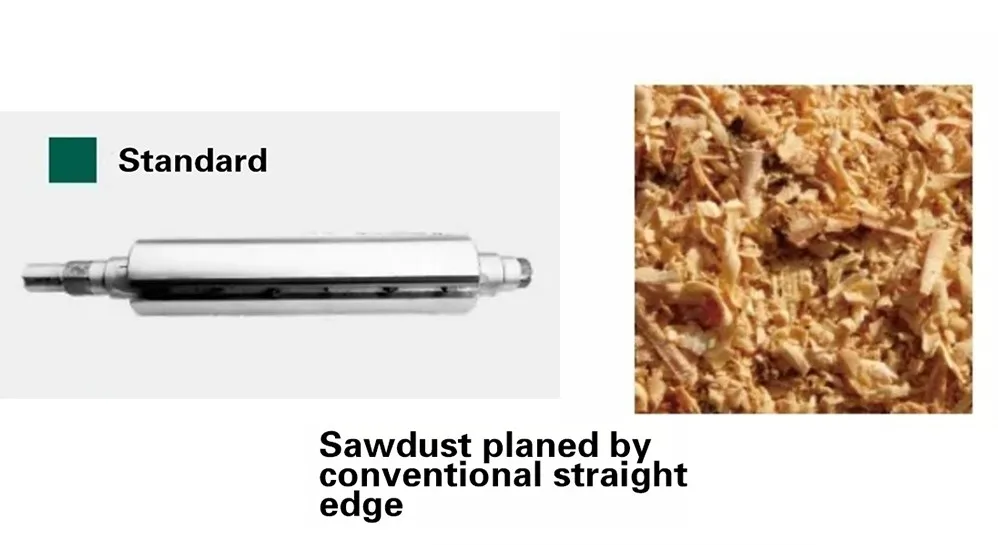

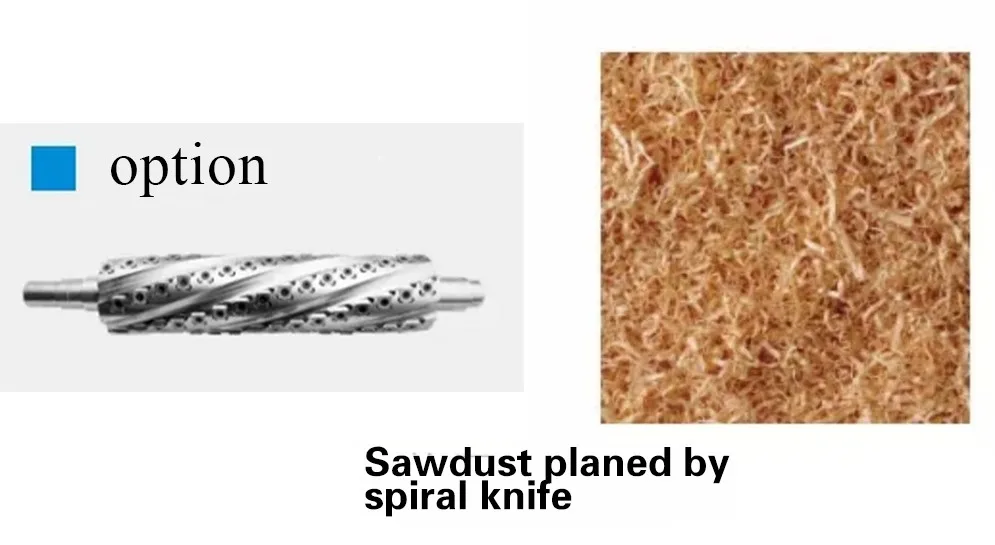

* Spiral cutterhead | ||||||||
* 6-picec mortiser bit set (6/8/10/12/14/16) | ||||||||
* Wescott collet (0-16) for mortiser | ||||||||
* 5kw/3ph motor | ||||||||
* 6-piece AWL drilling bits (6/8/10/12/14/16) | ||||||||
No | Item | Data |
Technical Specification | Unit | 400C/300C |
Max. planing width | mm | 400 |
Max.number of planing | mm | 5 |
planer shaft speed | r/min | 5200 |
Cutting diameter | mm | Ø120 |
Motor power | kW | 3 |
dimensions | mm | 2000*760*1140 |
Net.weight | kg | 485 |

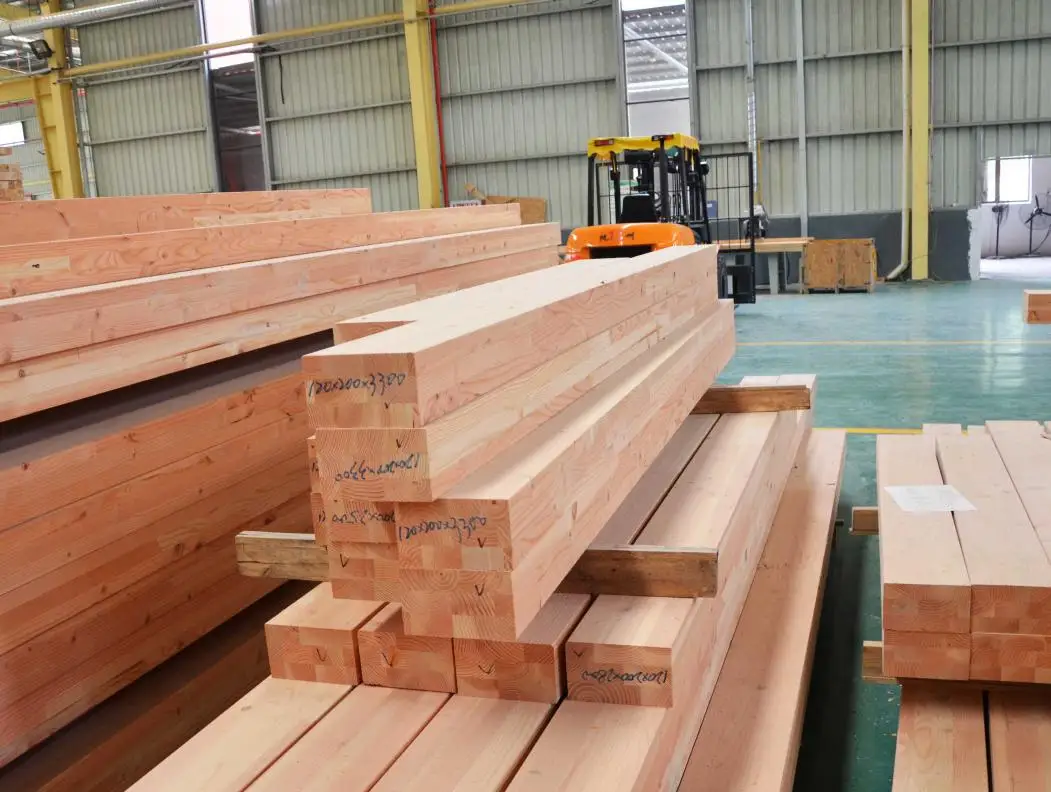

APPLICATION
Our products get very good reviews
SALES AND SERVICE NETWORK
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long termcooperation with each other and have
closely relationship with each other,so thereis no problem in shipment.
3.Our Warranty?
closely relationship with each other,so thereis no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normaloperation of oneshift per day.
(2) Wewill be responsible for the maintenance of damaged part which is undernormal situation during warranty period, and all the
round-trip couriertransportation cost of damaged/repaired replacement parts in warranty periodshould be borne by the buyer.
Wearing parts are not included.
round-trip couriertransportation cost of damaged/repaired replacement parts in warranty periodshould be borne by the buyer.
Wearing parts are not included.
(3) 24 hour technical support by email or calling
(4) User-friendly English manual for machine
using and maintaining
4.our srvices?
using and maintaining
4.our srvices?
(1)One-stop service, meet needs of the customers from individuals to internationalcompanies.
(2)OEM service
accepted.
accepted.
(3) Separate trading office: Trading with 30 experienced sales offering fullscaleservice.
(4)After sale Service:
experienced and knowledgeable team of technical support,provideengineer oversea service.
experienced and knowledgeable team of technical support,provideengineer oversea service.
