Small River Boat Dredger Pump Cutter Suction Self Propelled Cutter Suction Dredger Sale
- Category: >>>
- Supplier: Baoding Heb Construction Engineering Co. Ltd.
Share on (1600321715212):
Product Overview
Description
Small River Boat Dredger Pump Cutter Suction Self Propelled Cutter Suction Dredger Sale
Mainly size of cutter suction dredger
| NO. Item | Water flow (m3) | Capacity(m3) | Dredging depth(m) | Discharge distance (m) | Pump type | Mainly engine power(kw) |
| 8 inch | 800 | 160 | 8 | 800 | WN200 | 220 |
| 10 inch | 1000 | 200 | 9 | 1000 | WN250 | 336 |
| 12 inch | 1500 | 300 | 11 | 1200 | WN350 | 559 |
| 14 inch | 2000 | 400 | 12 | 1500 | WN300 | 634 |
| 16 inch | 2500 | 500 | 13 | 1500 | WN350 | 746 |
| 18 inch | 3500 | 700 | 15 | 1500 | WN450 | 895 |
| 20 inch | 4000 | 800 | 15 | 2000 | WN500 | 1268 |
| 22 inch | 4500-5000 | 900-1000 | 16 | 2000 | WN500 | 1491 |
| 24 inch | 5500 | 1100 | 20 | 2000 | WN500 | 2190 |
| 28 inch | 8000 | 1600 | 20 | 2500 | WN700 | 3000 |
Product Features of Cutter Suction Dredger:
Modular design:
The pontoons and main spare parts are connected by the bolts and nuts, which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course, the delivery time will be reduced a lot by containers.
World -class spare parts:
We use the best parts like Cummins disel engine and Simmens PLC controlling system.......Also, we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers.
Flexible in use:
The dredgers can be adapted to different circumstance like river and lake. The material like sand, stones, mud, salt can be easily sucked and discharged to the destination place.

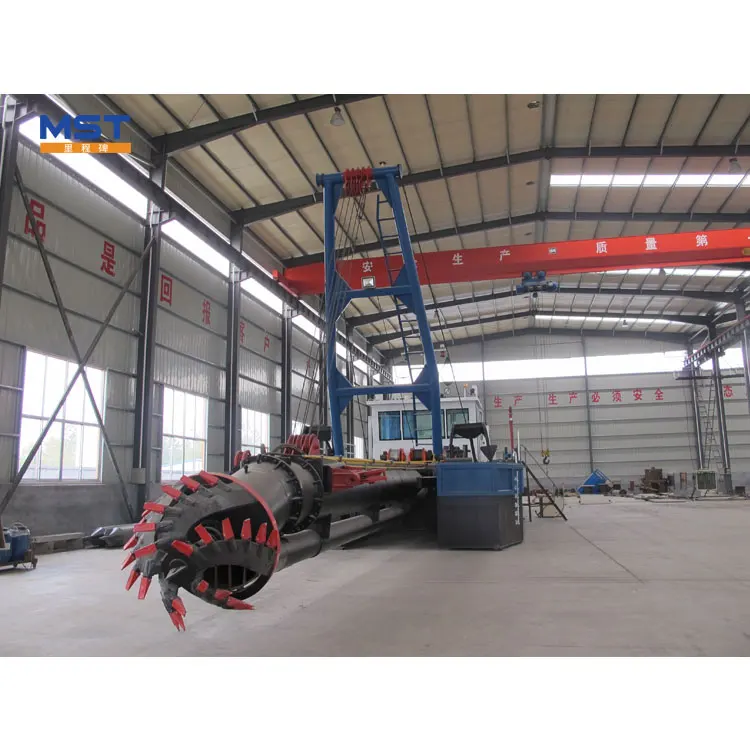

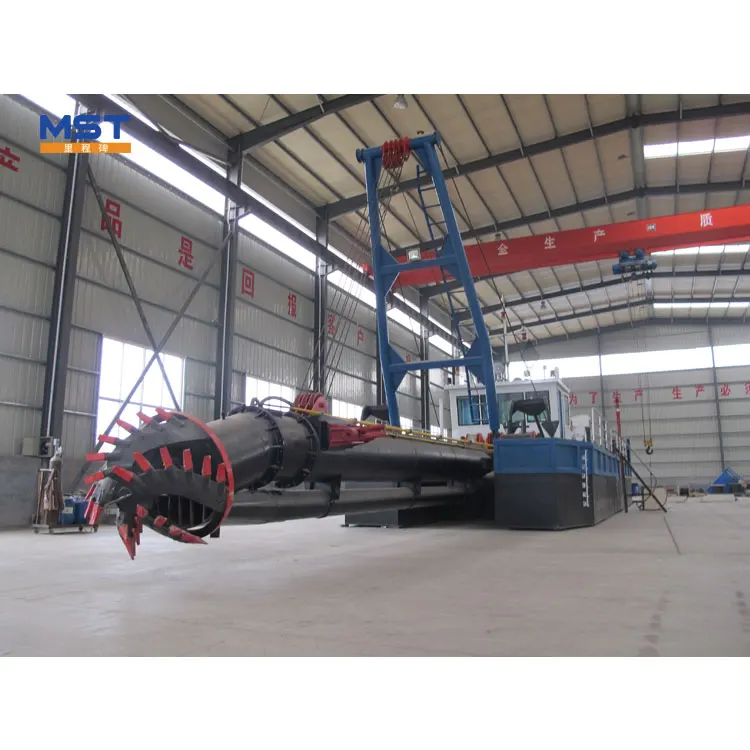

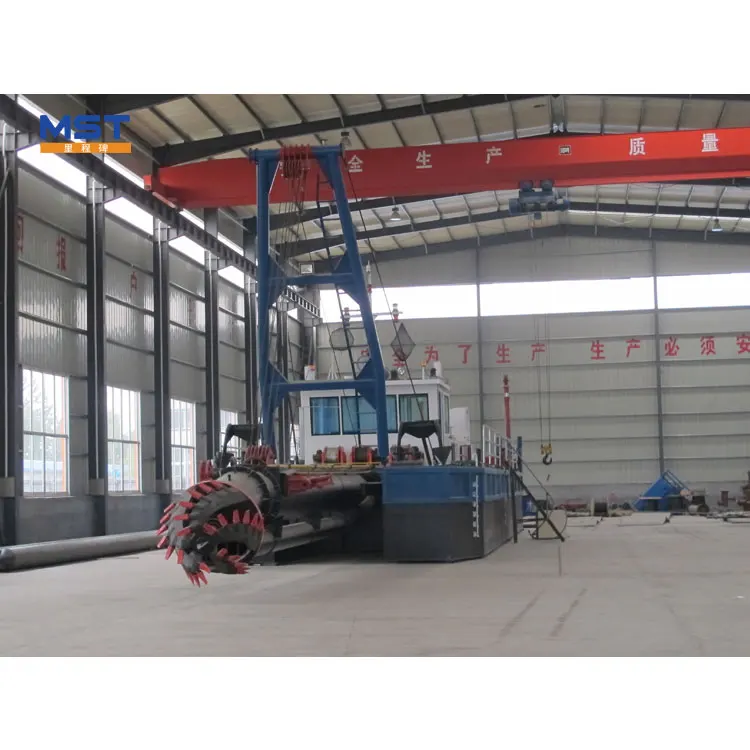

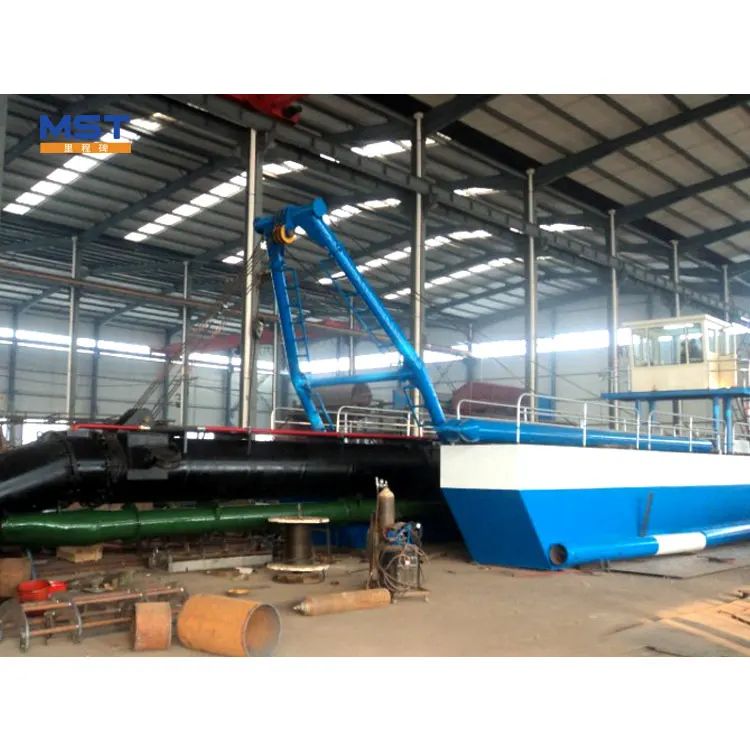

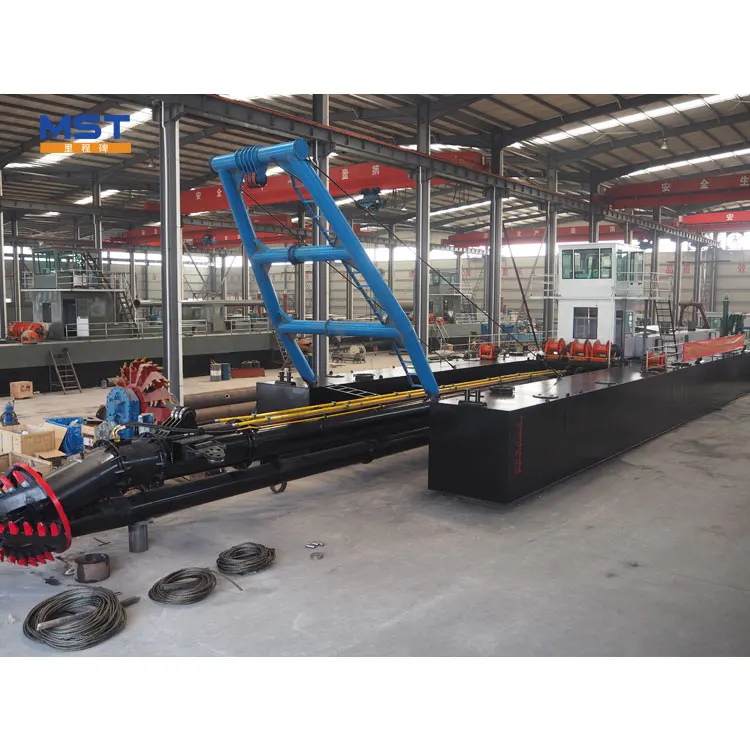

Our factory and machine
Usage range of mini sand dredger
Including but not limited to the following areas:
1.rivers, lakes, sea, reservoirs, pumping sand.
2.rivers, lakes, reservoirs, pumping port dredging silt.
3.pumping sand beneficiation: Select iron sand pumping, pumping sand gold, rare earths, such as pumping sand election.
4.sewage treatment plant settling ponds cleanup.
5.municipal pipelines, storm water pumping station, hydroelectric sediment cleanup.
6.construction (sinking bridge construction, etc.) discharge of sediment, mud.
7.steel plant blast furnace slag, slag, pumping iron oxide delivery.
8. tailing, slag, slurry transportation.
9.coal cinder, coal, coal slurry cleanup.
10.power plant fly ash, coal, coal slurry transportation.
11.to learn all kinds of diamond sand, quartz sand, slag solid particles.
12.a tile factory smoke powder.
13.coastal land reclamation.
14.slurry transport materials containing various impurities.
15.delivery of other media containing large solid particles.
PACKING AND SHIPPING
Way of Packing * FLC&LCL Export standard container 20/40 GP.
* Steel support & iron sheet sea- worthy package.
* Load: Export software scientific loading work
Transportation * By sea freight.
* MSK/MSC/APL/EMC/WANHAI/KLINE
* Air delivery services
* We will remind you before boat arrives.
After-sales service:
1. Free dredger consulting and product drawings
2.Customize the dredging machine according to the customer's actual dredging requirements
3. Site visit and factory visit are provided
4. Arrange 2-3 senior engineers and technicians to enter the work site within 36 hours
5. Free professional assembly, training and operation to ensure a smooth operation of the dredger
6. 1 year warranty, lifetime technical support
7. Sign after-sales service agreement with customer
8. Spare parts are supplied at a discounted price
9. Site availability
10. Responsible sales team, design team, manufacturing team to provide customers with the best service 24/7.
